Hyundai Santa Fe (2006 - 2009)

Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Table of contents:

Model specs

Model info

Model name
Hyundai Santa Fe
Generation
CM
Production years
2006 - 2009
Doors
5
5

Dimensions

Length
4675 mm
4,395.0
Avg
4,815.0
Higher is better
Wheelbase
2700 mm
2,655.0
Avg
2,815.0
Higher is better
Width
1890 mm
1,795.0
Avg
1,900.0
Higher is better
Height
1795 mm
1,540.0
Avg
1,795.0
Higher is better
Ground clearance
203 mm
134.0
Avg
219.0
Higher is better
Turning circle
10 m
10.0
Avg
12.0
Lower is better

Boot/interior

Boot space
528 l
430.0
Avg
910.0
Higher is better
Boot space (rear seats folded, bottom to roof)
894 l
894.0
Avg
2,105.0
Higher is better
Seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
4 - 6
3.0
Avg
4.0
Higher is better
Max. speed
176 - 190 km/h
176.0
Avg
221.0
Higher is better
Torque
248 - 335 Nm
208.0
Avg
440.0
Higher is better
Power
110 - 139 kW
90.0
Avg
142.0
Higher is better
Cubic capacity
2188 - 2656 ccm
1,199.0
Avg
2,188.0
Higher is better
Acceleration 0-100km/h
10 - 12 s
8.0
Avg
11.0
Higher is better

Consumption/ecology

Tank size
64 - 75 l
51.0
Avg
75.0
Higher is better
Combined consumption (NEDC)
7 - 12 l/100km
  • hyundai LogoHyundai Santa Fe (This) 7 - 12 l/100km
    7.0
  • toyota LogoToyota RAV4 6 l/100km
6.0
Avg
7.0
Higher is better
City consumption (NEDC)
9 - 16 l/100km
  • hyundai LogoHyundai Santa Fe (This) 9 - 16 l/100km
    9.0
  • toyota LogoToyota RAV4 7 l/100km
7.0
Avg
9.0
Higher is better
Empty weight (EU)
1745 - 1968 kg
1,395.0
Avg
1,825.0
Higher is better

Towing

Max. towbar load
80 kg
64.0
Avg
100.0
Higher is better
Max. roof load
100 kg
70.0
Avg
100.0
Higher is better
Braked trailer
2000 - 2200 kg
1,300.0
Avg
2,500.0
Higher is better
Trailer (no brakes)
750 kg
600.0
Avg
750.0
Higher is better

Offroad

Ramp angle
18 °
16.0
Avg
18.0
Higher is better
Maximum incline
53 °
  • hyundai LogoHyundai Santa Fe (This) 53 °
    53.0
  • toyota LogoToyota RAV4 32 °
32.0
Avg
53.0
Higher is better
Departure angle
22 °
17.0
Avg
22.0
Higher is better
Approach angle
25 °
16.0
Avg
25.0
Higher is better
Fording
500 mm
  • hyundai LogoHyundai Santa Fe (This) 500 mm
    500.0
  • toyota LogoToyota RAV4 500 mm
    500.0
500.0
Avg
500.0
Higher is better

Engines (Santa Fe)

Filter by fuel:
Diesel
MAN FWD
2.2 CRDi GLS 2WD
Engine & Power
Power
110 kW / 150 HP
Capacity
2.2L (2,188 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
180 km/h
Torque & RPM
Torque
335 Nm
Consumption
Combined consumption (NEDC)
7 l/100km
Maximum torque at RPM
1800 RPM
City consumption (NEDC)
9 l/100km
Technical Details
Maximum output at RPM
4000 RPM
Fuel injection
Common Rail
Diesel
AUT AWD
2.2 CRDi GLS 4WD Automatik
Engine & Power
Power
110 kW / 150 HP
Capacity
2.2L (2,188 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
12 s
Max. speed
178 km/h
Torque & RPM
Torque
335 Nm
Consumption
Combined consumption (NEDC)
8 l/100km
Maximum torque at RPM
1800 RPM
City consumption (NEDC)
11 l/100km
Technical Details
Maximum output at RPM
4000 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
2.2 CRDi GLS 2WD
Engine & Power
Power
114 kW / 155 HP
Capacity
2.2L (2,188 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
180 km/h
Torque & RPM
Torque
335 Nm
Consumption
Combined consumption (NEDC)
7 l/100km
Maximum torque at RPM
1800 RPM
City consumption (NEDC)
9 l/100km
Technical Details
Maximum output at RPM
4000 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
2.2 CRDi GLS 2WD Automatik
Engine & Power
Power
114 kW / 155 HP
Capacity
2.2L (2,188 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
12 s
Max. speed
179 km/h
Torque & RPM
Torque
335 Nm
Consumption
Combined consumption (NEDC)
8 l/100km
Maximum torque at RPM
1800 RPM
City consumption (NEDC)
10 l/100km
Technical Details
Maximum output at RPM
4000 RPM
Fuel injection
Common Rail
LPG
MAN FWD
2.7 V6 LPG GLS 2WD -5-seats
Engine & Power
Power
139 kW / 189 HP
Capacity
2.7L (2,656 ccm)
Cylinders
6
Performance
Acceleration 0-100km/h
10 s
Max. speed
190 km/h
Torque & RPM
Torque
248 Nm
Consumption
Combined consumption (NEDC)
11 l/100km
Maximum torque at RPM
4000 RPM
City consumption (NEDC)
15 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Injection
LPG
AUT AWD
2.7 V6 LPG GLS 4WD -automatic -5-seats
Engine & Power
Power
139 kW / 189 HP
Capacity
2.7L (2,656 ccm)
Cylinders
6
Performance
Acceleration 0-100km/h
11 s
Max. speed
176 km/h
Torque & RPM
Torque
248 Nm
Consumption
Combined consumption (NEDC)
12 l/100km
Maximum torque at RPM
4000 RPM
City consumption (NEDC)
16 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Injection
Regular Gasoline
MAN FWD
2.7 V6 GLS 2WD
Engine & Power
Power
139 kW / 189 HP
Capacity
2.7L (2,656 ccm)
Cylinders
6
Performance
Acceleration 0-100km/h
10 s
Max. speed
190 km/h
Torque & RPM
Torque
248 Nm
Consumption
Combined consumption (NEDC)
10 l/100km
Maximum torque at RPM
4000 RPM
City consumption (NEDC)
13 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Injection
Regular Gasoline
AUT AWD
2.7 V6 GLS 4WD Automatik
Engine & Power
Power
139 kW / 189 HP
Capacity
2.7L (2,656 ccm)
Cylinders
6
Performance
Acceleration 0-100km/h
11 s
Max. speed
176 km/h
Torque & RPM
Torque
248 Nm
Consumption
Combined consumption (NEDC)
10 l/100km
Maximum torque at RPM
4000 RPM
City consumption (NEDC)
14 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Injection
Compare all engines

Hyundai Santa Fe generations

Santa Fe 1.Generation
2001 - 2004
Length4500 mm
Height1730 mm
Wheelbase2620 mm
Length4500 mm
Santa Fe 1.Generation (1. Facelift)
2004 - 2006
Length4500 mm
Height1710 mm
Wheelbase2620 mm
Length4500 mm
Santa Fe 2.Generation
2006 - 2009
Length4675 mm
Height1795 mm
Wheelbase2700 mm
Length4675 mm (+175 mm)
Santa Fe 2.Generation (1. Facelift)
2010 - 2012
Length4660 mm
Height1760 mm
Wheelbase2700 mm
Length4660 mm (-15 mm)
Santa Fe 3.Generation
2012 - 2015
Length4690 mm
Height1685 mm
Wheelbase2700 mm
Length4690 mm (+30 mm)
Santa Fe 3.Generation (1. Facelift)
2015 - 2018
Length4700 mm
Height1675 mm
Wheelbase2700 mm
Length4700 mm (+10 mm)
Santa Fe 4.Generation
2018 - 2020
Length4770 mm
Height1680 mm
Wheelbase2765 mm
Length4770 mm (+70 mm)
Santa Fe Santa Fe 4.Generation (1. Facelift)
2020 - 2024
Length4785 mm
Height1685 mm
Wheelbase2765 mm
Length4785 mm (+15 mm)
Santa Fe Santa Fe 5. Generation
2024 - Now
Length4830 mm
Height1720 mm
Wheelbase2815 mm
Length4830 mm (+45 mm)
Compare all generations

1967
1967
Hyundai founded
2001
2001
1.Generation was introduced.
2004
2004
1.Generation (1. Facelift) was introduced and replaced 1.Generation.
2006
2006
2.Generation was introduced and replaced 1.Generation (1. Facelift).
2009
2009
2.Generation was introduced and replaced 1.Generation (1. Facelift).
2010
2010
2.Generation (1. Facelift) was introduced.
2012
2012
3.Generation was introduced and replaced 2.Generation (1. Facelift).
2015
2015
3.Generation (1. Facelift) was introduced and replaced 3.Generation.
2018
2018
4.Generation was introduced and replaced 3.Generation (1. Facelift).
2020
2020
Santa Fe 4.Generation (1. Facelift) was introduced and replaced 4.Generation.
2024
2024
Santa Fe 5. Generation was introduced and replaced Santa Fe 4.Generation (1. Facelift).
2006 Hyundai Santa Fe SUV captured from a front three-quarter angle showcasing its grille, LED headlights, alloy wheels, and metallic paint parked on grass with a natural backdrop

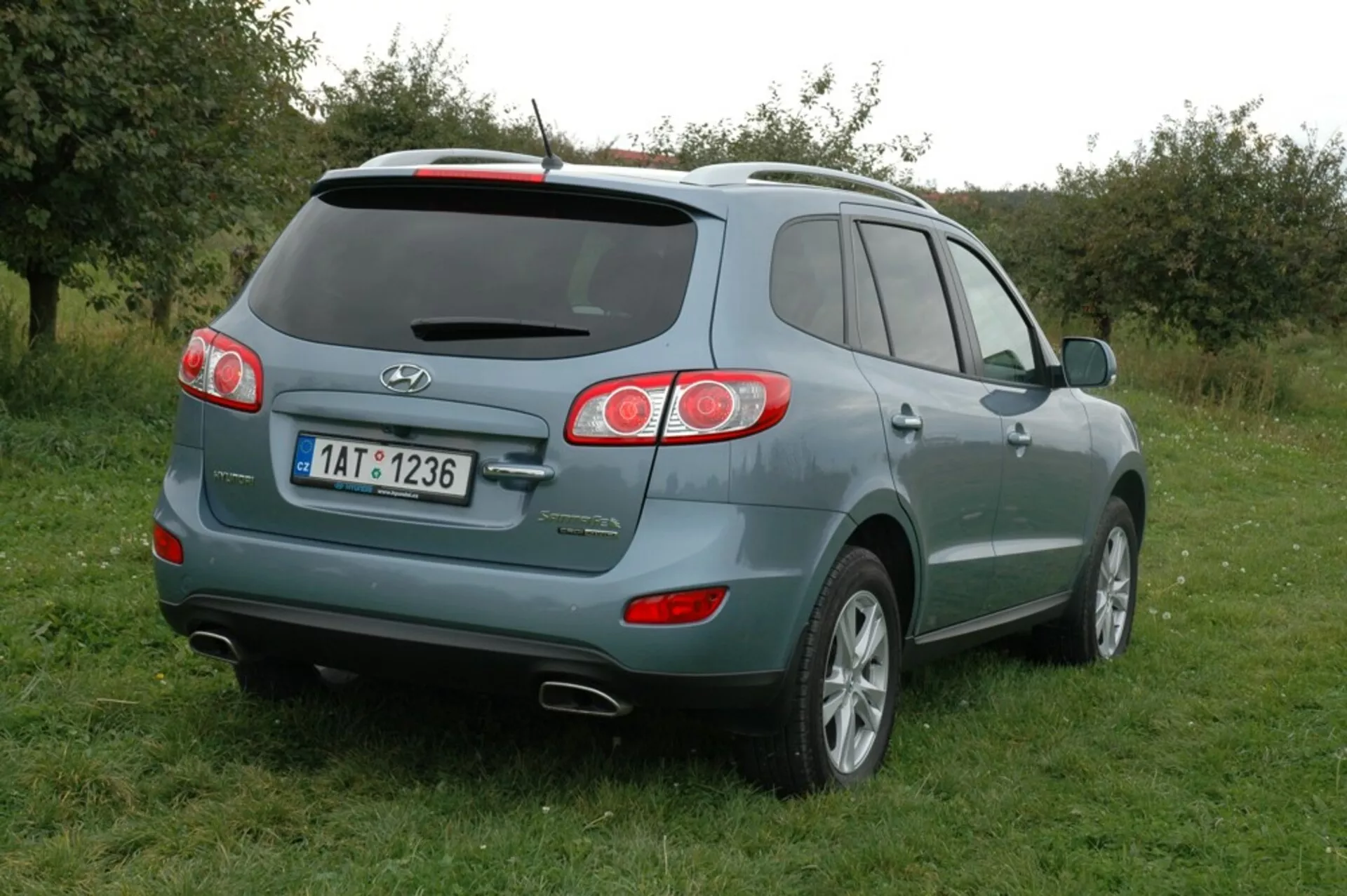

2006 Hyundai Santa Fe parked on grass showcasing its rear and side view with detailed features like circular taillights, rear bumper, roof spoiler, and tinted windows in a natural daytime setting

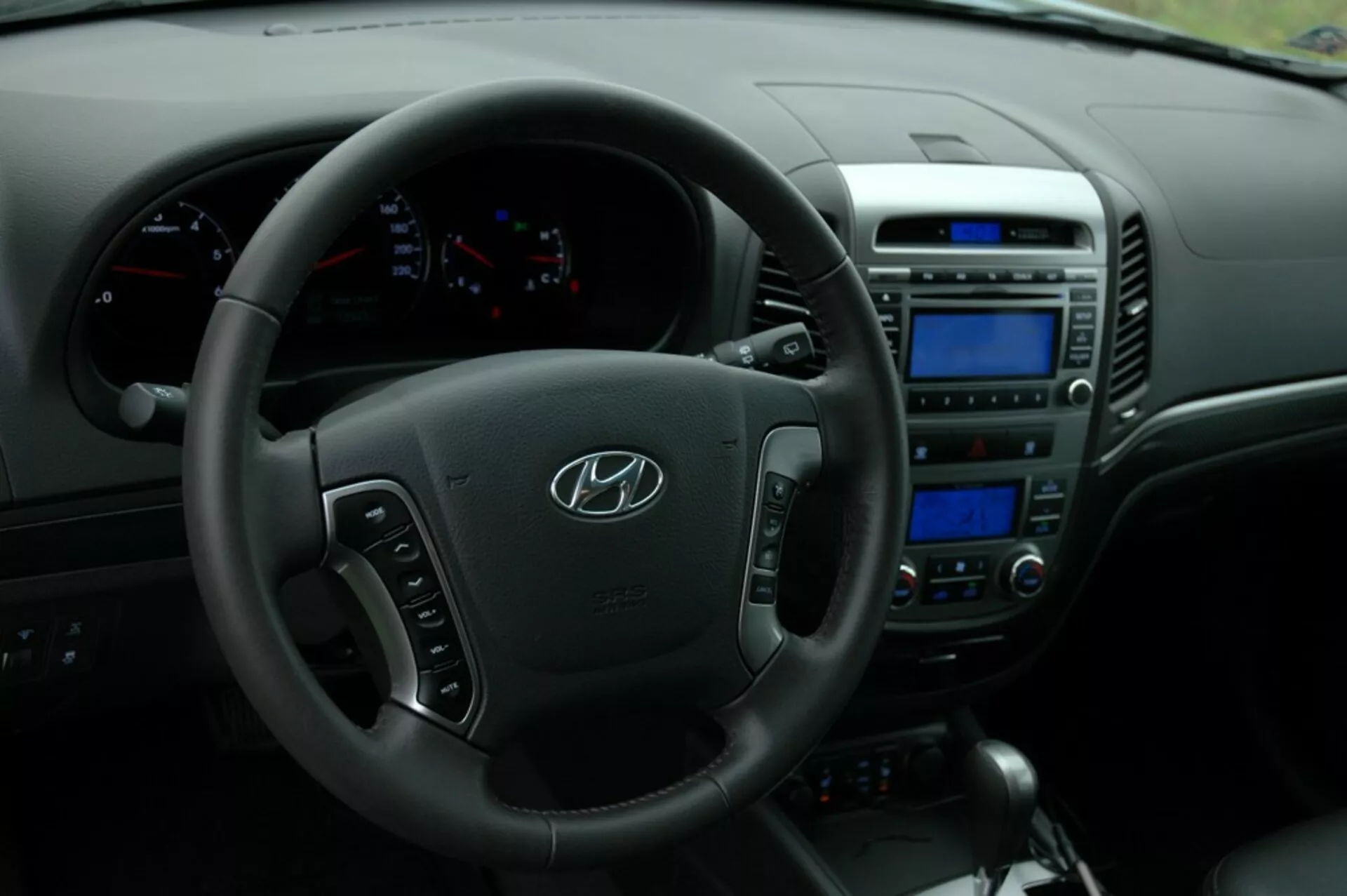

Interior view of a 2006 Hyundai Santa Fe focusing on the driver's side with detailed view of the steering wheel featuring Hyundai logo and control buttons, illuminated instrument cluster showing speedometer and tachometer, center console with radio/entertainment system, manual climate control, and gear shift lever.

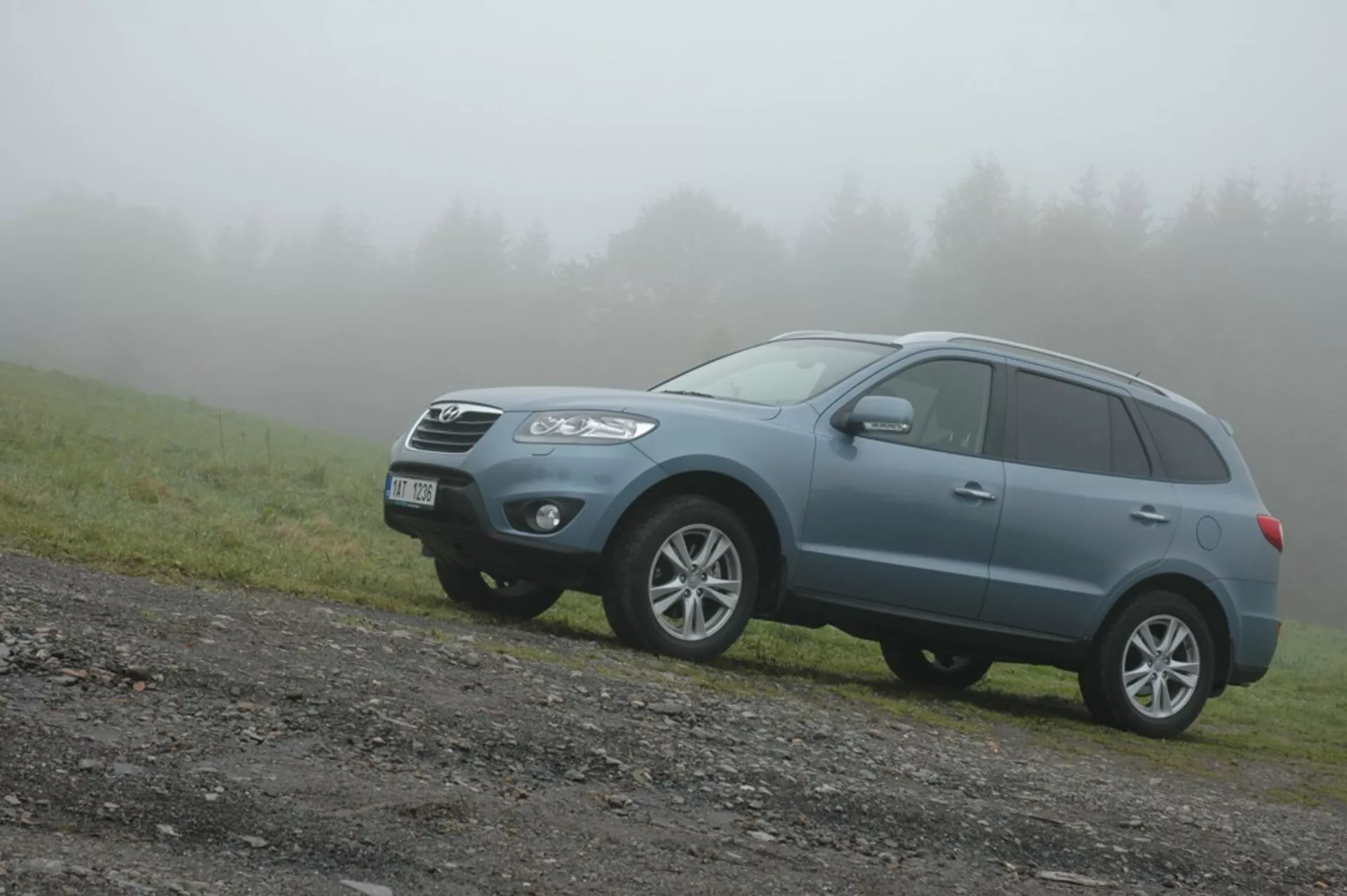

2006 Hyundai Santa Fe blue mid-size crossover SUV on an unpaved road with a grass patch, angled front-left view in foggy weather highlighting its robust design, off-road capabilities, and modern family vehicle features like front grille, angular headlights, fog lights, alloy wheels, roof rails, and integrated turn signals.

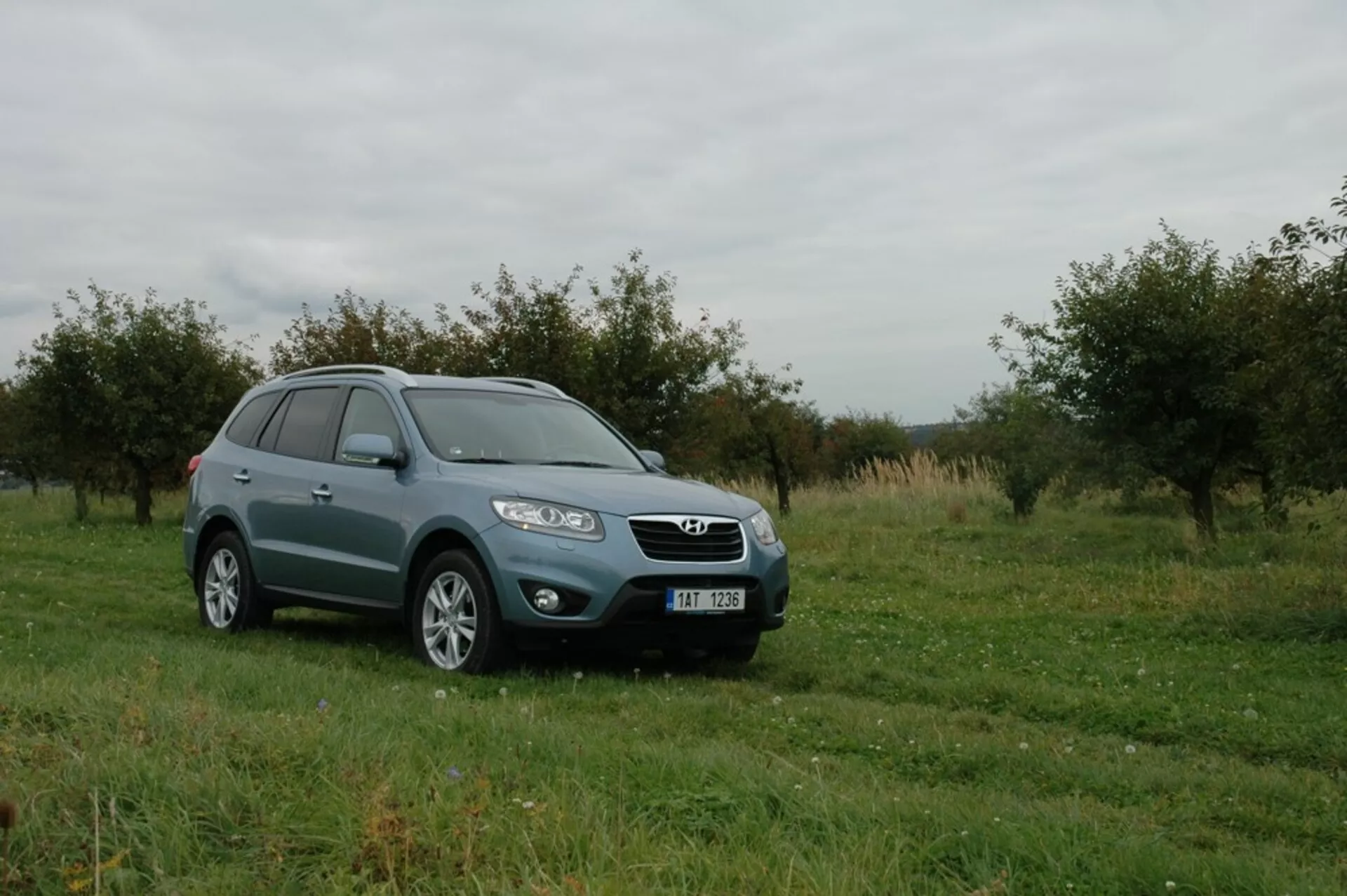

2006 Hyundai Santa Fe dark grey SUV positioned at an angle on grass against an overcast sky with a loosely planted orchard in the background, showcasing the vehicle's front-right quarter including the front grille, headlights using projector lamps, front bumper, hood, passenger side doors, and multi-spoke alloy wheels, providing a detailed view of the vehicle's design and standard technological features without modifications.
Formal portrait of a smiling man dressed in a suit and tie, leaning slightly forward with his chin resting on his hand against a solid blue background

Similar cars

DS Automobiles DS 7
DS Automobiles DS 7
2022 • J
Body type
SUV
Length
4593 mm
Width
1891 mm
Height
1625 mm
Wheelbase
2738 mm
Boot capacity
555 l
Weight
1651 kg
Doors
5
Compare
Skoda Kodiaq
Skoda Kodiaq
skoda Logo 2024 • PS
Body type
SUV
Length
4758 mm
Width
1864 mm
Height
1679 mm
Wheelbase
2791 mm
Boot capacity
910 l
Weight
1733 kg
Doors
5
Compare
KIA Sorento
KIA Sorento
kia Logo 2024 • MQ4
Body type
SUV
Length
4815 mm
Width
1900 mm
Height
1695 mm
Wheelbase
2815 mm
Boot capacity
705 l
Weight
1825 kg
Doors
5
Compare
VW Tayron
VW Tayron
vw Logo 2025 • R4
Body type
SUV
Length
4792 mm
Width
1853 mm
Height
1666 mm
Wheelbase
2790 mm
Boot capacity
885 l
Weight
1824 kg
Doors
5
Compare
Toyota RAV4
Toyota RAV4
toyota Logo 2019 • XA5
Body type
SUV
Length
4600 mm
Width
1855 mm
Height
1685 mm
Wheelbase
2690 mm
Boot capacity
580 l
Weight
1615 kg
Doors
5
Compare
Dacia Bigster
Dacia Bigster
dacia Logo 2025 • DJF
Body type
SUV
Length
4570 mm
Width
1813 mm
Height
1705 mm
Wheelbase
2704 mm
Boot capacity
550 l
Weight
1503 kg
Doors
5
Compare
Mazda CX-30
Mazda CX-30
mazda Logo 2019 • DM
Body type
SUV
Length
4395 mm
Width
1795 mm
Height
1540 mm
Wheelbase
2655 mm
Boot capacity
430 l
Weight
1395 kg
Doors
5
Compare
MG HS/EHS
MG HS/EHS
mg Logo 2024 • AS3A
Body type
SUV
Length
4655 mm
Width
1890 mm
Height
1664 mm
Wheelbase
2765 mm
Boot capacity
507 l
Weight
1625 kg
Doors
5
Compare
KGM Korando
KGM Korando
2025 • CW
Body type
SUV
Length
4450 mm
Width
1870 mm
Height
1620 mm
Wheelbase
2675 mm
Boot capacity
551 l
Weight
1442 kg
Doors
5
Compare
Ford Kuga
Ford Kuga
ford Logo 2019 • DFK
Body type
SUV
Length
4614 mm
Width
1883 mm
Height
1661 mm
Wheelbase
2710 mm
Boot capacity
435 l
Weight
1564 kg
Doors
5
Compare
Hyundai Kona
Hyundai Kona
hyundai Logo 2023 • SX2
Body type
SUV
Length
4350 mm
Width
1825 mm
Height
1585 mm
Wheelbase
2660 mm
Boot capacity
466 l
Weight
1370 kg
Doors
5
Compare
Skoda Karoq
Skoda Karoq
skoda Logo 2021 • NU
Body type
SUV
Length
4390 mm
Width
1841 mm
Height
1624 mm
Wheelbase
2638 mm
Boot capacity
521 l
Weight
1365 kg
Doors
5
Compare
Skoda Kamiq
Skoda Kamiq
skoda Logo 2024 • NW
Body type
SUV
Length
4241 mm
Width
1793 mm
Height
1562 mm
Wheelbase
2651 mm
Boot capacity
400 l
Weight
1223 kg
Doors
5
Compare
Compare against all competitors

Compare with ...

Find the Perfect Match
Compare your car with other models
Comparing with:

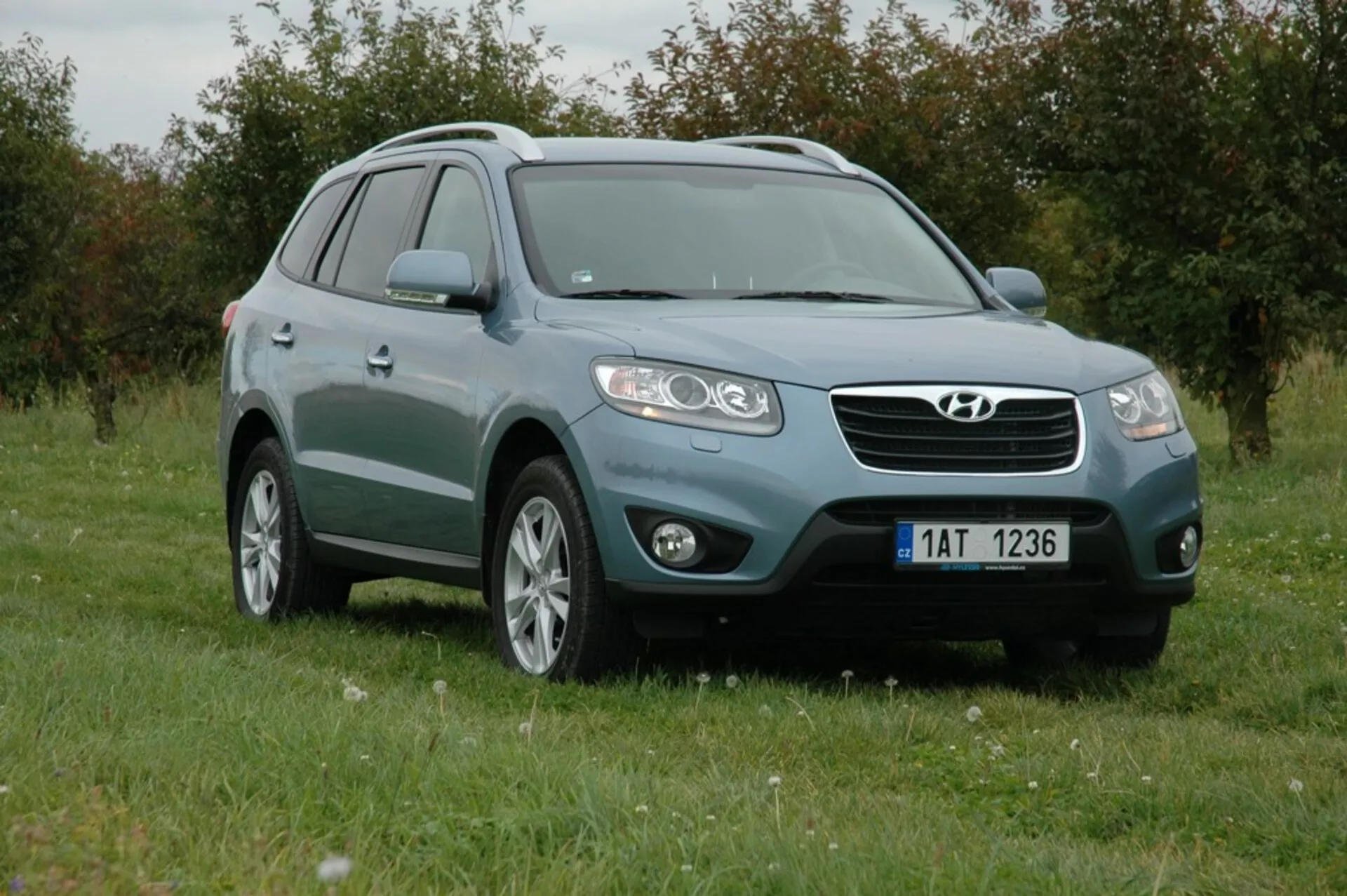

Hyundai Santa Fe (2006)

TOPlist echo ''; // Add smooth scrolling JS for the generations and variants containers echo '';
