Toyota RAV4 (2009 - 2010)

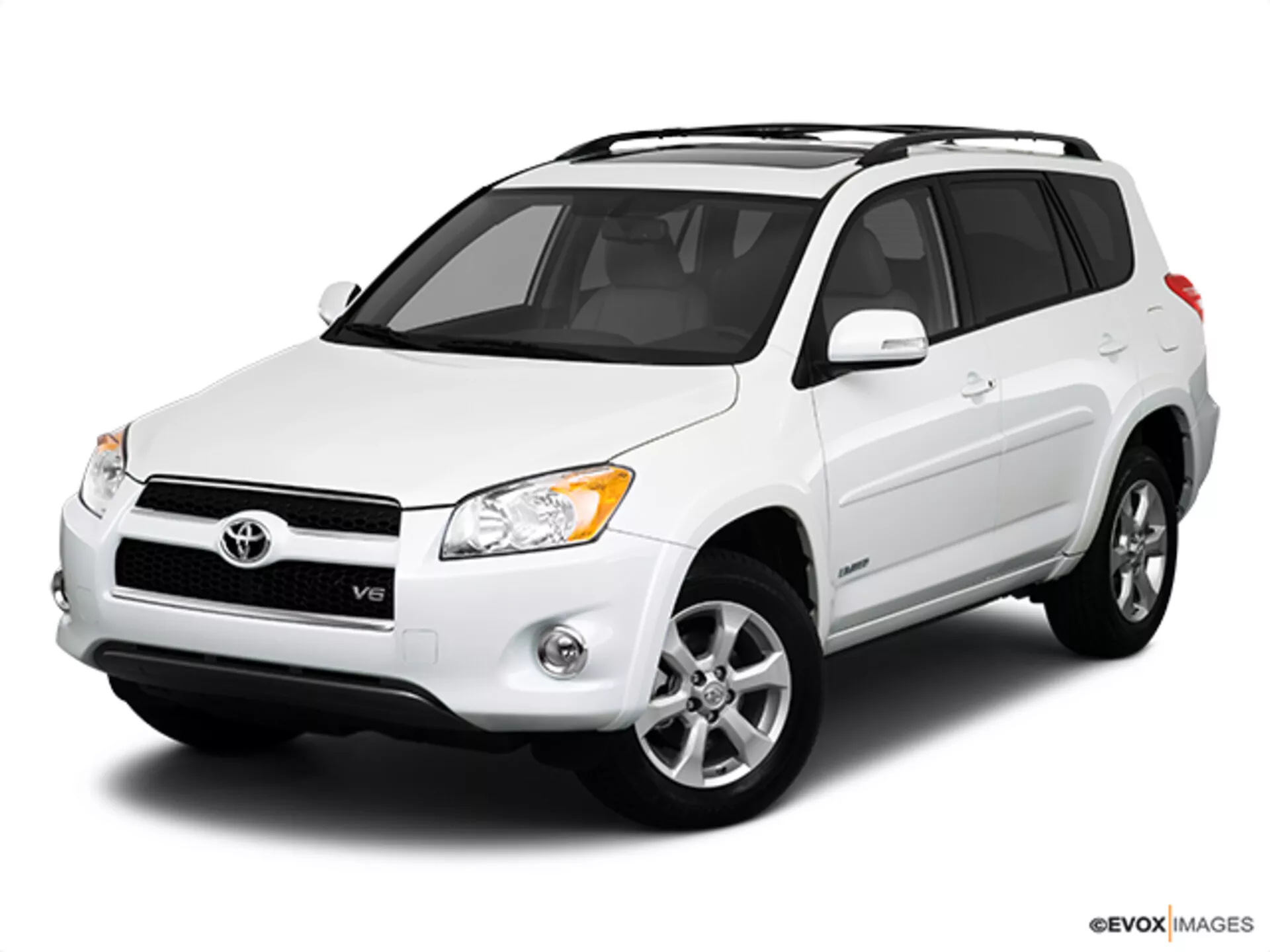

Thumbnail 1
Table of contents:

Model specs

Model info

Model name
Toyota RAV4
Generation
XA3
Production years
2009 - 2010
Doors
5
5

Dimensions

Length
4415 mm
4,118.0
Avg
4,415.0
Higher is better
Wheelbase
2560 mm
2,551.0
Avg
2,605.0
Higher is better
Width
1815 mm
1,757.0
Avg
1,819.0
Higher is better
Height
1720 mm
1,500.0
Avg
1,720.0
Higher is better
Ground clearance
180 mm
161.0
Avg
190.0
Higher is better
Turning circle
11 m
10.0
Avg
11.0
Lower is better

Boot/interior

Boot space
586 l
350.0
Avg
586.0
Higher is better
Boot space (rear seats folded, bottom to roof)
1752 l
1,050.0
Avg
1,752.0
Higher is better
Boot space (rear seats folded, bottom to windows)
911 l
665.0
Avg
911.0
Higher is better
Seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
4
3.0
Avg
4.0
Higher is better
Max. speed
185 - 200 km/h
179.0
Avg
195.0
Higher is better
Torque
198 - 400 Nm
170.0
Avg
280.0
Higher is better
Power
110 - 130 kW
70.0
Avg
120.0
Higher is better
Cubic capacity
1987 - 2231 ccm
998.0
Avg
1,987.0
Higher is better
Acceleration 0-100km/h
9 - 11 s
9.0
Avg
11.0
Higher is better

Consumption/ecology

Tank size
60 l
40.0
Avg
60.0
Higher is better
Combined consumption (NEDC)
6 - 7 l/100km
  • toyota LogoToyota RAV4 (This) 6 - 7 l/100km
City consumption (NEDC)
7 - 9 l/100km
  • toyota LogoToyota RAV4 (This) 7 - 9 l/100km
Empty weight (EU)
1500 - 1685 kg
1,170.0
Avg
1,500.0
Higher is better

Towing

Max. towbar load
60 - 80 kg
48.0
Avg
80.0
Higher is better
Max. roof load
100 kg
50.0
Avg
100.0
Higher is better
Braked trailer
1500 - 2000 kg
910.0
Avg
2,000.0
Higher is better
Trailer (no brakes)
750 kg
450.0
Avg
750.0
Higher is better

Offroad

Ramp angle
20 °
13.0
Avg
20.0
Higher is better
Maximum incline
73 °
  • toyota LogoToyota RAV4 (This) 73 °
    73.0
Departure angle
24 °
17.0
Avg
27.0
Higher is better
Approach angle
28 °
17.0
Avg
28.0
Higher is better
Fording
300 mm
  • toyota LogoToyota RAV4 (This) 300 mm
    300.0

Engines (RAV4)

Filter by fuel:
Diesel
MAN AWD
2.2 D-4D 4x4
Engine & Power
Power
110 kW / 150 HP
Capacity
2.2L (2,231 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
10 s
Max. speed
190 km/h
Torque & RPM
Torque
340 Nm
Consumption
Combined consumption (NEDC)
6 l/100km
Maximum torque at RPM
2000 RPM
City consumption (NEDC)
7 l/100km
Technical Details
Maximum output at RPM
3600 RPM
Fuel injection
Common Rail
Diesel
AUT AWD
2.2 D-4D Executive 4x4 -automatic
Engine & Power
Power
110 kW / 150 HP
Capacity
2.2L (2,231 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
10 s
Max. speed
185 km/h
Torque & RPM
Torque
340 Nm
Consumption
Combined consumption (NEDC)
7 l/100km
Maximum torque at RPM
2000 RPM
City consumption (NEDC)
8 l/100km
Technical Details
Maximum output at RPM
3600 RPM
Fuel injection
Common Rail
Gasoline
MAN FWD
2.0 4x2
Engine & Power
Power
116 kW / 158 HP
Capacity
2.0L (1,987 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
10 s
Max. speed
185 km/h
Torque & RPM
Torque
198 Nm
Consumption
Combined consumption (NEDC)
7 l/100km
Maximum torque at RPM
4000 RPM
City consumption (NEDC)
9 l/100km
Technical Details
Maximum output at RPM
6200 RPM
Fuel injection
Injection
Gasoline
AUT AWD
2.0 Sol 4x4 Multidrive S
Engine & Power
Power
116 kW / 158 HP
Capacity
2.0L (1,987 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
185 km/h
Torque & RPM
Torque
198 Nm
Consumption
Combined consumption (NEDC)
7 l/100km
Maximum torque at RPM
4000 RPM
City consumption (NEDC)
9 l/100km
Technical Details
Maximum output at RPM
6200 RPM
Fuel injection
Injection
Diesel
MAN AWD
2.2 D-CAT Executive 4x4
Engine & Power
Power
130 kW / 177 HP
Capacity
2.2L (2,231 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
200 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (NEDC)
6 l/100km
Maximum torque at RPM
2000 RPM
City consumption (NEDC)
7 l/100km
Technical Details
Maximum output at RPM
3600 RPM
Fuel injection
Common Rail
Compare all engines

Toyota RAV4 generations

Body type
RAV4 XA1
1994 - 1998
Length3705 mm
Height1655 mm
Wheelbase2200 mm
Length3705 mm
Body type
RAV4 XA1 (1. Facelift)
1997 - 2000
Length3715 mm
Height1655 mm
Wheelbase2200 mm
Length3715 mm (+10 mm)
RAV4 XA2
2000 - 2003
Length3805 mm
Height1695 mm
Wheelbase2280 mm
Length3805 mm (+90 mm)
RAV4 XA2 (1. Facelift)
2003 - 2006
Length3825 mm
Height1680 mm
Wheelbase2280 mm
Length3825 mm (+20 mm)
RAV4 XA3
2006 - 2009
Length4395 mm
Height1685 mm
Wheelbase2560 mm
Length4395 mm (+570 mm)
RAV4 XA3 (1. Facelift)
2009 - 2010
Length4415 mm
Height1720 mm
Wheelbase2560 mm
Length4415 mm (+20 mm)
RAV4 XA3 (2. Facelift)
2010 - 2013
Length4445 mm
Height1720 mm
Wheelbase2560 mm
Length4445 mm (+30 mm)
RAV4 XA4
2013 - 2016
Length4570 mm
Height1660 mm
Wheelbase2660 mm
Length4570 mm (+125 mm)
RAV4 XA4 (1. Facelift)
2016 - 2018
Length4605 mm
Height1675 mm
Wheelbase2660 mm
Length4605 mm (+35 mm)
RAV4 XA5
2019 - Now
Length4600 mm
Height1685 mm
Wheelbase2690 mm
Length4600 mm (-5 mm)
