2017
Compare
Engines

BMW X3
Specs, engines, generations

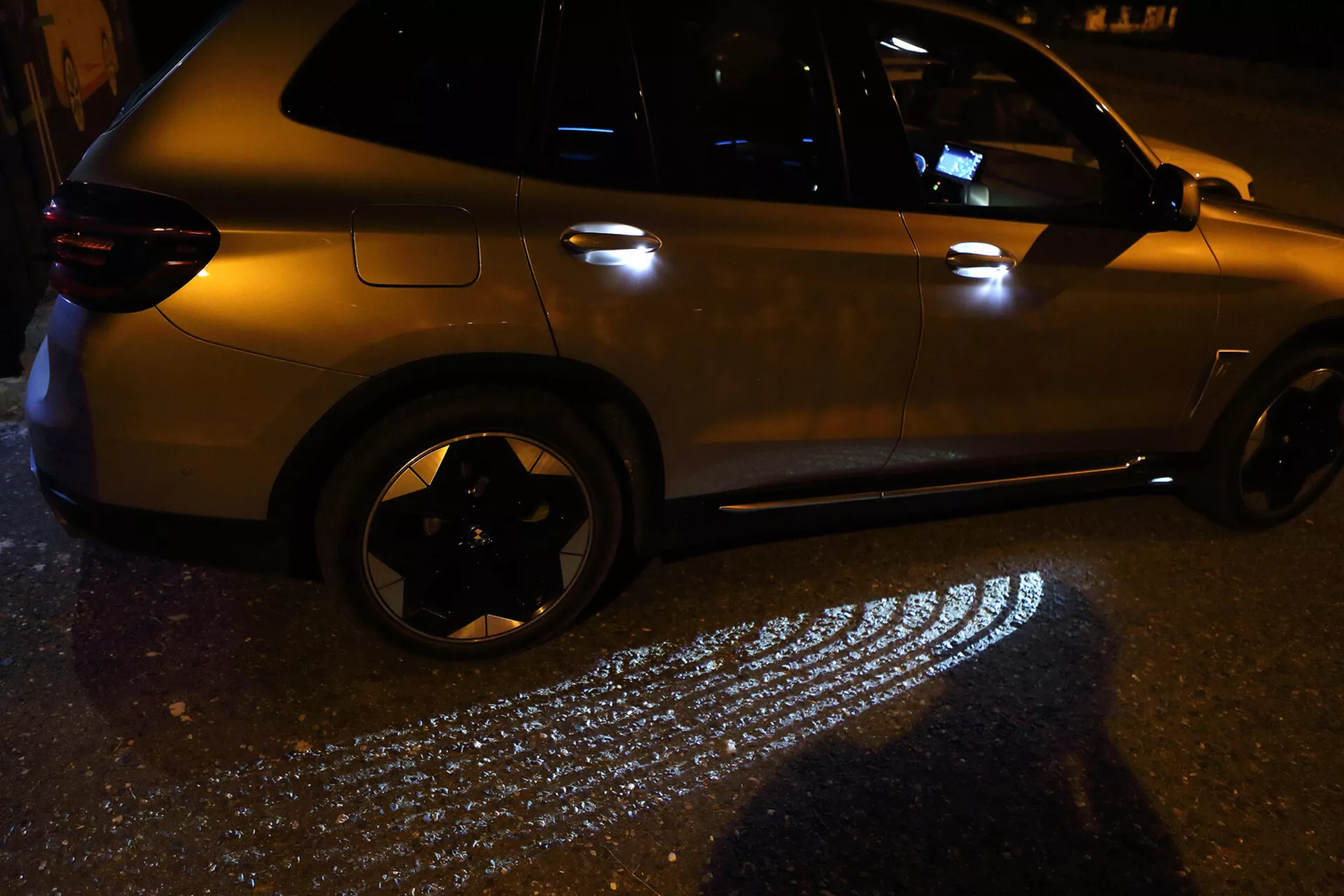

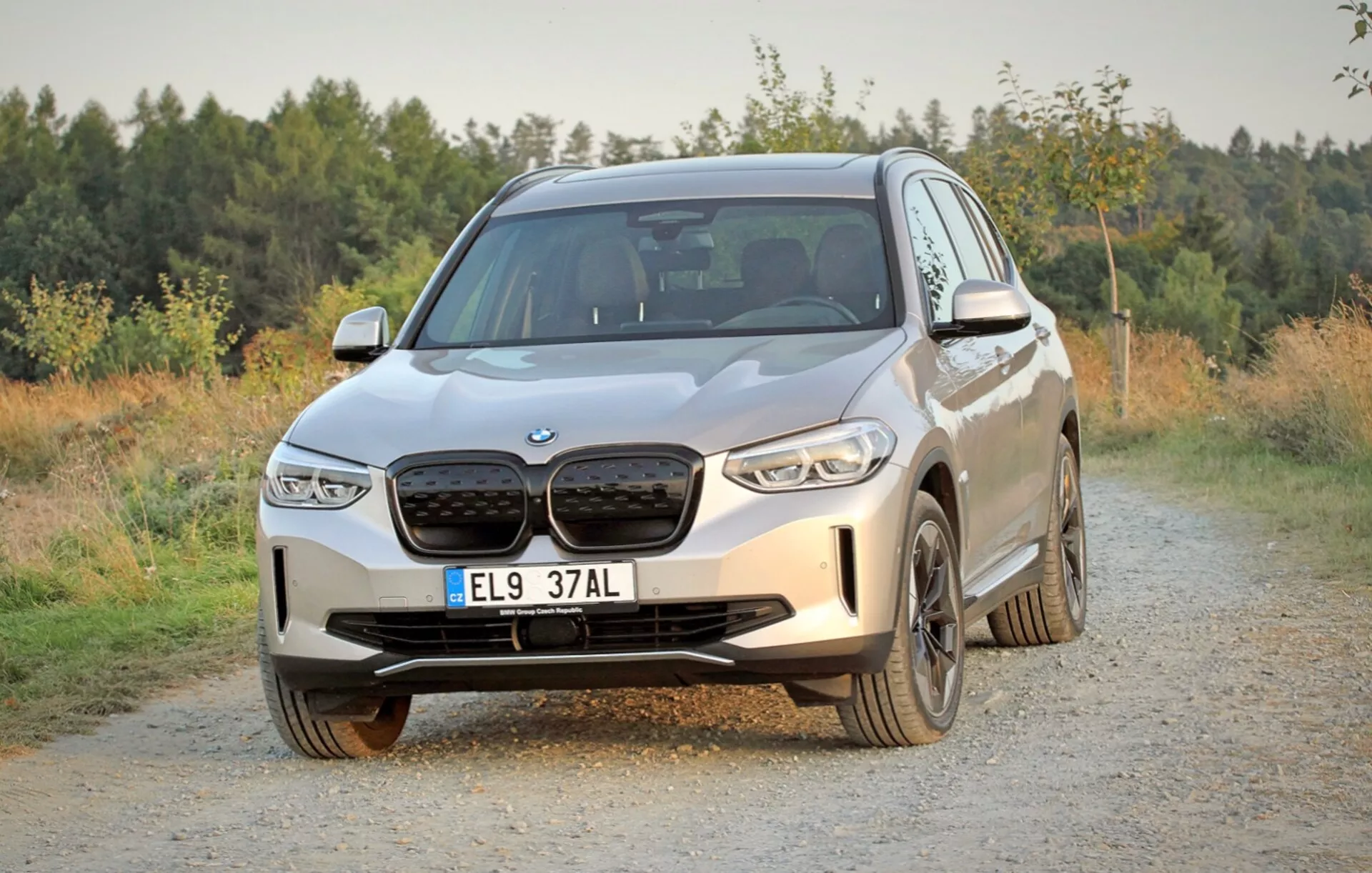

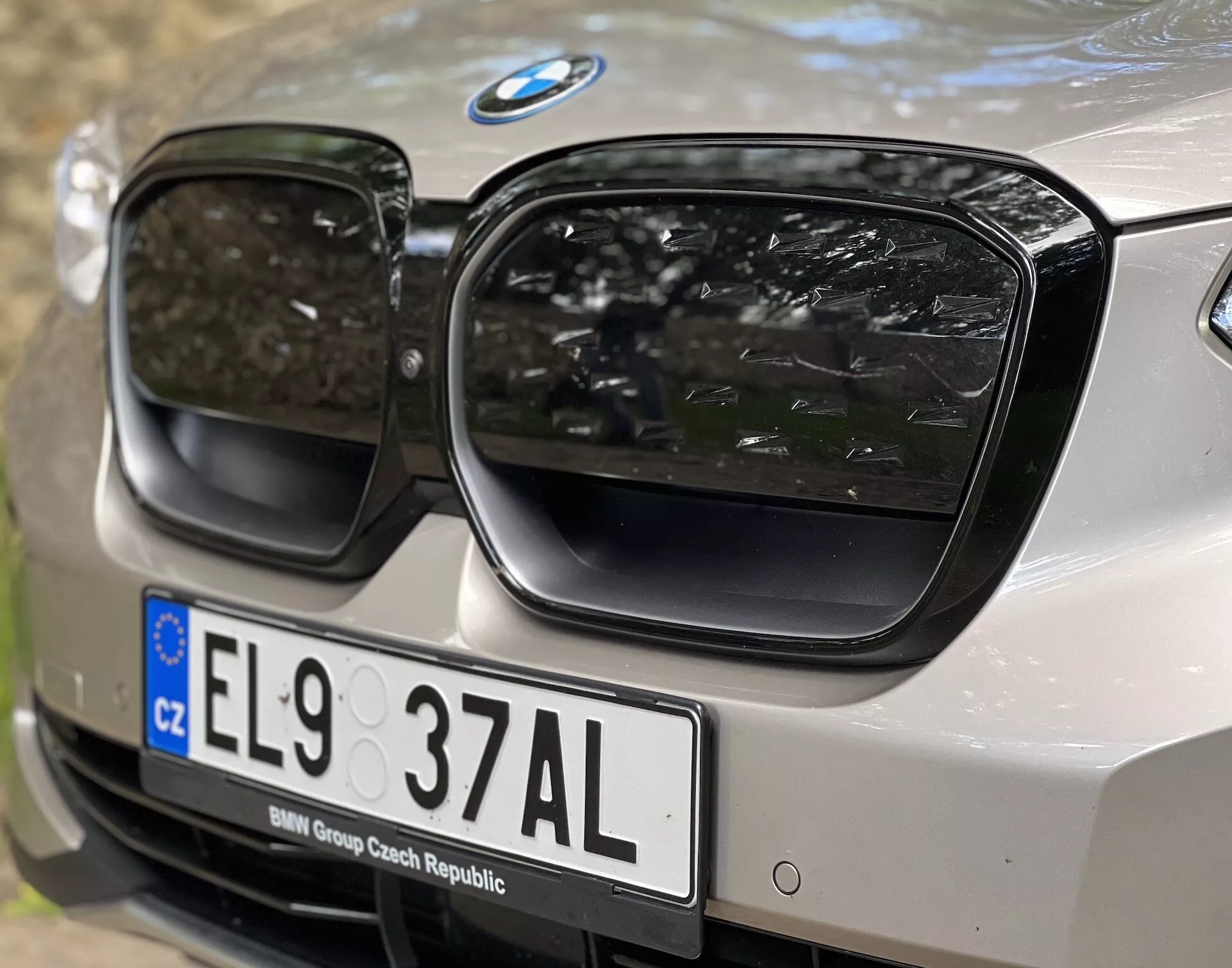

Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Table of contents:

Variants

SUV
X3 M
BodySUV
Length4726 mm
Height1667 mm
Doors5
Boot space550 l
SUV
X3 M Performance
BodySUV
Length4716 mm
Height1676 mm
Doors5
Boot space550 l

Model specs

Model info

Model name
BMW X3
Generation
G01
Production years
2017 - Present
Doors
5
5

Dimensions

Length
4716 mm
4,495.0
Avg
5,125.0
Higher is better
Wheelbase
2864 mm
2,640.0
Avg
3,060.0
Higher is better
Width
1897 mm
1,840.0
Avg
1,998.0
Higher is better
Height
1676 mm
1,540.0
Avg
1,728.0
Higher is better
Ground clearance
204 mm
122.0
Avg
247.0
Higher is better
Turning circle
12 m
11.0
Avg
12.0
Lower is better

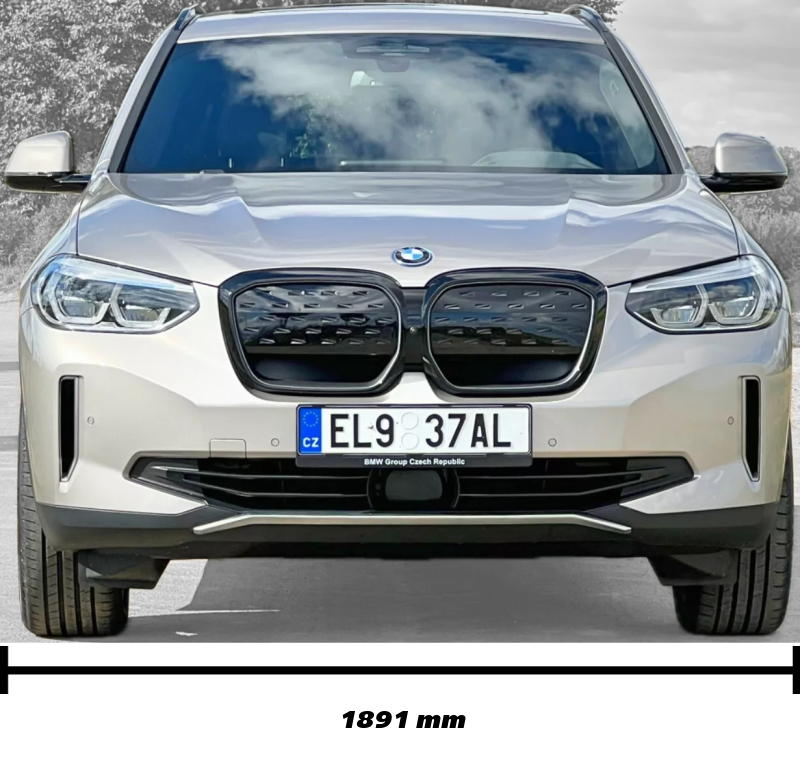

Annotated Image

Boot/interior

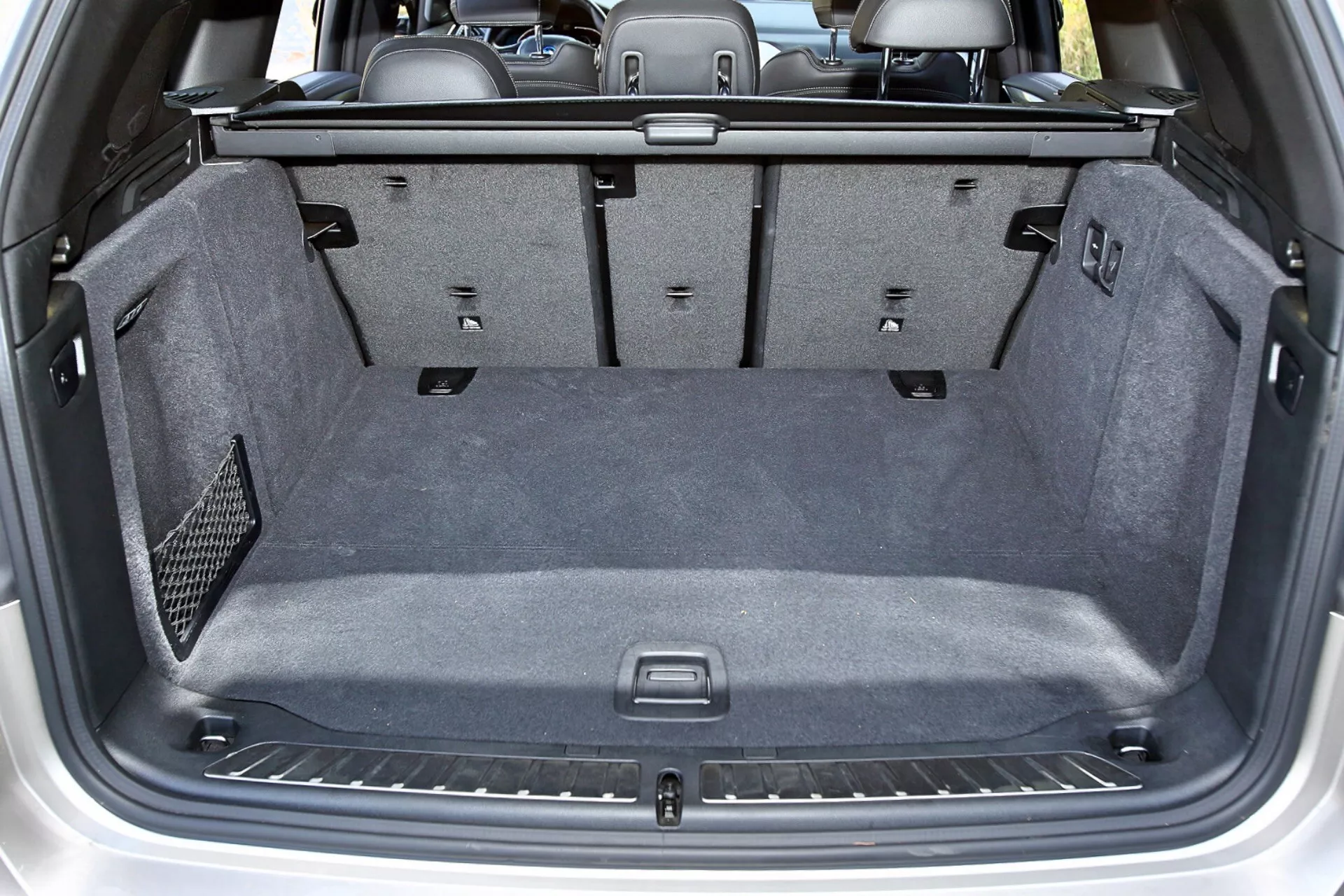

Boot space
550 l
484.0
Avg
780.0
Higher is better
Boot space (rear seats folded, bottom to roof)
1600 l
1,358.0
Avg
1,805.0
Higher is better
Seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
6
4.0
Avg
8.0
Higher is better
Max. speed
250 km/h
190.0
Avg
291.0
Higher is better
Torque
500 - 700 Nm
205.0
Avg
770.0
Higher is better
Power
240 - 375 kW
126.0
Avg
405.0
Higher is better
Cubic capacity
2993 - 2998 ccm
1,987.0
Avg
3,996.0
Higher is better
Acceleration 0-100km/h
4 s
3.0
Avg
9.0
Higher is better

Consumption/ecology

Tank size
65 - 68 l
47.0
Avg
87.0
Higher is better
Combined consumption (NEDC)
8 l/100km
5.0
Avg
8.0
Higher is better
City consumption (NEDC)
10 l/100km
6.0
Avg
10.0
Higher is better
Combined consumption (WLTP)
6 - 11 l/100km
6.0
Avg
14.0
Higher is better
CO2 emissions (WLTP)
173 - 260 g/km
164.0
Avg
323.0
Higher is better
Empty weight (EU)
1885 - 2095 kg
1,460.0
Avg
2,416.0
Higher is better

Towing

Max. towbar load
100 kg
95.0
Avg
175.0
Higher is better
Max. roof load
100 kg
75.0
Avg
100.0
Higher is better
Braked trailer
2400 - 2500 kg
750.0
Avg
3,500.0
Higher is better
Trailer (no brakes)
750 kg
750.0
Avg
750.0
Higher is better

Offroad

Ramp angle
19 - 20 °
12.0
Avg
22.0
Higher is better
Departure angle
22 - 23 °
17.0
Avg
30.0
Higher is better
Approach angle
25 °
14.0
Avg
25.0
Higher is better
Fording
500 mm
500.0
Avg
600.0
Higher is better

Engines (X3)

Filter by fuel:
Diesel
AUT AWD
M40d Steptronic
Engine & Power
Power
240 kW / 326 HP
Capacity
3.0L (2,993 ccm)
Cylinders
6
Performance
Acceleration 0-100km/h
4 s
Max. speed
250 km/h
Torque & RPM
Torque
680 Nm
Consumption
Combined consumption (WLTP)
7 l/100km
Emissions
CO2 emissions (WLTP)
201 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
4400 RPM
Fuel injection
Common Rail
Diesel
AUT AWD
M40d Steptronic
Engine & Power
Power
250 kW / 340 HP
Capacity
3.0L (2,993 ccm)
Cylinders
6
Performance
Acceleration 0-100km/h
4 s
Max. speed
250 km/h
Torque & RPM
Torque
700 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
173 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
4400 RPM
Fuel injection
Common Rail
Premium Gasoline
AUT AWD
M40i Steptronic
Engine & Power
Power
260 kW / 354 HP
Capacity
3.0L (2,998 ccm)
Cylinders
6
Performance
Acceleration 0-100km/h
4 s
Max. speed
250 km/h
Torque & RPM
Torque
500 Nm
Consumption
Combined consumption (WLTP)
10 l/100km
Emissions
CO2 emissions (WLTP)
238 g/km
Maximum torque at RPM
1550 RPM
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Premium Gasoline
AUT AWD
M40i Steptronic
Engine & Power
Power
265 kW / 360 HP
Capacity
3.0L (2,998 ccm)
Cylinders
6
Performance
Acceleration 0-100km/h
4 s
Max. speed
250 km/h
Torque & RPM
Torque
500 Nm
Consumption
Combined consumption (NEDC)
8 l/100km
Maximum torque at RPM
1520 RPM
City consumption (NEDC)
10 l/100km
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Premium Gasoline
AUT AWD
M Steptronic
Engine & Power
Power
353 kW / 480 HP
Capacity
3.0L (2,993 ccm)
Cylinders
6
Performance
Acceleration 0-100km/h
4 s
Max. speed
250 km/h
Torque & RPM
Torque
600 Nm
Consumption
Combined consumption (WLTP)
11 l/100km
Emissions
CO2 emissions (WLTP)
258 g/km
Maximum torque at RPM
2600 RPM
Technical Details
Maximum output at RPM
6250 RPM
Fuel injection
Direct Injection
Premium Gasoline
AUT AWD
M Competition Steptronic
Engine & Power
Power
375 kW / 510 HP
Capacity
3.0L (2,993 ccm)
Cylinders
6
Performance
Acceleration 0-100km/h
4 s
Max. speed
250 km/h
Torque & RPM
Torque
600 Nm
Consumption
Combined consumption (WLTP)
11 l/100km
Emissions
CO2 emissions (WLTP)
260 g/km
Maximum torque at RPM
2600 RPM
Technical Details
Maximum output at RPM
6250 RPM
Fuel injection
Direct Injection
Compare all engines

BMW X3 generations

X3 E83
2004 - 2006
Length4565 mm
Height1674 mm
Wheelbase2795 mm
Length4565 mm
X3 E83 (1. Facelift)
2006 - 2010
Length4569 mm
Height1674 mm
Wheelbase2795 mm
Length4569 mm (+4 mm)
X3 F25
2010 - 2014
Length4648 mm
Height1661 mm
Wheelbase2810 mm
Length4648 mm (+79 mm)
Body type
X3 F25 (1. Facelift)
2014 - 2017
Length4657 mm
Height1661 mm
Wheelbase2810 mm
Length4657 mm (+9 mm)
X3 G01/F97
2017 - 2021
Length4708 mm
Height1676 mm
Wheelbase2864 mm
Length4708 mm (+51 mm)
X3 X3 G01/F97 (1. Facelift)
2021 - 2024
Length4708 mm
Height1676 mm
Wheelbase2864 mm
Length4708 mm
X3 X3 G45
2024 - Now
Length4755 mm
Height1660 mm
Wheelbase2865 mm
Length4755 mm (+47 mm)
Compare all generations

1916
1916
BMW founded
2004
2004
E83 was introduced.
2006
2006
E83 (1. Facelift) was introduced and replaced E83.
2010
2010
F25 was introduced and replaced E83 (1. Facelift).
2014
2014
F25 (1. Facelift) was introduced and replaced F25.
2017
2017
G01/F97 was introduced and replaced F25 (1. Facelift).
2021
2021
X3 G01/F97 (1. Facelift) was introduced and replaced G01/F97.
2024
2024
X3 G45 was introduced and replaced X3 G01/F97 (1. Facelift).
