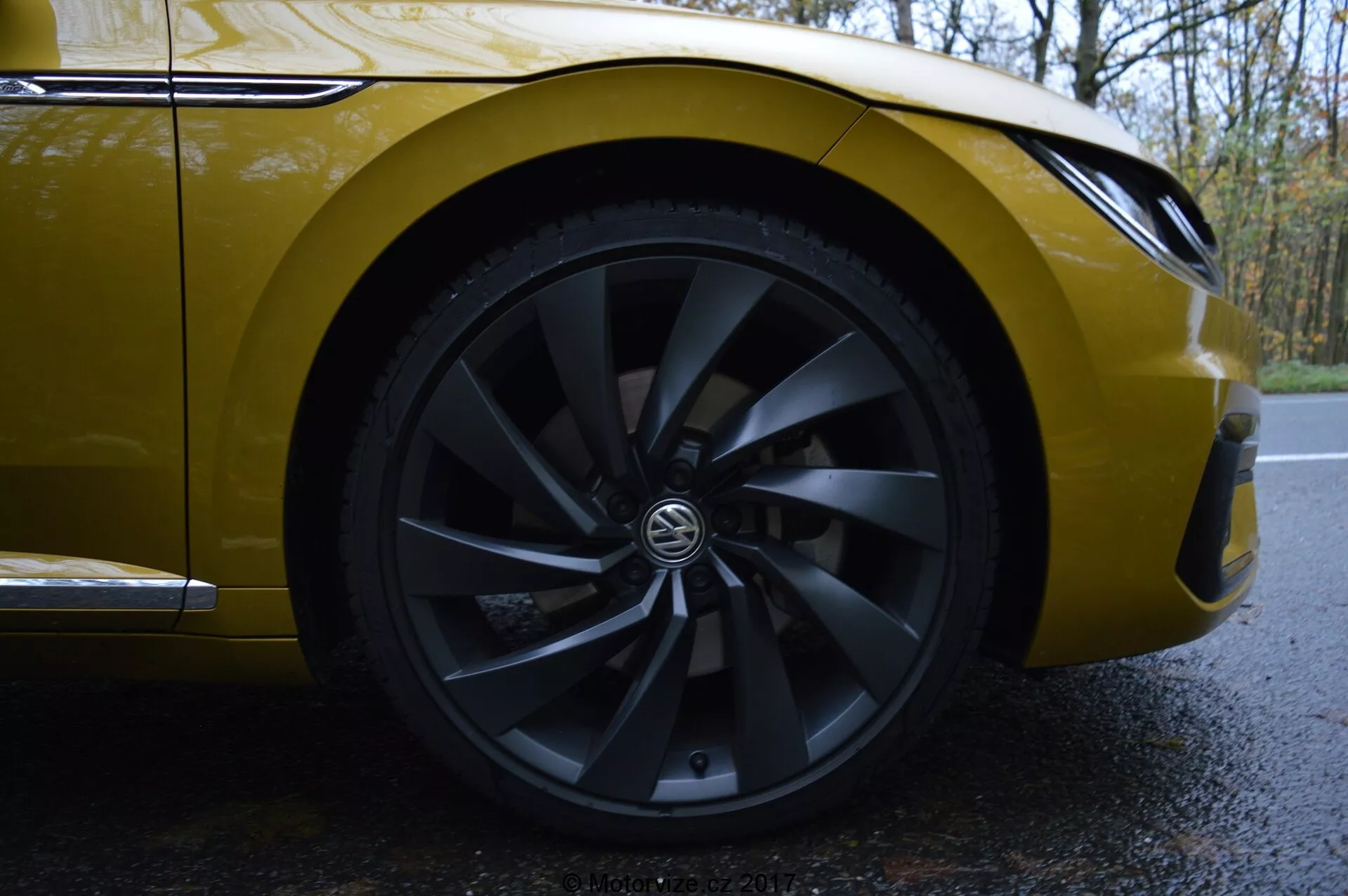

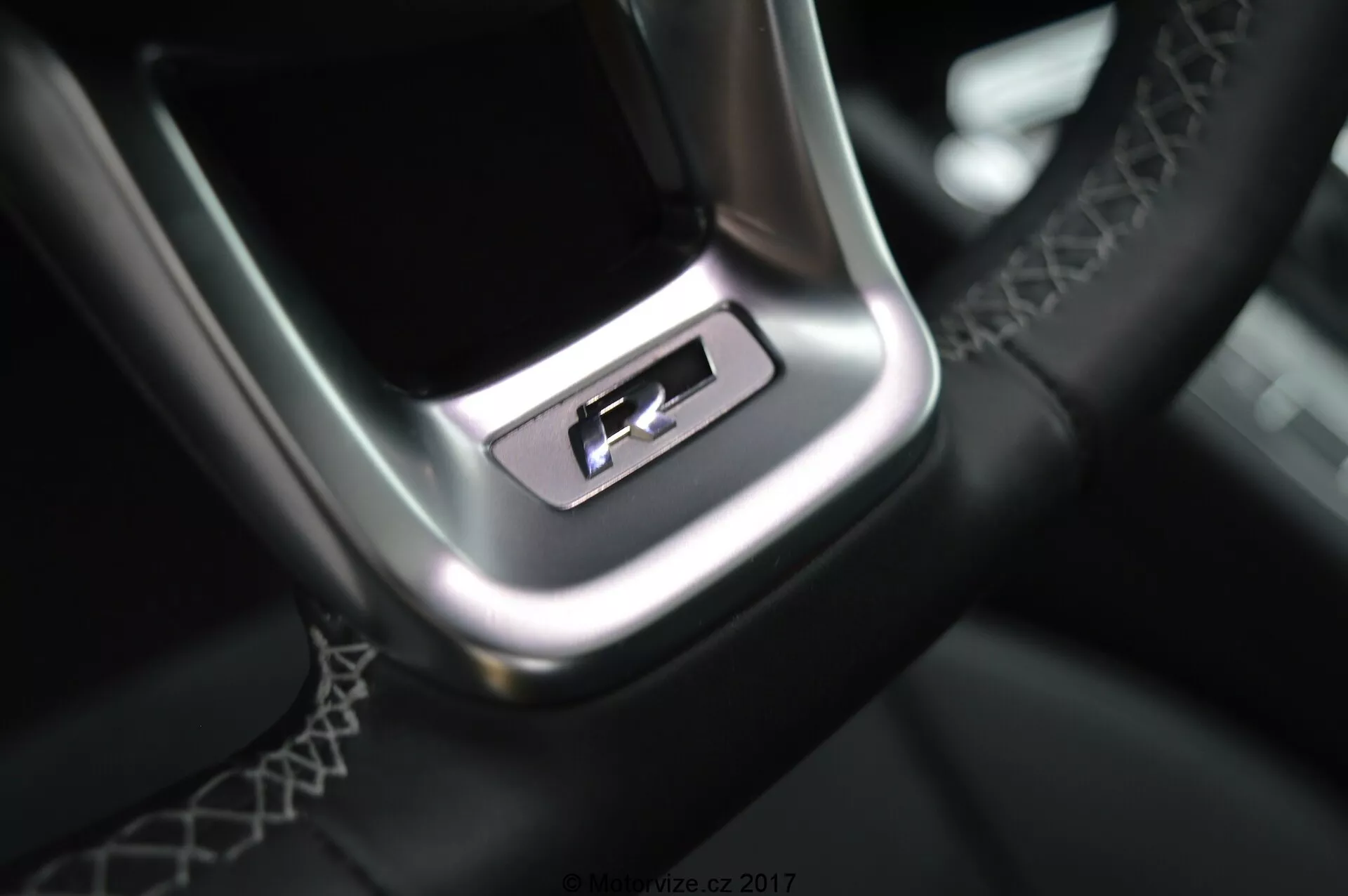

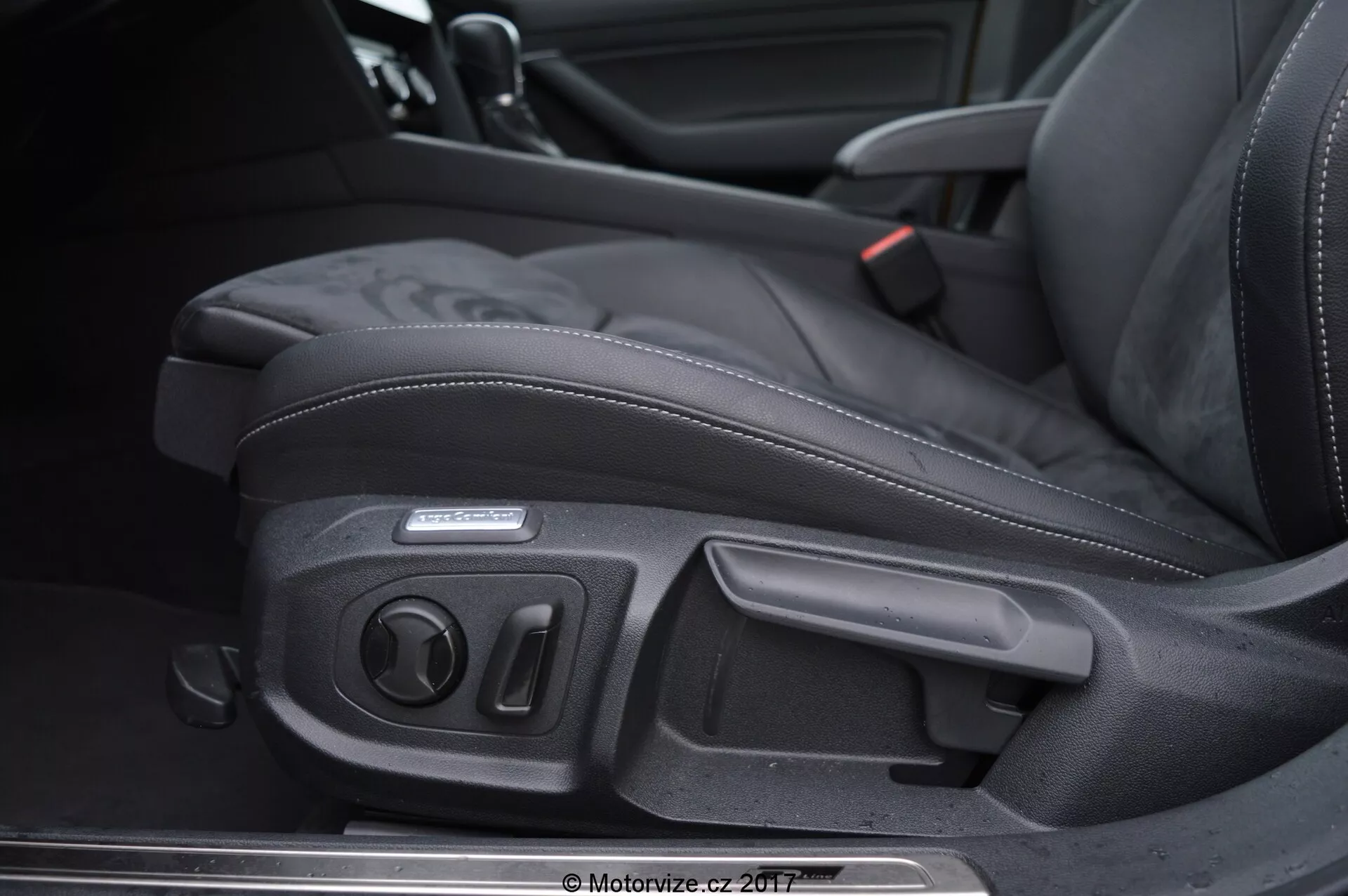

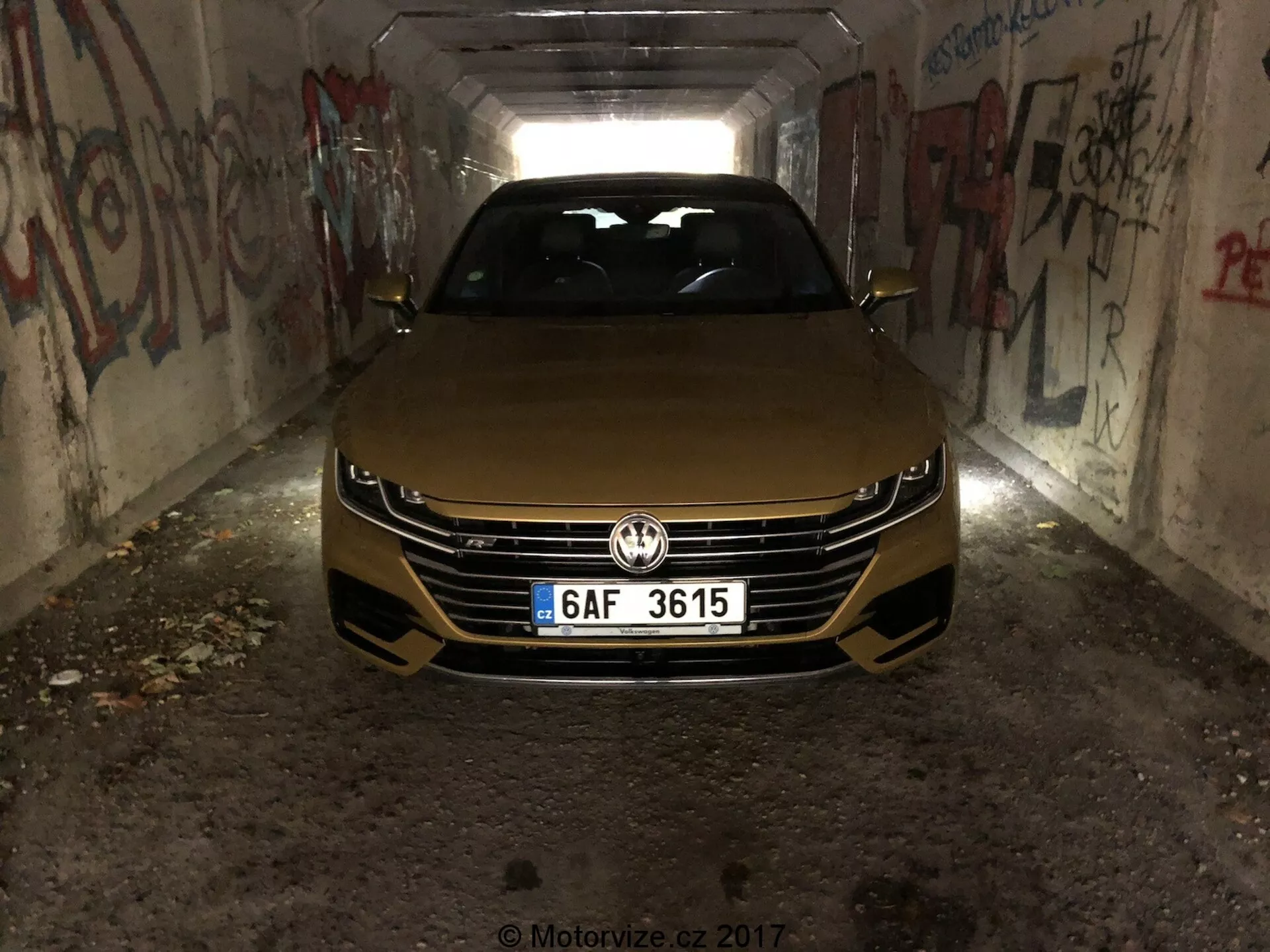

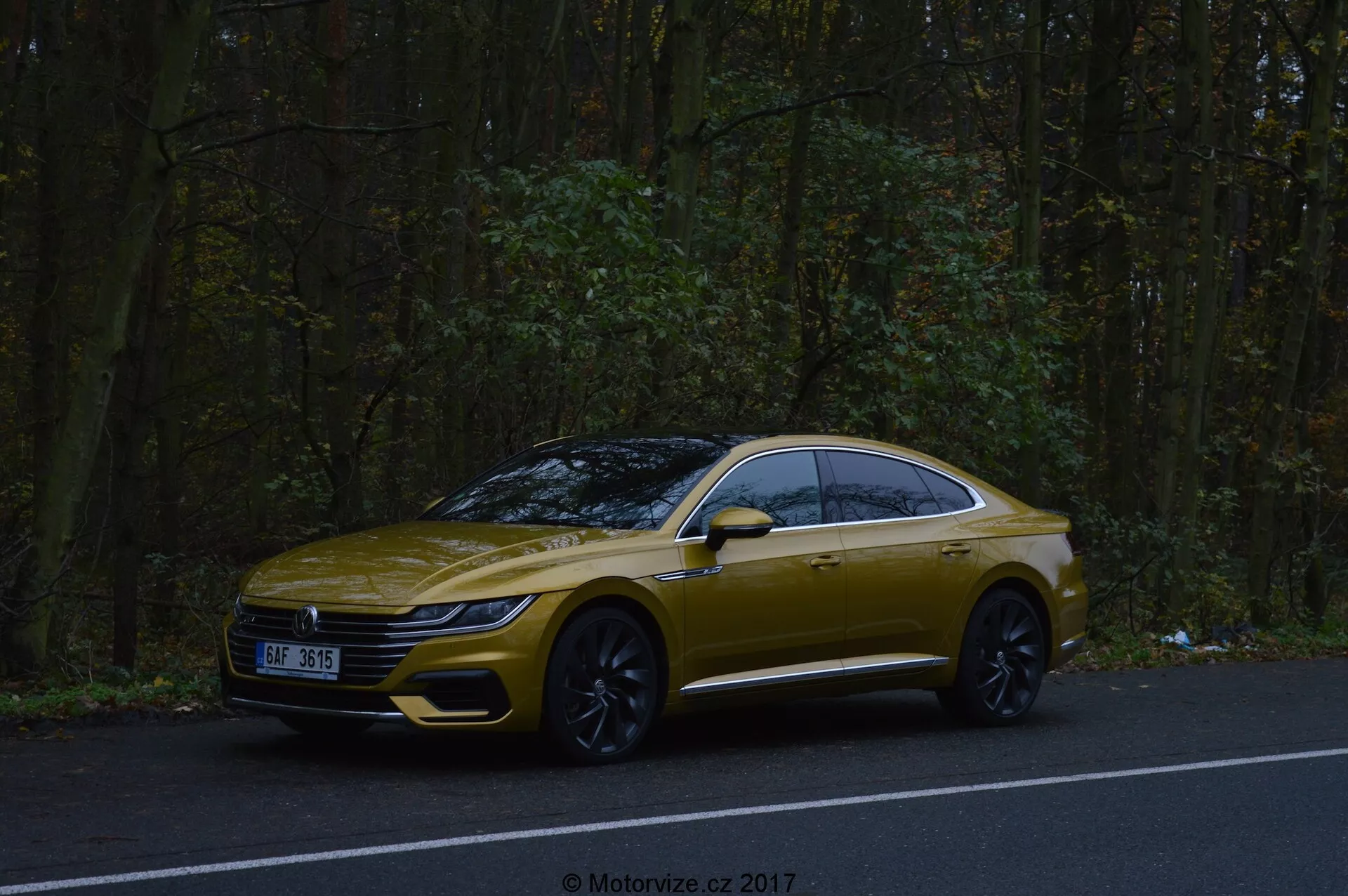

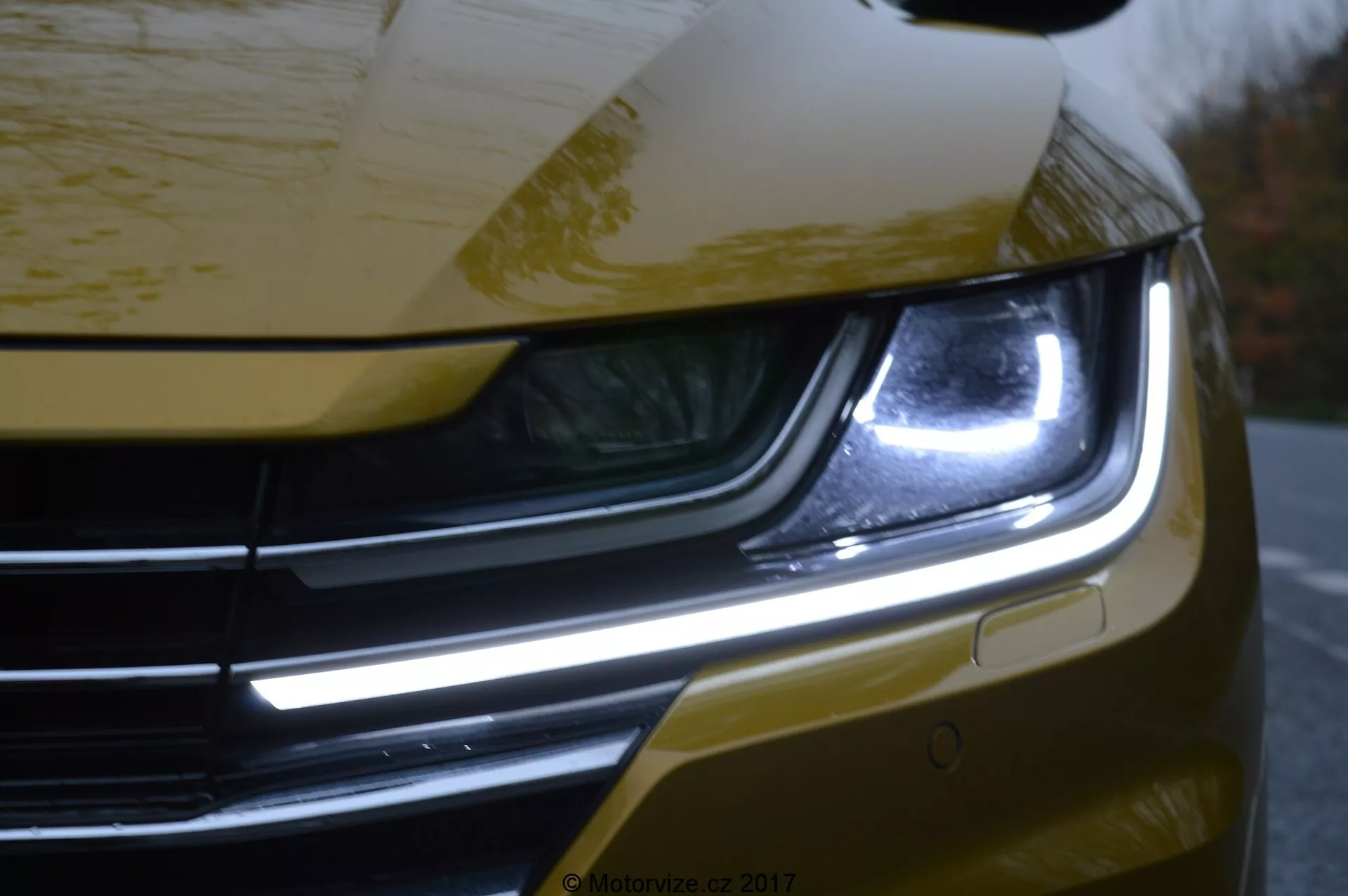

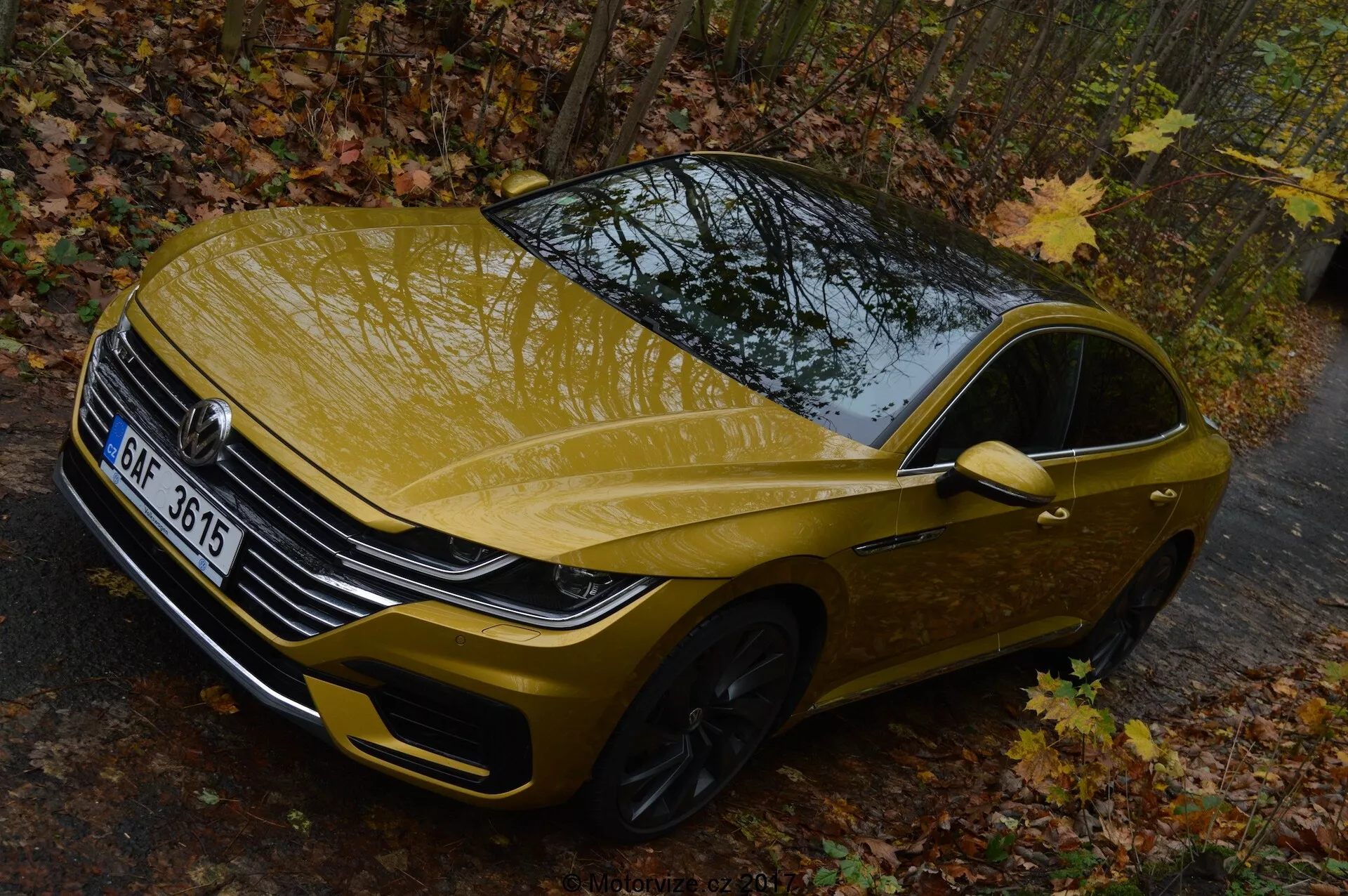

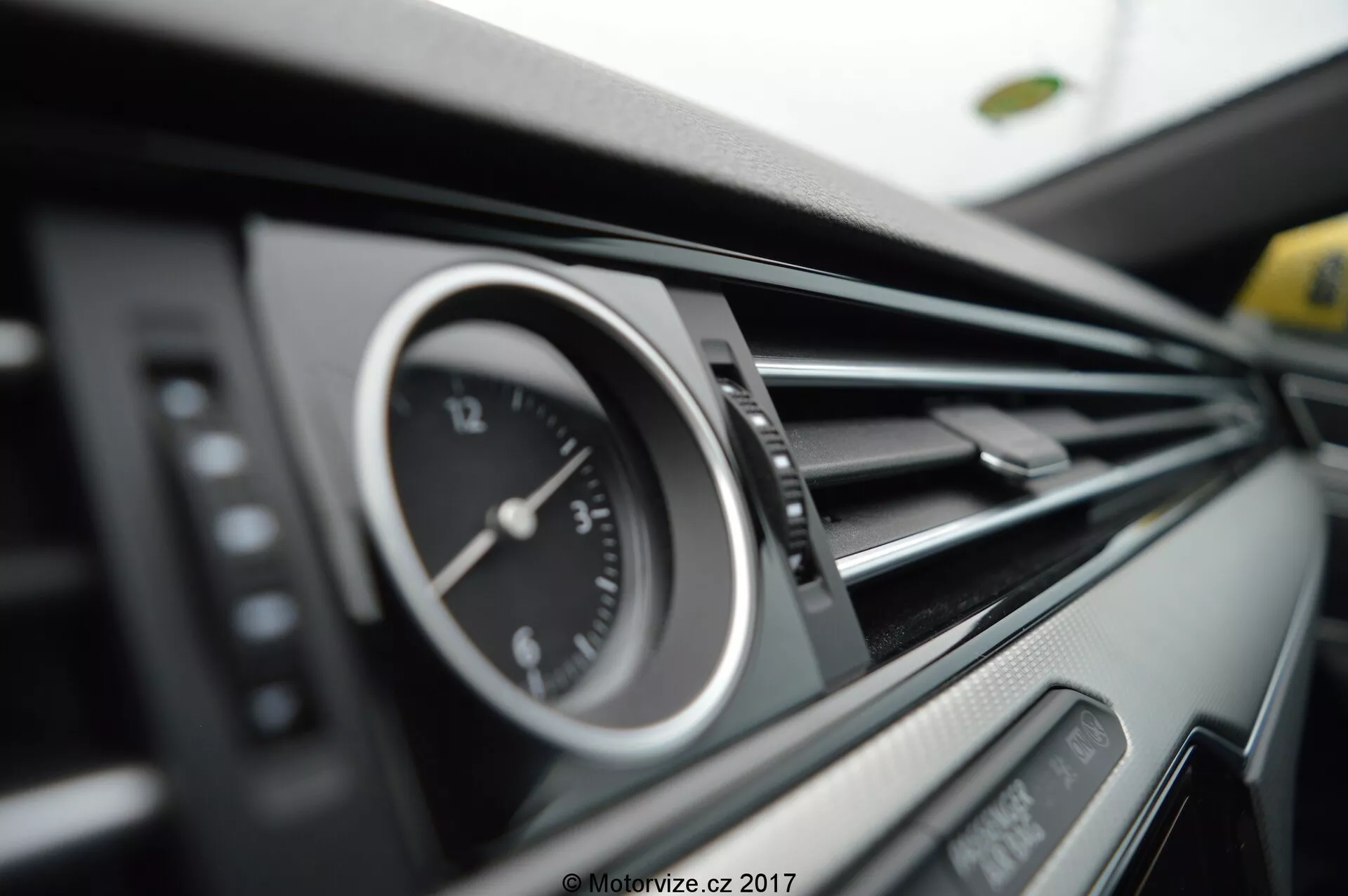

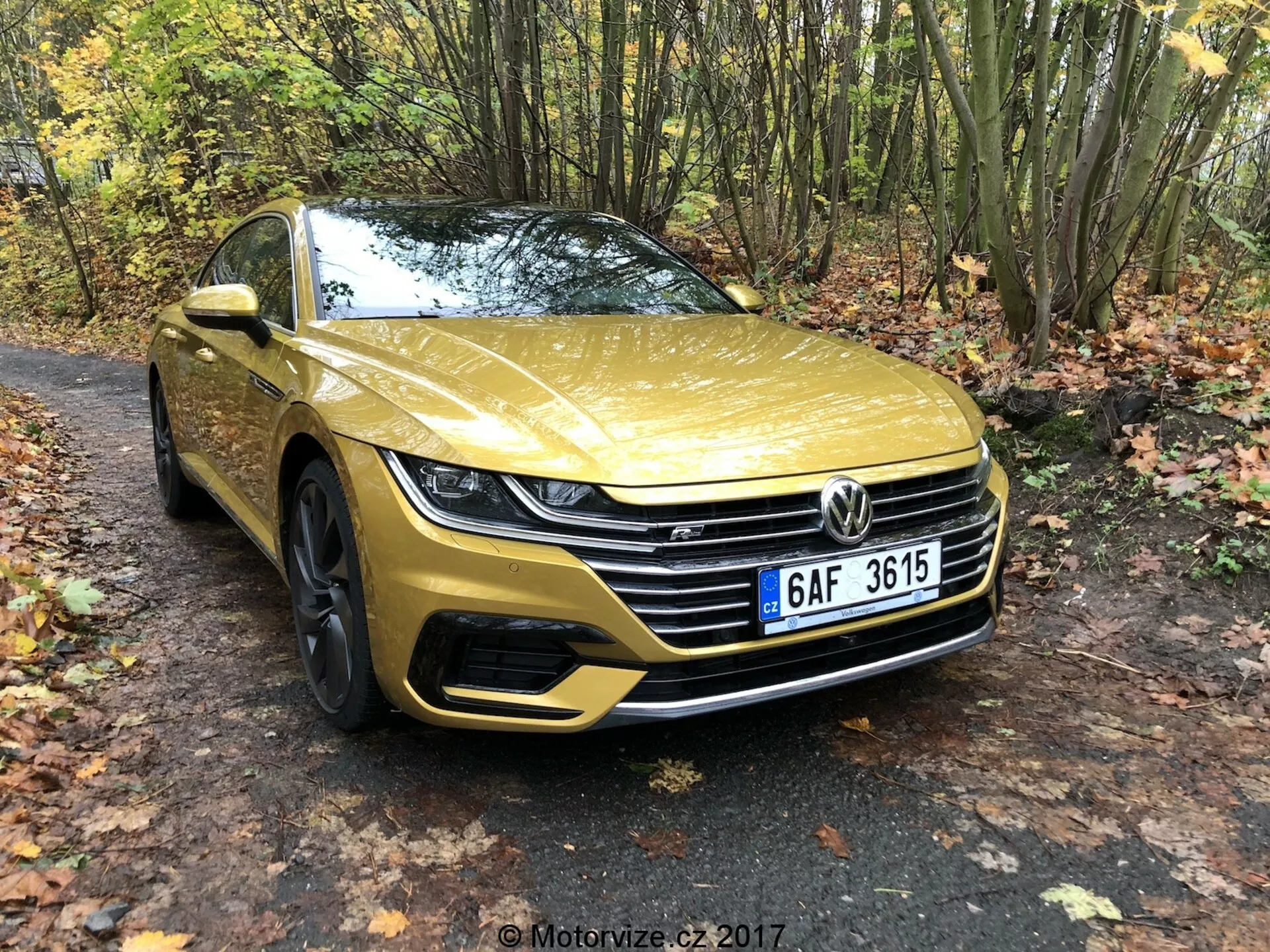

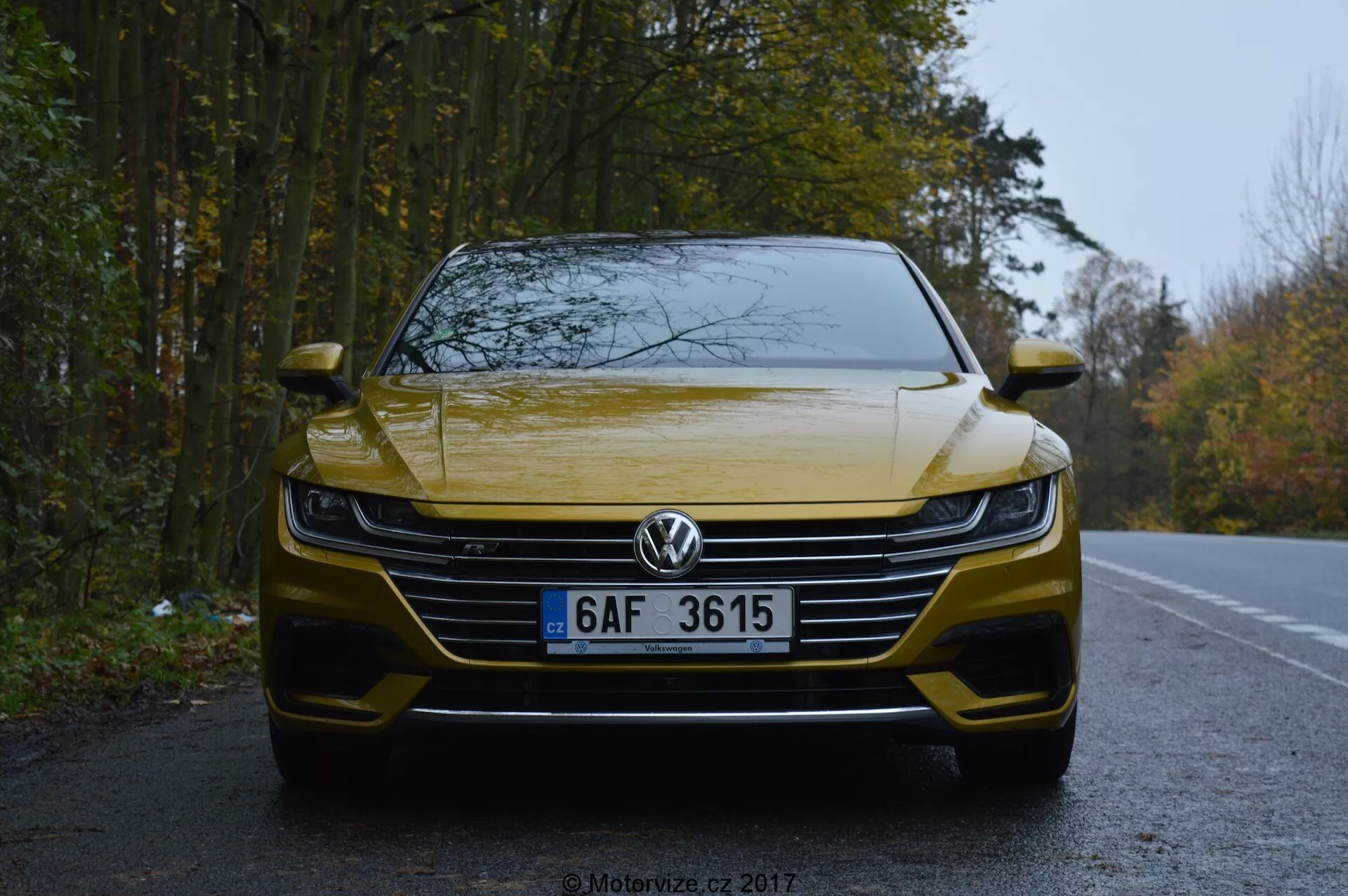

Volkswagen Arteon (2017 - 2020)

Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Table of contents:

Model specs

Model info

Model name
VW Arteon
Generation
3H
Production years
2017 - 2020
Doors
5
5

Dimensions

Length
4862 mm
3,686.0
Avg
4,862.0
Higher is better
Wheelbase
2837 mm
2,300.0
Avg
2,837.0
Higher is better
Width
1871 mm
1,662.0
Avg
1,871.0
Higher is better
Height
1450 mm
1,435.0
Avg
1,635.0
Higher is better
Ground clearance
138 mm
135.0
Avg
163.0
Higher is better
Turning circle
11 m
9.0
Avg
11.0
Lower is better
Annotated Image

Boot/interior

Boot space
563 l
225.0
Avg
563.0
Higher is better
Boot space (rear seats folded, bottom to roof)
1557 l
870.0
Avg
1,557.0
Higher is better
Seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
4
3.0
Avg
4.0
Higher is better
Max. speed
220 - 250 km/h
155.0
Avg
222.0
Higher is better
Torque
250 - 500 Nm
92.0
Avg
250.0
Higher is better
Power
110 - 206 kW
48.0
Avg
110.0
Higher is better
Cubic capacity
1498 - 1984 ccm
998.0
Avg
1,998.0
Higher is better
Acceleration 0-100km/h
5 - 9 s
5.0
Avg
16.0
Higher is better

Consumption/ecology

Tank size
66 l
38.0
Avg
66.0
Higher is better
Combined consumption (NEDC)
4 - 7 l/100km
  • vw LogoVW Arteon (This) 4 - 7 l/100km
City consumption (NEDC)
5 - 9 l/100km
  • vw LogoVW Arteon (This) 5 - 9 l/100km
Combined consumption (WLTP)
4 - 8 l/100km
4.0
Avg
6.0
Higher is better
Suburban consumption (WLTP)
4 - 8 l/100km
4.0
Avg
5.0
Higher is better
Consumption on highways (WLTP)
4 - 8 l/100km
4.0
Avg
5.0
Higher is better
CO2 emissions (WLTP)
126 - 196 g/km
114.0
Avg
145.0
Higher is better
Empty weight (EU)
1504 - 1828 kg
1,055.0
Avg
1,504.0
Higher is better

Towing

Max. towbar load
90 kg
50.0
Avg
90.0
Higher is better
Max. roof load
100 kg
50.0
Avg
100.0
Higher is better
Braked trailer
1600 - 2200 kg
800.0
Avg
1,600.0
Higher is better
Trailer (no brakes)
750 kg
500.0
Avg
750.0
Higher is better

Engines (Arteon)

Filter by fuel:
Diesel
MAN FWD
2.0 TDI SCR
Engine & Power
Power
110 kW / 150 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
222 km/h
Torque & RPM
Torque
340 Nm
Consumption
Combined consumption (NEDC)
4 l/100km
Maximum torque at RPM
1750 RPM
City consumption (NEDC)
5 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
2.0 TDI SCR DSG
Engine & Power
Power
110 kW / 150 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
220 km/h
Torque & RPM
Torque
340 Nm
Consumption
Combined consumption (NEDC)
4 l/100km
Maximum torque at RPM
1750 RPM
City consumption (NEDC)
5 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Gasoline
MAN FWD
1.5 TSI ACT
Engine & Power
Power
110 kW / 150 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
222 km/h
Torque & RPM
Torque
250 Nm
Consumption
Combined consumption (NEDC)
5 l/100km
Maximum torque at RPM
1500 RPM
City consumption (NEDC)
6 l/100km
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.5 TSI OPF ACT DSG
Engine & Power
Power
110 kW / 150 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
220 km/h
Torque & RPM
Torque
250 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
151 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
9 l/100km
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Diesel
AUT FWD
2.0 TDI SCR R-Line DSG
Engine & Power
Power
140 kW / 190 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
238 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (NEDC)
4 l/100km
Maximum torque at RPM
1900 RPM
City consumption (NEDC)
5 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Gasoline
AUT FWD
2.0 TSI Elegance DSG
Engine & Power
Power
140 kW / 190 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
239 km/h
Torque & RPM
Torque
320 Nm
Consumption
Combined consumption (NEDC)
6 l/100km
Maximum torque at RPM
1500 RPM
City consumption (NEDC)
7 l/100km
Technical Details
Maximum output at RPM
4180 RPM
Fuel injection
Direct Injection
Diesel
AUT AWD
2.0 TDI SCR Elegance 4MOTION DSG
Engine & Power
Power
176 kW / 239 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
6 s
Max. speed
245 km/h
Torque & RPM
Torque
500 Nm
Consumption
Combined consumption (NEDC)
5 l/100km
Maximum torque at RPM
1750 RPM
City consumption (NEDC)
7 l/100km
Technical Details
Maximum output at RPM
4000 RPM
Fuel injection
Common Rail
Gasoline
AUT AWD
2.0 TSI OPF Elegance 4MOTION DSG
Engine & Power
Power
200 kW / 272 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
5 s
Max. speed
250 km/h
Torque & RPM
Torque
350 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
181 g/km
Maximum torque at RPM
2000 RPM
Consumption on short trips (WLTP)
11 l/100km
Technical Details
Maximum output at RPM
5100 RPM
Fuel injection
Direct Injection
Gasoline
AUT AWD
2.0 TSI Elegance 4MOTION DSG
Engine & Power
Power
206 kW / 280 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
5 s
Max. speed
250 km/h
Torque & RPM
Torque
350 Nm
Consumption
Combined consumption (NEDC)
7 l/100km
Maximum torque at RPM
1700 RPM
City consumption (NEDC)
9 l/100km
Technical Details
Maximum output at RPM
5100 RPM
Fuel injection
Direct Injection
Compare all engines
