Volkswagen Tiguan
Specs, engines, generations

Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Table of contents:

Model specs

Model info

Model name
VW Tiguan
Generation
CT
Production years
2024 - Present
Doors
5
5

Dimensions

Length
4539 mm
4,362.0
Avg
4,740.0
Higher is better
Wheelbase
2677 mm
2,640.0
Avg
2,739.0
Higher is better
Width
1842 mm
1,800.0
Avg
1,910.0
Higher is better
Height
1658 mm
1,558.0
Avg
1,730.0
Higher is better
Turning circle
11 m
10.0
Avg
11.0
Lower is better

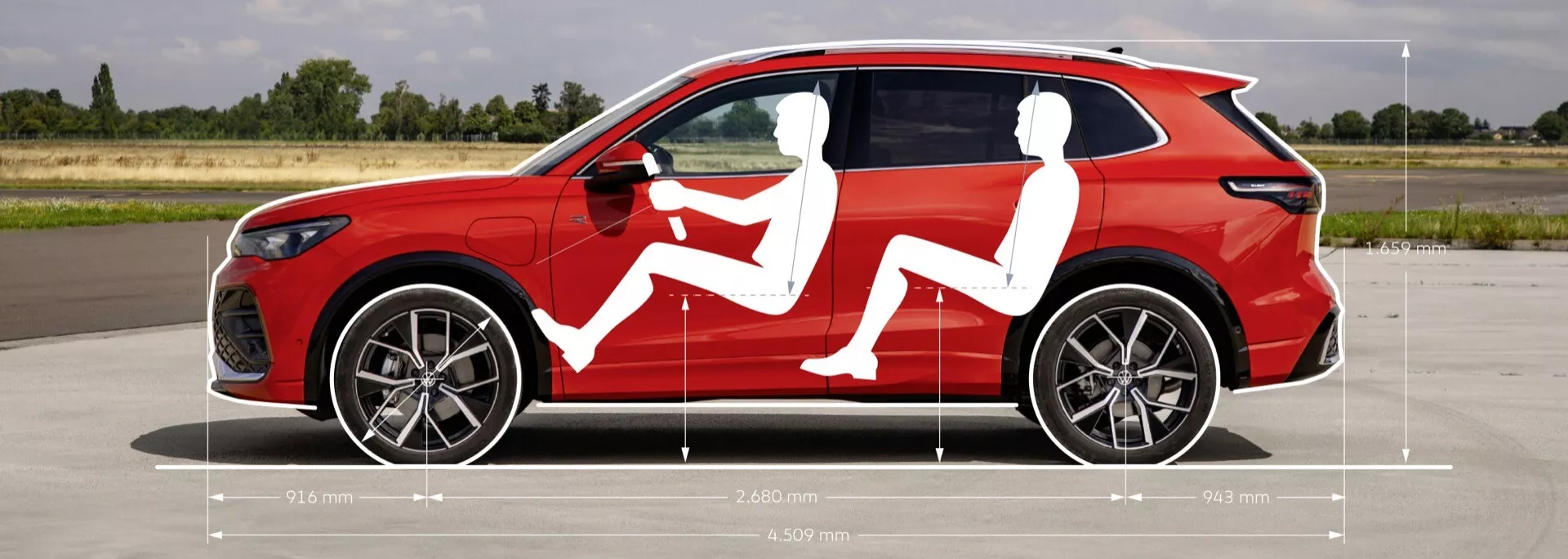

Annotated Image

Boot/interior

Boot space
652 l
315.0
Avg
668.0
Higher is better
Boot space (rear seats folded, bottom to roof)
1650 l
1,120.0
Avg
1,731.0
Higher is better
Seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
4
3.0
Avg
4.0
Higher is better
Max. speed
198 - 242 km/h
170.0
Avg
201.0
Higher is better
Torque
220 - 400 Nm
182.0
Avg
330.0
Higher is better
Power
96 - 200 kW
96.0
Avg
145.0
Higher is better
Cubic capacity
1498 - 1984 ccm
1,199.0
Avg
1,995.0
Higher is better
Acceleration 0-100km/h
5 - 10 s
5.0
Avg
12.0
Higher is better

Consumption/ecology

Tank size
45 - 58 l
43.0
Avg
55.0
Higher is better
Combined consumption (WLTP)
5 - 8 l/100km
4.0
Avg
8.0
Higher is better
Suburban consumption (WLTP)
5 - 8 l/100km
3.0
Avg
8.0
Higher is better
Consumption on highways (WLTP)
5 - 8 l/100km
5.0
Avg
9.0
Higher is better
CO2 emissions (WLTP)
8 - 193 g/km
8.0
Avg
194.0
Higher is better
Empty weight (EU)
1599 - 1890 kg
1,505.0
Avg
1,693.0
Higher is better

Towing

Max. towbar load
100 kg
75.0
Avg
100.0
Higher is better
Max. roof load
75 kg
75.0
Avg
100.0
Higher is better
Braked trailer
1600 - 2200 kg
725.0
Avg
2,000.0
Higher is better
Trailer (no brakes)
750 kg
500.0
Avg
750.0
Higher is better

Offroad

Ramp angle
15 - 17 °
15.0
Avg
21.0
Higher is better
Departure angle
18 - 20 °
18.0
Avg
31.0
Higher is better
Approach angle
15 - 17 °
14.0
Avg
20.0
Higher is better

Engines (Tiguan)

Filter by fuel:
Gasoline
AUT FWD
1.5 eTSI OPF DSG
Engine & Power
Power
96 kW / 131 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
10 s
Max. speed
198 km/h
Torque & RPM
Torque
220 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
139 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
8 l/100km
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Diesel
AUT FWD
2.0 TDI SCR DSG
Engine & Power
Power
110 kW / 150 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
207 km/h
Torque & RPM
Torque
360 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
139 g/km
Maximum torque at RPM
1600 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Gasoline
AUT FWD
1.5 eTSI OPF Life DSG
Engine & Power
Power
110 kW / 150 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
210 km/h
Torque & RPM
Torque
250 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
140 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
8 l/100km
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Diesel
AUT AWD
2.0 TDI SCR Life 4MOTION DSG
Engine & Power
Power
142 kW / 193 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
207 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
161 g/km
Maximum torque at RPM
1750 RPM
Consumption on short trips (WLTP)
8 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Gasoline
AUT AWD
2.0 TSI OPF Life 4MOTION DSG
Engine & Power
Power
150 kW / 204 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
229 km/h
Torque & RPM
Torque
320 Nm
Consumption
Combined consumption (WLTP)
7 l/100km
Emissions
CO2 emissions (WLTP)
170 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
10 l/100km
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.5 eHybrid OPF Life DSG
Engine & Power
Power
150 kW / 204 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
210 km/h
Torque & RPM
Torque
350 Nm
Emissions
CO2 emissions (WLTP)
8 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
2.0 TSI OPF R-Line 4MOTION DSG
Engine & Power
Power
195 kW / 265 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
5 s
Max. speed
242 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
193 g/km
Maximum torque at RPM
1650 RPM
Consumption on short trips (WLTP)
11 l/100km
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.5 eHybrid OPF Elegance DSG
Engine & Power
Power
200 kW / 272 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
215 km/h
Torque & RPM
Torque
400 Nm
Emissions
CO2 emissions (WLTP)
9 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Compare all engines

Volkswagen Tiguan generations

Tiguan I
2007 - 2011
Length4427 mm
Height1686 mm
Wheelbase2604 mm
Length4427 mm
Tiguan Tiguan I (1. Facelift)
2011 - 2016
Length4426 mm
Height1703 mm
Wheelbase2604 mm
Length4426 mm (-1 mm)
Tiguan Tiguan II
2016 - 2021
Length4486 mm
Height1632 mm
Wheelbase2677 mm
Length4486 mm (+60 mm)
Tiguan Tiguan II (1. Facelift)
2020 - 2024
Length4509 mm
Height1675 mm
Wheelbase2678 mm
Length4509 mm (+23 mm)
Tiguan Tiguan III
2024 - Now
Length4539 mm
Height1658 mm
Wheelbase2677 mm
Length4539 mm (+30 mm)
Compare all generations

2007
2007
I was introduced.
2011
2011
Tiguan I (1. Facelift) was introduced and replaced I.
2016
2016
Tiguan II was introduced and replaced Tiguan I (1. Facelift).
2020
2020
Tiguan II (1. Facelift) was introduced.
2021
2021
Tiguan II (1. Facelift) was introduced.
2024
2024
Tiguan III was introduced and replaced Tiguan II (1. Facelift).
