Volkswagen Passat (2019 - 2023)

Thumbnail 1
Table of contents:

Variants

Station Wagon

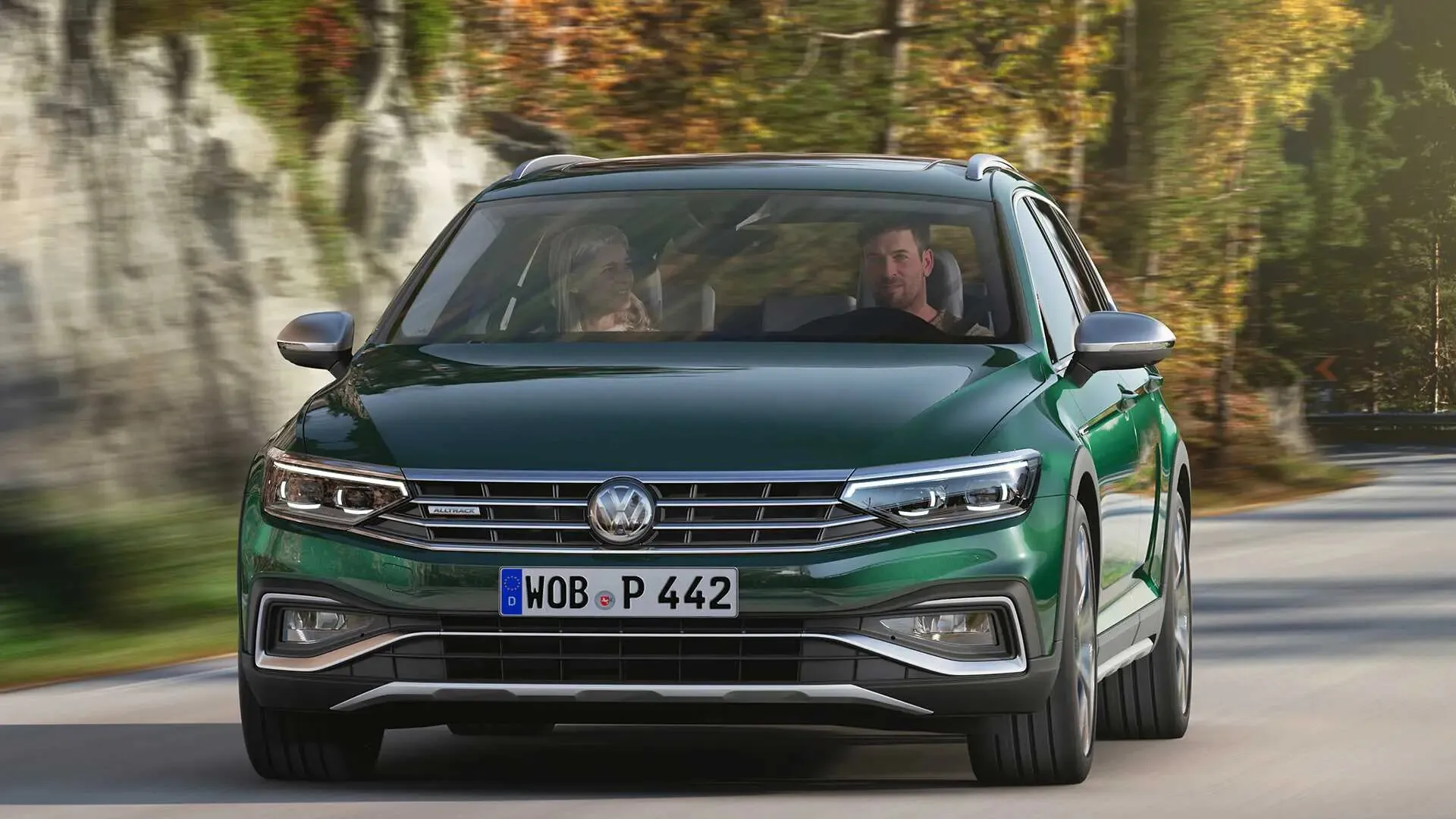

Passat Alltrack
BodyStation Wagon
Length4780 mm
Height1527 mm
Doors5
Boot space639 l
Sedan
Passat GTE Limousine
BodySedan
Length4775 mm
Height1483 mm
Doors4
Boot space586 l
Station Wagon
Passat GTE Variant
BodyStation Wagon
Length4773 mm
Height1521 mm
Doors5
Boot space483 l
Sedan

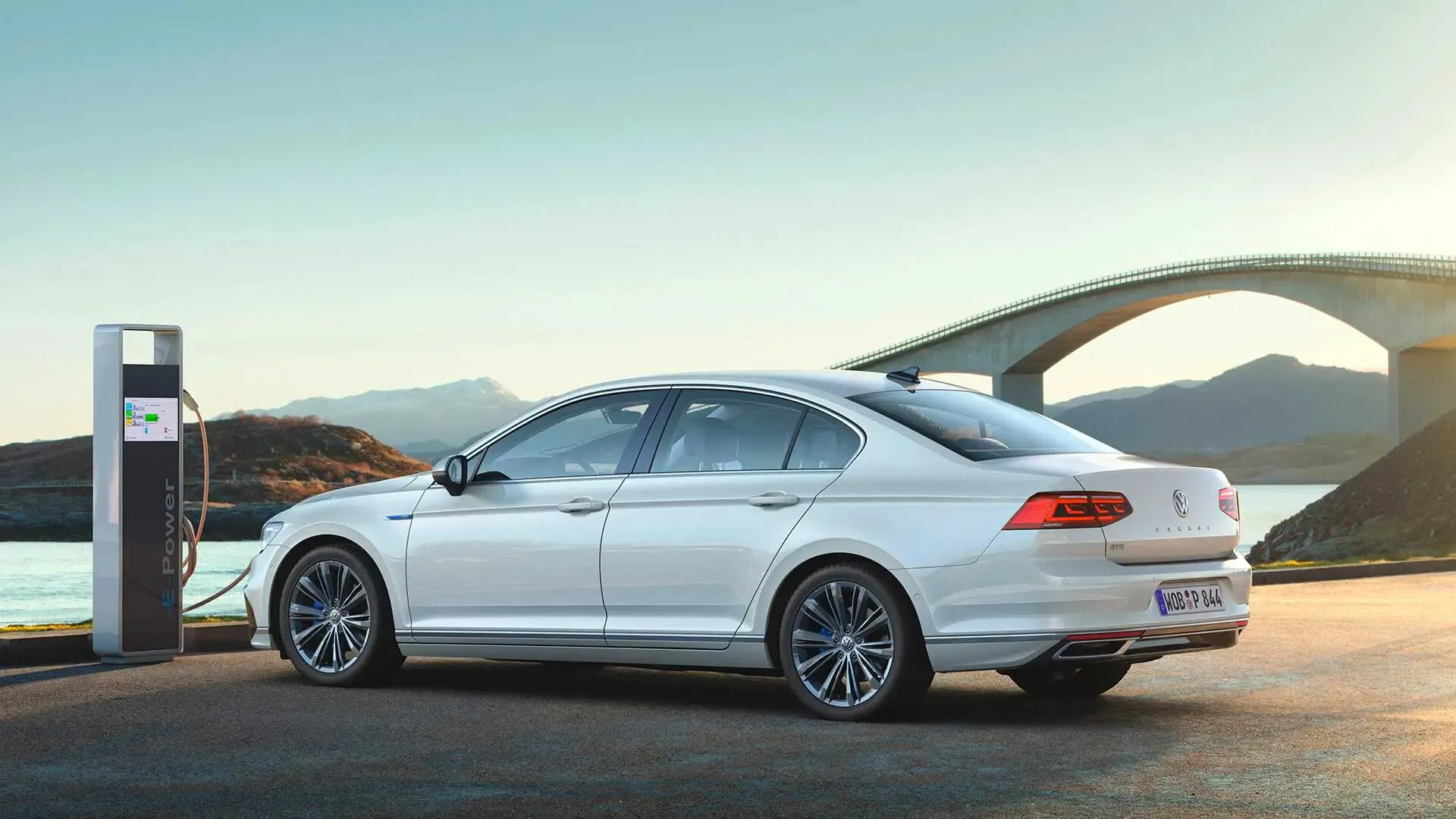

Passat Limousine
BodySedan
Length4775 mm
Height1476 mm
Doors4
Boot space586 l
Station Wagon

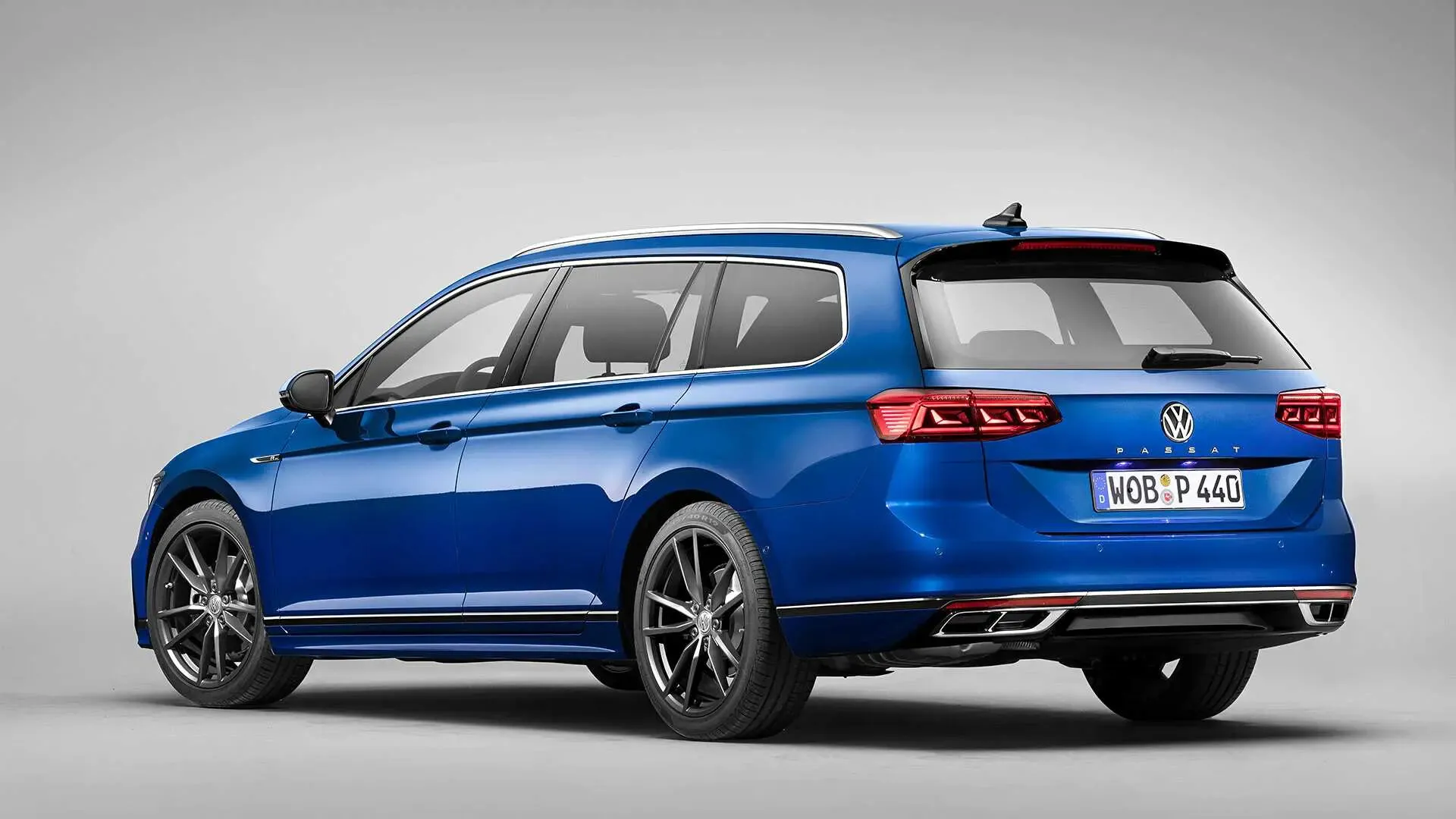

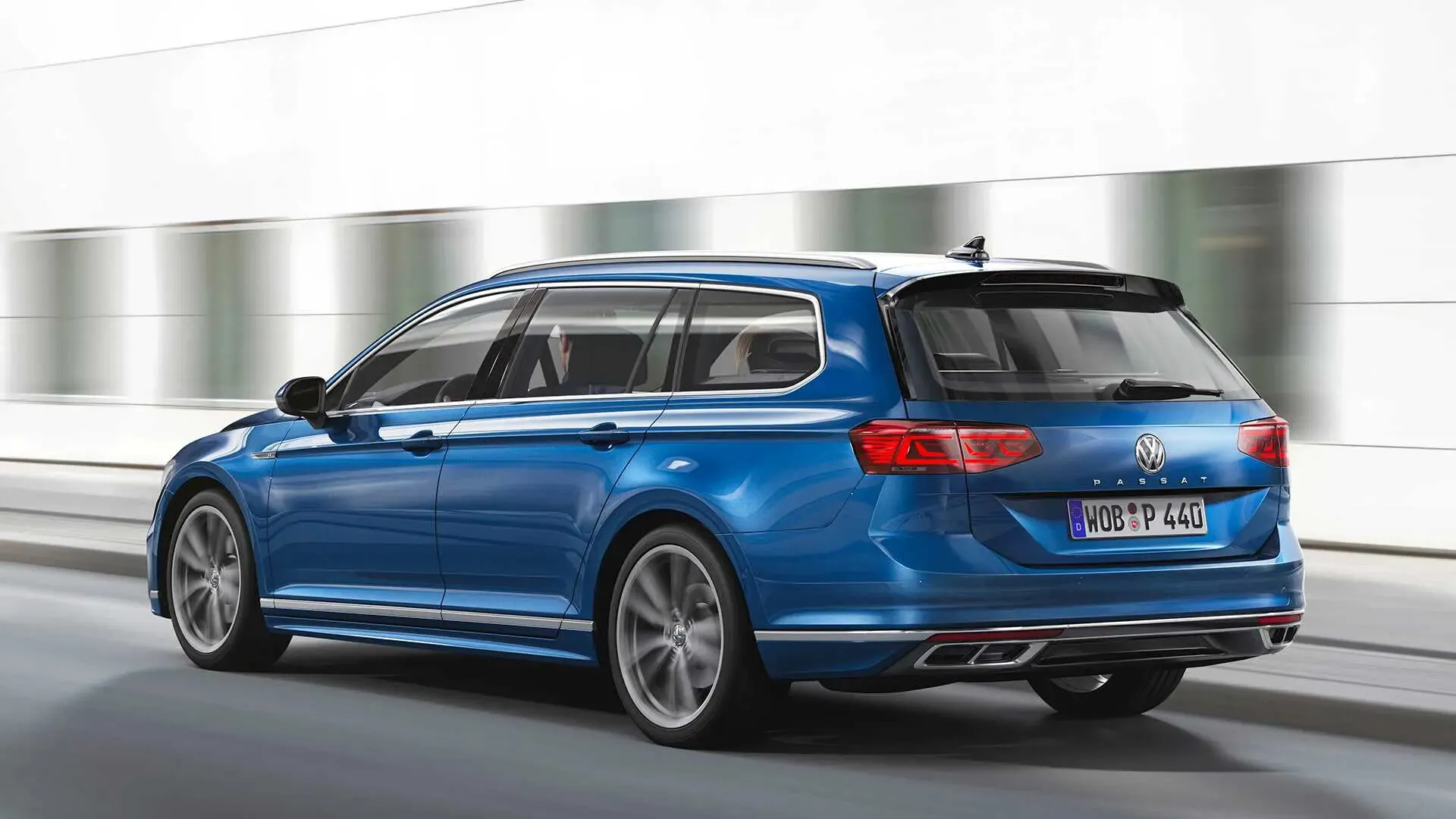

Passat Variant
BodyStation Wagon
Length4773 mm
Height1516 mm
Doors5
Boot space650 l

Model specs

Model info

Model name
VW Passat
Generation
B8
Production years
2019 - 2023
Doors
4
4

Dimensions

Length
4775 mm
4,403.0
Avg
4,775.0
Higher is better
Wheelbase
2786 mm
2,716.0
Avg
2,786.0
Higher is better
Width
1832 mm
1,795.0
Avg
1,860.0
Higher is better
Height
1476 mm
1,435.0
Avg
1,838.0
Higher is better
Ground clearance
145 mm
135.0
Avg
230.0
Higher is better
Turning circle
11 m
10.0
Avg
11.0
Lower is better

Boot/interior

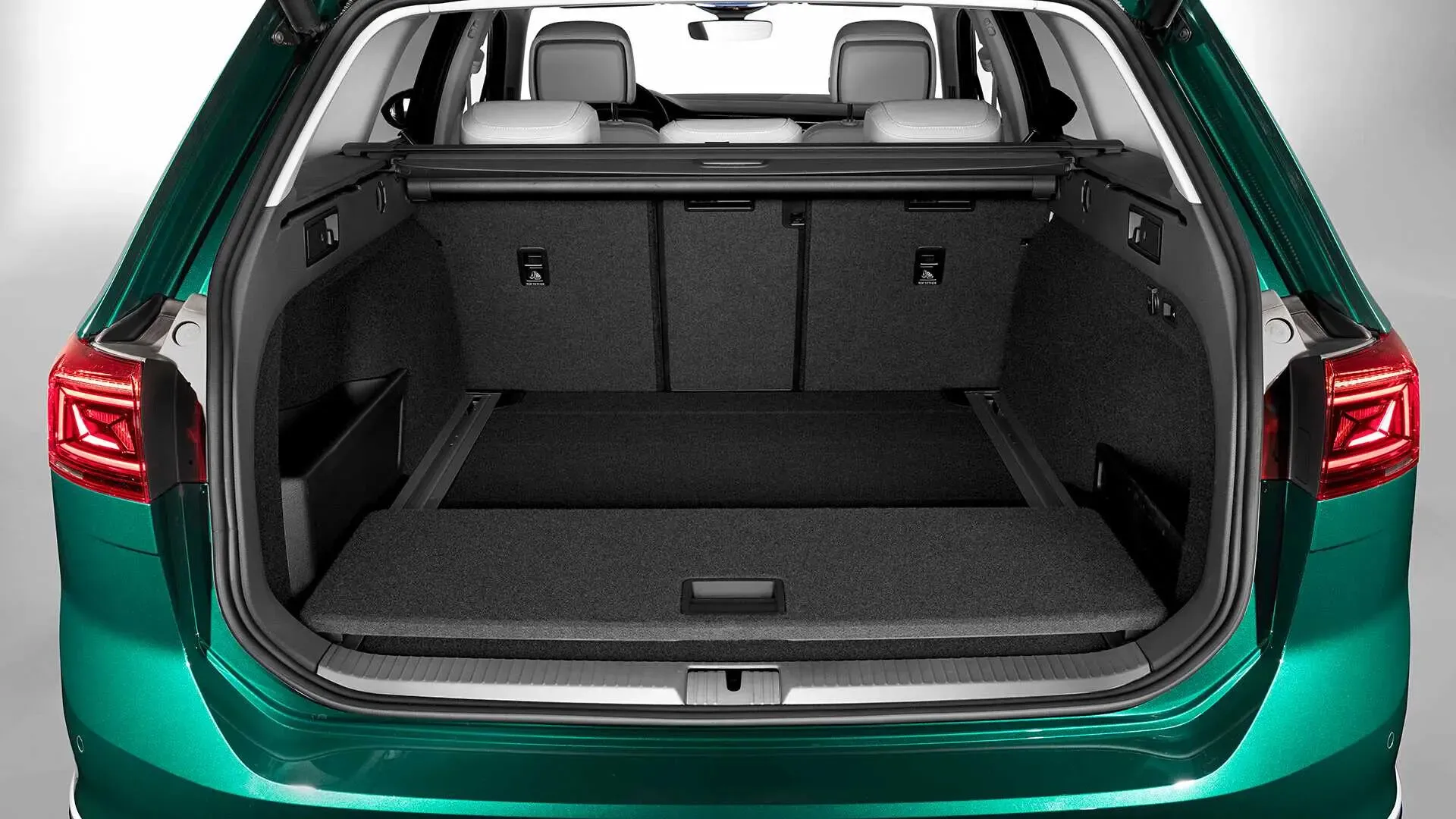

Boot space
586 l
351.0
Avg
1,213.0
Higher is better

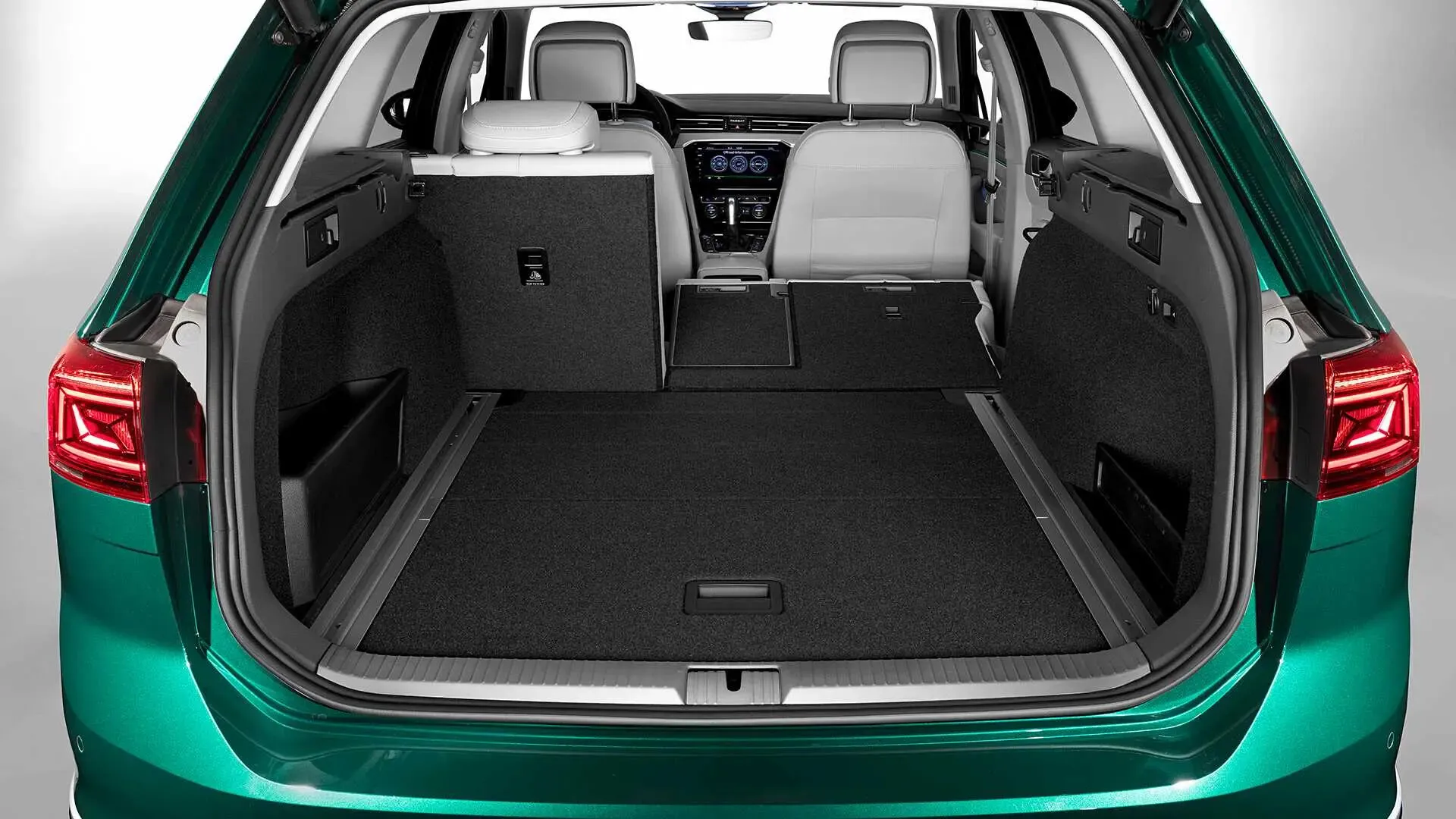

Boot space (rear seats folded, bottom to windows)
1152 l
  • vw LogoVW Passat (This) 1152 l
    1,152.0
Seats
5
5
Doors
4
4

Engines/drivetrain

Cylinders
4
3.0
Avg
4.0
Higher is better
Max. speed
198 - 250 km/h
174.0
Avg
220.0
Higher is better
Torque
250 - 500 Nm
175.0
Avg
250.0
Higher is better
Power
88 - 206 kW
81.0
Avg
110.0
Higher is better
Cubic capacity
1395 - 1984 ccm
1,197.0
Avg
1,998.0
Higher is better
Acceleration 0-100km/h
5 - 11 s
5.0
Avg
12.0
Higher is better

Consumption/ecology

Tank size
50 - 66 l
50.0
Avg
66.0
Higher is better
Combined consumption (WLTP)
1 - 8 l/100km
1.0
Avg
6.0
Higher is better
Suburban consumption (WLTP)
4 - 8 l/100km
4.0
Avg
6.0
Higher is better
Consumption on highways (WLTP)
4 - 8 l/100km
4.0
Avg
7.0
Higher is better
CO2 emissions (WLTP)
24 - 198 g/km
24.0
Avg
152.0
Higher is better
Empty weight (EU)
1433 - 1790 kg
1,284.0
Avg
1,550.0
Higher is better

Towing

Max. towbar load
90 kg
65.0
Avg
90.0
Higher is better
Max. roof load
100 kg
75.0
Avg
150.0
Higher is better
Braked trailer
1500 - 2200 kg
1,200.0
Avg
1,600.0
Higher is better
Trailer (no brakes)
710 - 750 kg
600.0
Avg
750.0
Higher is better

Engines (Passat)

Filter by fuel:
Diesel
AUT FWD
1.6 TDI SCR DSG
Engine & Power
Power
88 kW / 120 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
10 s
Max. speed
205 km/h
Torque & RPM
Torque
250 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
143 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
3600 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
2.0 TDI SCR Conceptline DSG
Engine & Power
Power
90 kW / 122 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
204 km/h
Torque & RPM
Torque
250 Nm
Consumption
Combined consumption (WLTP)
4 l/100km
Emissions
CO2 emissions (WLTP)
123 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
3600 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
2.0 TDI SCR
Engine & Power
Power
110 kW / 150 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
223 km/h
Torque & RPM
Torque
340 Nm
Consumption
Combined consumption (WLTP)
4 l/100km
Emissions
CO2 emissions (WLTP)
127 g/km
Maximum torque at RPM
1600 RPM
Consumption on short trips (WLTP)
5 l/100km
Technical Details
Maximum output at RPM
3600 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
2.0 TDI SCR DSG
Engine & Power
Power
110 kW / 150 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
220 km/h
Torque & RPM
Torque
340 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
132 g/km
Maximum torque at RPM
1600 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
3600 RPM
Fuel injection
Common Rail
Gasoline
MAN FWD
1.5 TSI OPF
Engine & Power
Power
110 kW / 150 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
220 km/h
Torque & RPM
Torque
250 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
138 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
8 l/100km
Technical Details
Maximum output at RPM
5600 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.5 TSI OPF DSG
Engine & Power
Power
110 kW / 150 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
220 km/h
Torque & RPM
Torque
250 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
147 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
8 l/100km
Technical Details
Maximum output at RPM
5600 RPM
Fuel injection
Direct Injection
Diesel
AUT FWD
2.0 TDI SCR Business DSG
Engine & Power
Power
140 kW / 190 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
236 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
147 g/km
Maximum torque at RPM
1900 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Gasoline
AUT FWD
2.0 TSI OPF Business DSG
Engine & Power
Power
140 kW / 190 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
238 km/h
Torque & RPM
Torque
320 Nm
Consumption
Combined consumption (WLTP)
7 l/100km
Emissions
CO2 emissions (WLTP)
170 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
11 l/100km
Technical Details
Maximum output at RPM
5600 RPM
Fuel injection
Direct Injection
Diesel
AUT FWD
2.0 TDI SCR Business DSG
Engine & Power
Power
147 kW / 200 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
237 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
139 g/km
Maximum torque at RPM
1750 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Gasoline
AUT FWD
GTE DSG
Engine & Power
Power
160 kW / 218 HP
Capacity
1.4L (1,395 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
222 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (WLTP)
1 l/100km
Emissions
CO2 emissions (WLTP)
27 g/km
Maximum torque at RPM
1550 RPM
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Diesel
AUT AWD
2.0 TDI SCR Elegance 4MOTION DSG
Engine & Power
Power
176 kW / 239 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
6 s
Max. speed
247 km/h
Torque & RPM
Torque
500 Nm
Consumption
Combined consumption (WLTP)
7 l/100km
Emissions
CO2 emissions (WLTP)
189 g/km
Maximum torque at RPM
1750 RPM
Consumption on short trips (WLTP)
9 l/100km
Technical Details
Maximum output at RPM
4000 RPM
Fuel injection
Common Rail
Gasoline
AUT AWD
Alltrack 2.0 TSI OPF 4MOTION DSG
Engine & Power
Power
200 kW / 272 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
5 s
Max. speed
250 km/h
Torque & RPM
Torque
350 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
190 g/km
Maximum torque at RPM
2000 RPM
Consumption on short trips (WLTP)
11 l/100km
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Premium Gasoline
AUT AWD
2.0 TSI OPF Elegance 4MOTION DSG
Engine & Power
Power
200 kW / 272 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
5 s
Max. speed
250 km/h
Torque & RPM
Torque
350 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
182 g/km
Maximum torque at RPM
2000 RPM
Consumption on short trips (WLTP)
11 l/100km
Technical Details
Maximum output at RPM
5600 RPM
Fuel injection
Direct Injection
Gasoline
AUT AWD
2.0 TSI OPF Elegance 4MOTION DSG
Engine & Power
Power
206 kW / 280 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
5 s
Max. speed
250 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
198 g/km
Maximum torque at RPM
2000 RPM
Consumption on short trips (WLTP)
13 l/100km
Technical Details
Maximum output at RPM
5600 RPM
Fuel injection
Direct Injection
Compare all engines

Volkswagen Passat generations

Body type
Passat B1
1973 - 1977
Length4190 mm
Height1360 mm
Wheelbase2470 mm
Length4190 mm
Body type
Passat B1 (1. Facelift)
1977 - 1980
Length4265 mm
Height1360 mm
Wheelbase2470 mm
Length4265 mm (+75 mm)
Body type
Passat B2
1980 - 1985
Length4435 mm
Height1385 mm
Wheelbase2550 mm
Length4435 mm (+170 mm)
Body type
Passat B2 (1. Facelift)
1985 - 1988
Length4545 mm
Height1385 mm
Wheelbase2550 mm
Length4545 mm (+110 mm)
Body type
Passat B3
1988 - 1993
Length4575 mm
Height1430 mm
Wheelbase2625 mm
Length4575 mm (+30 mm)
Body type
Passat B4
1993 - 1996
Length4605 mm
Height1430 mm
Wheelbase2625 mm
Length4605 mm (+30 mm)
Body type
Passat Passat B5
1996 - 2000
Length4675 mm
Height1459 mm
Wheelbase2703 mm
Length4675 mm (+70 mm)
Passat Passat B5 (1. Facelift)
2000 - 2005
Length4682 mm
Height1498 mm
Wheelbase2703 mm
Length4682 mm (+7 mm)
Body type
Passat Passat B6
2005 - 2010
Length4765 mm
Height1472 mm
Wheelbase2709 mm
Length4765 mm (+83 mm)
Passat Passat B7
2010 - 2014
Length4769 mm
Height1470 mm
Wheelbase2712 mm
Length4769 mm (+4 mm)
Passat B8
2014 - 2019
Length4767 mm
Height1501 mm
Wheelbase2786 mm
Length4767 mm (-2 mm)
Passat B8 (1. Facelift)
2019 - 2023
Length4775 mm
Height1476 mm
Wheelbase2786 mm
Length4775 mm (+8 mm)
Passat Passat B9
2024 - Now
Length4917 mm
Height1521 mm
Wheelbase2837 mm
Length4917 mm (+142 mm)
Compare all generations

1973
1973
B1 was introduced.
1977
1977
B1 (1. Facelift) was introduced and replaced B1.
1980
1980
B2 was introduced and replaced B1 (1. Facelift).
1985
1985
B2 (1. Facelift) was introduced and replaced B2.
1988
1988
B3 was introduced and replaced B2 (1. Facelift).
1993
1993
B4 was introduced and replaced B3.
1996
1996
Passat B5 was introduced and replaced B4.
2000
2000
Passat B5 (1. Facelift) was introduced and replaced Passat B5.
2005
2005
Passat B6 was introduced and replaced Passat B5 (1. Facelift).
2010
2010
Passat B7 was introduced and replaced Passat B6.
2014
2014
B8 was introduced and replaced Passat B7.
2019
2019
B8 (1. Facelift) was introduced and replaced B8.
2023
2023
B8 (1. Facelift) was introduced and replaced B8.
2024
2024
Passat B9 was introduced.

Similar cars

Ford Tourneo Connect
Ford Tourneo Connect
ford Logo 2022 • SK
Body type
High Roof Station Wagon
Length
4500 mm
Width
1855 mm
Height
1833 mm
Wheelbase
2755 mm
Boot capacity
1213 l
Weight
1542 kg
Doors
5
Compare
Citroen C5 Aircross
Citroen C5 Aircross
citroen Logo 2022 • A
Body type
SUV
Length
4500 mm
Width
1859 mm
Height
1688 mm
Wheelbase
2730 mm
Boot capacity
580 l
Weight
1483 kg
Doors
5
Compare
Nissan Townstar
Nissan Townstar
nissan Logo 2022 • NFK
Body type
High Roof Station Wagon
Length
4486 mm
Width
1860 mm
Height
1838 mm
Wheelbase
2716 mm
Boot capacity
775 l
Weight
1550 kg
Doors
5
Compare
VW Touran
VW Touran
vw Logo 2015 • 5T
Body type
Minivan
Length
4527 mm
Width
1829 mm
Height
1668 mm
Wheelbase
2786 mm
Boot capacity
834 l
Weight
1436 kg
Doors
5
Compare
Toyota Proace City
Toyota Proace City
toyota Logo 2020 • E
Body type
Small Commercial Van
Length
4403 mm
Width
1848 mm
Height
1796 mm
Wheelbase
2785 mm
Weight
1284 kg
Doors
3
Compare
Mazda 3
Mazda 3
mazda Logo 2019 • BP
Body type
Hatchback
Length
4460 mm
Width
1795 mm
Height
1435 mm
Wheelbase
2725 mm
Boot capacity
351 l
Weight
1349 kg
Doors
5
Compare
Renault Kangoo
Renault Kangoo
renault Logo 2021 • RFK
Body type
Small Commercial Van
Length
4486 mm
Width
1860 mm
Height
1864 mm
Wheelbase
2716 mm
Weight
1432 kg
Doors
4
Compare
Toyota RAV4
Toyota RAV4
toyota Logo 2019 • XA5
Body type
SUV
Length
4600 mm
Width
1855 mm
Height
1685 mm
Wheelbase
2690 mm
Boot capacity
580 l
Weight
1615 kg
Doors
5
Compare
Suzuki S-Cross
Suzuki S-Cross
suzuki Logo 2022 • JY
Body type
SUV
Length
4300 mm
Width
1785 mm
Height
1580 mm
Wheelbase
2600 mm
Boot capacity
430 l
Weight
1280 kg
Doors
5
Compare
Ford Kuga
Ford Kuga
ford Logo 2019 • DFK
Body type
SUV
Length
4614 mm
Width
1883 mm
Height
1661 mm
Wheelbase
2710 mm
Boot capacity
435 l
Weight
1564 kg
Doors
5
Compare
Compare against all competitors

Compare with ...

Find the Perfect Match
Compare your car with other models
Comparing with:
VW Passat (2019)

Reviews

TOPlist echo ''; // Add smooth scrolling JS for the generations and variants containers echo '';
