Volkswagen Passat
Specs, engines, generations

Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Table of contents:

Model specs

Model info

Model name
VW Passat
Generation
B9
Production years
2024 - Present
Doors
5
5

Dimensions

Length
4917 mm
4,650.0
Avg
4,917.0
Higher is better
Wheelbase
2837 mm
2,785.0
Avg
2,870.0
Higher is better
Width
1849 mm
1,815.0
Avg
1,934.0
Higher is better
Height
1521 mm
1,482.0
Avg
1,680.0
Higher is better
Turning circle
12 m
10.0
Avg
12.0
Lower is better
Annotated Image
Annotated Image

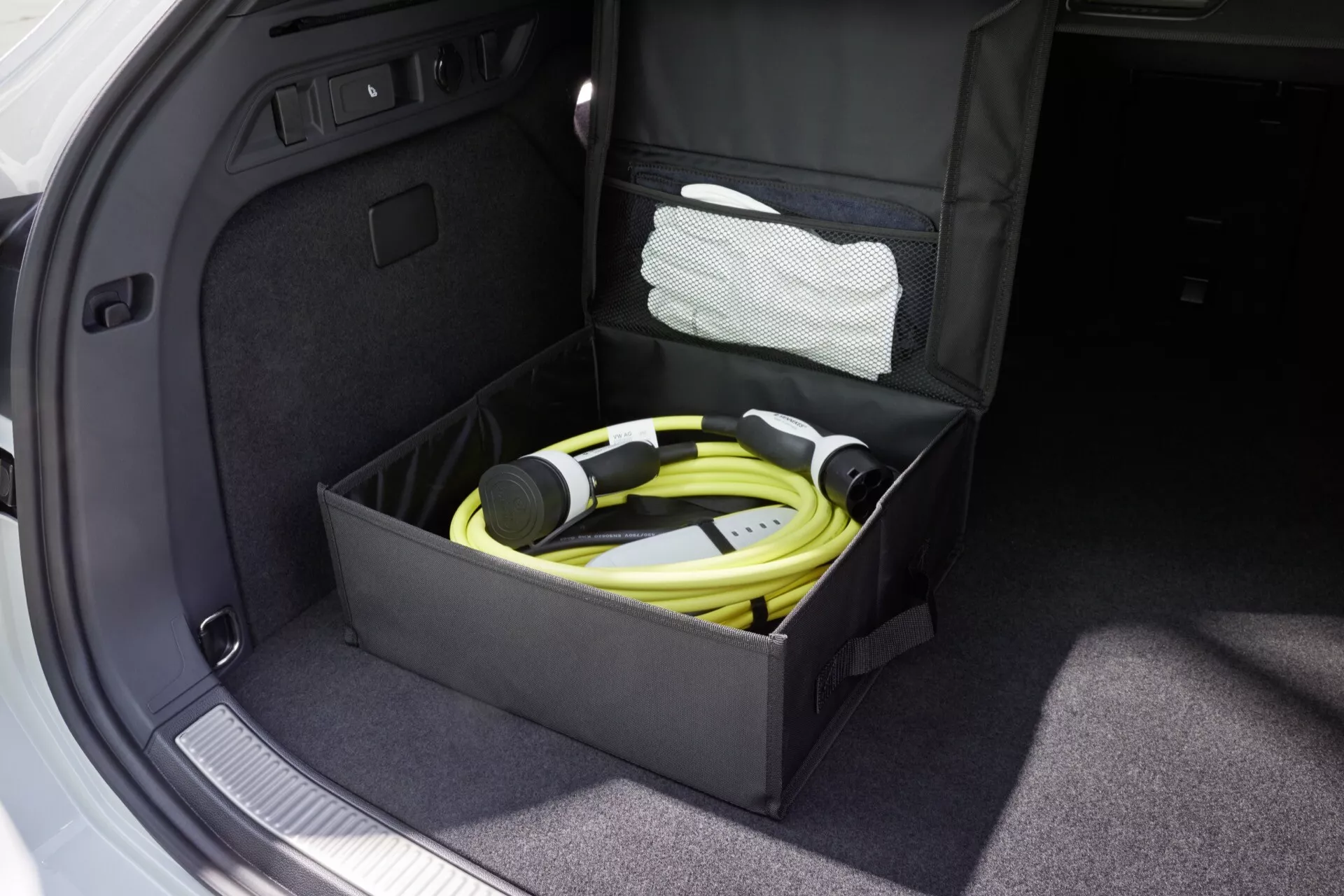

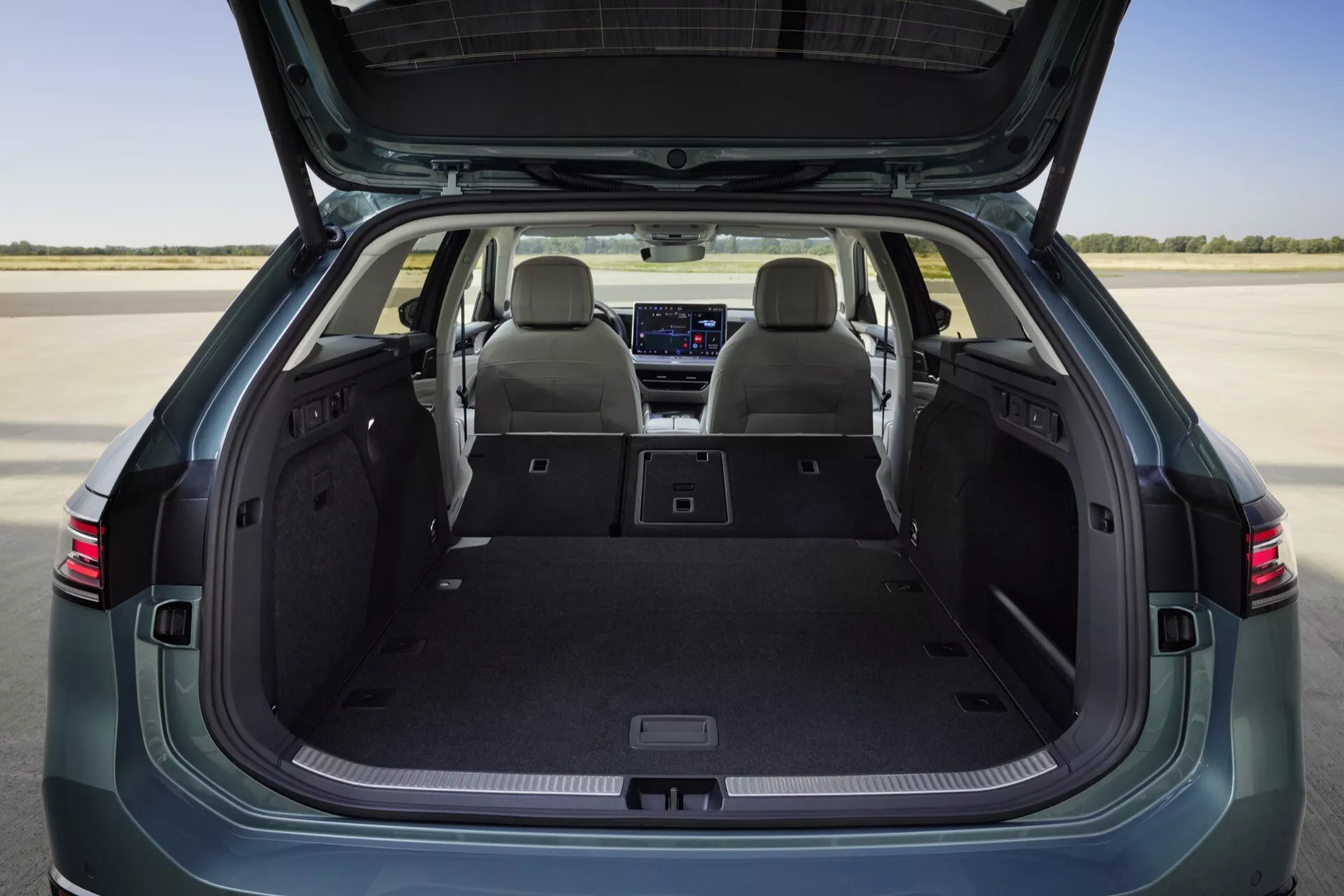

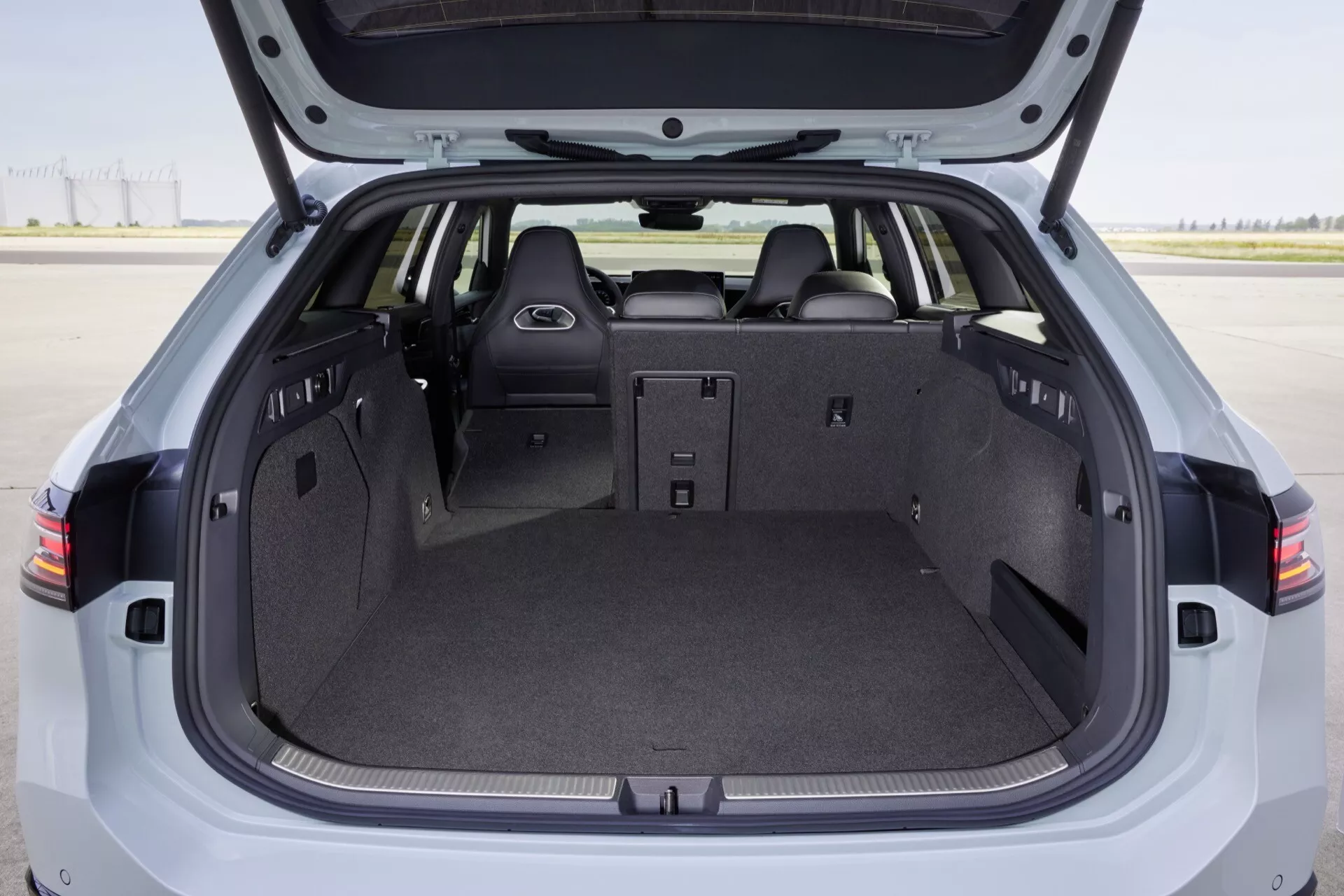

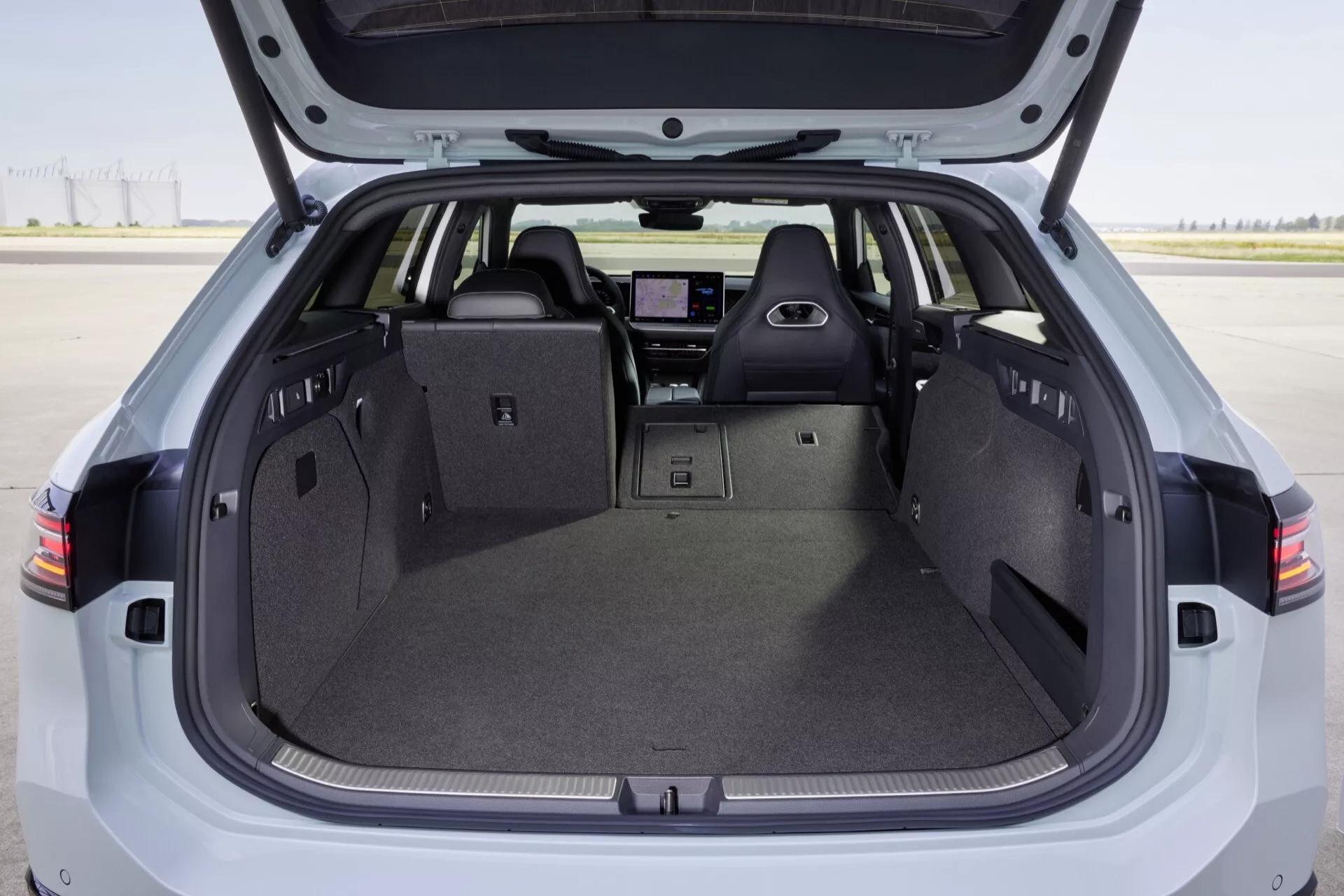

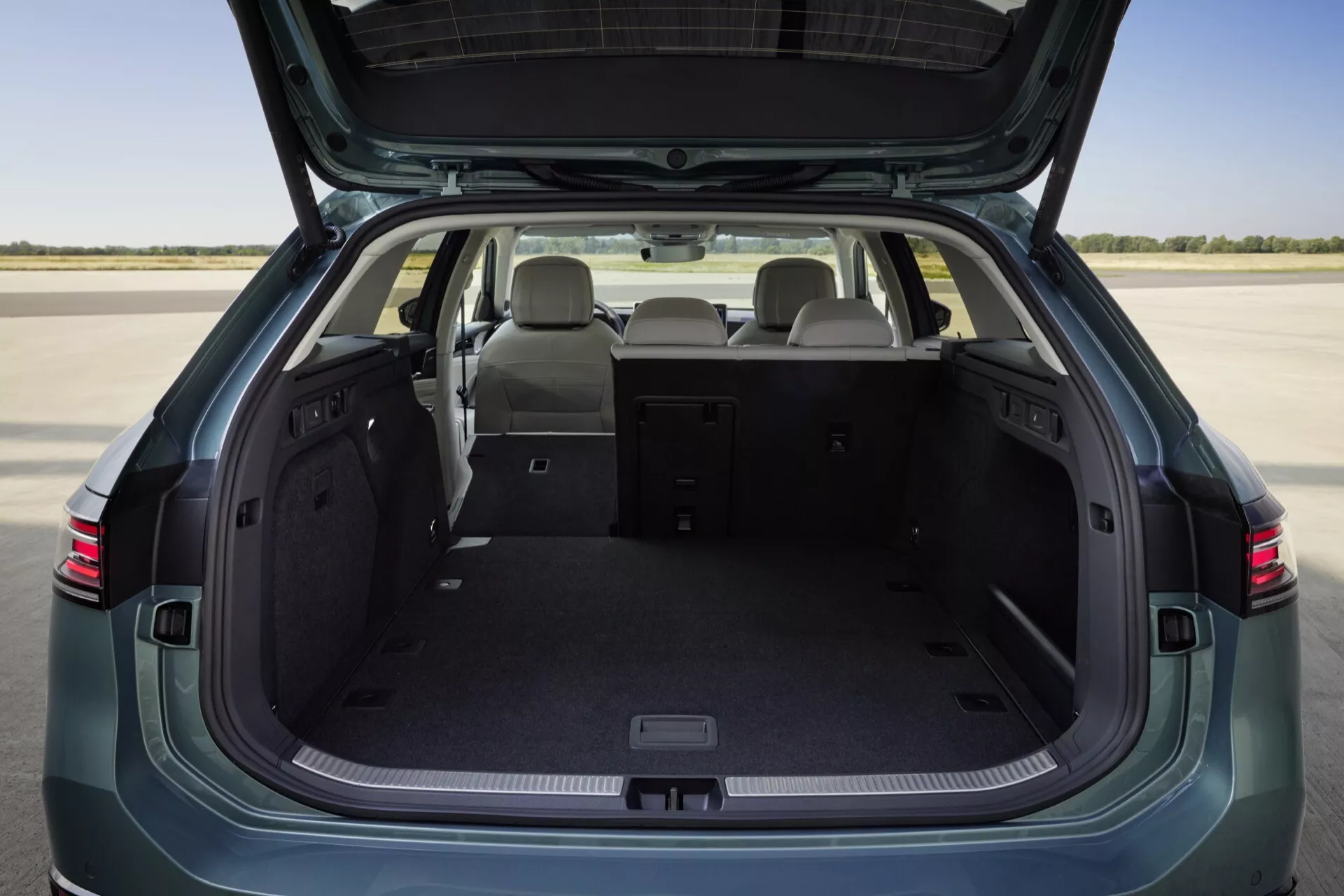

Boot/interior

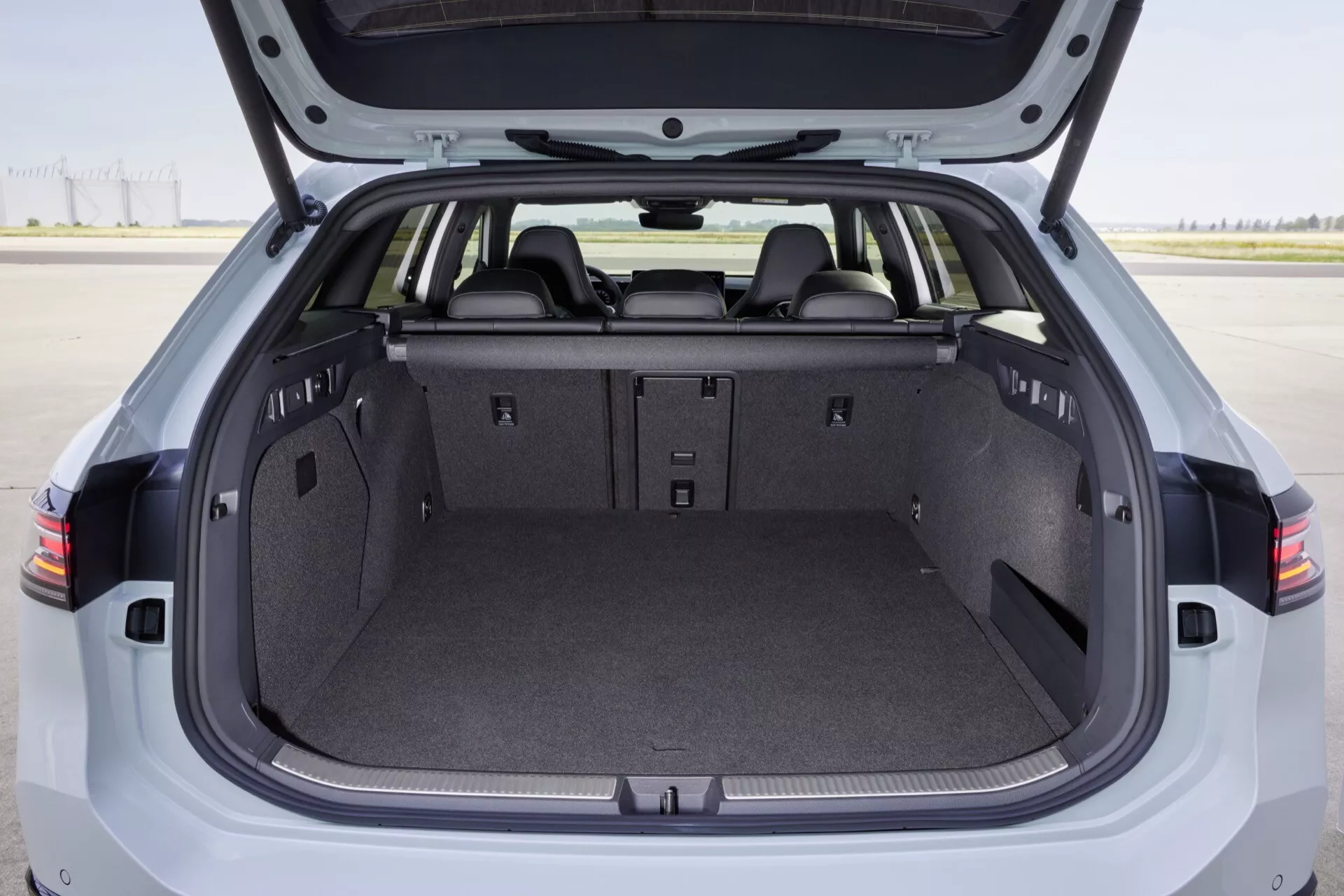

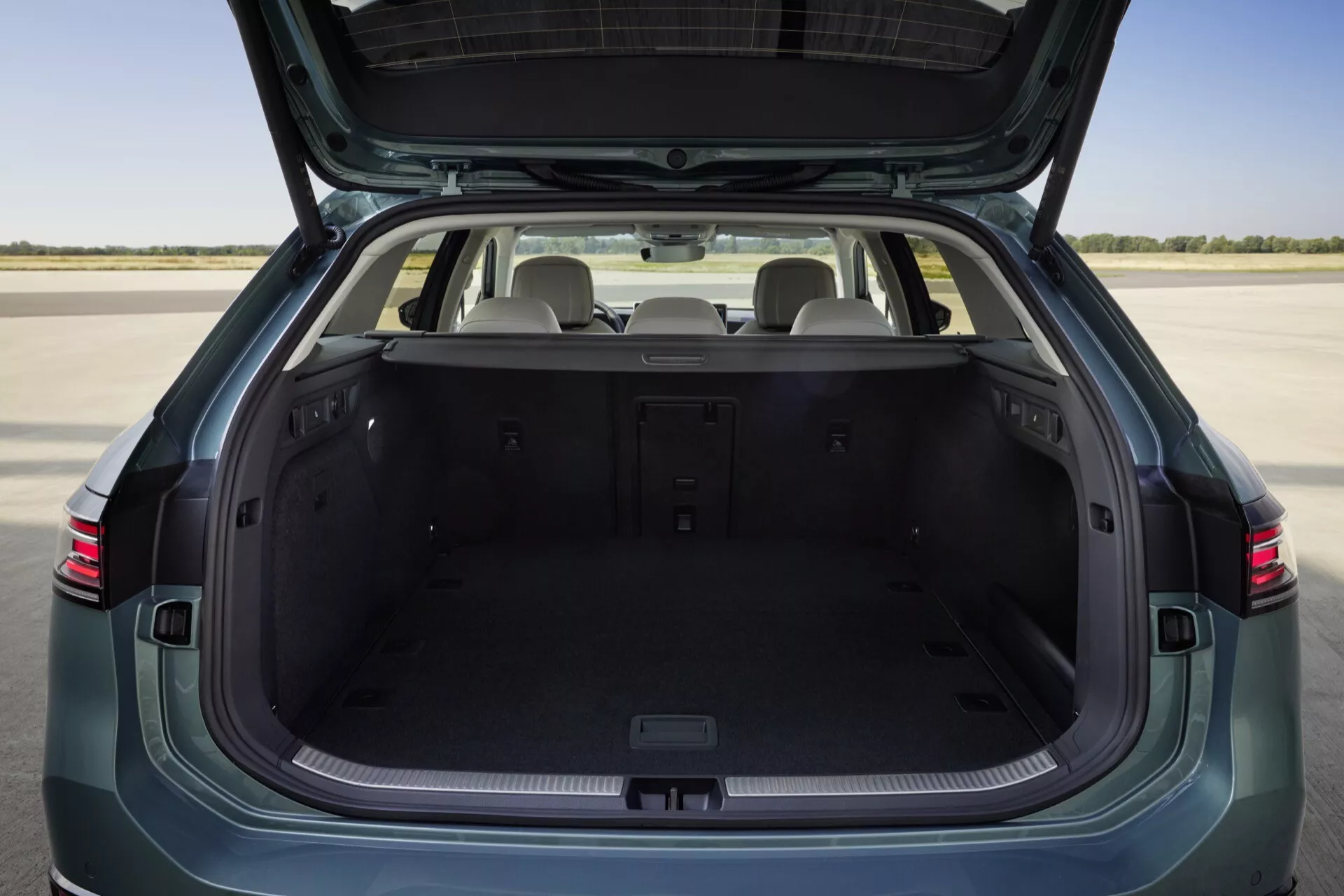

Boot space
690 l
545.0
Avg
690.0
Higher is better

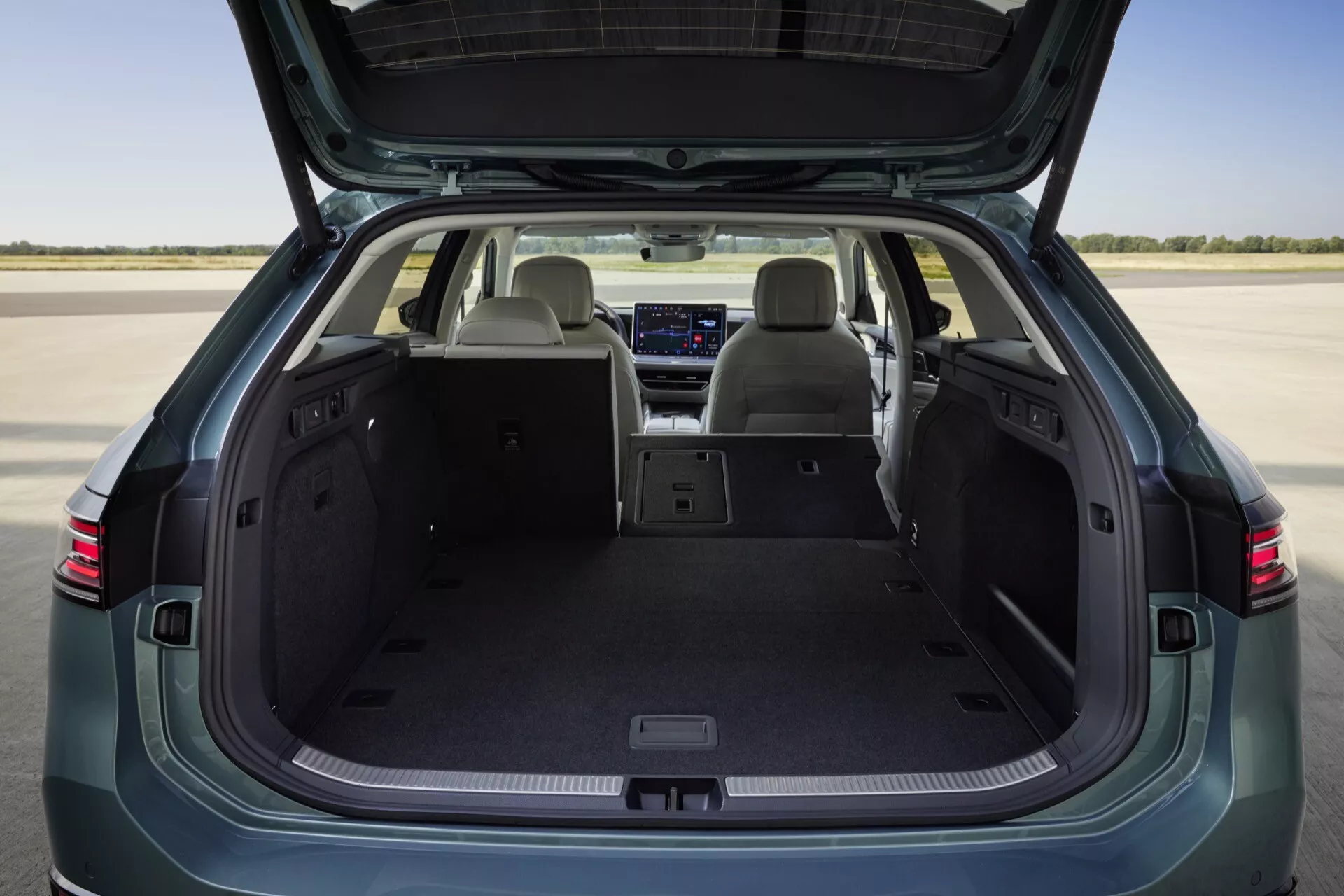

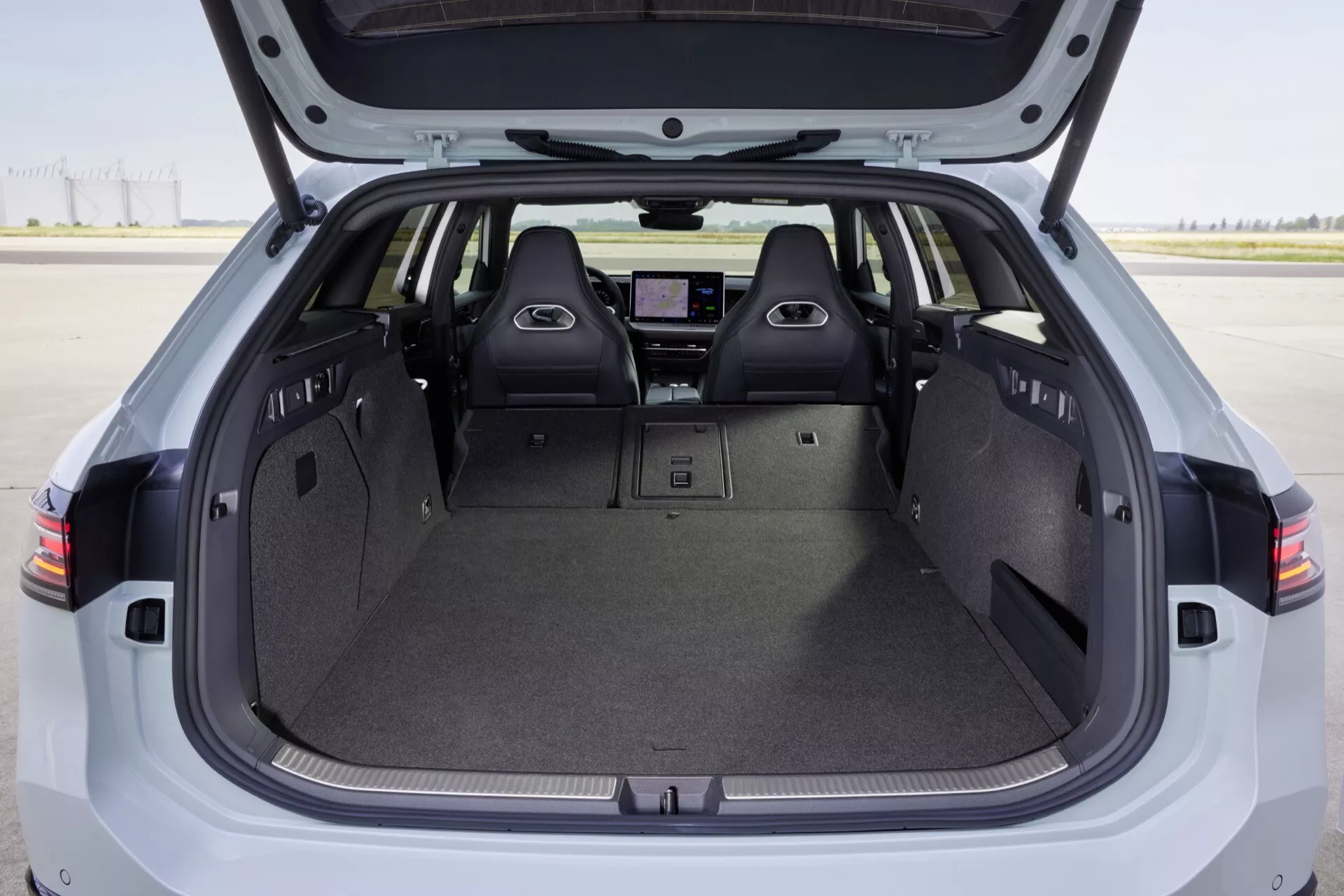

Boot space (rear seats folded, bottom to roof)
1920 l
1,640.0
Avg
1,920.0
Higher is better
Seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
4
3.0
Avg
4.0
Higher is better
Max. speed
212 - 250 km/h
200.0
Avg
222.0
Higher is better
Torque
250 - 400 Nm
230.0
Avg
500.0
Higher is better
Power
90 - 200 kW
90.0
Avg
241.0
Higher is better
Cubic capacity
1498 - 1984 ccm
1,199.0
Avg
2,488.0
Higher is better
Acceleration 0-100km/h
5 - 10 s
5.0
Avg
11.0
Higher is better

Consumption/ecology

Tank size
45 - 66 l
45.0
Avg
66.0
Higher is better
Combined consumption (WLTP)
4 - 8 l/100km
1.0
Avg
6.0
Higher is better
Suburban consumption (WLTP)
4 - 8 l/100km
4.0
Avg
6.0
Higher is better
Consumption on highways (WLTP)
4 - 7 l/100km
4.0
Avg
6.0
Higher is better
CO2 emissions (WLTP)
8 - 183 g/km
8.0
Avg
136.0
Higher is better
Empty weight (EU)
1573 - 1858 kg
1,493.0
Avg
2,055.0
Higher is better

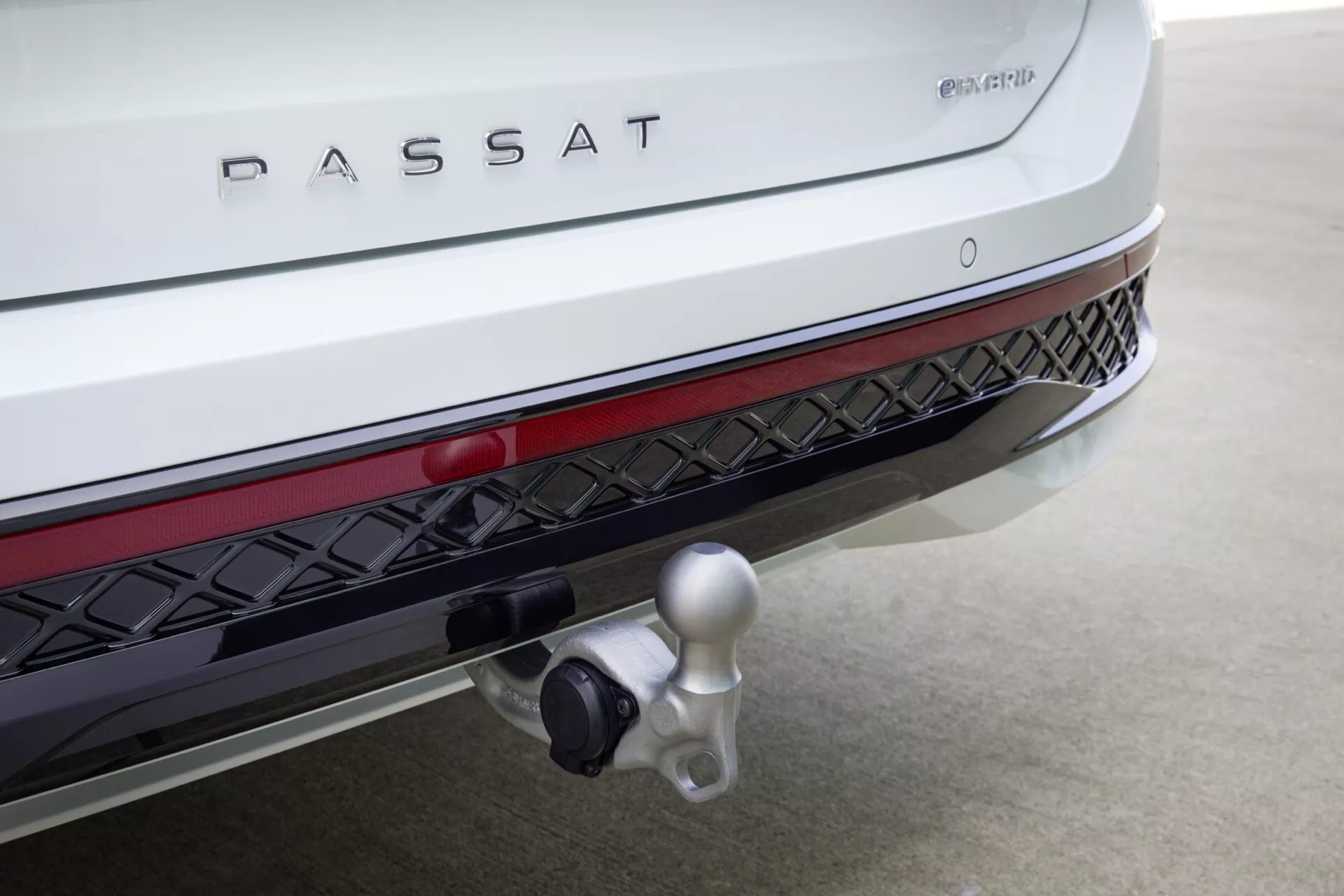

Towing

Max. towbar load
90 kg
70.0
Avg
100.0
Higher is better
Max. roof load
100 kg
75.0
Avg
100.0
Higher is better
Braked trailer
1500 - 2200 kg
1,050.0
Avg
2,500.0
Higher is better
Trailer (no brakes)
750 kg
745.0
Avg
750.0
Higher is better

Engines (Passat)

Filter by fuel:
Diesel
AUT FWD
Variant 2.0 TDI DSG
Engine & Power
Power
90 kW / 122 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
10 s
Max. speed
212 km/h
Torque & RPM
Torque
320 Nm
Consumption
Combined consumption (WLTP)
4 l/100km
Emissions
CO2 emissions (WLTP)
126 g/km
Maximum torque at RPM
1600 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
2750 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
Variant 2.0 TDI Business DSG
Engine & Power
Power
110 kW / 150 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
223 km/h
Torque & RPM
Torque
360 Nm
Consumption
Combined consumption (WLTP)
4 l/100km
Emissions
CO2 emissions (WLTP)
130 g/km
Maximum torque at RPM
1600 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
3000 RPM
Fuel injection
Common Rail
Gasoline
AUT FWD
Variant 1.5 eTSI DSG
Engine & Power
Power
110 kW / 150 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
222 km/h
Torque & RPM
Torque
250 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
122 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Diesel
AUT AWD
Variant 2.0 TDI Elegance 4MOTION DSG
Engine & Power
Power
142 kW / 193 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
232 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
150 g/km
Maximum torque at RPM
1750 RPM
Consumption on short trips (WLTP)
8 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Gasoline
AUT FWD
Variant 1.5 eHybrid DSG
Engine & Power
Power
150 kW / 204 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
220 km/h
Torque & RPM
Torque
350 Nm
Emissions
CO2 emissions (WLTP)
8 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Gasoline
AUT AWD
Variant 2.0 TSI R-Line 4MOTION DSG
Engine & Power
Power
195 kW / 265 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
5 s
Max. speed
250 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
183 g/km
Maximum torque at RPM
1650 RPM
Consumption on short trips (WLTP)
11 l/100km
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
Variant 1.5 eHybrid Elegance DSG
Engine & Power
Power
200 kW / 272 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
225 km/h
Torque & RPM
Torque
400 Nm
Emissions
CO2 emissions (WLTP)
9 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Compare all engines

Volkswagen Passat generations

Body type
Passat B1
1973 - 1977
Length4190 mm
Height1360 mm
Wheelbase2470 mm
Length4190 mm
Body type
Passat B1 (1. Facelift)
1977 - 1980
Length4265 mm
Height1360 mm
Wheelbase2470 mm
Length4265 mm (+75 mm)
Body type
Passat B2
1980 - 1985
Length4435 mm
Height1385 mm
Wheelbase2550 mm
Length4435 mm (+170 mm)
Body type
Passat B2 (1. Facelift)
1985 - 1988
Length4545 mm
Height1385 mm
Wheelbase2550 mm
Length4545 mm (+110 mm)
Body type
Passat B3
1988 - 1993
Length4575 mm
Height1430 mm
Wheelbase2625 mm
Length4575 mm (+30 mm)
Body type
Passat B4
1993 - 1996
Length4605 mm
Height1430 mm
Wheelbase2625 mm
Length4605 mm (+30 mm)
Body type
Passat Passat B5
1996 - 2000
Length4675 mm
Height1459 mm
Wheelbase2703 mm
Length4675 mm (+70 mm)
Passat Passat B5 (1. Facelift)
2000 - 2005
Length4682 mm
Height1498 mm
Wheelbase2703 mm
Length4682 mm (+7 mm)
Body type
Passat Passat B6
2005 - 2010
Length4765 mm
Height1472 mm
Wheelbase2709 mm
Length4765 mm (+83 mm)
Passat Passat B7
2010 - 2014
Length4769 mm
Height1470 mm
Wheelbase2712 mm
Length4769 mm (+4 mm)
Passat B8
2014 - 2019
Length4767 mm
Height1501 mm
Wheelbase2786 mm
Length4767 mm (-2 mm)
Passat B8 (1. Facelift)
2019 - 2023
Length4775 mm
Height1476 mm
Wheelbase2786 mm
Length4775 mm (+8 mm)
Passat Passat B9
2024 - Now
Length4917 mm
Height1521 mm
Wheelbase2837 mm
Length4917 mm (+142 mm)
Compare all generations

1973
1973
B1 was introduced.
1977
1977
B1 (1. Facelift) was introduced and replaced B1.
1980
1980
B2 was introduced and replaced B1 (1. Facelift).
1985
1985
B2 (1. Facelift) was introduced and replaced B2.
1988
1988
B3 was introduced and replaced B2 (1. Facelift).
1993
1993
B4 was introduced and replaced B3.
1996
1996
Passat B5 was introduced and replaced B4.
2000
2000
Passat B5 (1. Facelift) was introduced and replaced Passat B5.
2005
2005
Passat B6 was introduced and replaced Passat B5 (1. Facelift).
2010
2010
Passat B7 was introduced and replaced Passat B6.
2014
2014
B8 was introduced and replaced Passat B7.
2019
2019
B8 (1. Facelift) was introduced and replaced B8.
2023
2023
B8 (1. Facelift) was introduced and replaced B8.
2024
2024
Passat B9 was introduced.
