Volkswagen Arteon (2020 - 2024)

Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Table of contents:

Variants

Hatchback
Arteon
BodyHatchback
Length4866 mm
Height1460 mm
Doors5
Boot space563 l
Hatchback
Arteon R
BodyHatchback
Length4866 mm
Height1460 mm
Doors5
Boot space563 l
Station Wagon

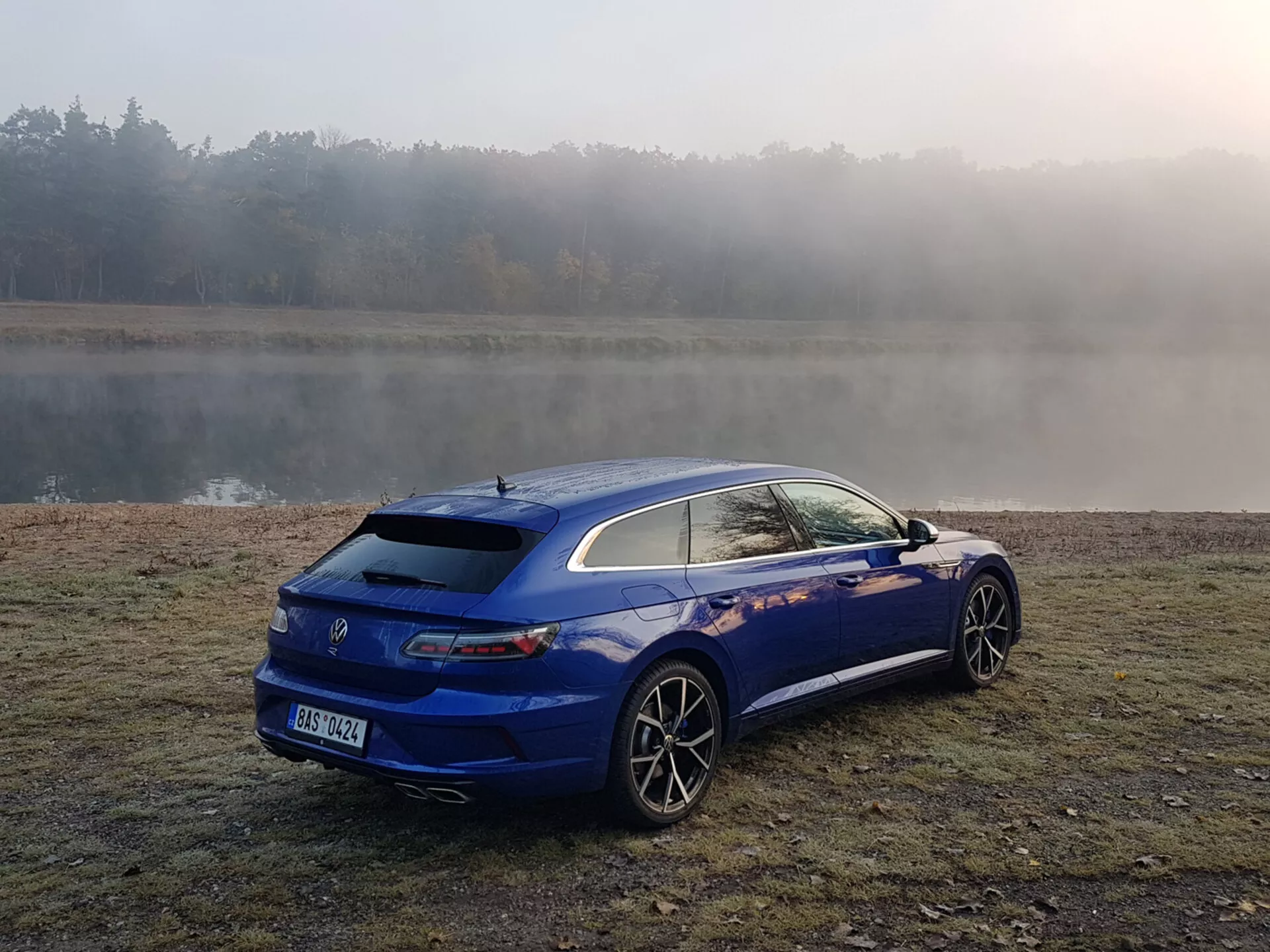

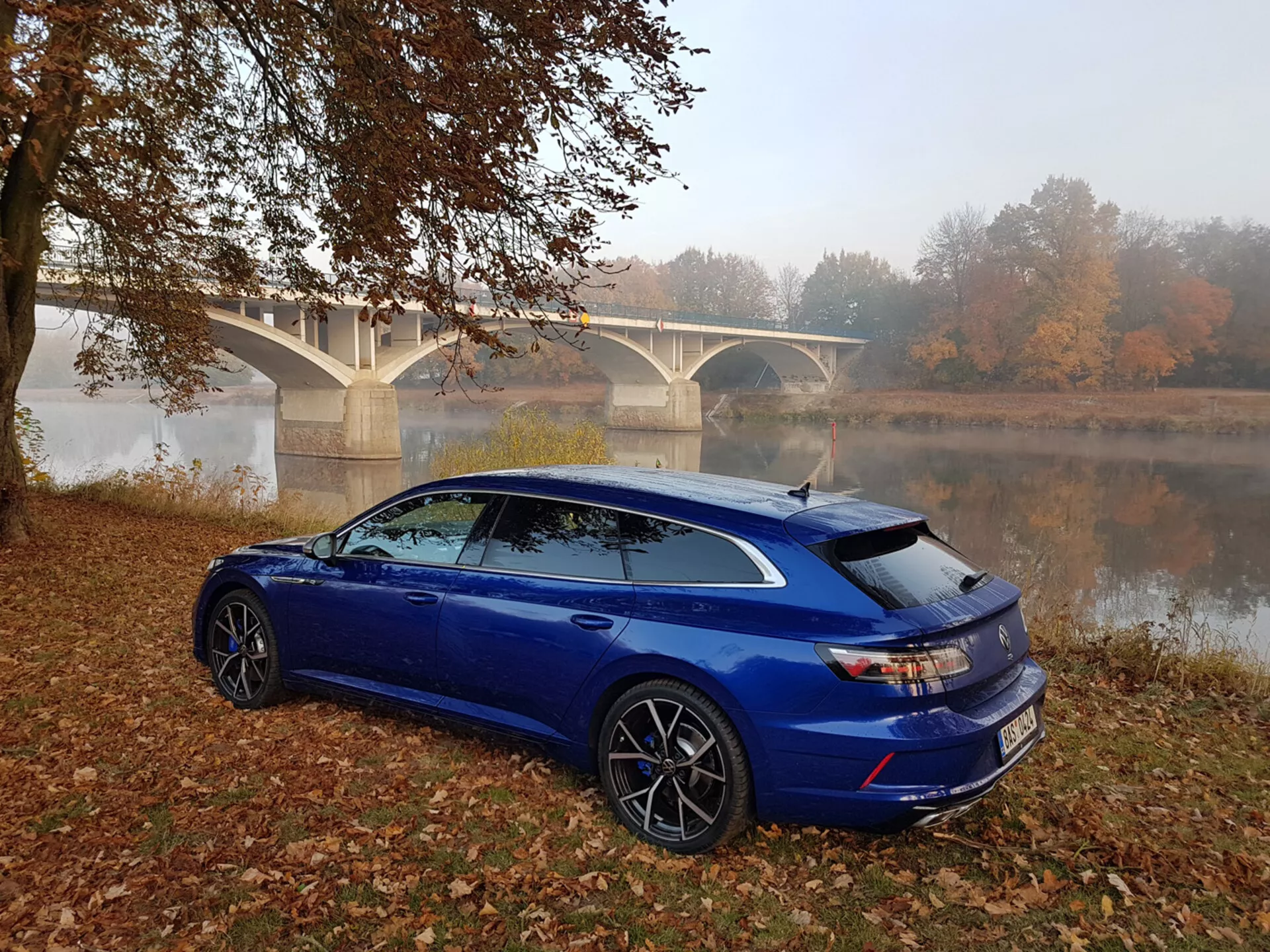

Arteon R Shooting Brake
BodyStation Wagon
Length4866 mm
Height1434 mm
Doors5
Boot space590 l
Station Wagon
Arteon Shooting Brake
BodyStation Wagon
Length4866 mm
Height1451 mm
Doors5
Boot space590 l

Model specs

Model info

Model name
VW Arteon
Generation
3H
Production years
2020 - 2024
Doors
5
5

Dimensions

Length
4866 mm
3,000.0
Avg
4,866.0
Higher is better
Wheelbase
2835 mm
1,795.0
Avg
2,835.0
Higher is better
Width
1871 mm
1,500.0
Avg
1,890.0
Higher is better
Height
1460 mm
1,408.0
Avg
1,603.0
Higher is better
Ground clearance
138 mm
128.0
Avg
150.0
Higher is better
Turning circle
11 m
9.0
Avg
11.0
Lower is better
Annotated Image

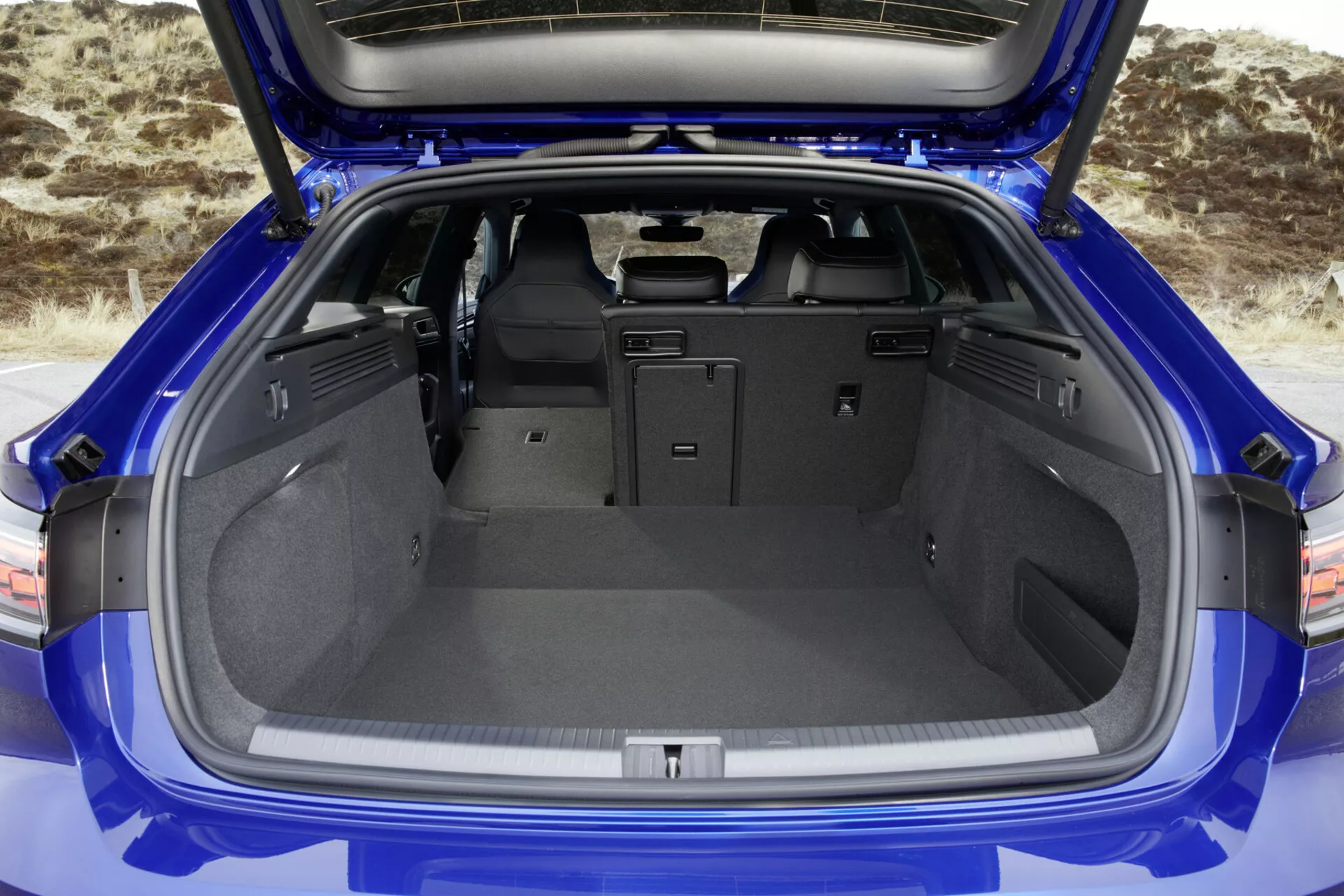

Boot/interior

Boot space
563 l
185.0
Avg
563.0
Higher is better
Boot space (rear seats folded, bottom to roof)
1557 l
550.0
Avg
1,557.0
Higher is better
Seats
5
5
Doors
5
5

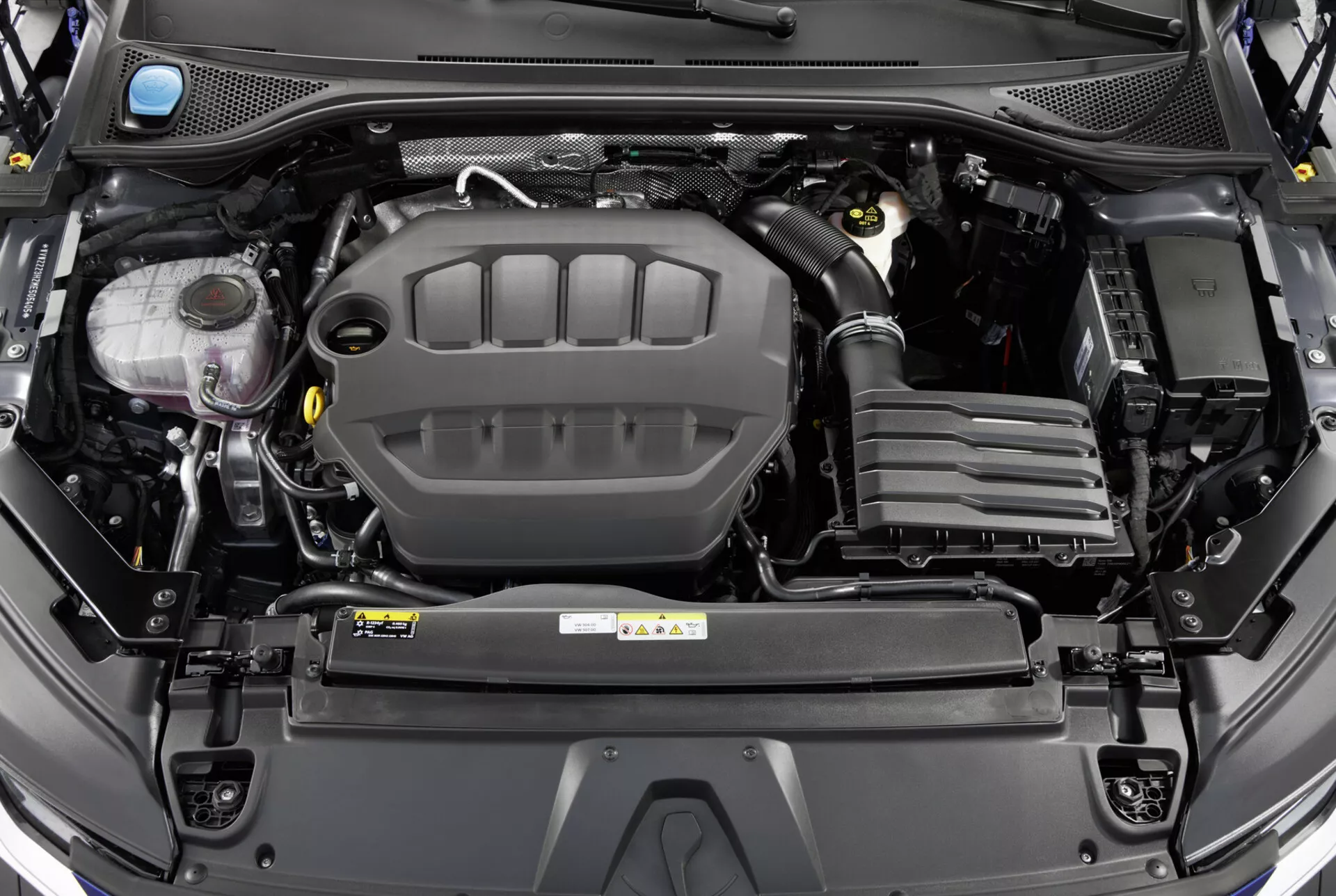

Engines/drivetrain

Cylinders
4
2.0
Avg
4.0
Higher is better
Max. speed
216 - 250 km/h
45.0
Avg
220.0
Higher is better
Torque
320 - 420 Nm
28.0
Avg
360.0
Higher is better
Power
110 - 235 kW
6.0
Avg
164.0
Higher is better
Cubic capacity
1395 - 1984 ccm
479.0
Avg
1,998.0
Higher is better
Acceleration 0-100km/h
4 - 9 s
4.0
Avg
9.0
Higher is better

Consumption/ecology

Tank size
50 - 66 l
20.0
Avg
66.0
Higher is better
Combined consumption (WLTP)
1 - 8 l/100km
1.0
Avg
18.0
Higher is better
Suburban consumption (WLTP)
4 - 9 l/100km
3.0
Avg
4.0
Higher is better
Consumption on highways (WLTP)
4 - 8 l/100km
4.0
Avg
5.0
Higher is better
CO2 emissions (WLTP)
25 - 202 g/km
12.0
Avg
126.0
Higher is better
Empty weight (EU)
1607 - 1809 kg
425.0
Avg
1,655.0
Higher is better

Towing

Max. towbar load
90 kg
75.0
Avg
90.0
Higher is better
Max. roof load
100 kg
65.0
Avg
100.0
Higher is better
Braked trailer
1600 - 2200 kg
500.0
Avg
2,000.0
Higher is better
Trailer (no brakes)
750 kg
450.0
Avg
750.0
Higher is better

Engines (Arteon)

Filter by fuel:
Diesel
AUT FWD
2.0 TDI SCR DSG
Engine & Power
Power
110 kW / 150 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
220 km/h
Torque & RPM
Torque
360 Nm
Consumption
Combined consumption (WLTP)
4 l/100km
Emissions
CO2 emissions (WLTP)
126 g/km
Maximum torque at RPM
1600 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Gasoline
AUT FWD
2.0 TSI OPF Elegance DSG
Engine & Power
Power
140 kW / 190 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
237 km/h
Torque & RPM
Torque
320 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
157 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
9 l/100km
Technical Details
Fuel injection
Direct Injection
Engine type
Turbocharged
Diesel
AUT AWD
Shooting Brake 2.0 TDI SCR Elegance 4MOTION DSG
Engine & Power
Power
142 kW / 193 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
230 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
155 g/km
Maximum torque at RPM
1750 RPM
Consumption on short trips (WLTP)
8 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
Shooting Brake 2.0 TDI SCR Elegance DSG
Engine & Power
Power
147 kW / 200 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
233 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
138 g/km
Maximum torque at RPM
1750 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Gasoline
AUT FWD
1.4 eHybrid OPF Elegance DSG
Engine & Power
Power
160 kW / 218 HP
Capacity
1.4L (1,395 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
222 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (WLTP)
1 l/100km
Emissions
CO2 emissions (WLTP)
25 g/km
Maximum torque at RPM
1550 RPM
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Gasoline
AUT AWD
Shooting Brake 2.0 TSI OPF Elegance 4MOTION DSG
Engine & Power
Power
206 kW / 280 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
5 s
Max. speed
250 km/h
Torque & RPM
Torque
400 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
193 g/km
Maximum torque at RPM
2000 RPM
Consumption on short trips (WLTP)
13 l/100km
Technical Details
Fuel injection
Direct Injection
Engine type
Turbocharged
Premium Gasoline
AUT AWD
R 4MOTION DSG
Engine & Power
Power
235 kW / 320 HP
Capacity
2.0L (1,984 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
4 s
Max. speed
250 km/h
Torque & RPM
Torque
420 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
201 g/km
Maximum torque at RPM
2100 RPM
Consumption on short trips (WLTP)
13 l/100km
Technical Details
Fuel injection
Direct Injection
Engine type
Turbocharged
Compare all engines

Volkswagen Arteon generations

Arteon 1.Generation
2017 - 2020
Length4862 mm
Height1450 mm
Wheelbase2837 mm
Length4862 mm
Arteon Arteon 1.Generation (1. Facelift)
2020 - 2024
Length4866 mm
Height1451 mm
Wheelbase2836 mm
Length4866 mm (+4 mm)
Compare all generations

2017
2017
1.Generation was introduced.
2020
2020
Arteon 1.Generation (1. Facelift) was introduced and replaced 1.Generation.
2024
2024
The production of Volkswagen Arteon was discontinued.

Similar cars

Casalini 550
Casalini 550
2022
Body type
Hatchback
Length
3000 mm
Width
1500 mm
Height
1470 mm
Wheelbase
1795 mm
Weight
425 kg
Doors
3
Compare
Abarth 500/595/695
Abarth 500/595/695
abarth Logo 2023 • FA1
Body type
Hatchback
Length
3632 mm
Width
1682 mm
Height
1527 mm
Wheelbase
2322 mm
Boot capacity
185 l
Weight
1410 kg
Doors
3
Compare
ORA Funky Cat
ORA Funky Cat
2022 • ES11
Body type
Hatchback
Length
4235 mm
Width
1825 mm
Height
1603 mm
Wheelbase
2650 mm
Boot capacity
228 l
Weight
1615 kg
Doors
5
Compare
Vehicle icon
Toyota Prius
toyota Logo 2023 • XW6
Body type
Hatchback
Length
4599 mm
Width
1782 mm
Height
1470 mm
Wheelbase
2750 mm
Boot capacity
284 l
Weight
1620 kg
Doors
5
Compare
Honda Civic
Honda Civic
honda Logo 2022 • FE
Body type
Hatchback
Length
4551 mm
Width
1890 mm
Height
1408 mm
Wheelbase
2734 mm
Boot capacity
410 l
Weight
1517 kg
Doors
5
Compare
Toyota Corolla
Toyota Corolla
toyota Logo 2023 • E210
Body type
Hatchback
Length
4370 mm
Width
1790 mm
Height
1435 mm
Wheelbase
2640 mm
Boot capacity
361 l
Weight
1420 kg
Doors
5
Compare

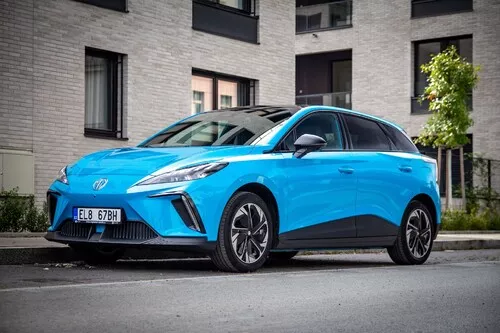

MG MG4
MG MG4
mg Logo 2022 • SEH3
Body type
Hatchback
Length
4287 mm
Width
1836 mm
Height
1504 mm
Wheelbase
2705 mm
Boot capacity
363 l
Weight
1655 kg
Doors
5
Compare

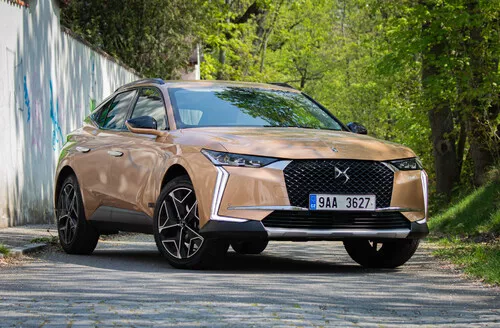

DS Automobiles DS 4
