Table of contents:

Model specs

Model info

Model name
Mitsubishi ASX
Generation
RJB
Production years
2024 - Present
Doors
5
5

Dimensions

Length
4239 mm
4,180.0
Avg
4,395.0
Higher is better
Wheelbase
2639 mm
2,580.0
Avg
2,657.0
Higher is better
Width
1797 mm
1,770.0
Avg
1,841.0
Higher is better
Height
1575 mm
1,483.0
Avg
1,656.0
Higher is better
Ground clearance
169 mm
165.0
Avg
209.0
Higher is better
Turning circle
11 m
10.0
Avg
11.0
Lower is better

Boot/interior

Boot space
484 l
395.0
Avg
517.0
Higher is better
Boot space (rear seats folded, bottom to roof)
1596 l
1,115.0
Avg
1,609.0
Higher is better
Seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
3 - 4
3.0
Avg
4.0
Higher is better
Max. speed
168 - 180 km/h
168.0
Avg
193.0
Higher is better
Torque
160 - 270 Nm
160.0
Avg
280.0
Higher is better
Power
67 - 116 kW
67.0
Avg
120.0
Higher is better
Cubic capacity
999 - 1598 ccm
998.0
Avg
1,497.0
Higher is better
Acceleration 0-100km/h
8 - 14 s
8.0
Avg
14.0
Higher is better

Consumption/ecology

Tank size
48 l
40.0
Avg
50.0
Higher is better
Combined consumption (WLTP)
4 - 6 l/100km
4.0
Avg
7.0
Higher is better
Suburban consumption (WLTP)
3 - 5 l/100km
3.0
Avg
6.0
Higher is better
Consumption on highways (WLTP)
5 - 6 l/100km
5.0
Avg
7.0
Higher is better
CO2 emissions (WLTP)
105 - 135 g/km
105.0
Avg
162.0
Higher is better
Empty weight (EU)
1296 - 1501 kg
1,170.0
Avg
1,379.0
Higher is better

Towing

Max. towbar load
75 kg
60.0
Avg
88.0
Higher is better
Max. roof load
80 kg
70.0
Avg
80.0
Higher is better
Braked trailer
750 - 1200 kg
750.0
Avg
1,500.0
Higher is better
Trailer (no brakes)
645 - 720 kg
450.0
Avg
685.0
Higher is better

Engines (ASX)

Gasoline
MAN FWD
1.0 Turbo Basis
Engine & Power
Power
67 kW / 91 HP
Capacity
1.0L (999 ccm)
Cylinders
3
Performance
Acceleration 0-100km/h
14 s
Max. speed
168 km/h
Torque & RPM
Torque
160 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
135 g/km
Maximum torque at RPM
2000 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
4800 RPM
Fuel injection
Injection
Gasoline
MAN FWD
1.3 Turbo Plus
Engine & Power
Power
103 kW / 140 HP
Capacity
1.3L (1,332 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
10 s
Max. speed
180 km/h
Torque & RPM
Torque
260 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
135 g/km
Maximum torque at RPM
3500 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
4500 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.6 Hybrid Plus -automatic
Engine & Power
Power
105 kW / 143 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
10 s
Max. speed
170 km/h
Consumption
Combined consumption (WLTP)
4 l/100km
Emissions
CO2 emissions (WLTP)
105 g/km
Torque & RPM
Maximum torque at RPM
3200 RPM
Consumption on short trips (WLTP)
4 l/100km
Technical Details
Maximum output at RPM
5600 RPM
Fuel injection
Injection
Gasoline
AUT FWD
1.3 Turbo Plus DCT
Engine & Power
Power
116 kW / 158 HP
Capacity
1.3L (1,332 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
180 km/h
Torque & RPM
Torque
270 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
135 g/km
Maximum torque at RPM
1750 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Compare all engines

Mitsubishi ASX generations

Body type
ASX 1.Generation
2010 - 2012
Length4295 mm
Height1615 mm
Wheelbase2670 mm
Length4295 mm
Body type
ASX 1.Generation (1. Facelift)
2012 - 2016
Length4295 mm
Height1625 mm
Wheelbase2670 mm
Length4295 mm
ASX 1.Generation (2. Facelift)
2016 - 2019
Length4355 mm
Height1640 mm
Wheelbase2670 mm
Length4355 mm (+60 mm)
Body type
ASX 1.Generation (3. Facelift)
2019 - 2021
Length4365 mm
Height1640 mm
Wheelbase2670 mm
Length4365 mm (+10 mm)
ASX ASX 2. Generation
2023 - 2024
Length4227 mm
Height1576 mm
Wheelbase2639 mm
Length4227 mm (-138 mm)
ASX ASX 2. Generation (1. Facelift)
2024 - Now
Length4239 mm
Height1575 mm
Wheelbase2639 mm
Length4239 mm (+12 mm)
Compare all generations

1870
1870
Mitsubishi founded
2010
2010
1.Generation was introduced.
2012
2012
1.Generation (1. Facelift) was introduced and replaced 1.Generation.
2016
2016
1.Generation (2. Facelift) was introduced and replaced 1.Generation (1. Facelift).
2019
2019
1.Generation (3. Facelift) was introduced and replaced 1.Generation (2. Facelift).
2021
2021
1.Generation (3. Facelift) was introduced and replaced 1.Generation (2. Facelift).
2023
2023
ASX 2. Generation was introduced.
2024
2024
ASX 2. Generation (1. Facelift) was introduced and replaced ASX 2. Generation.

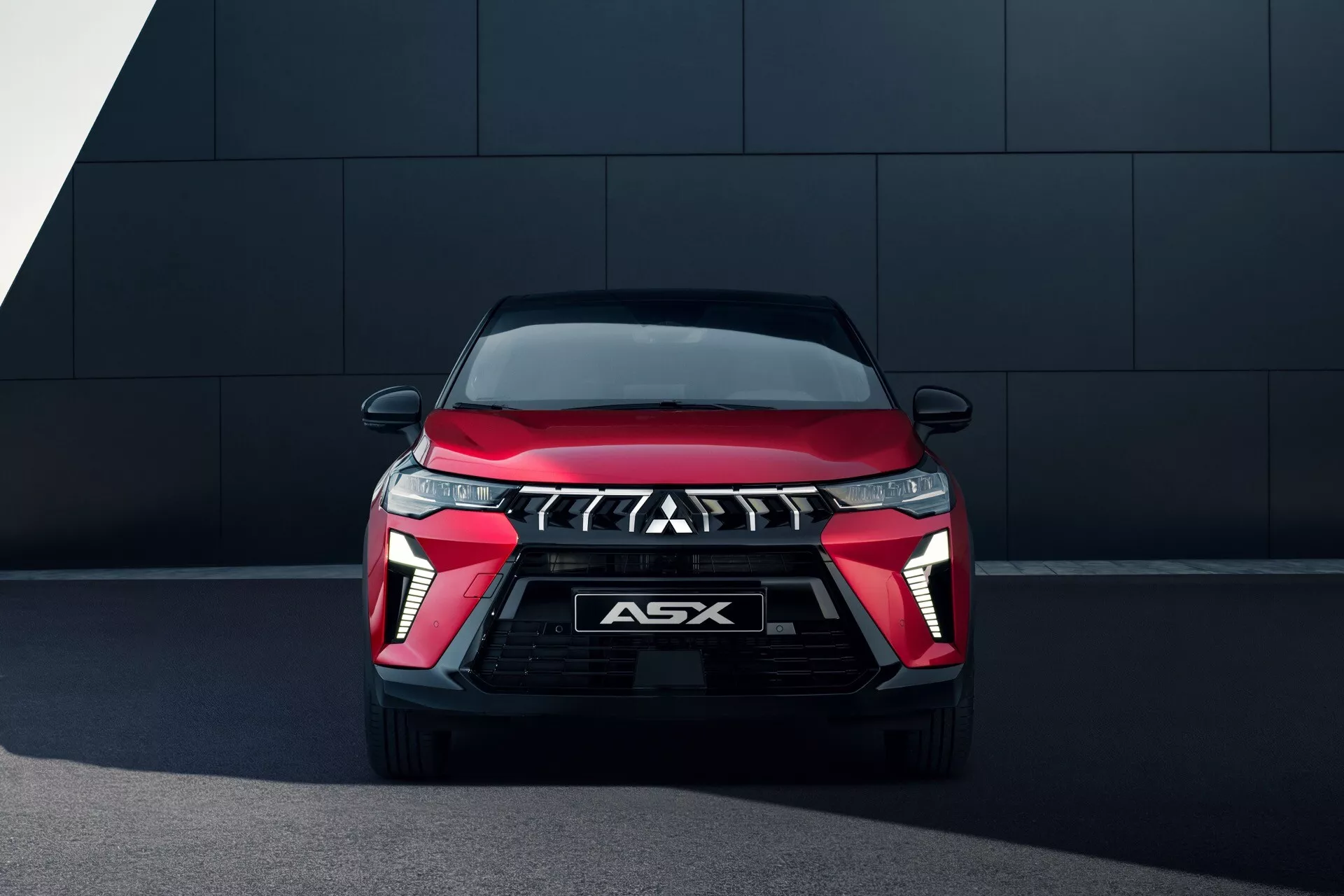

Frontal view of a 2024 Mitsubishi ASX (2nd generation facelift), showcasing its modern red and black SUV design. The car is positioned at a slight downward angle, highlighting its distinctive checkered flag pattern grille with a prominent brand emblem. Flanked by sleek LED headlights with integrated DRLs, and triangular fog light housings, the vehicle exhibits a high-tech and sporty aesthetic. The hood features character lines for aerodynamics, while the black front bumper includes what appear to be air intakes. The background is a simple dark wall, emphasizing the car's dynamic design features.

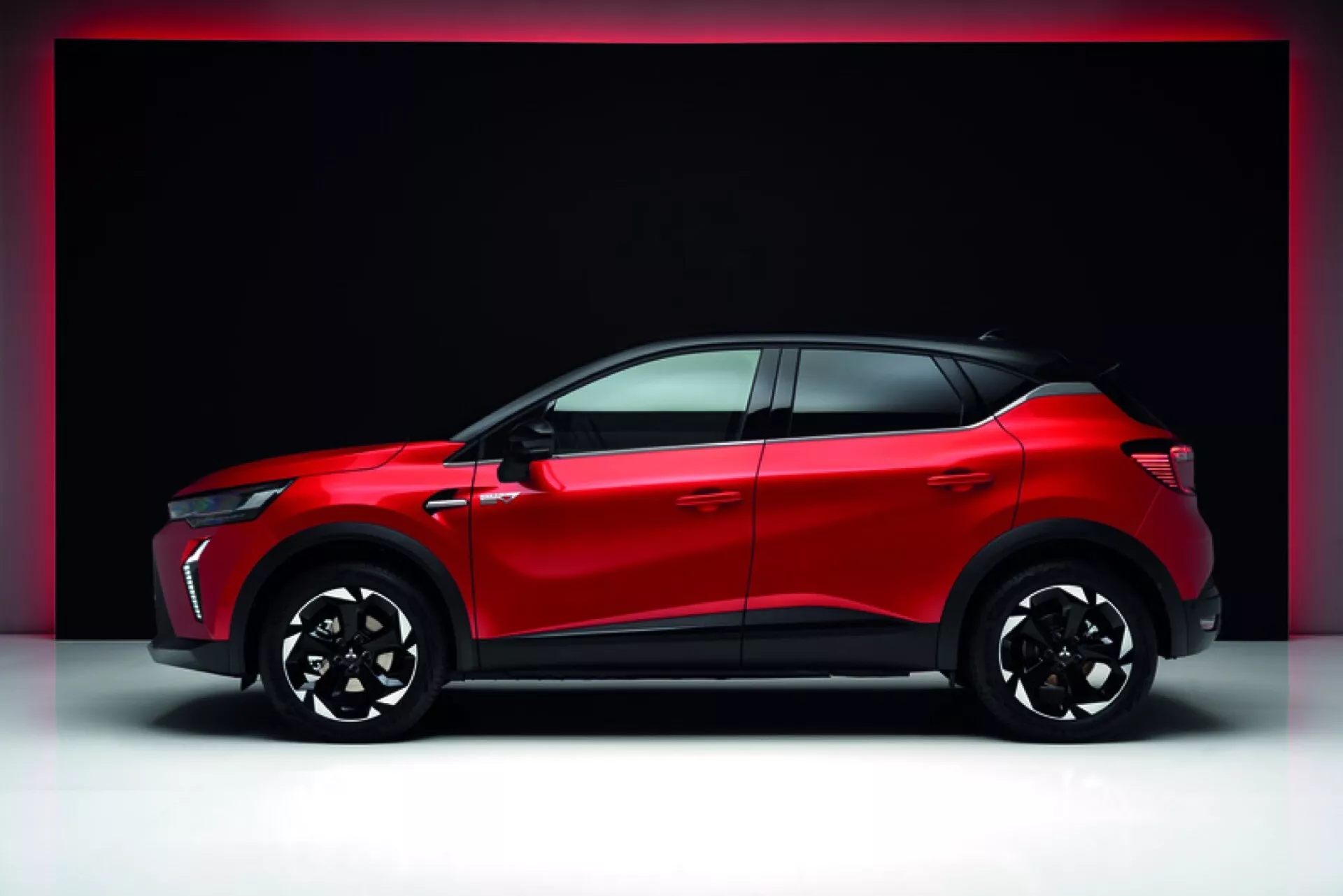

Profile view of the 2024 Mitsubishi ASX (2nd generation facelift), a modern crossover SUV displayed against a contrasting dark red backdrop and lighter red floor. The studio setting highlights the car's design with balanced lighting, illuminating its metallic, glossy finish. The image shows the passenger side with a slight angle revealing the front grille and headlight. The vehicle boasts prominent character lines, large dark-finished alloy wheels, contemporary LED headlights, flush door handles, black side mirrors with integrated turn signals, and a descending roofline hinting at a sporty aesthetic. The overall design and setting suggest it's used for promotional purposes.

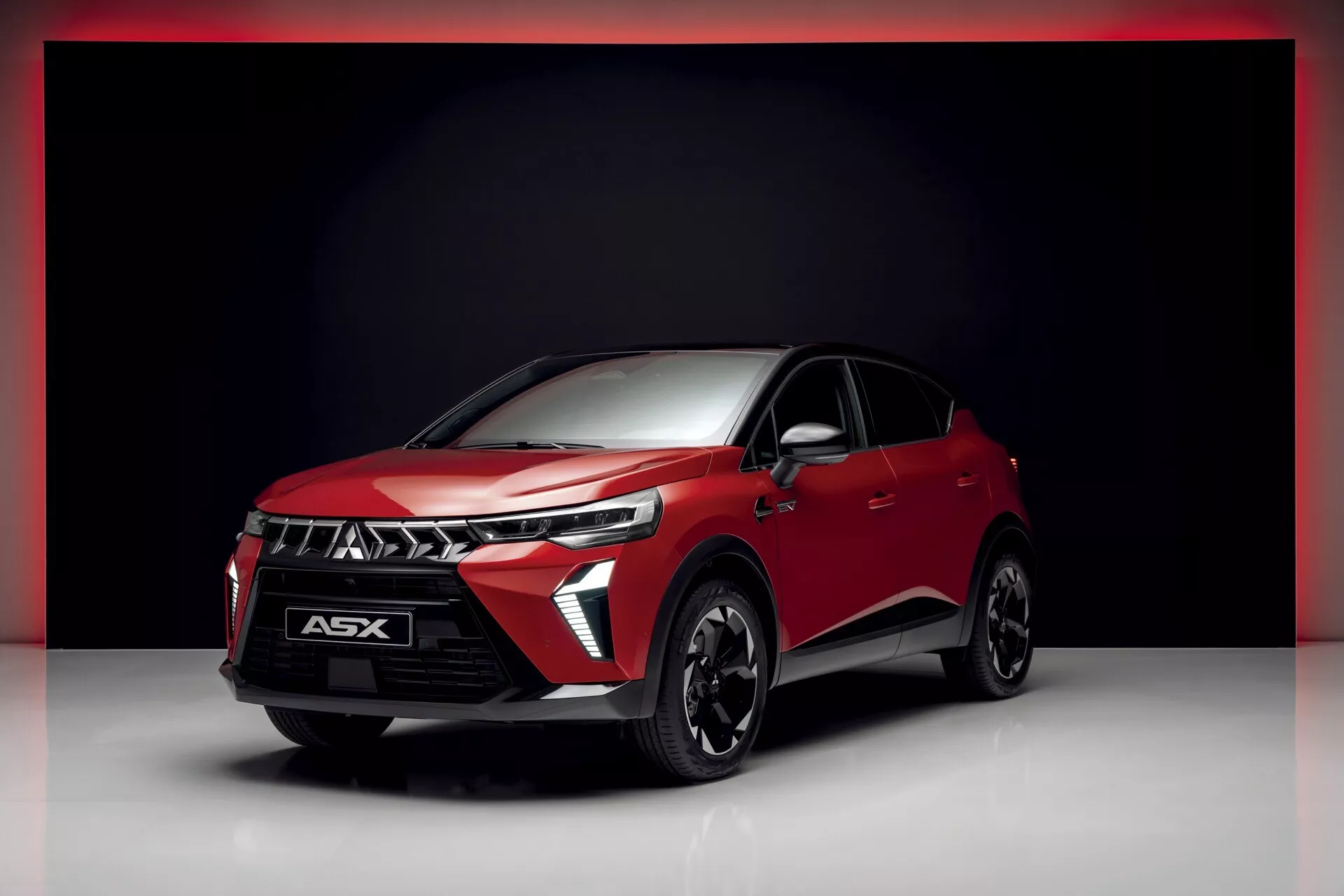

Red Mitsubishi ASX 2024 (2nd generation facelift) captured from a low angle, emphasizing its height and stature in a professional studio shot. The front and side profile showcase a distinctive grille design with sharp headlight clusters featuring advanced lighting technology. The crossover SUV body style is highlighted with high ground clearance, sporty black-finished rims, and side cladding, emphasizing its modern and rugged look.

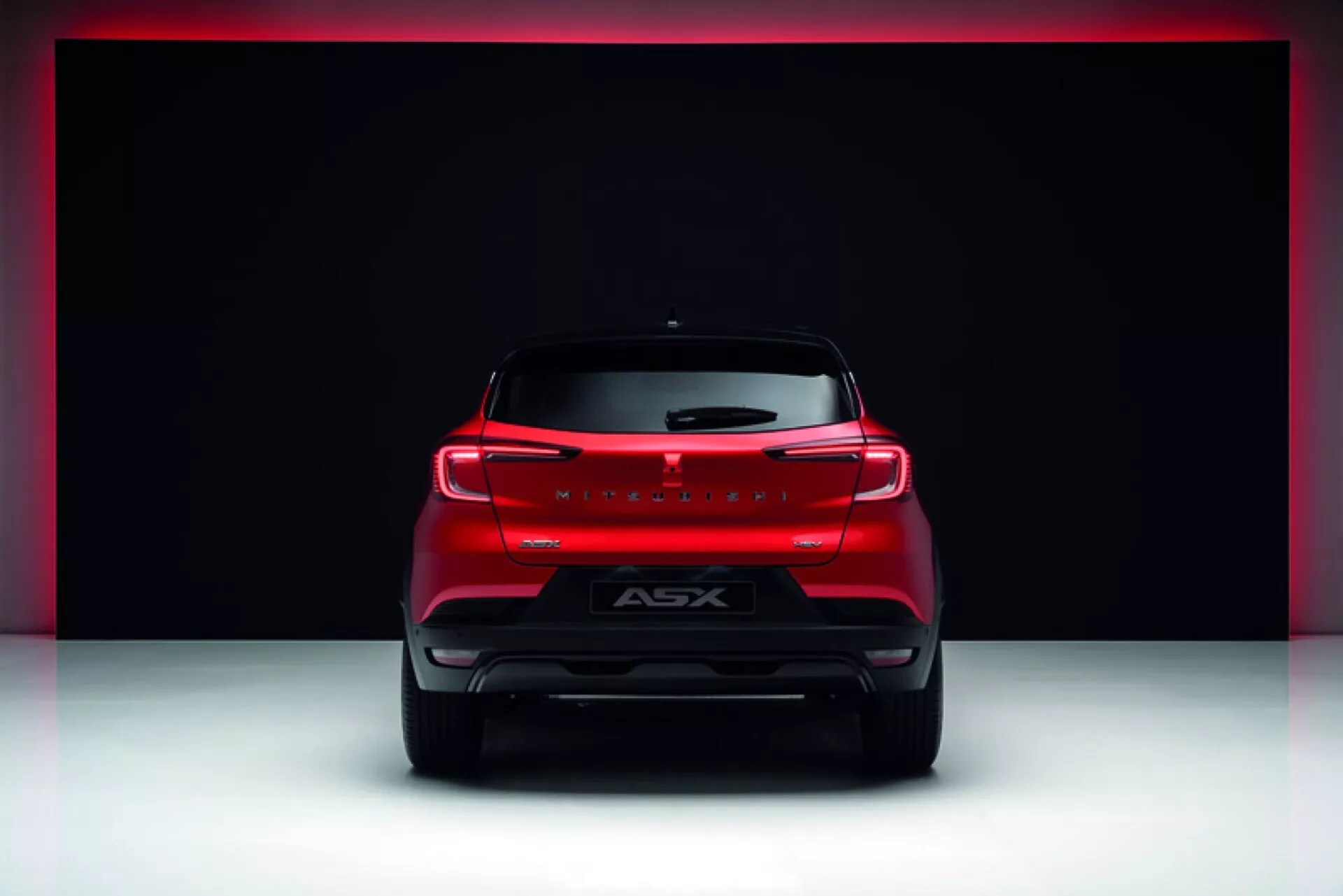

Rear-center perspective image of the 2024 Mitsubishi ASX (2nd generation facelift), featuring the car's distinctive LED tail lights spanning the vehicle's width, branding and model badging beneath the rear windshield, visible rear defogger, sizable bumper with reflectors and parking sensors, dual exhaust configuration, potential rearview camera and sensors around the license plate, shark fin antenna on the roof, and a vibrant red paint finish. The photo is taken in a studio with dark to white gradient background and red lighting to accentuate design lines.

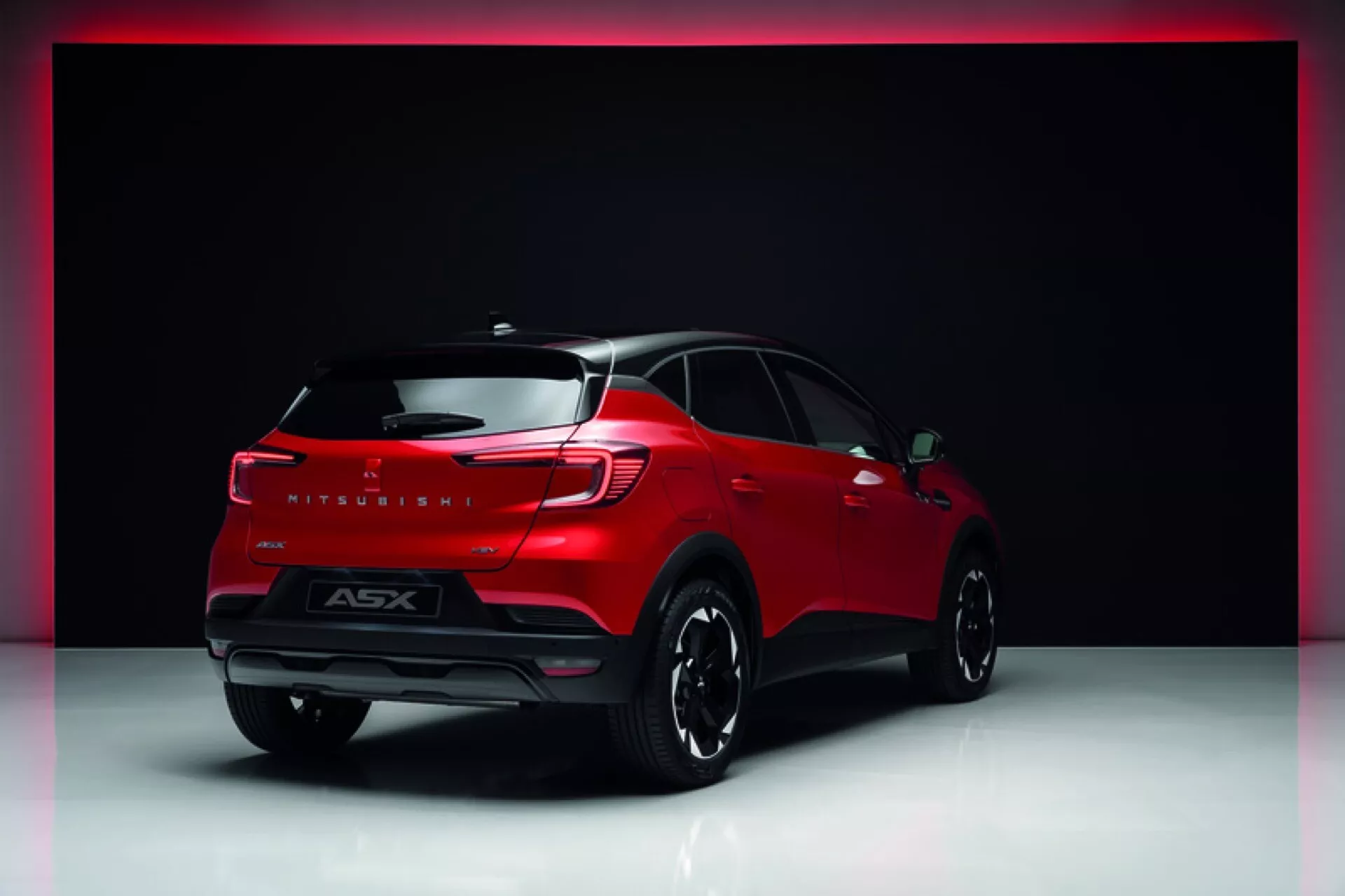

A modern Mitsubishi ASX 2024, captured from a rear three-quarter view in a studio setting, highlighting the back and profile from the midpoint. The low to mid-level angle emphasizes the vehicle's sporty stance, wheels, and dynamic rear design, including the tailgate, taillights, rear spoiler, and rear passenger door. Studio-controlled lighting accentuates the red paintwork against a gradient background. Visible features include LED taillights, Mitsubishi ASX nameplate, and a dual-tone body with a possible different shade on the lower bumper.

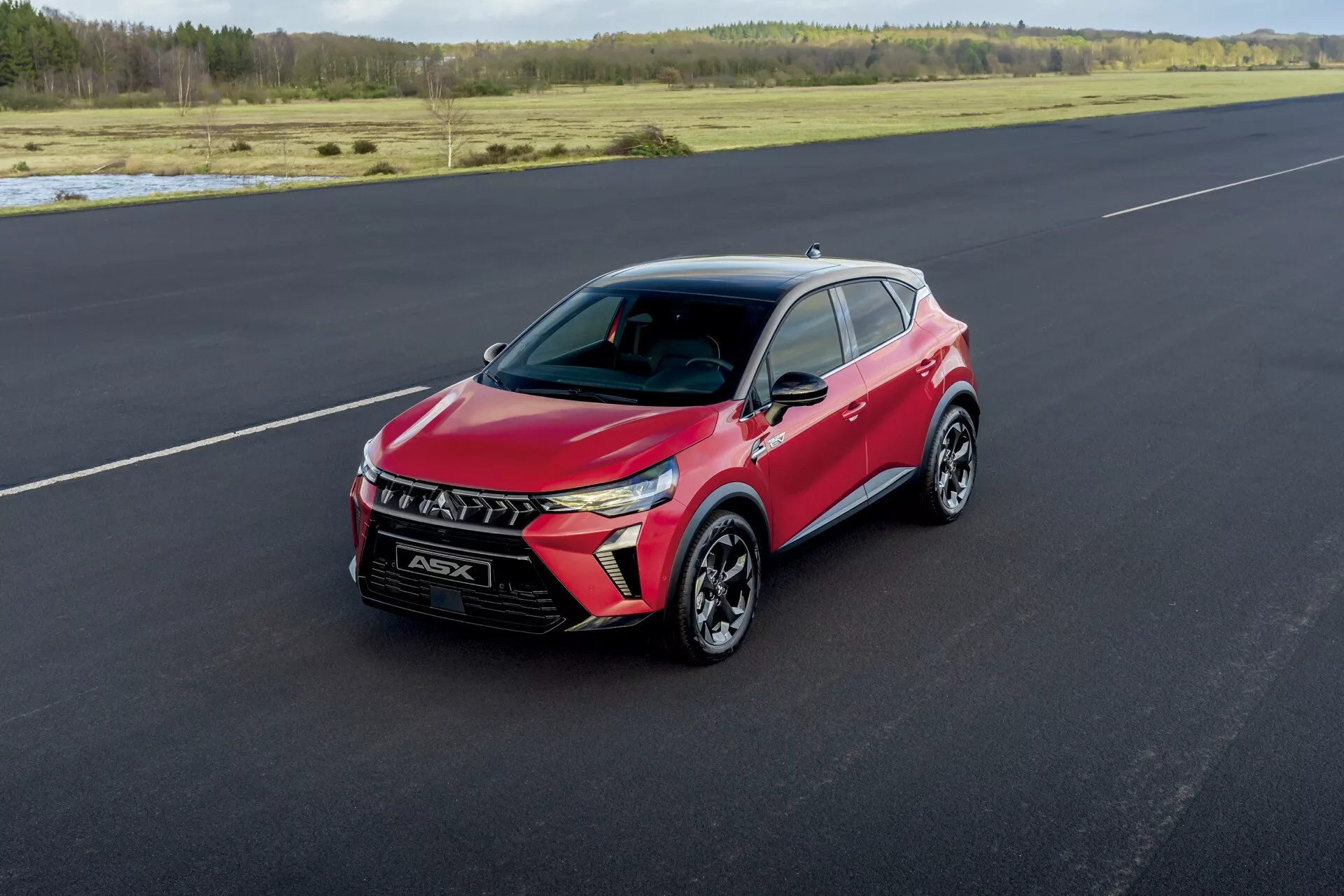

A red 2024 Mitsubishi ASX SUV (2nd generation facelift) parked on an asphalt surface, photographed from an elevated angle that showcases the vehicle's top and side profile. The SUV, positioned diagonally with its front facing slightly left, displays both its front and side portions, including LED headlamps, grille, front bumper, wheels, doors, and side mirrors. Modern design elements like sharp LED lights and alloy wheels can be seen. The setting features grassy fields in the background under natural daylight, highlighting the SUV’s dynamic and sporty design.

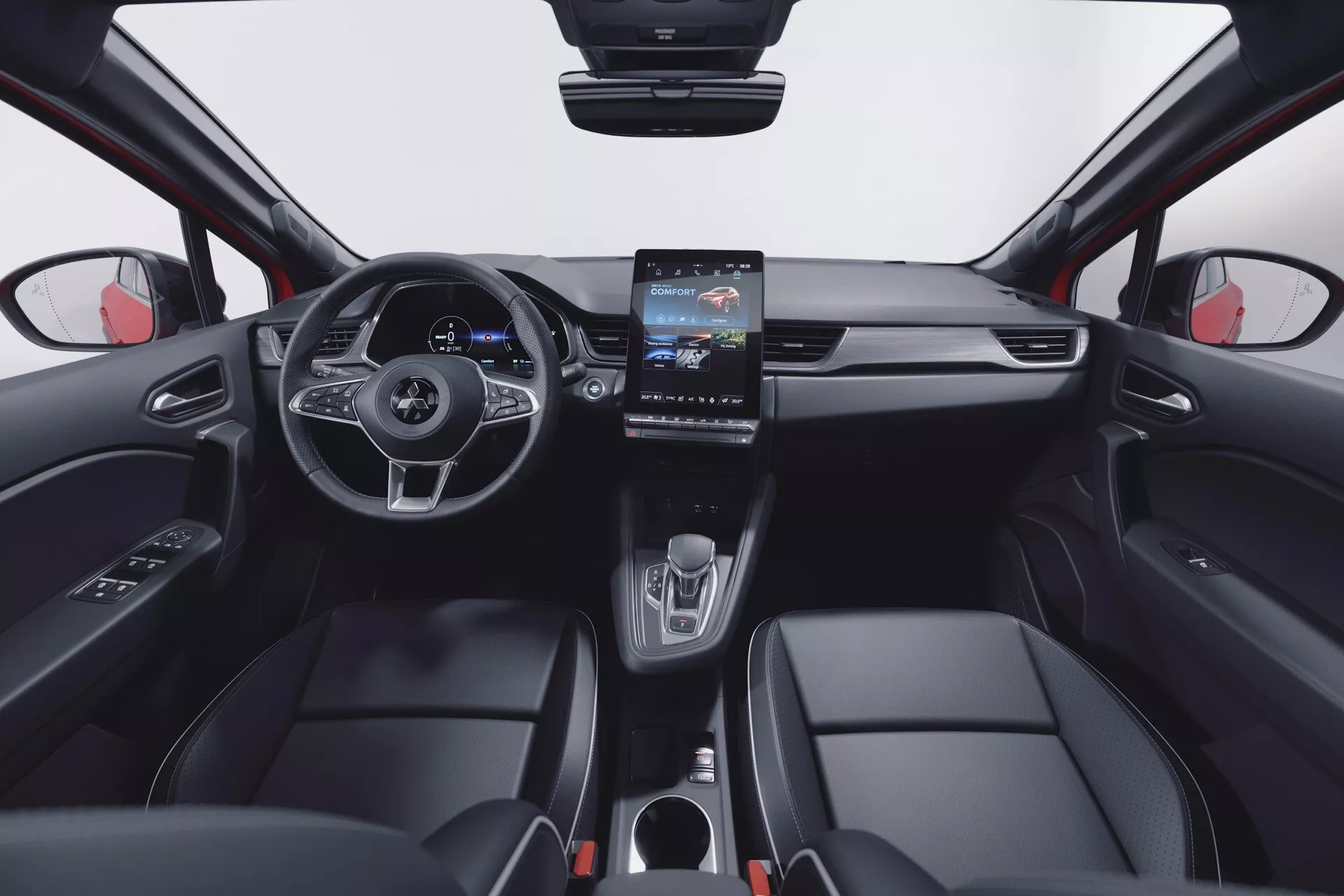

Interior view of the 2024 Mitsubishi ASX (2nd generation-facelift) showcasing the modern front cabin from the rear seating perspective. A vertically oriented touchscreen infotainment display dominates the central dashboard, while the three-spoke steering wheel features integrated multifunctional buttons. A digital instrument cluster is visible behind the wheel. Minimalistic center console design with climate control buttons, cup holders, and automatic gear selector. Two-tone contoured front seats with headrests, center armrest, and panoramic sunroof enhancing the natural light. The interior is highlighted by dark tones with bright accents, emphasizing technology and comfort.

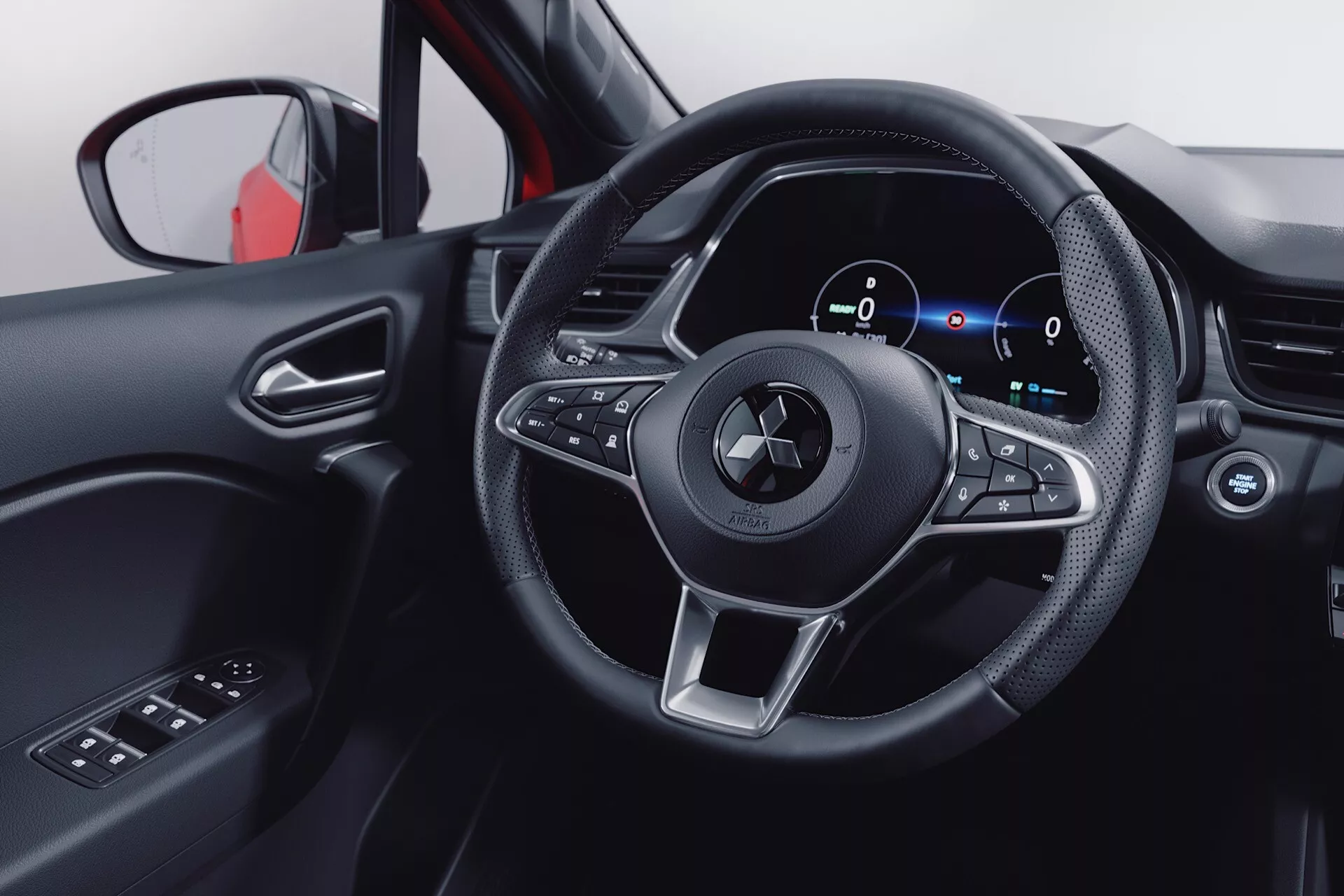

Interior of the 2024 Mitsubishi ASX (2nd generation facelift), showcasing the modern three-spoke steering wheel with mounted controls for audio, phone, and cruise, wrapped in leather-like material. The fully digital instrument cluster is visible behind the wheel, showing zero reading and customizable screens. The frame includes the driver-side door with window and mirror controls, hinting at the vehicle's technological sophistication. Partial view of the left-side mirror is also captured.
Interior shot of the 2024 Mitsubishi ASX 2nd Generation Facelift showing both front and rear cabin space from a wide-angle view. The image captures detailed features such as a modern multifunction steering wheel, touch screen infotainment system, premium leather upholstery with intricate stitching, sport-styled front seats, and a panoramic sunroof. The sleek center console with minimalistic controls and a dark color scheme with metallic accents highlights the car's luxurious and technology-focused design.

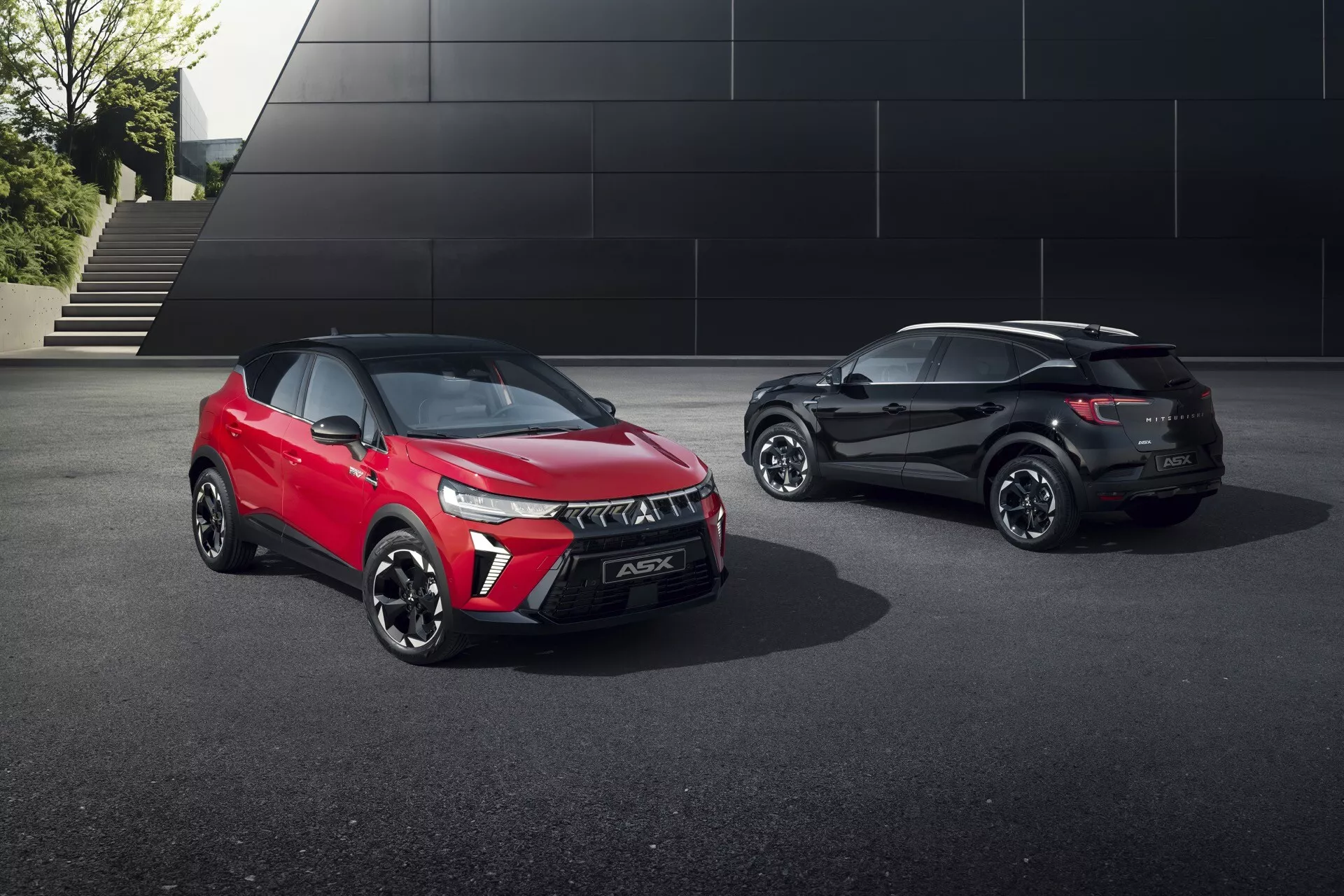

The image showcases two SUVs in an outdoor setting with modern minimalist architecture in the background. The foreground features a vibrant red Mitsubishi ASX 2024, positioned diagonally to the camera, showing a three-quarter front view that highlights its front grille, LED headlights, front bumper, hood, and driver's side profile including wheels, doors, and side mirrors with integrated turn signals. The background displays a black Mitsubishi ASX, featuring a three-quarter rear view that reveals the rear lights, tailgate, rear bumper, passenger side profile, and rear wheel with privacy glass on the rear windows. The professional lighting accentuates the cars' sleek lines, aerodynamic profiles, and modern design elements. Visible technologies include LED daytime running lights, alloy wheels, parking sensors on the red SUV's front bumper, and possible advanced features like automatic emergency braking or adaptive cruise control.
