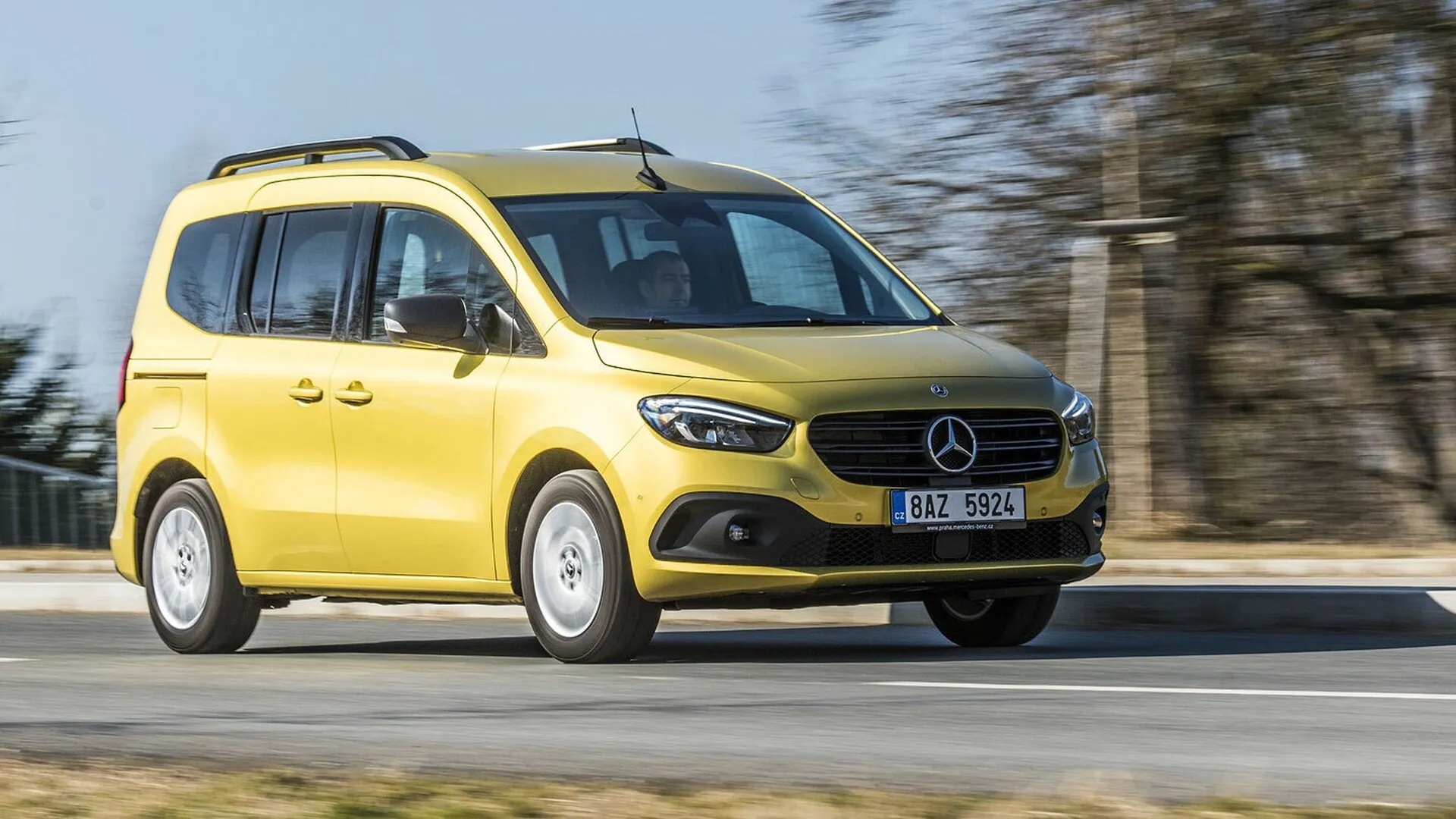

Mercedes-Benz Citan
Specs, engines, generations

Thumbnail 1
Table of contents:

Variants

Small Commercial Van
Citan -VAN
BodySmall Commercial Van
Length4498 mm
Height1819 mm
Doors4
Small Commercial Van
Citan Mixto
BodySmall Commercial Van
Length4922 mm
Height1830 mm
Doors5
High Roof Station Wagon
Citan Tourer
BodyHigh Roof Station Wagon
Length4498 mm
Height1811 mm
Doors5
Boot space517 l
Small Commercial Van
eCitan -VAN
BodySmall Commercial Van
Length4498 mm
Height1819 mm
Doors4
Small Commercial Van
eCitan Mixto
BodySmall Commercial Van
Length4922 mm
Height1830 mm
Doors4
High Roof Station Wagon
eCitan Tourer
BodyHigh Roof Station Wagon
Length4498 mm
Height1819 mm
Doors5
Boot space551 l

Model specs

Model info

Model name
Mercedes-Benz Citan
Generation
W420
Production years
2021 - Present
Doors
4
4

Dimensions

Length
4498 mm
  • mercedes-benz LogoMercedes-Benz Citan (This) 4498 mm
    4,498.0
Wheelbase
2716 mm
  • mercedes-benz LogoMercedes-Benz Citan (This) 2716 mm
    2,716.0
Width
1859 mm
  • mercedes-benz LogoMercedes-Benz Citan (This) 1859 mm
    1,859.0
Height
1819 mm
  • mercedes-benz LogoMercedes-Benz Citan (This) 1819 mm
    1,819.0
Turning circle
11 m
  • mercedes-benz LogoMercedes-Benz Citan (This) 11 m
    11.0

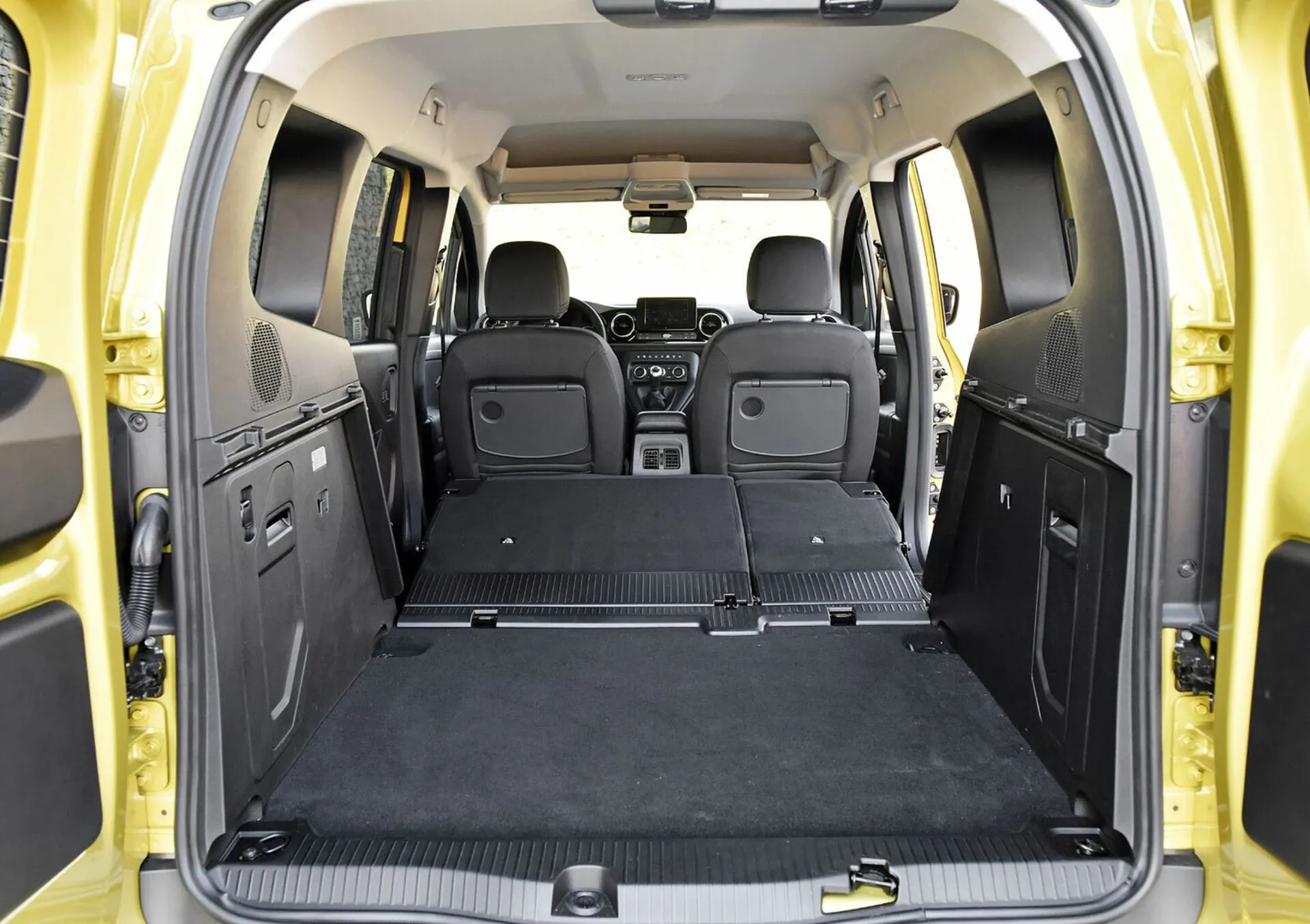

Boot/interior

Boot space (rear seats folded, bottom to roof)
2900 l
  • mercedes-benz LogoMercedes-Benz Citan (This) 2900 l
    2,900.0
Seats
2
2
Max. seats
3
3
Doors
4
4

Engines/drivetrain

Cylinders
4
  • mercedes-benz LogoMercedes-Benz Citan (This) 4
    4.0
Max. speed
132 - 183 km/h
  • mercedes-benz LogoMercedes-Benz Citan (This) 132 - 183 km/h
Torque
200 - 270 Nm
  • mercedes-benz LogoMercedes-Benz Citan (This) 200 - 270 Nm
Power
55 - 96 kW
  • mercedes-benz LogoMercedes-Benz Citan (This) 55 - 96 kW
Cubic capacity
1332 - 1461 ccm
  • mercedes-benz LogoMercedes-Benz Citan (This) 1332 - 1461 ccm
Acceleration 0-100km/h
11 - 18 s
  • mercedes-benz LogoMercedes-Benz Citan (This) 11 - 18 s

Consumption/ecology

Tank size
54 l
  • mercedes-benz LogoMercedes-Benz Citan (This) 54 l
    54.0
Combined consumption (WLTP)
5 - 21 l/100km
  • mercedes-benz LogoMercedes-Benz Citan (This) 5 - 21 l/100km
Suburban consumption (WLTP)
5 - 6 l/100km
  • mercedes-benz LogoMercedes-Benz Citan (This) 5 - 6 l/100km
    5.0
Consumption on highways (WLTP)
5 - 7 l/100km
  • mercedes-benz LogoMercedes-Benz Citan (This) 5 - 7 l/100km
    5.0
CO2 emissions (WLTP)
135 - 160 g/km
  • mercedes-benz LogoMercedes-Benz Citan (This) 135 - 160 g/km
Empty weight (EU)
1381 - 2010 kg
  • mercedes-benz LogoMercedes-Benz Citan (This) 1381 - 2010 kg

Towing

Max. towbar load
75 kg
  • mercedes-benz LogoMercedes-Benz Citan (This) 75 kg
    75.0
Max. roof load
80 - 100 kg
  • mercedes-benz LogoMercedes-Benz Citan (This) 80 - 100 kg
Braked trailer
1400 - 1500 kg
  • mercedes-benz LogoMercedes-Benz Citan (This) 1400 - 1500 kg
Trailer (no brakes)
750 kg
  • mercedes-benz LogoMercedes-Benz Citan (This) 750 kg
    750.0

Engines (Citan)

Filter by fuel:
Diesel
MAN FWD
-VAN 108 CDI Base
Engine & Power
Power
55 kW / 75 HP
Capacity
1.5L (1,461 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
18 s
Max. speed
152 km/h
Torque & RPM
Torque
230 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
135 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
-VAN Standard 108 CDI Select
Engine & Power
Power
55 kW / 75 HP
Capacity
1.5L (1,461 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
18 s
Max. speed
152 km/h
Torque & RPM
Torque
230 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
137 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
-VAN 110 CDI Base
Engine & Power
Power
70 kW / 95 HP
Capacity
1.5L (1,461 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
13 s
Max. speed
164 km/h
Torque & RPM
Torque
260 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
135 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
Tourer 110 CDI Base -automatic
Engine & Power
Power
70 kW / 95 HP
Capacity
1.5L (1,461 ccm)
Cylinders
4
Performance
Max. speed
164 km/h
Torque & RPM
Torque
260 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
146 g/km
Maximum torque at RPM
1750 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
Mixto Lang 110 CDI
Engine & Power
Power
70 kW / 95 HP
Capacity
1.5L (1,461 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
13 s
Max. speed
164 km/h
Torque & RPM
Torque
260 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
152 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
Mixto Lang 110 CDI -automatic
Engine & Power
Power
70 kW / 95 HP
Capacity
1.5L (1,461 ccm)
Cylinders
4
Performance
Max. speed
164 km/h
Torque & RPM
Torque
260 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
154 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Gasoline
MAN FWD
-VAN 110 Base
Engine & Power
Power
75 kW / 102 HP
Capacity
1.3L (1,332 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
14 s
Max. speed
168 km/h
Torque & RPM
Torque
200 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
151 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
4500 RPM
Fuel injection
Direct Injection
Gasoline
MAN FWD
-VAN Standard 110 Select
Engine & Power
Power
75 kW / 102 HP
Capacity
1.3L (1,332 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
14 s
Max. speed
168 km/h
Torque & RPM
Torque
200 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
152 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
4500 RPM
Fuel injection
Direct Injection
Diesel
MAN FWD
-VAN 112 CDI Base
Engine & Power
Power
85 kW / 116 HP
Capacity
1.5L (1,461 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
175 km/h
Torque & RPM
Torque
270 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
142 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
Tourer 112 CDI Base -automatic
Engine & Power
Power
85 kW / 116 HP
Capacity
1.5L (1,461 ccm)
Cylinders
4
Performance
Max. speed
175 km/h
Torque & RPM
Torque
270 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
146 g/km
Maximum torque at RPM
1750 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
Mixto Lang 112 CDI
Engine & Power
Power
85 kW / 116 HP
Capacity
1.5L (1,461 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
175 km/h
Torque & RPM
Torque
270 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
149 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
Mixto Lang 112 CDI -automatic
Engine & Power
Power
85 kW / 116 HP
Capacity
1.5L (1,461 ccm)
Cylinders
4
Performance
Max. speed
175 km/h
Torque & RPM
Torque
270 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
154 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Electric
AUT FWD
eCitan -VAN Standard Base
Engine & Power
Power
90 kW / 122 HP
Battery
45 kWh
Range
290 km
Performance
Max. speed
132 km/h
Torque & RPM
Torque
245 Nm
Consumption
Combined consumption (WLTP)
18 kWh/100km
Technical Details
Emission standard
Electric Vehicle
Gears
1
Electric
MAN FWD
eCitan Tourer Lang Base
Engine & Power
Power
90 kW / 122 HP
Battery
45 kWh
Range
265 km
Performance
Max. speed
132 km/h
Torque & RPM
Torque
245 Nm
Consumption
Combined consumption (WLTP)
20 kWh/100km
Technical Details
Emission standard
Electric Vehicle
Gears
1
Electric
MAN FWD
eCitan Mixto Lang
Engine & Power
Power
90 kW / 122 HP
Battery
45 kWh
Range
262 km
Performance
Max. speed
132 km/h
Torque & RPM
Torque
245 Nm
Consumption
Combined consumption (WLTP)
21 kWh/100km
Technical Details
Emission standard
Electric Vehicle
Gears
1
Gasoline
MAN FWD
-VAN 113 Base
Engine & Power
Power
96 kW / 131 HP
Capacity
1.3L (1,332 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
12 s
Max. speed
183 km/h
Torque & RPM
Torque
240 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
150 g/km
Maximum torque at RPM
1600 RPM
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
Tourer 113 Base -automatic
Engine & Power
Power
96 kW / 131 HP
Capacity
1.3L (1,332 ccm)
Cylinders
4
Performance
Max. speed
183 km/h
Torque & RPM
Torque
240 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
152 g/km
Maximum torque at RPM
1600 RPM
Consumption on short trips (WLTP)
8 l/100km
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Gasoline
MAN FWD
-VAN Standard 113 Select
Engine & Power
Power
96 kW / 131 HP
Capacity
1.3L (1,332 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
12 s
Max. speed
183 km/h
Torque & RPM
Torque
240 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
151 g/km
Maximum torque at RPM
1600 RPM
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
-VAN Standard 113 Select -automatic
Engine & Power
Power
96 kW / 131 HP
Capacity
1.3L (1,332 ccm)
Cylinders
4
Performance
Max. speed
183 km/h
Torque & RPM
Torque
240 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
152 g/km
Maximum torque at RPM
1600 RPM
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Compare all engines

Mercedes-Benz Citan generations

Body type
Citan Citan 415
2012 - 2021
Length3937 mm
Height1810 mm
Wheelbase2313 mm
Length3937 mm
Citan Citan 420
2021 - Now
Length4498 mm
Height1819 mm
Wheelbase2716 mm
Length4498 mm (+561 mm)
Compare all generations

1926
1926
Mercedes-Benz founded
2012
2012
Citan 415 was introduced.
2021
2021
Citan 420 was introduced and replaced Citan 415.

Similar cars

Mercedes-Benz T-Klasse
Mercedes-Benz T-Klasse
mercedes-benz Logo 2022 • W420
Body type
High Roof Station Wagon
Length
4498 mm
Width
1859 mm
Height
1811 mm
Wheelbase
2716 mm
Boot capacity
520 l
Weight
1636 kg
Doors
5
Compare
Compare against all competitors

Compare with ...

Find the Perfect Match
Compare your car with other models
Comparing with:
Mercedes-Benz Citan (2021)

TOPlist echo ''; // Add smooth scrolling JS for the generations and variants containers echo '';
