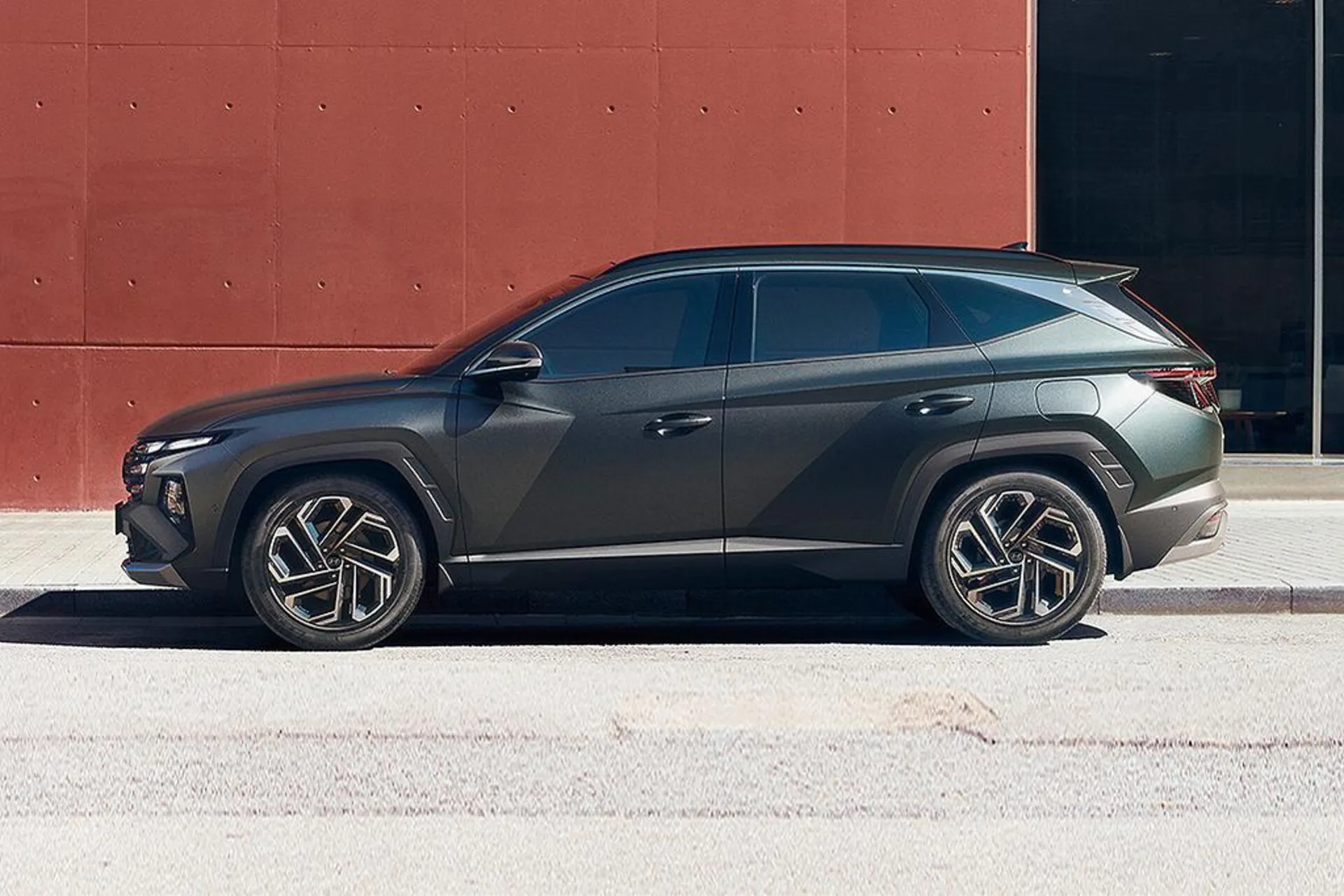

Hyundai Tucson
Specs, engines, generations

Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Table of contents:

Model specs

Model info

Model name
Hyundai Tucson
Generation
NX4E
Production years
2024 - Present
Doors
5
5

Dimensions

Length
4510 mm
3,940.0
Avg
4,655.0
Higher is better
Wheelbase
2680 mm
2,500.0
Avg
2,700.0
Higher is better
Width
1865 mm
1,745.0
Avg
1,865.0
Higher is better
Height
1650 mm
1,435.0
Avg
1,650.0
Higher is better
Ground clearance
170 mm
135.0
Avg
188.0
Higher is better
Turning circle
10 m
10.0
Avg
11.0
Lower is better

Boot/interior

Boot space
546 l
286.0
Avg
596.0
Higher is better
Boot space (rear seats folded, bottom to roof)
1725 l
935.0
Avg
1,725.0
Higher is better
Seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
4
3.0
Avg
4.0
Higher is better
Max. speed
180 - 204 km/h
170.0
Avg
186.0
Higher is better
Torque
250 - 379 Nm
250.0
Avg
379.0
Higher is better
Power
100 - 212 kW
85.0
Avg
212.0
Higher is better
Cubic capacity
1598 ccm
1,462.0
Avg
1,798.0
Higher is better
Acceleration 0-100km/h
7 - 11 s
7.0
Avg
12.0
Higher is better

Consumption/ecology

Tank size
42 - 54 l
36.0
Avg
48.0
Higher is better
Combined consumption (WLTP)
1 - 7 l/100km
1.0
Avg
5.0
Higher is better
CO2 emissions (WLTP)
22 - 172 g/km
22.0
Avg
122.0
Higher is better
Empty weight (EU)
1520 - 1893 kg
1,170.0
Avg
1,893.0
Higher is better

Towing

Max. towbar load
100 - 103 kg
50.0
Avg
103.0
Higher is better
Max. roof load
100 kg
35.0
Avg
100.0
Higher is better
Braked trailer
1210 - 1650 kg
450.0
Avg
1,210.0
Higher is better
Trailer (no brakes)
750 kg
400.0
Avg
750.0
Higher is better

Offroad

Ramp angle
17 °
  • hyundai LogoHyundai Tucson (This) 17 °
    17.0
Departure angle
25 °
  • hyundai LogoHyundai Tucson (This) 25 °
    25.0
Approach angle
17 °
  • hyundai LogoHyundai Tucson (This) 17 °
    17.0

Engines (Tucson)

Filter by fuel:
Diesel
AUT FWD
1.6 CRDi 48V-Mildhybrid Select DCT
Engine & Power
Power
100 kW / 136 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
180 km/h
Torque & RPM
Torque
320 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
138 g/km
Maximum torque at RPM
2000 RPM
Technical Details
Maximum output at RPM
4000 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
1.6 CRDi 48V-Mildhybrid Select DCT
Engine & Power
Power
100 kW / 136 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
180 km/h
Torque & RPM
Torque
320 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
138 g/km
Maximum torque at RPM
2000 RPM
Technical Details
Maximum output at RPM
4000 RPM
Fuel injection
Common Rail
Gasoline
MAN FWD
1.6 T-GDI Select
Engine & Power
Power
110 kW / 150 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
196 km/h
Torque & RPM
Torque
250 Nm
Consumption
Combined consumption (WLTP)
7 l/100km
Emissions
CO2 emissions (WLTP)
162 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
4500 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.6 T-GDI Select DCT
Engine & Power
Power
110 kW / 150 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
196 km/h
Torque & RPM
Torque
250 Nm
Consumption
Combined consumption (WLTP)
7 l/100km
Emissions
CO2 emissions (WLTP)
158 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
4500 RPM
Fuel injection
Direct Injection
Gasoline
MAN FWD
1.6 T-GDI Select
Engine & Power
Power
118 kW / 160 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
194 km/h
Torque & RPM
Torque
265 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
155 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.6 T-GDI 48V-Mildhybrid Select DCT
Engine & Power
Power
118 kW / 160 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
192 km/h
Torque & RPM
Torque
265 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
142 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Gasoline
AUT AWD
1.6 T-GDI N Line Allroad DCT
Engine & Power
Power
132 kW / 180 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
204 km/h
Torque & RPM
Torque
265 Nm
Consumption
Combined consumption (WLTP)
7 l/100km
Emissions
CO2 emissions (WLTP)
172 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Direct Injection
Super / Strom
AUT FWD
1.6 T-GDI Hybrid Select -automatic
Engine & Power
Power
158 kW / 215 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
186 km/h
Torque & RPM
Torque
350 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
129 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Super / Strom
AUT FWD
1.6 T-GDI HEV Select -automatic
Engine & Power
Power
176 kW / 239 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Max. speed
196 km/h
Torque & RPM
Torque
379 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
126 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Direct Injection
Super / Strom
AUT AWD
1.6 T-GDI Plug-in-Hybrid Trend Allroad -automatic
Engine & Power
Power
185 kW / 252 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
186 km/h
Torque & RPM
Torque
367 Nm
Consumption
Combined consumption (WLTP)
1 l/100km
Emissions
CO2 emissions (WLTP)
29 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Super / Strom
AUT FWD
1.6 T-GDI PHEV Select -automatic
Engine & Power
Power
212 kW / 288 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
7 s
Max. speed
186 km/h
Torque & RPM
Torque
379 Nm
Consumption
Combined consumption (WLTP)
2 l/100km
Emissions
CO2 emissions (WLTP)
62 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Direct Injection
Compare all engines

Hyundai Tucson generations

Tucson 1.Generation
2004 - 2010
Length4325 mm
Height1730 mm
Wheelbase2630 mm
Length4325 mm
Tucson 2.Generation
2015 - 2018
Length4475 mm
Height1645 mm
Wheelbase2670 mm
Length4475 mm (+150 mm)
Tucson 2.Generation (1. Facelift)
2018 - 2020
Length4480 mm
Height1645 mm
Wheelbase2670 mm
Length4480 mm (+5 mm)
Tucson Tucson 3.Generation
2020 - 2024
Length4500 mm
Height1650 mm
Wheelbase2680 mm
Length4500 mm (+20 mm)
Tucson Tucson 3. Generation (1. Facelift)
2024 - Now
Length4510 mm
Height1650 mm
Wheelbase2680 mm
Length4510 mm (+10 mm)
Compare all generations
