Hyundai i30 (2020 - 2024)

Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Table of contents:

Variants

Hatchback
i30
BodyHatchback
Length4340 mm
Height1455 mm
Doors5
Boot space395 l
Hatchback
i30 Fastback
BodyHatchback
Length4455 mm
Height1425 mm
Doors5
Boot space450 l
Station Wagon
i30 Kombi
BodyStation Wagon
Length4585 mm
Height1475 mm
Doors5
Boot space602 l
Hatchback
i30 N
BodyHatchback
Length4340 mm
Height1445 mm
Doors5
Boot space395 l
Hatchback
i30 N Fastback
BodyHatchback
Length4455 mm
Height1419 mm
Doors5
Boot space450 l

Model specs

Model info

Model name
Hyundai i30
Generation
PDE
Production years
2020 - 2024
Doors
5
5

Dimensions

Length
4340 mm
3,940.0
Avg
4,460.0
Higher is better
Wheelbase
2650 mm
2,560.0
Avg
2,725.0
Higher is better
Width
1795 mm
1,745.0
Avg
1,860.0
Higher is better
Height
1455 mm
1,435.0
Avg
1,500.0
Higher is better
Ground clearance
140 mm
135.0
Avg
162.0
Higher is better
Turning circle
10 m
10.0
Avg
11.0
Lower is better
Annotated Image

Boot/interior

Boot space
395 l
286.0
Avg
422.0
Higher is better
Boot space (rear seats folded, bottom to roof)
1301 l
1,026.0
Avg
1,354.0
Higher is better
Seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
3 - 4
3.0
Avg
4.0
Higher is better
Max. speed
187 - 250 km/h
158.0
Avg
213.0
Higher is better
Torque
144 - 392 Nm
95.0
Avg
213.0
Higher is better
Power
81 - 206 kW
49.0
Avg
96.0
Higher is better
Cubic capacity
998 - 1998 ccm
998.0
Avg
1,998.0
Higher is better
Acceleration 0-100km/h
5 - 12 s
5.0
Avg
16.0
Higher is better

Consumption/ecology

Tank size
50 l
40.0
Avg
52.0
Higher is better
Combined consumption (WLTP)
4 - 8 l/100km
4.0
Avg
6.0
Higher is better
Suburban consumption (WLTP)
5 - 7 l/100km
4.0
Avg
6.0
Higher is better
Consumption on highways (WLTP)
5 - 8 l/100km
5.0
Avg
6.0
Higher is better
CO2 emissions (WLTP)
123 - 191 g/km
119.0
Avg
153.0
Higher is better
Empty weight (EU)
1251 - 1603 kg
1,065.0
Avg
1,349.0
Higher is better

Towing

Max. towbar load
80 kg
50.0
Avg
90.0
Higher is better
Max. roof load
80 kg
50.0
Avg
85.0
Higher is better
Braked trailer
700 - 1600 kg
700.0
Avg
1,400.0
Higher is better
Trailer (no brakes)
300 - 700 kg
300.0
Avg
665.0
Higher is better

Engines (i30)

Filter by fuel:
Gasoline
MAN FWD
1.5 Pure
Engine & Power
Power
81 kW / 110 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
12 s
Max. speed
187 km/h
Torque & RPM
Torque
144 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
153 g/km
Maximum torque at RPM
3500 RPM
Consumption on short trips (WLTP)
8 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Injection
Diesel
MAN FWD
1.6 CRDi Select
Engine & Power
Power
85 kW / 116 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
10 s
Max. speed
192 km/h
Torque & RPM
Torque
280 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
135 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
4000 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
1.6 CRDi Trend DCT
Engine & Power
Power
85 kW / 116 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
10 s
Max. speed
192 km/h
Torque & RPM
Torque
300 Nm
Consumption
Combined consumption (WLTP)
4 l/100km
Emissions
CO2 emissions (WLTP)
127 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
4000 RPM
Fuel injection
Common Rail
Gasoline
MAN FWD
1.0 T-GDI 48V-Mildhybrid Select
Engine & Power
Power
88 kW / 120 HP
Capacity
1.0L (998 ccm)
Cylinders
3
Performance
Acceleration 0-100km/h
11 s
Max. speed
196 km/h
Torque & RPM
Torque
172 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
137 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.0 T-GDI 48V-Mildhybrid Select DCT
Engine & Power
Power
88 kW / 120 HP
Capacity
1.0L (998 ccm)
Cylinders
3
Performance
Acceleration 0-100km/h
11 s
Max. speed
196 km/h
Torque & RPM
Torque
172 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
140 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Direct Injection
Diesel
MAN FWD
1.6 CRDi 48V-Mildhybrid Trend
Engine & Power
Power
100 kW / 136 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
10 s
Max. speed
200 km/h
Torque & RPM
Torque
280 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
138 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
4000 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
1.6 CRDi 48V-Mildhybrid Trend DCT
Engine & Power
Power
100 kW / 136 HP
Capacity
1.6L (1,598 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
200 km/h
Torque & RPM
Torque
320 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
134 g/km
Maximum torque at RPM
2000 RPM
Technical Details
Maximum output at RPM
4000 RPM
Fuel injection
Common Rail
Gasoline
MAN FWD
1.5 T-GDI 48V-Mildhybrid Trend
Engine & Power
Power
118 kW / 160 HP
Capacity
1.5L (1,482 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
210 km/h
Torque & RPM
Torque
253 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
148 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.5 T-GDI 48V-Mildhybrid Trend DCT
Engine & Power
Power
118 kW / 160 HP
Capacity
1.5L (1,482 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
210 km/h
Torque & RPM
Torque
253 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
142 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Gasoline
MAN FWD
N
Engine & Power
Power
184 kW / 250 HP
Capacity
2.0L (1,998 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
6 s
Max. speed
250 km/h
Torque & RPM
Torque
353 Nm
Consumption
Combined consumption (WLTP)
7 l/100km
Emissions
CO2 emissions (WLTP)
175 g/km
Maximum torque at RPM
2100 RPM
Consumption on short trips (WLTP)
11 l/100km
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Gasoline
MAN FWD
N Performance
Engine & Power
Power
206 kW / 280 HP
Capacity
2.0L (1,998 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
5 s
Max. speed
250 km/h
Torque & RPM
Torque
392 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
182 g/km
Maximum torque at RPM
2100 RPM
Consumption on short trips (WLTP)
11 l/100km
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
N Performance DCT
Engine & Power
Power
206 kW / 280 HP
Capacity
2.0L (1,998 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
5 s
Max. speed
250 km/h
Torque & RPM
Torque
392 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
191 g/km
Maximum torque at RPM
2100 RPM
Consumption on short trips (WLTP)
12 l/100km
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Compare all engines

Hyundai i30 generations

Body type
i30 1.Generation
2007 - 2010
Length4245 mm
Height1480 mm
Wheelbase2650 mm
Length4245 mm
Body type
i30 1.Generation (1. Facelift)
2010 - 2012
Length4280 mm
Height1480 mm
Wheelbase2650 mm
Length4280 mm (+35 mm)
i30 2.Generation
2012 - 2015
Length4485 mm
Height1500 mm
Wheelbase2650 mm
Length4485 mm (+205 mm)
Body type
i30 2.Generation (1. Facelift)
2015 - 2017
Length4300 mm
Height1465 mm
Wheelbase2650 mm
Length4300 mm (-185 mm)
Body type
i30 3.Generation
2016 - 2018
Length4340 mm
Height1455 mm
Wheelbase2650 mm
Length4340 mm (+40 mm)
i30 i30 3. Generation (1. Facelift)
2017 - 2020
Length4340 mm
Height1455 mm
Wheelbase2650 mm
Length4340 mm
i30 i30 3.Generation (2. Facelift)
2020 - 2024
Length4340 mm
Height1455 mm
Wheelbase2650 mm
Length4340 mm
i30 i30 3. Generation (3. Facelift)
2024 - Now
Length4340 mm
Height1455 mm
Wheelbase2650 mm
Length4340 mm
Compare all generations

1967
1967
Hyundai founded
2007
2007
1.Generation was introduced.
2010
2010
1.Generation (1. Facelift) was introduced and replaced 1.Generation.
2012
2012
2.Generation was introduced and replaced 1.Generation (1. Facelift).
2015
2015
2.Generation (1. Facelift) was introduced and replaced 2.Generation.
2016
2016
3.Generation was introduced.
2017
2017
I30 3. Generation (1. Facelift) was introduced and replaced 2.Generation (1. Facelift).
2018
2018
I30 3. Generation (1. Facelift) was introduced and replaced 2.Generation (1. Facelift).
2020
2020
I30 3.Generation (2. Facelift) was introduced and replaced i30 3. Generation (1. Facelift).
2024
2024
I30 3. Generation (3. Facelift) was introduced and replaced i30 3.Generation (2. Facelift).

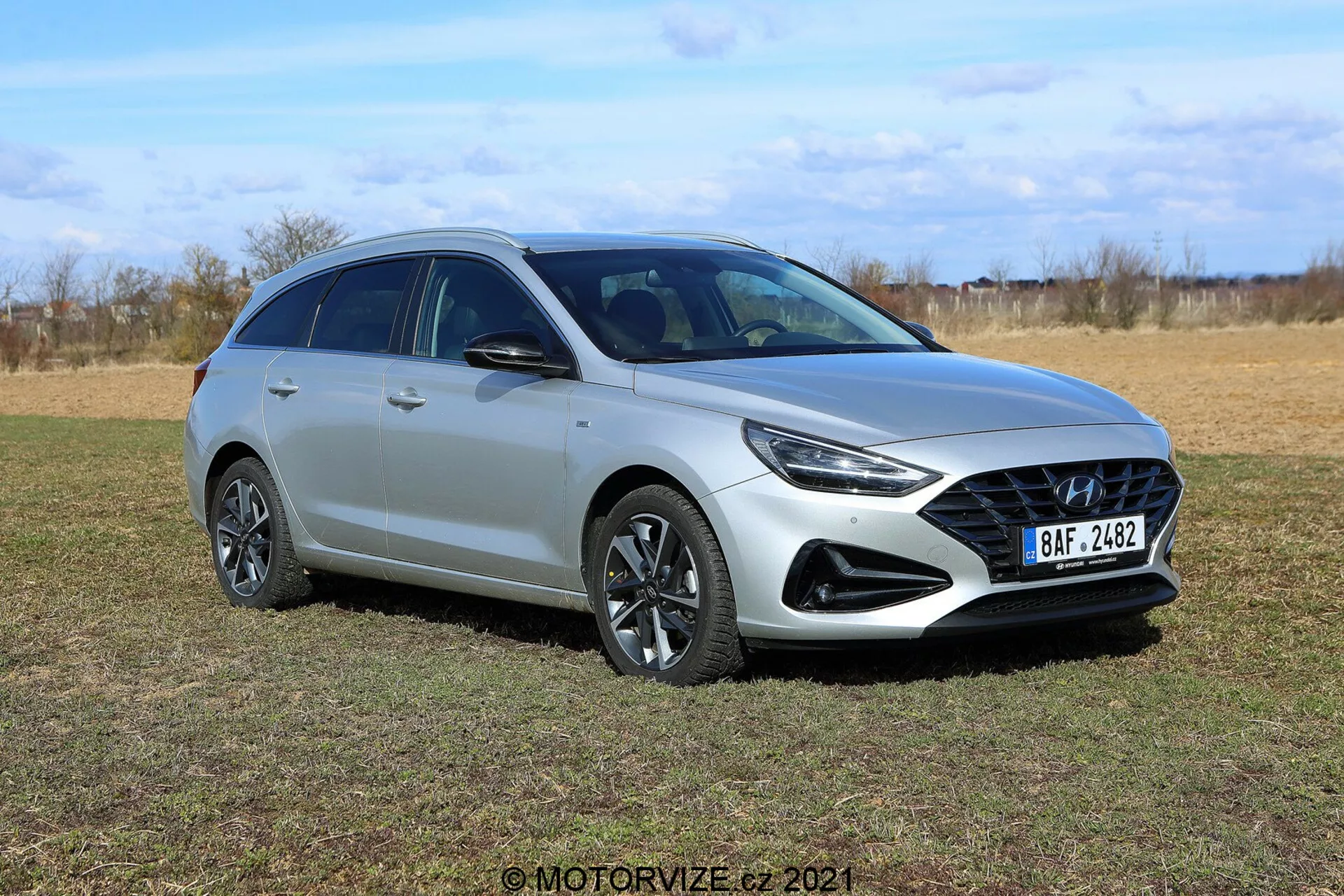

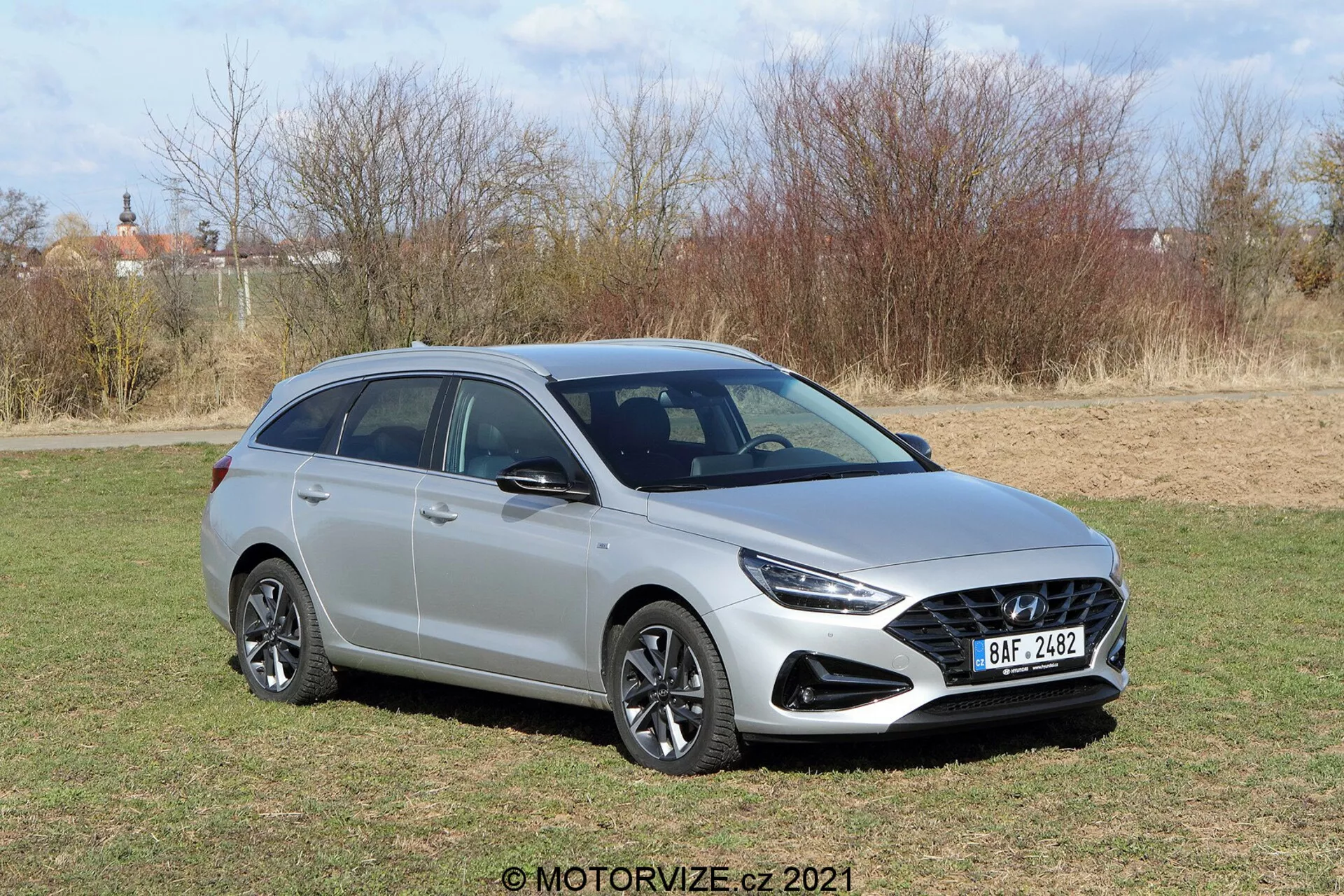

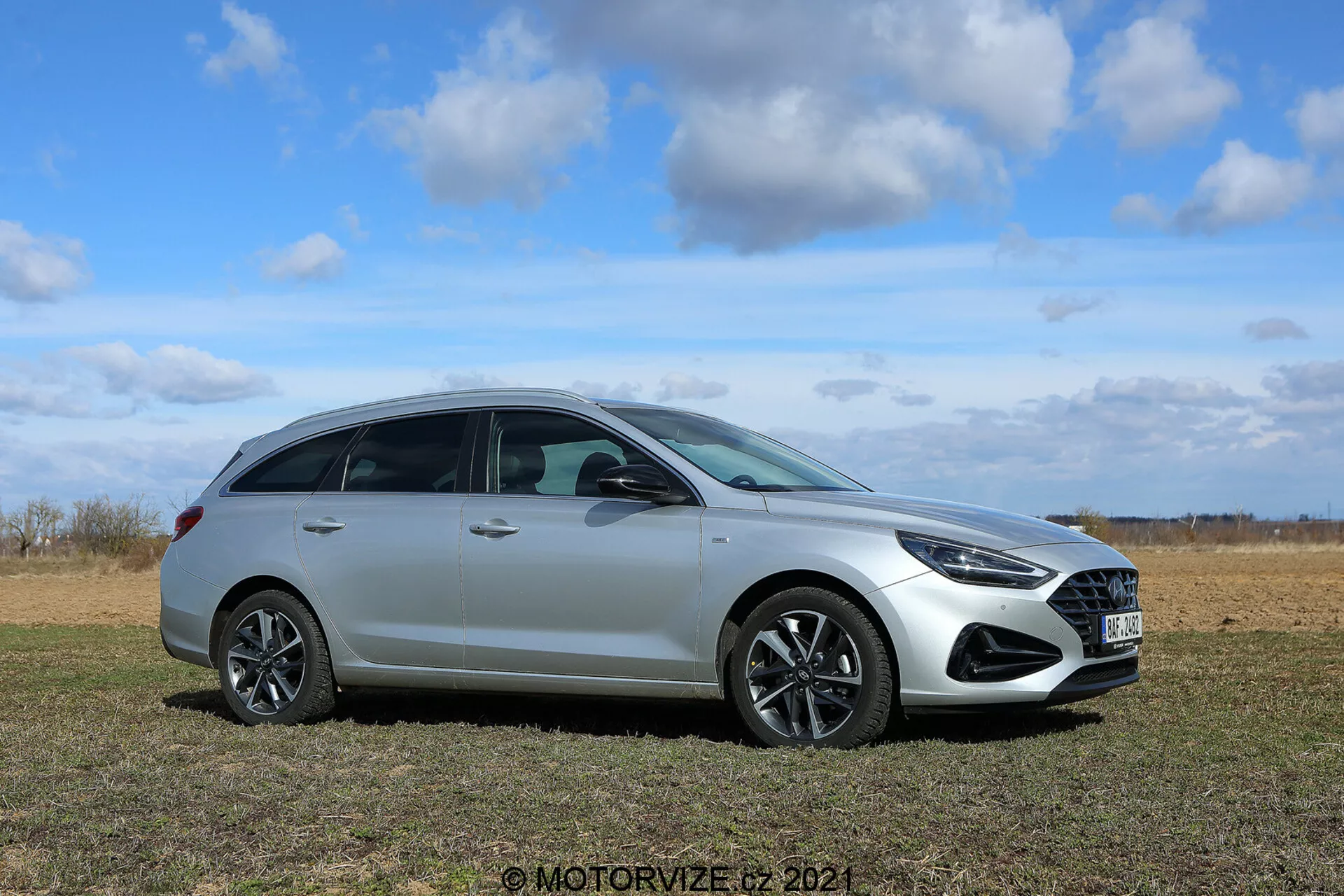

The image presents a silver Hyundai i30 2020 Kombi captured from a low front three-quarter angle, showcasing the design from the driver's side. The angle emphasizes the large cascading grille with a prominent Hyundai logo, modern LED headlights, multi-spoke alloy wheels, integrated daylight running lights below the headlights, and a visible radar sensor for safety features. The car's aerodynamic lines and contours are also highlighted, with side mirrors featuring integrated turn signals. The background includes a curb, trees, and a cloudy sky, suggesting a suburban outdoor setting.

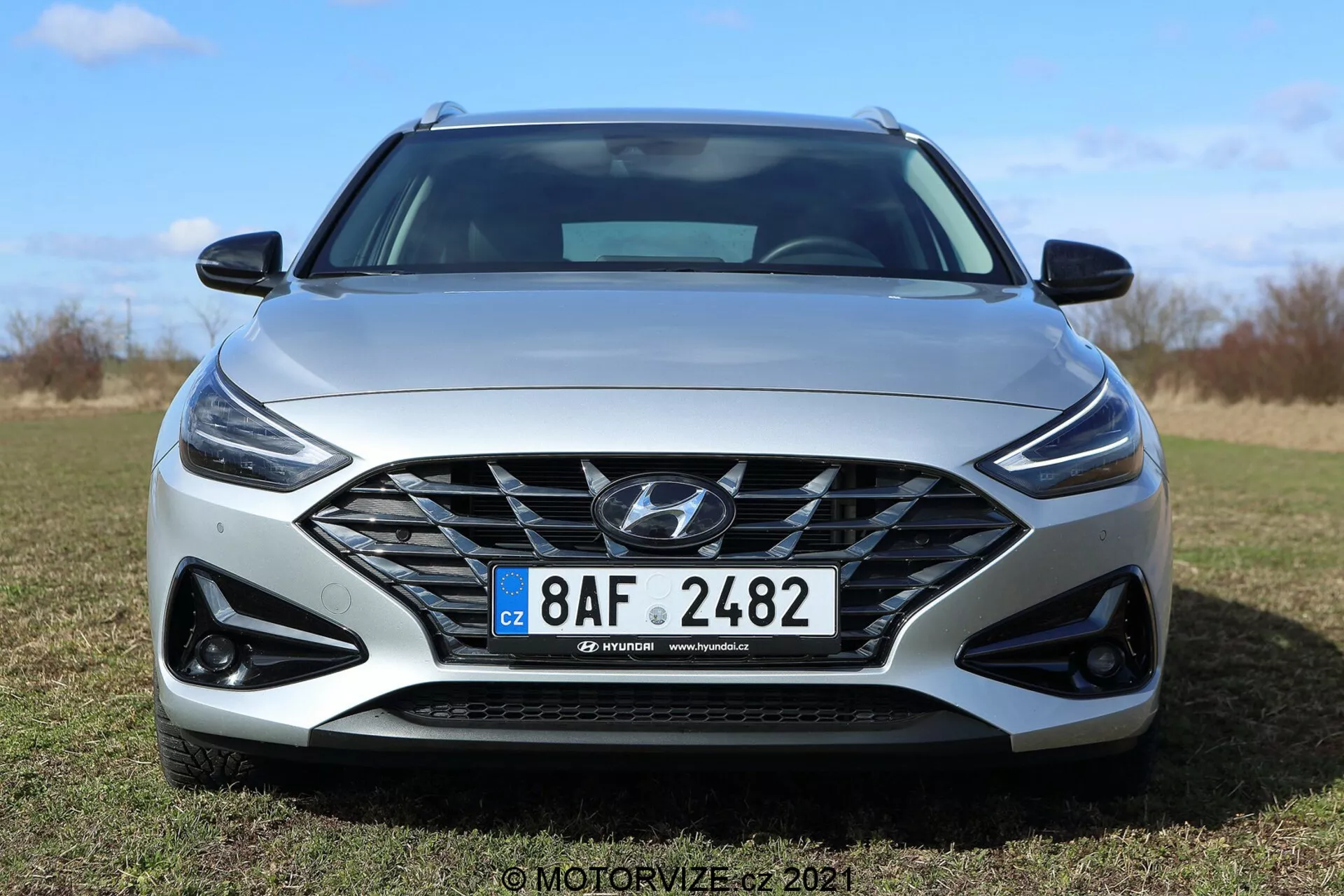

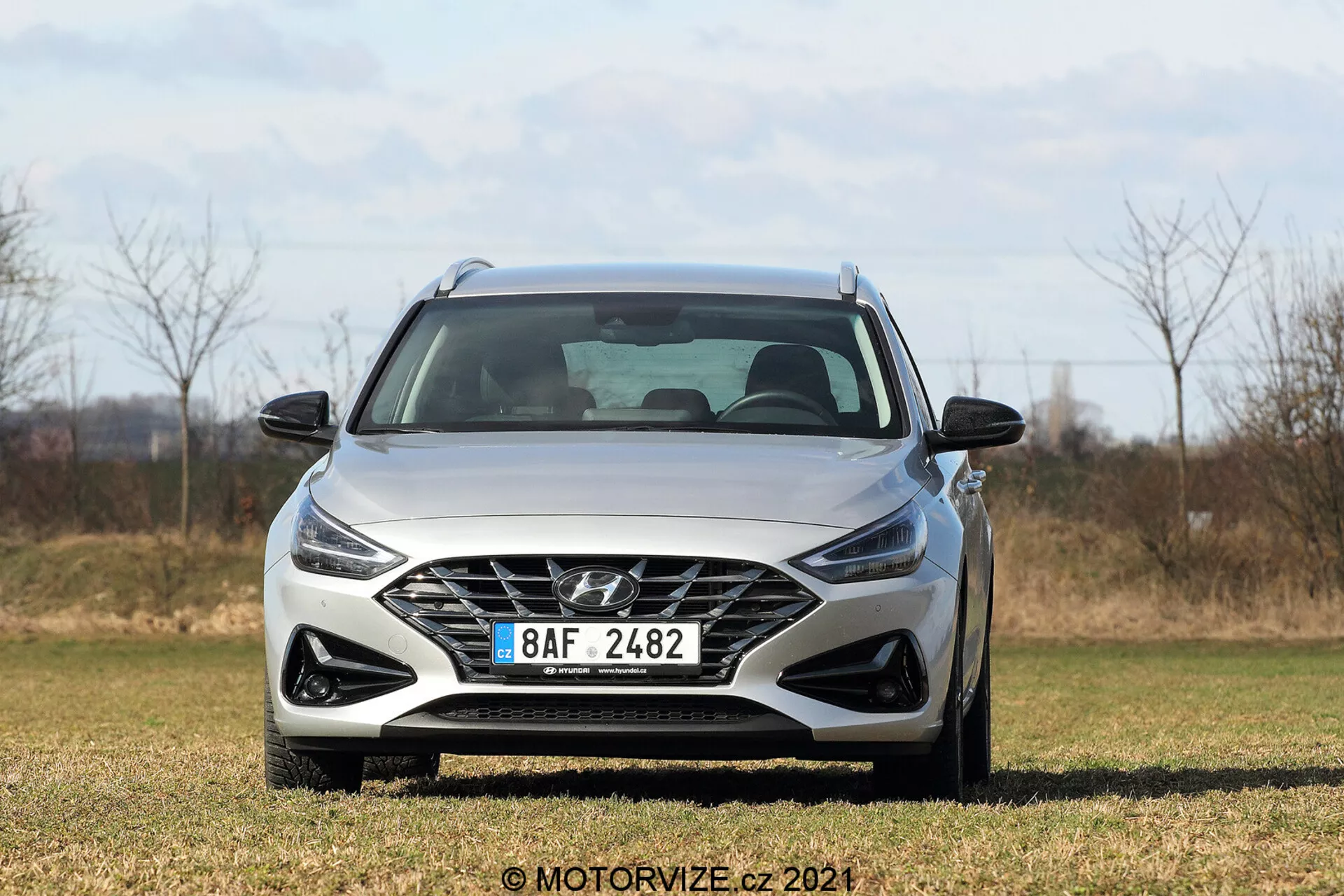

Front view of a 2020 Hyundai i30 Kombi on a bright day in an outdoor setting. The car's modern design features a large grille with intricate mesh and the Hyundai logo, sleek LED headlights with daytime running lights, and sporty fog light housings in black. The dynamic front bumper and sculpted bonnet emphasize a contemporary and aerodynamic aesthetic. European-style license plate and potential alloy wheels are visible. The car's light gray color highlights its sophisticated styling.
A detailed view of a white 2020 Hyundai i30 station wagon parked on a grassy field with a partly cloudy sky backdrop. The image is taken from a three-quarter rear angle, showcasing design elements like the modern wrap-around taillights, rear windshield with wiper, small roof spoiler, multi-spoke alloy wheels, and the side mirror with potential modern features. The shut lines of the rear passenger door and cargo door are visible, indicating at least four doors. Although not prominently visible, the exhaust appears unobtrusive. The car is sharply focused, highlighting its design and features, with its surroundings providing contextual scenery.

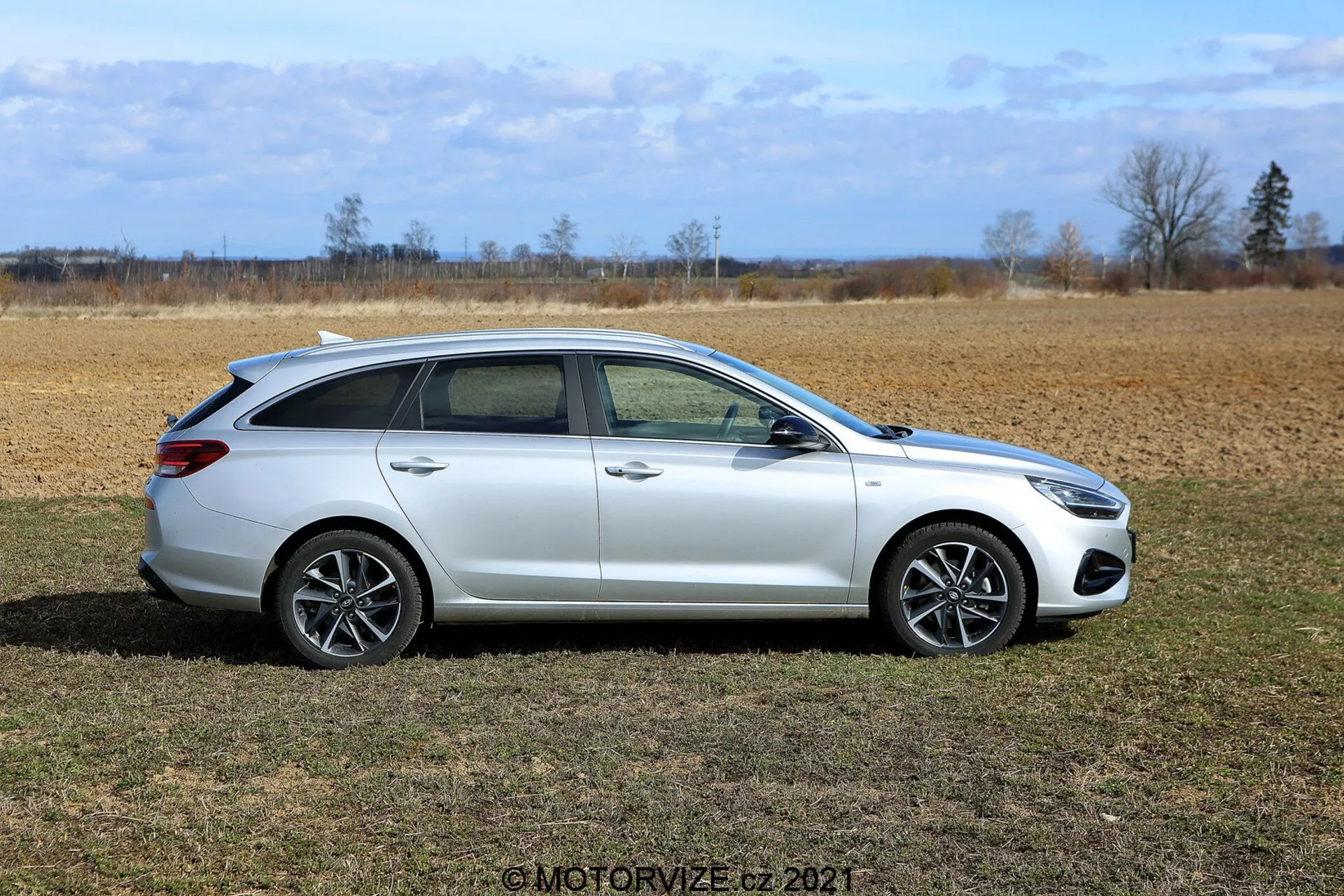

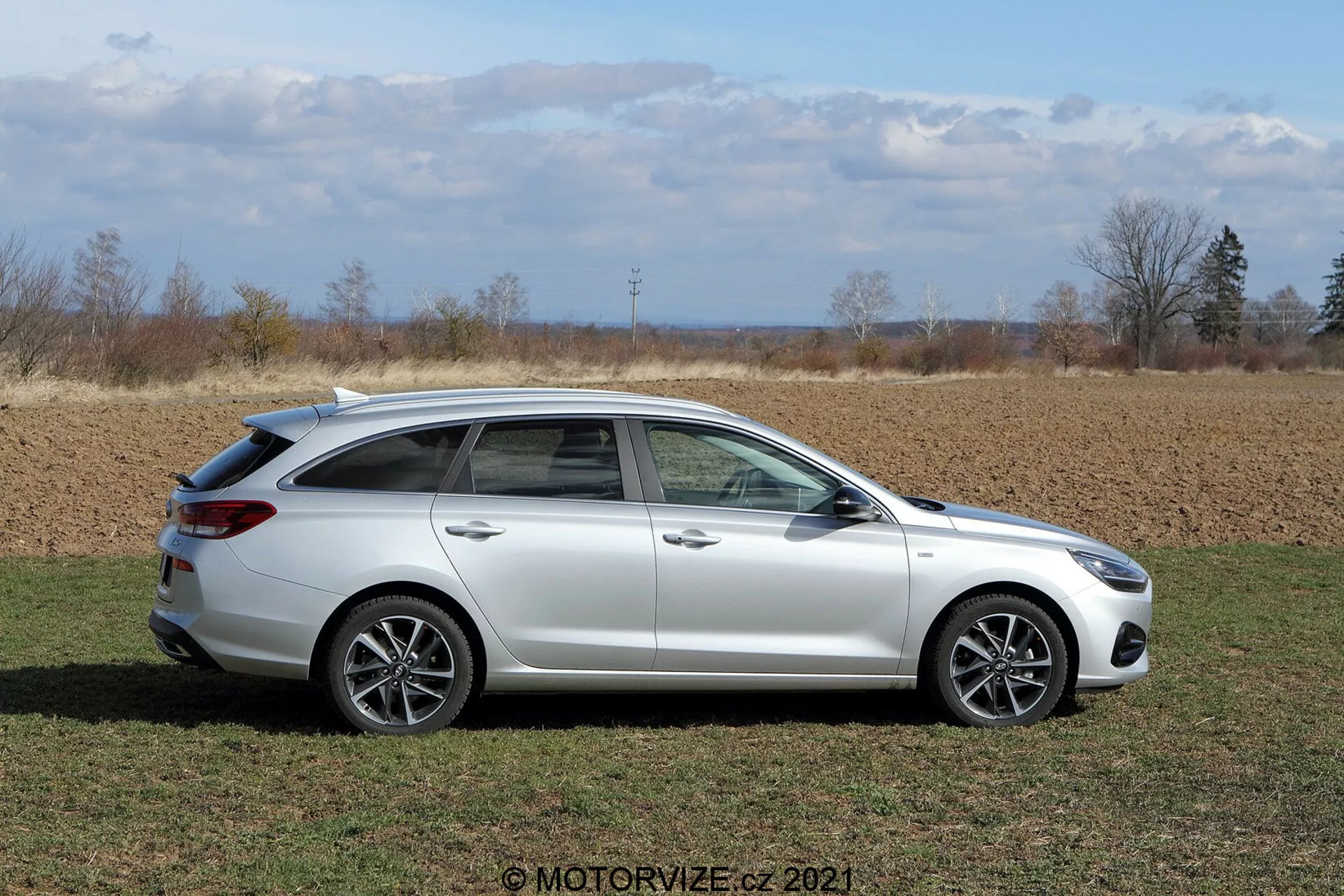

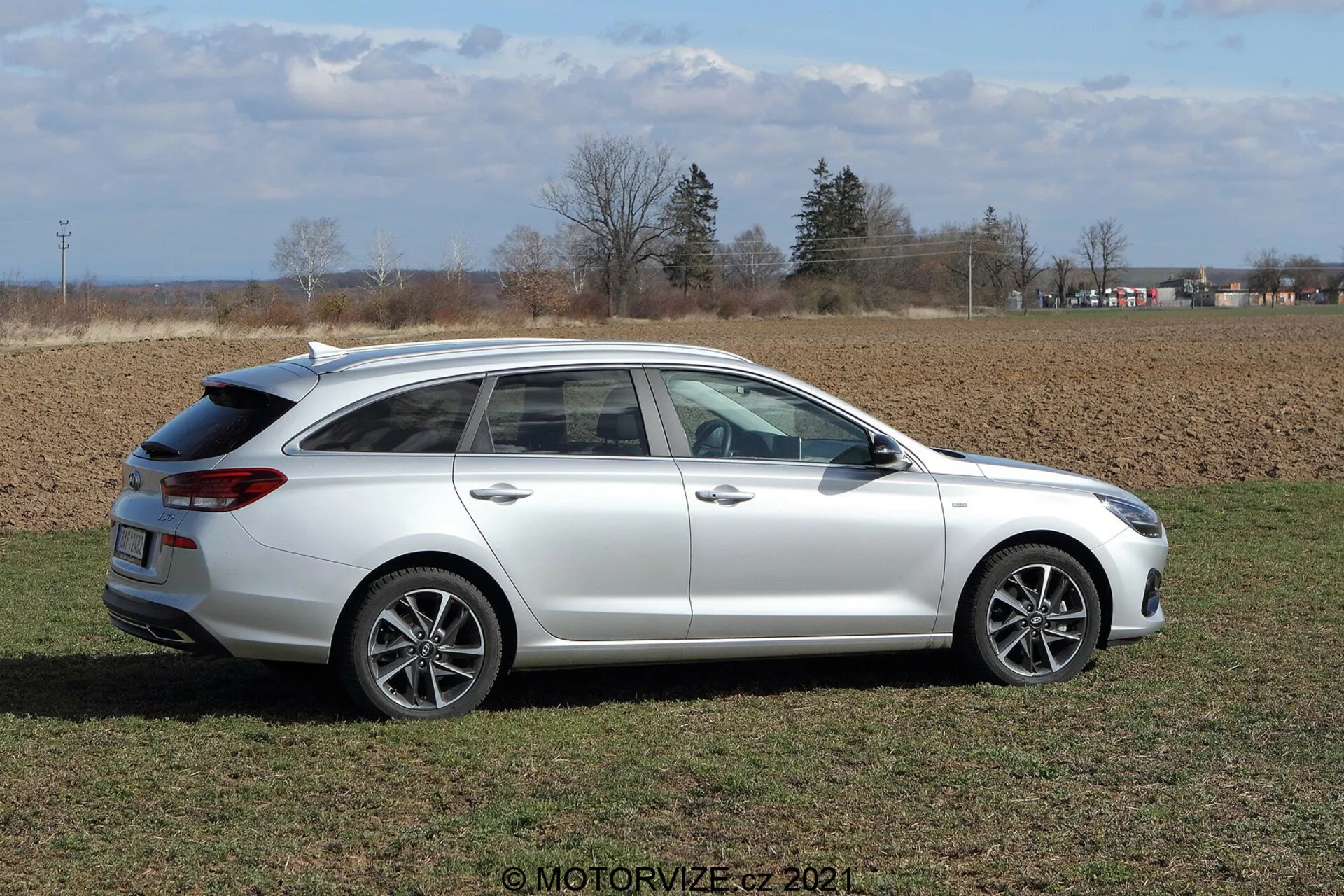

Side profile view of a white Hyundai i30 2020 station wagon (i30-kombi) parked in a rural setting with farmland in the background. The vehicle's sleek headlight design, multi-spoke alloy wheels, integrated turn signal side mirrors, and roof spoiler are clearly visible in the bright, natural daylight.

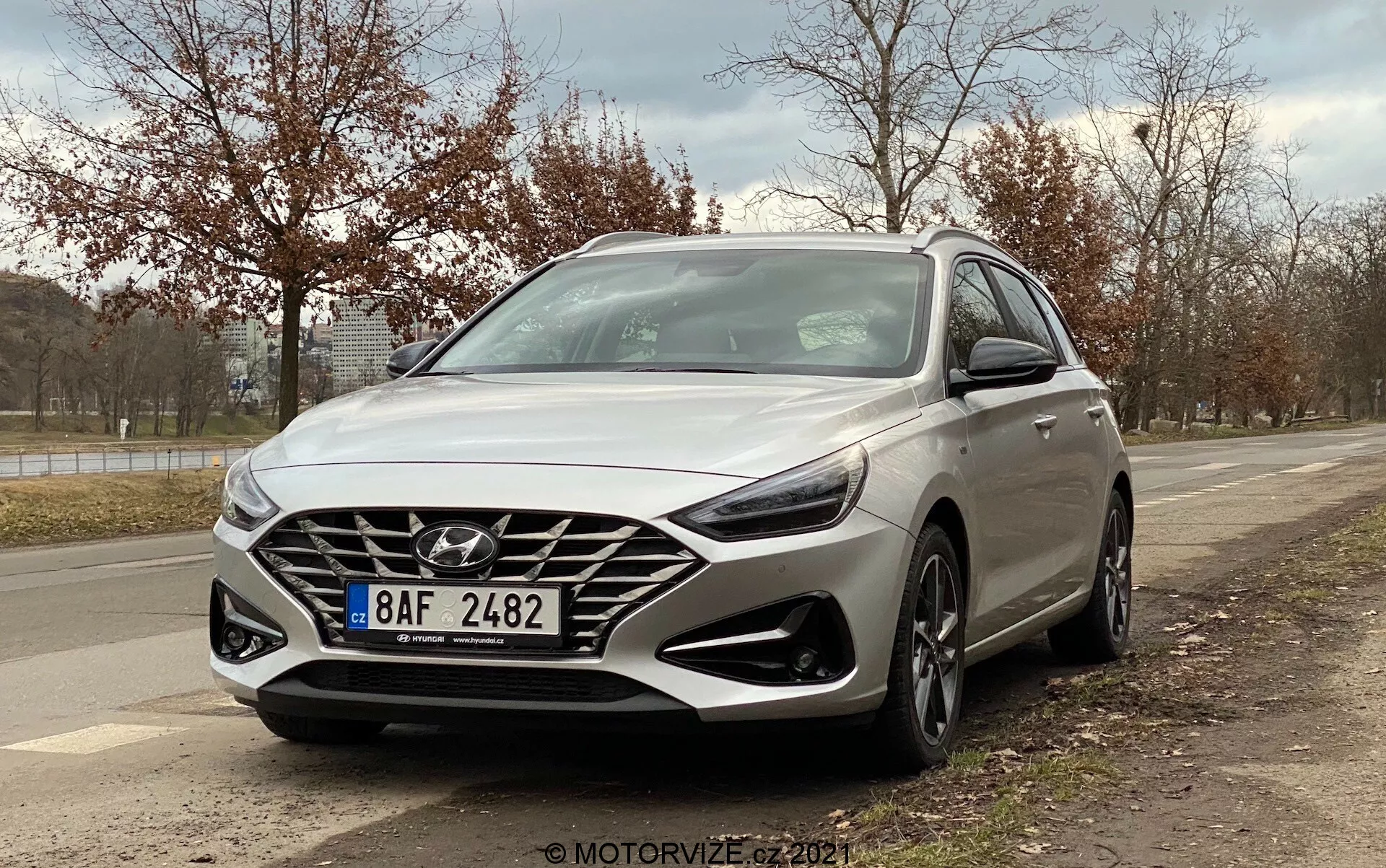

Front angle view of a Hyundai i30 2020 Kombi, showcasing polygonal grille with manufacturer’s logo, sharp angular headlamps, sculpted front bumper, subtle hood lines, and side mirrors from a grassy area and natural backdrop.
2020 Hyundai i30 Kombi photographed from front left three-quarter angle in an open field. Sleek silver hatchback showcasing modern aerodynamic design with prominent front grille, sharp LED headlights, multi-spoke alloy wheels, fog lights, roof spoiler, and roof rails. Outdoor background with barren trees, highlighting advanced lighting technology and possible safety features like integrated sensors and turn signals on side mirrors.
Side profile view of a 2020 Hyundai i30 Kombi station wagon in daylight on a grassy field. The car features multi-spoke alloy wheels, roof rails, and tinted rear windows, positioned in a rural setting with agricultural fields and a partially cloudy sky in the background.
Side profile of a 2020 Hyundai i30 station wagon in a bright white paint finish, parked on a dry grass field with a barren landscape and clear sky in the background. The vehicle features an elongated rear section for increased cargo space, four doors, alloy multi-spoke wheels, large windows, side mirrors, chrome or metallic finishings, and integrated roof rails.
Hyundai i30 2020 Kombi - Modern hatchback car in a grassy field with a clear sky background, side profile angle emphasizing front grille, wheel design, headlights, side mirrors, windows, door handles, and roofline; notable for its sleek metallic paint, alloy wheels, and advanced lighting and aerodynamic features.

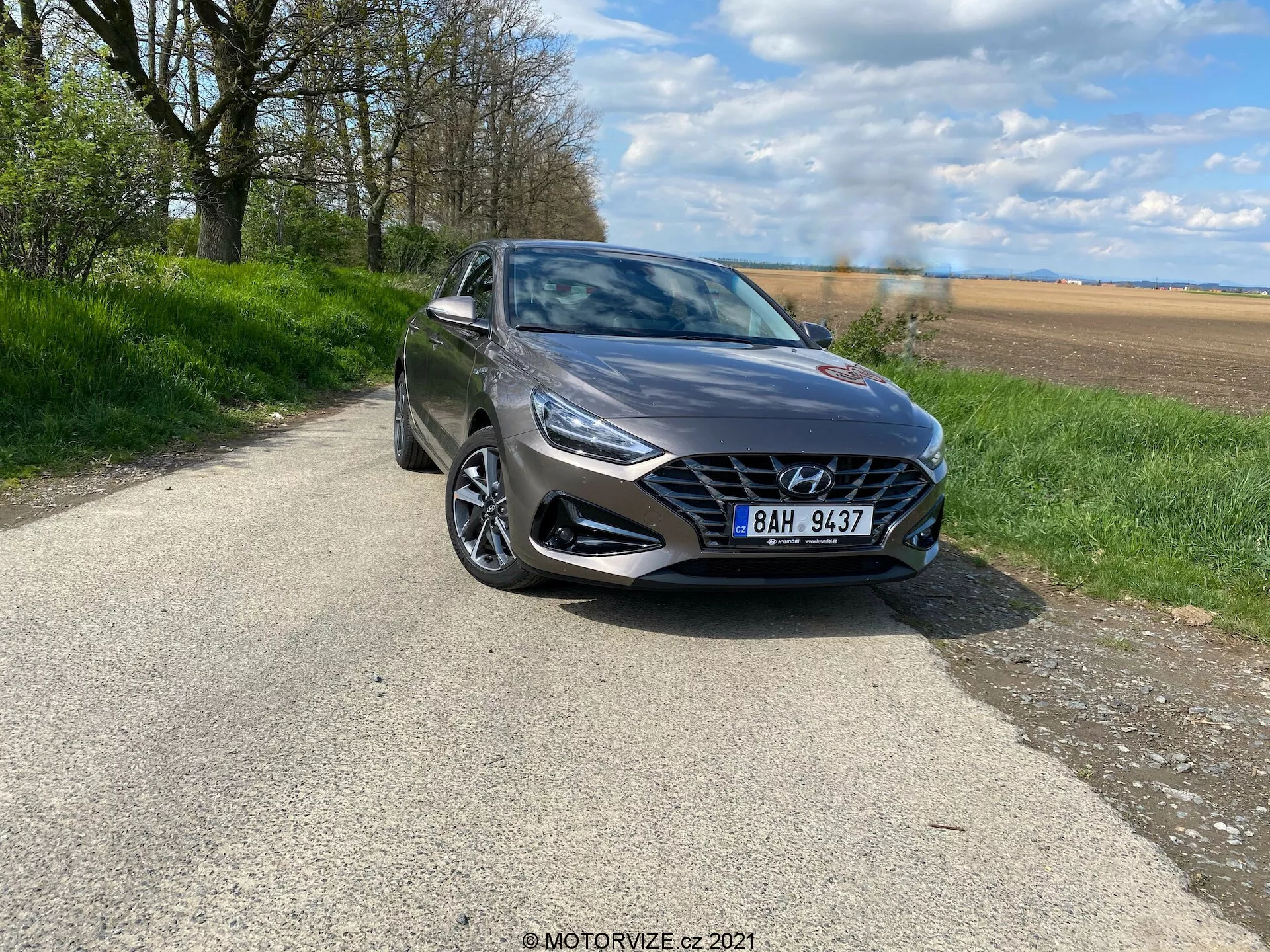

Three-quarter front view of a modern Hyundai i30 2020 hatchback station wagon, shot from an elevated angle showing the front grille with honeycomb design, sleek headlights, alloy multispoke wheels, side mirrors with integrated turn signals, and roof rails on a metallic body with smooth, sculpted lines in a sunny natural environment.
Hyundai i30 Kombi 2020 in a sleek design, showcasing its stylish exterior and advanced features, parked in an urban setting
Hyundai i30 2020 station wagon parked on urban road with a view of both side profile and rear, featuring rear roof spoiler, silver multi-spoke alloy wheels, dual exhaust pipes integrated into the rear bumper, tailgate-extending rear lights, roof rails, and side mirrors with integrated turn signals. Modern car technology potentially includes parking sensors, a rear view camera, and LED rear lights. The image is well-lit and provides a detailed observation of the car’s design and features amid an urban environment.

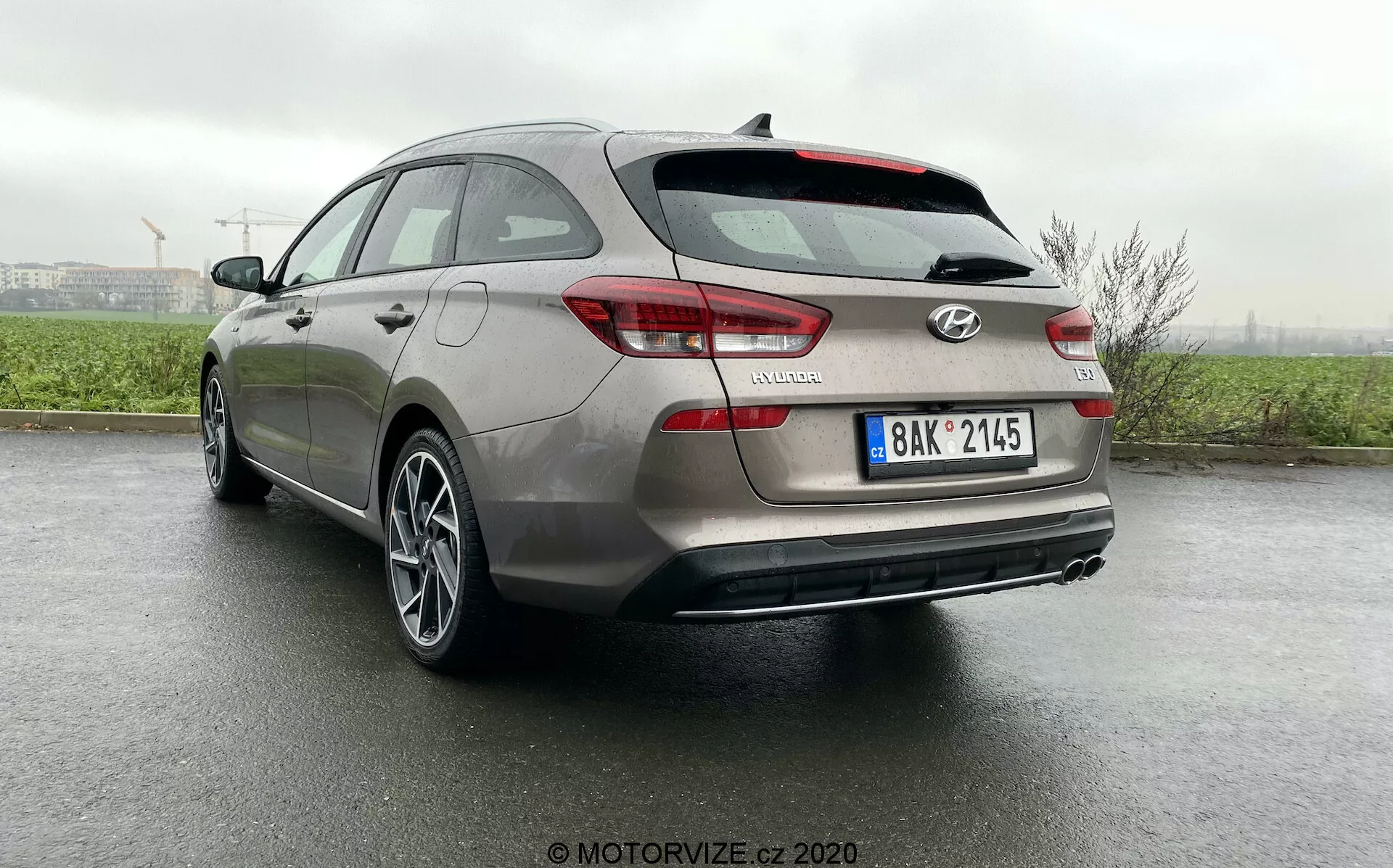

Rear three-quarter view of a silver 2020 Hyundai i30 station wagon showcasing its rear design elements, including taillights possibly featuring LED technology, rear windshield wiper, car badging and model name. The image also captures dual exhaust tips integrated into the rear bumper, alloy wheels, and partial side profile suggesting ample cabin space. The car is parked on a two-lane road in a rural or semi-rural area with trees and open space in the background.
Close-up of a white Hyundai i30 2020 shark-fin antenna mounted on the roof, showcasing its aerodynamic design from a side and slightly elevated angle with a focus on the smooth integration and indicative droplets suggesting recent rain or wash.
Close-up, angled shot focusing on the upper half of the Hyundai i30 2020 side profile. Elevated side view showcasing the car's roof, upper doors, and tinted windows. The roofline exhibits a smooth, curved design leading towards a rear spoiler or shark-fin antenna. Partial view of the side windows offers a glimpse of the light-colored upholstery of the seats, headrest, and passenger compartment. Sky reflection on the roof and windows indicates a bright environment. © MOTORVIZE.cz 2021 watermark indicates the photo was taken for review or promotional purposes.
Close-up of the Hyundai i30 Kombi 2020's front wheel, showcasing its modern alloy wheel with a multi-spoke design and visible disc brakes through the spokes. The view, taken from a low angle near the ground, includes part of the side body in metallic silver, featuring a 4WD badge indicating four-wheel drive capability. The image highlights the car's clean design with curved lines and minor character details above the wheel arch.
Angled close-up image of a Hyundai i30 2020 side mirror taken from the rear towards the front. The shot focuses on the mirror assembly, including its modern housing with integrated turn signal indicators and reflective surface. The driver's door and car's light exterior color are out of focus, emphasizing the design and details of the mirror. The badge '4DV' is visible but its specific meaning is unclear.
Close-up shot of the Hyundai i30 2020 Kombi, depicting the front left section of the vehicle at a three-quarter angle facing the driver's side with a focus on the sleek, angular headlight assembly featuring modern LED or HID technology, accompanied by a streamlined side mirror with potential advanced technological integrations like power adjustment and blind spot monitoring. The car's body shows a high-quality pearlescent or metallic finish with aerodynamic contours on the hood and a hint of the front grille. The background is blurred to emphasize the car's details.
Close-up of the rear left side of a 2020 Hyundai i30 Kombi, highlighting the modern tail light assembly with distinct red brake light, white reverse light, and amber indicator under European specifications. The shot includes part of the trunk lid, rear bumper, and 'i30' emblem, with paintwork in a likely silver or white color. Shallow depth of field emphasizes the tail light and emblem, with blurred background and 'MOTORVIZE.cz 202' watermark visible.
Close-up rear view of a white Hyundai i30 2020 (Kombi) focusing on the left tail light assembly and left rear quarter section, showcasing modern design lines, clear lens brake lights, turn signals, i30 badge, detailed paintwork texture, parking sensor, flush design integration, and chrome-tipped exhaust outlet, with a shallow depth of field highlighting the car's rear design.
Close-up angled photograph of the front left side of a modern Hyundai i30 Kombi 2020, focusing on the headlight and front bumper area. Shot from a low vantage point near the front wheel, the image captures the sharp angular LED headlight, chrome-trimmed grille, aggressive bumper design with large air intake, and fog light embedded in black trim. The metallic paint finish reflects light, and design lines on the hood emphasize the car's dynamic look. The background is blurred to highlight the vehicle's details, suggesting advanced features such as adaptive lighting and potential parking sensors.
Close-up view of a metallic grey Hyundai i30 2020 (i30-Kombi) side panel showcasing a '48V' badge, indicating a 48-volt mild-hybrid system, with raindrop-speckled surface, no panoramic view, neutral lighting, black background, and silver numerals.
Close-up view of Hyundai i30 2020 (i30-kombi) digital instrument cluster from the driver's seat perspective, focusing on a stationary vehicle's speedometer (up to 260 km/h) and tachometer (up to 8000 rpm) with additional gauges for temperature and fuel levels. Central display shows the car in Parking mode, trip computer data, and odometer reading of 13,217 km.
Close-up view of a modern Hyundai i30 2020 instrument cluster from the driver's seat perspective, featuring a digital central display flanked by analog gauges. The left side displays a tachometer, and the right side shows fuel and engine temperature gauges. Various indicators and icons show vehicle statuses such as seat belt, battery charge, and brake system. The central display includes fuel consumption data, drive mode settings, and odometer reading. The cluster is backlit in red and green, suggesting a sophisticated electronic system with possible touch or haptic feedback elements, watermark © MOTORVIZE.cz 2021.

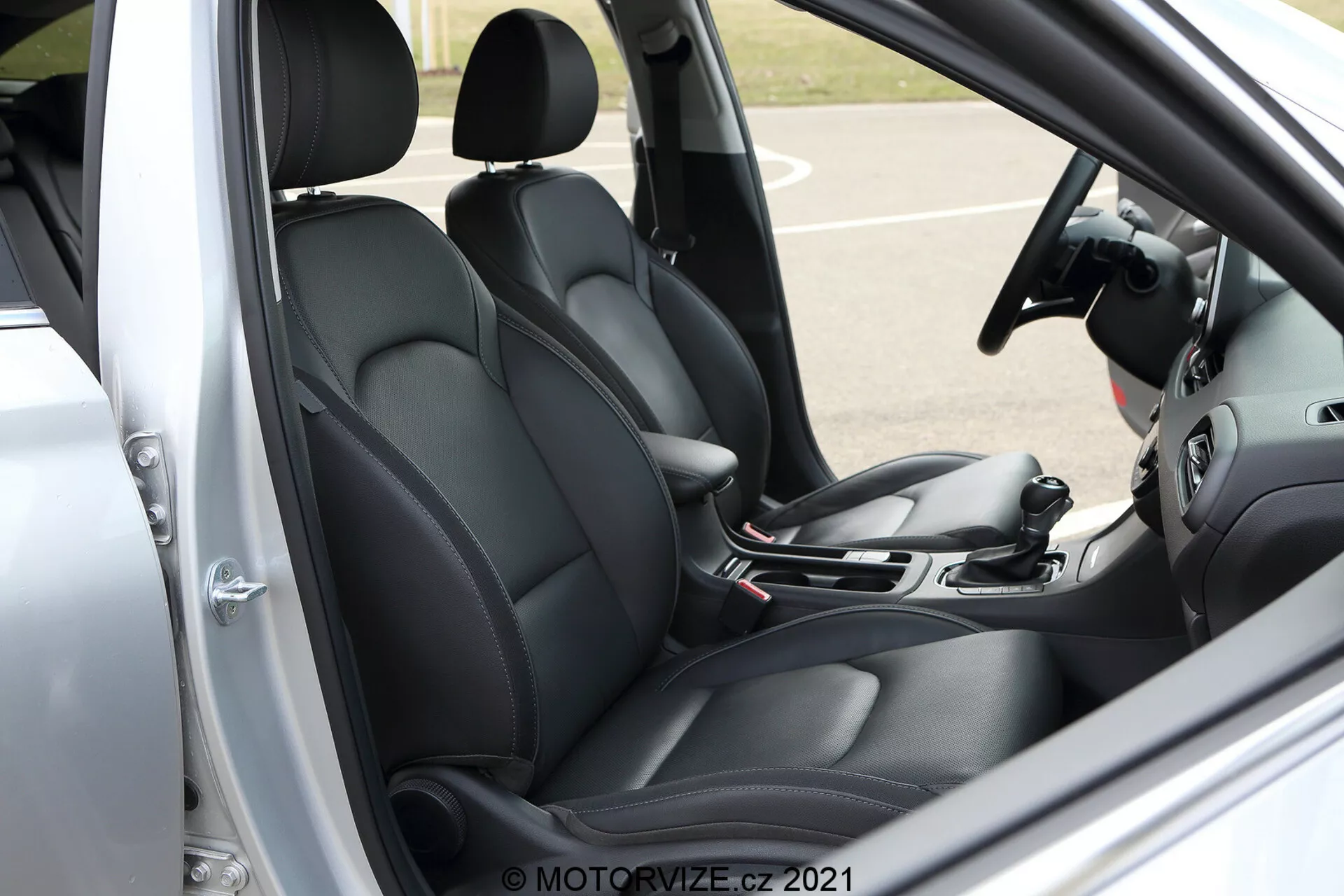

Close-up side-angle view of the Hyundai i30 Kombi 2020 front cabin interior. The image showcases the driver's seat and part of the passenger seat, both upholstered in black with a contoured design for added comfort and support. Visible from the driver's side with the door open, the scene includes a gear shift lever, manual handbrake, and part of the infotainment and climate control systems, implying modern technology features. The driver's interior door panel, displaying power window and possible mirror adjustment controls, adds to the overall functional design. The steering wheel, though partially cut off, hints at integrated controls for enhanced vehicular interaction. Watermarked with 'MOTORVIZE.CZ 2021' at the bottom right.

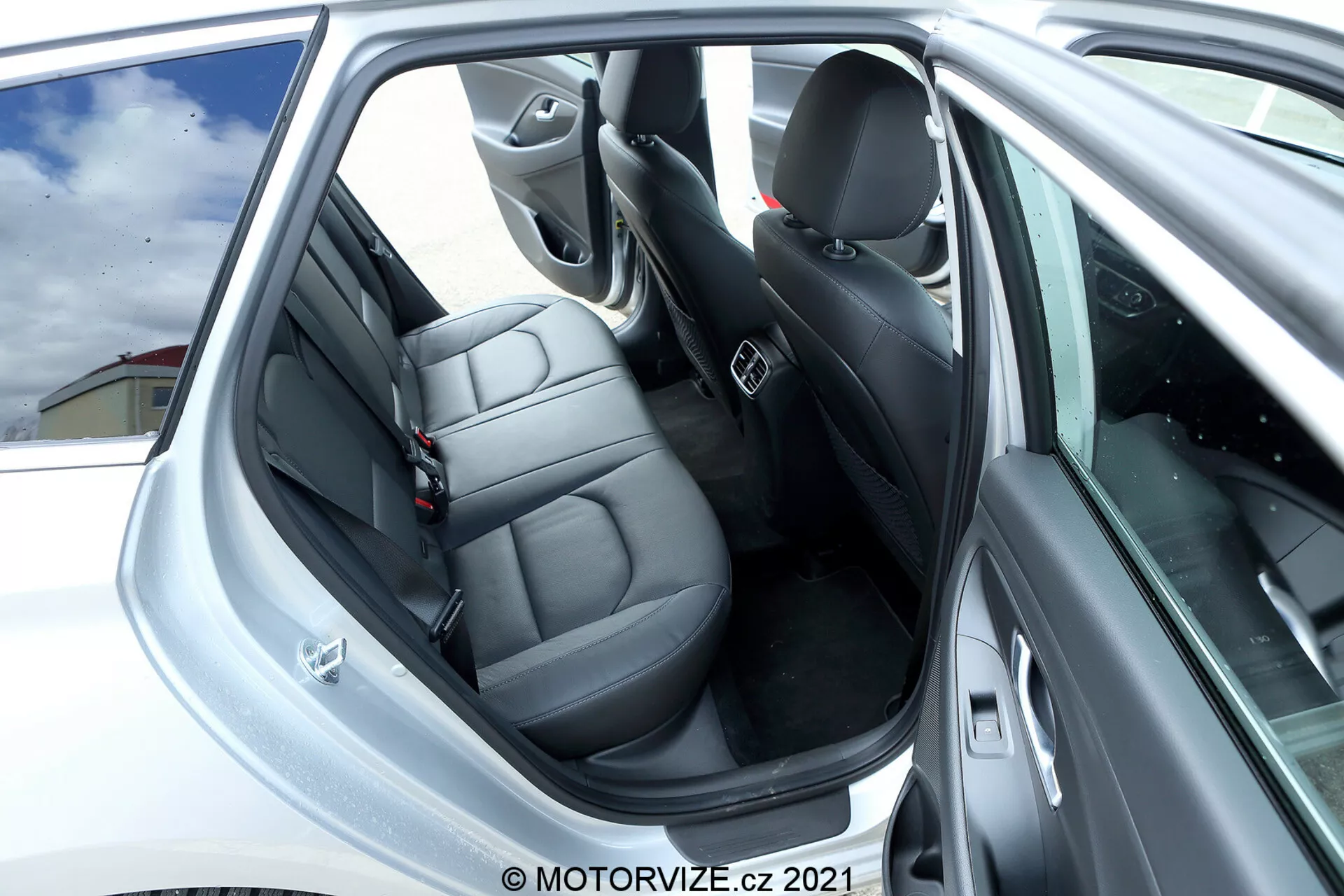

Close-up view of Hyundai i30 2020 rear passenger area. The image shows the back door open with a clear view of the dark leather rear seats, which have individual headrests and seatbelts. The door panel features grey or silver accents with control buttons and a speaker grille, indicating technological and audio features. The front seats and B-pillar are visible, reflecting a similar design and material to the rear seats. The interior, predominantly black with some silver accents, is well-maintained, focusing on comfort and design.
Interior view of a Hyundai i30 2020 (i30-Kombi) from the backseat, showcasing the multi-function steering wheel with mounted controls, digital instrument cluster indicating park mode and open driver’s door, touchscreen infotainment system, automatic gear shifter, front leather upholstered seats, detailed door panels with power controls, diverse interior materials including synthetic leather and metallic accents, overhead console with sunglasses space and buttons, auto-dimming rearview mirror with additional buttons, and partially visible carpeted floor mats.
Close-up view of a Hyundai i30 2020 (i30-kombi) digital instrument cluster displaying an analog tachometer on the left and a speedometer on the right. The center digital display shows various vehicle indicators including gear position 'P', power meter labeled 'Sportbaterie paliva', average fuel consumption 'Průměr 6.0 l/100km', DRIVE MODE options 'NORMAL | ECO | SPORT', odometer reading '137579 km', and fuel and temperature gauges. Additional icons include seat belt warning, door ajar warning, and powertrain or battery status light. Copyright date '2021' and 'MOTORVIZE.cz'.

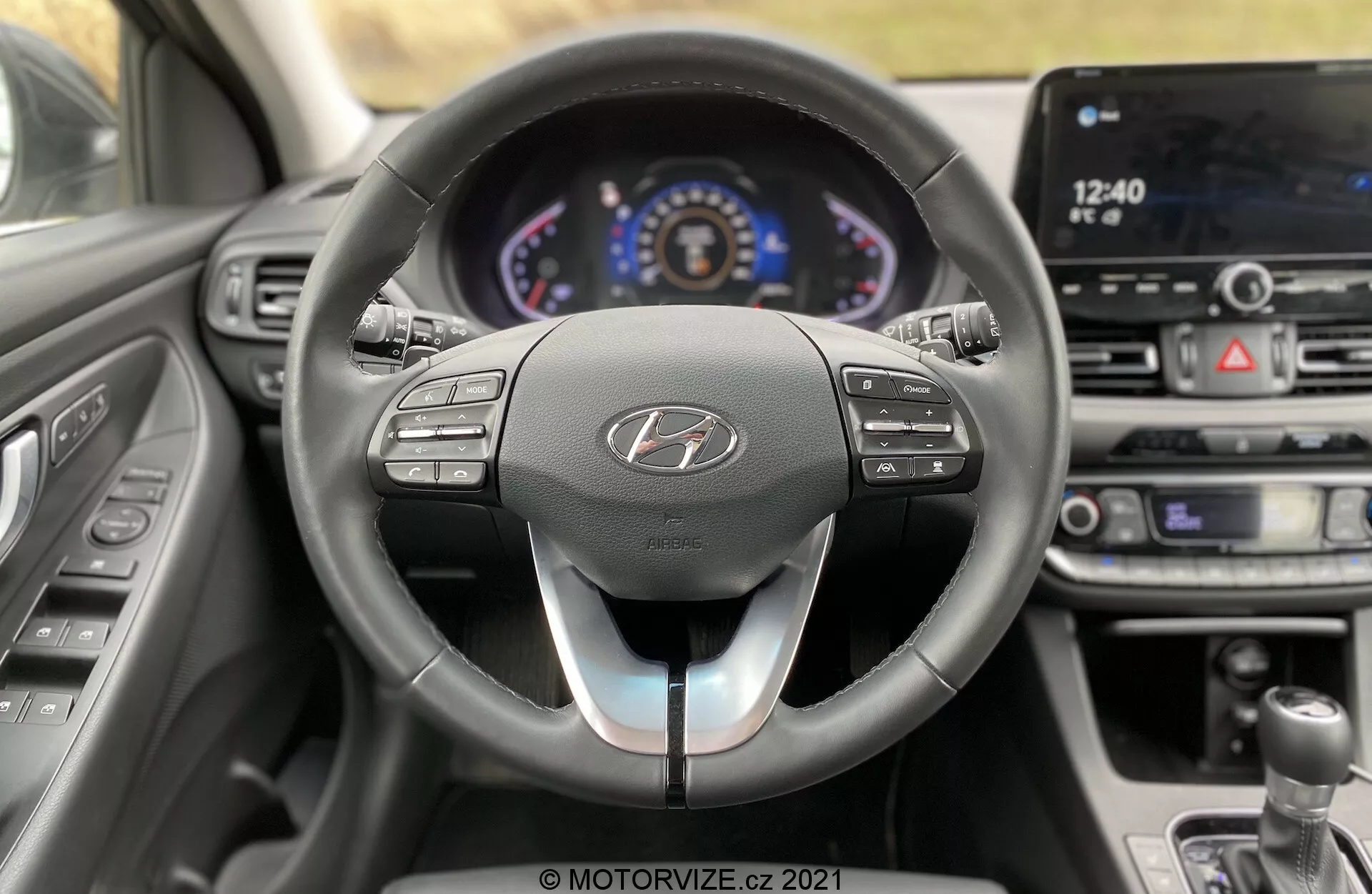

Interior view of the 2020 Hyundai i30 Kombi focusing on the steering wheel and dashboard. The photograph is taken from the passenger seat, showing a sleek steering wheel with control buttons, a digital instrument cluster, and an infotainment system. The modern design includes a leather-wrapped steering wheel with a silver bottom spoke, air vents, and minimal physical controls, highlighting advanced automotive technologies and ergonomic design.
Close-up view of the Hyundai i30 2020 instrument cluster from the driver's seat perspective. The image captures a centered angle, revealing both analog and digital elements. The left portion features a tachometer reaching up to 8,000 RPM with a small temperature gauge. The right side includes a speedometer scaling up to 260 km/h and a fuel gauge. The central digital display shows information such as gear selection (current gear is Park), odometer reading (37579 km), digital speedometer (---- km/h), and trip computer details on fuel economy and remaining range. The dashboard is illuminated with red and white lights, enhancing visibility and preserving night vision. There is a 'MOTORVIZE.cz 2021' watermark present in the image.

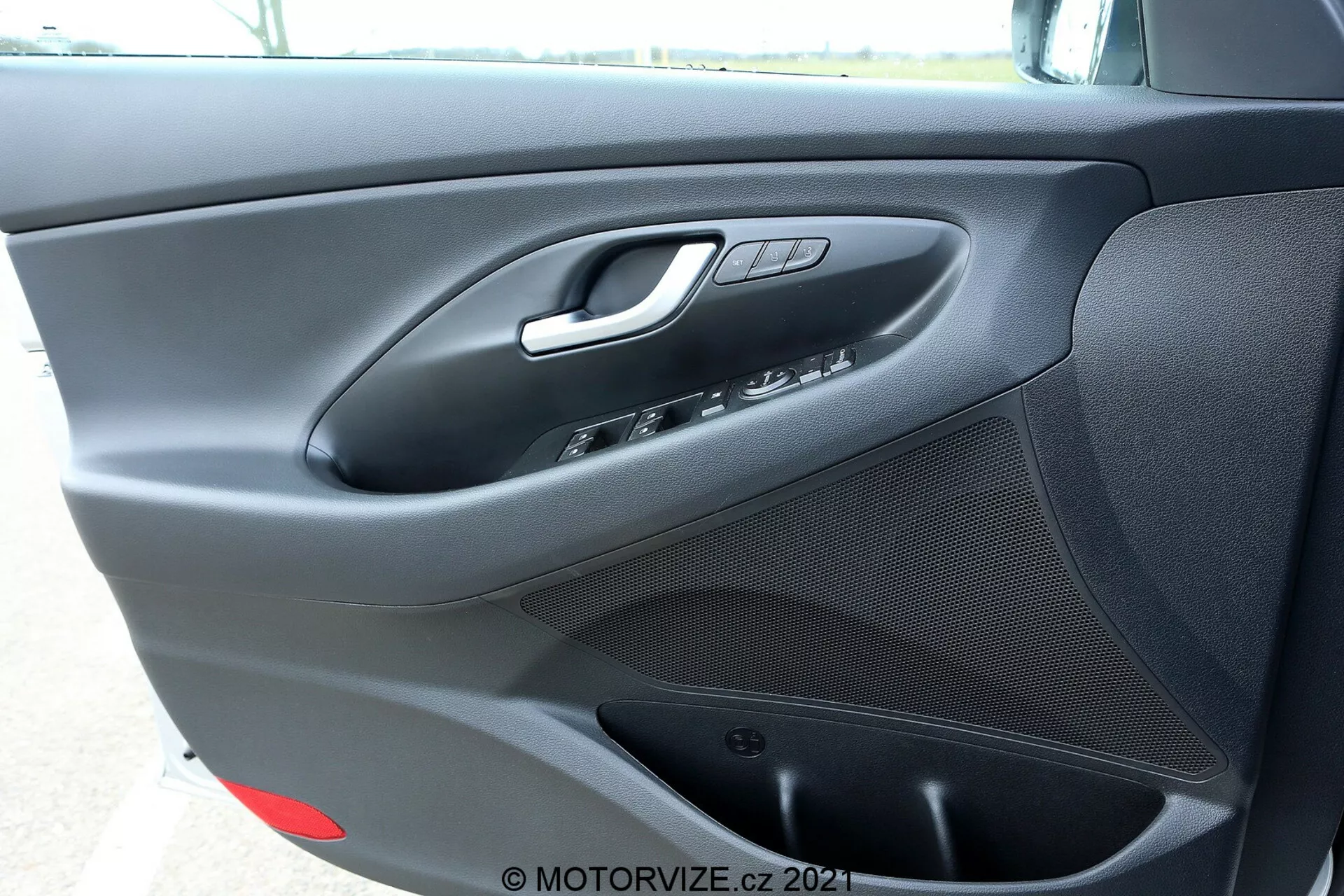

Interior door panel of the Hyundai i30 2020 (i30-kombi) viewed from an oblique angle, showcasing the silver chrome-finished door handle, ergonomic power window control buttons, electronic door lock button, storage pocket, and dual-textured door trim with soft upper panel and rigid plastic lower part in dark colors.
Interior of the 2020 Hyundai i30 kombi captured from a diagonal, slightly elevated angle focusing on the driver's side. The image showcases the leather-upholstered driver's seat with electronic adjustment controls, a multifunctional steering wheel with various control buttons, a central touchscreen infotainment system, and an automatic gear shift lever on the center console. Other features include cup holders, a storage compartment, automatic climate control, and controls for power windows and side mirrors on the driver's door panel. The car door is wide open to provide a comprehensive view of the dashboard, seat arrangement, and interior technology and comfort elements.
Image of the Hyundai i30 2020 front cabin interior from a driver's perspective. The focus is on the modern steering wheel with multiple control buttons and paddle shifters, leather wrap with visible stitching, and a centered logo emblem. Behind the steering wheel is a partly digital instrument cluster displaying speedometer, tachometer, fuel gauge, and other vehicle information with a colorful interface. To the right, the center console features a touchscreen infotainment system showing time, temperature, and home interface, with physical climate control buttons and dials below. The cabin boasts a contemporary design with curved surfaces, soft-touch materials, and a black color scheme with silver or chrome accents, enhancing the modern and sophisticated appearance.
Interior of a Hyundai i30 2020 Kombi showcasing the front dashboard area, taken from the rear seating. The shot captures a modern multifunction steering wheel with control buttons, a touch screen infotainment system with navigation and media options, dual-zone climate control, an automatic gear shift, and ergonomic front seats with headrests. The two-tone interior design contrasts darker and lighter tones, adding depth. The door panels reflect the design with possible speaker grilles and control buttons for power windows and mirrors. The overhead console features cabin lights and buttons for additional functions.
A detailed view of the front interior of a Hyundai i30 Kombi 2020, focusing on the driver's side. The perspective is from slightly above seat level, looking diagonally downward into the cabin as if entering from the rear door. The black leather driver's seat is prominently featured with visible stitching and electronic adjustment controls on the side. The seatbelt and the left third of the three-spoke steering wheel are visible. Parts of the center console, including the vertical automatic gear shift lever in the 'parked' position, as well as portions of the dashboard and an air vent, are partially visible. The cabin displays a monotone black color scheme, with varying textures on the seats, door panels, and dashboard. The photo is well-lit with natural daylight, suggesting an overcast or shaded environment.

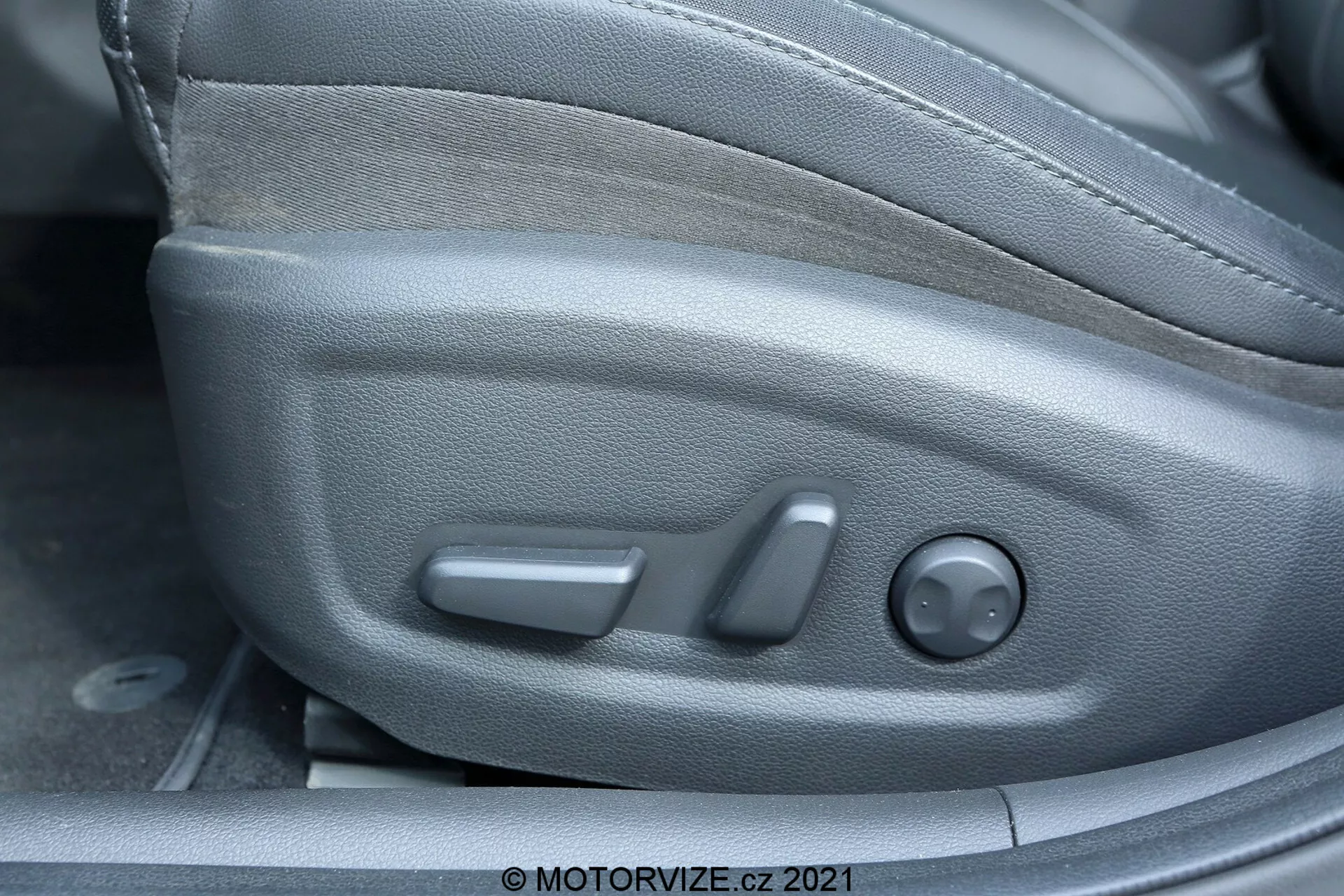

Close-up view of the Hyundai i30 2020 interior, focusing on driver's seat controls from a side angle. Visible features include seat adjustment controls: a front bar-grip for sliding, a middle lever for reclining, and a rear round control for height adjustment. The plastic housing integrates with the seat's side styling, and the cloth upholstery provides durability and comfort.
Interior view of Hyundai i30 Kombi 2020 from the driver's perspective showcasing a modern cockpit with a three-spoke steering wheel, digital instrument cluster, and infotainment touchscreen. The steering wheel features multiple control buttons for audio, communication, and cruise control with a two-tone design. The illuminated instrument cluster displays a speedometer, tachometer, and central information display. Central dashboard includes air vents and climate control. Partial view of gear shift lever hints at manual transmission. Car appears to be stationary with no motion blur visible through windows.
Close-up of the driver's side interior door panel of the 2020 Hyundai i30 Kombi showing the silver door handle, window and mirror controls, door lock button, integrated speaker at the bottom, and a textured, matte-black finish with a small storage compartment likely at the bottom.
Close-up image of a car's air conditioning vent, showcasing its rectangular, chrome-accented design with an adjustable louver for airflow. The vent is set against a background of subtly textured hard plastic dashboard material, typical of modern vehicle interiors. Partially visible adjustment control suggests manual air conditioning rather than automatic climate control. The photograph highlights the meticulous design and the sophistication added by the chrome trim.
Interior view of the 2020 Hyundai i30 Kombi from the driver's seat, showcasing a modern dashboard with a Hyundai logo-adorned steering wheel featuring control buttons for functions like cruise control, audio, and hands-free calling. A digital instrument cluster displays speed and other vehicle information. The center dashboard highlights a large infotainment touchscreen for navigation and media, alongside physical air conditioning controls, suggesting a dual-zone climate control system. The center console includes a gear shifter with leather boot and a USB port, emphasizing advanced connectivity and technology features.
Straight-on view of the central console of a Hyundai i30 Kombi 2020 from the front seats, showcasing the digital infotainment system displaying time (12:41), temperature (8°C), and Bluetooth icon. Below, find the hazard warning button, dual-zone climate control with separate temperature settings (driver 22°C, passenger 20°C), vehicle start-stop button, automatic gear shift lever with manual mode, potential cup holders/storage, connectivity port with visible cable, and mixed material design of the dashboard and console. Copyright watermark '@ MOTORVIZE.cz 2021' at the bottom.
Close-up view of a Hyundai i30 Kombi 2020 driver's side door panel, highlighting the intricate design and functionality including the silver ergonomic door handle, four power window control buttons with auto-down indication, an electronic joystick for side mirror adjustments, lock and unlock buttons, and memory seat function buttons. The textured plastic panel adds to the aesthetic and grip, indicating a feature-rich interior.
Hyundai i30 2020 central console displaying a sleek modern touchscreen infotainment system with a radio interface, dual-zone climate control, and metallic-finish air vents.
Detailed close-up of the Hyundai i30 2020 automatic transmission gear shifter, taken from a 45-degree angle. The gear shifter is surrounded by a glossy black trim with a leather cover and visible stitching. The PRND layout is clearly visible alongside manual or sport mode indications. Buttons on the left side control driving modes, while those on the right manage vehicle stability or traction control. An electronically operated parking brake is also noticeable. The well-lit image highlights the premium quality and meticulous craftsmanship of the center console.
The image displays a modern Hyundai i30 Kombi 2020 sedan with a prominent Hyundai logo on the grille. The shot is taken from a low angle, emphasizing the front three-quarter view of the car's front end and partly its side profile. The front fascia features a large dark mesh grille, sleek dynamic LED headlamps, and lower edge fog lights or daytime running lights. The front bumper includes a central air intake and decorative side intakes with sportiness. The hood has expressive contour lines. The car appears in a metallic or graphite gray color with a wet surface, possibly indicating rain. Windshield wipers are visible in the resting position, and the slightly bulky base near the rearview mirror might suggest advanced sensors or cameras. The car is on a wet road with an open, out-of-focus background.
The image shows the rear view of a 2020 Hyundai i30 Kombi. The car is parked and the shot is taken from a direct, straight-on angle approximately at the height of the vehicle's trunk. Centered on the vehicle, the image provides a clear and symmetrical view of the car's rear features, including the Hyundai logo, model name 'i30', and 'CRDi' trim level indicating a Common Rail Direct Injection diesel engine. The European-style license plate, horizontal tail lights, rear sensors, dual exhaust tips, rear windshield wiper, shark fin antenna, and potentially a rear camera near the license plate area are all visible details that characterize this modern vehicle.

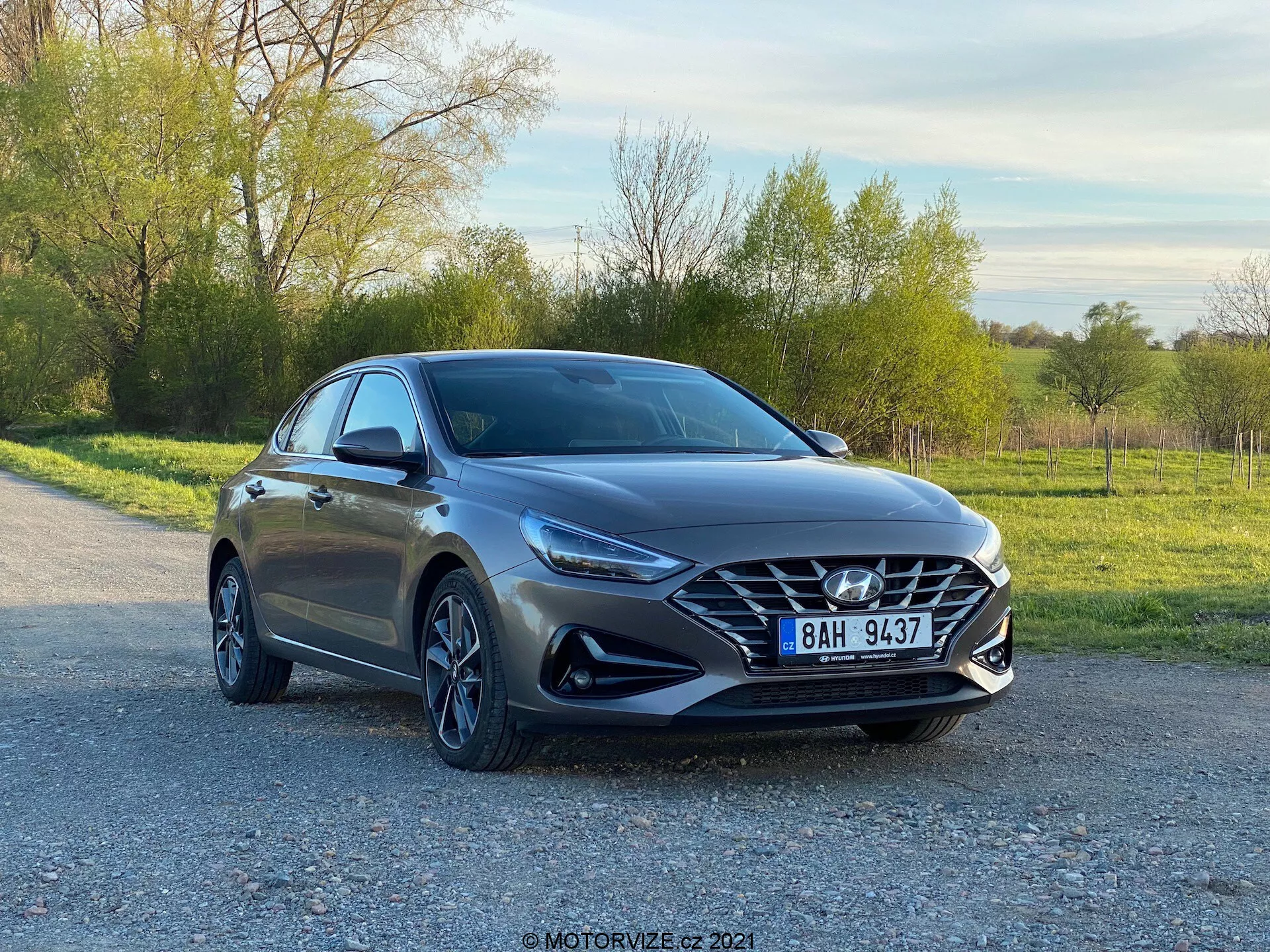

Modern Hyundai i30 2020 viewed from a three-quarter front angle. Focus on driver's side showing sleek design details like aggressive headlights with LED daytime running lights, prominent grille, multi-spoke alloy wheels, and contoured side profile. Positioned off-center in a paved area with grassy background, depicting a dynamic, modern hatchback with advanced automotive technologies.
Rear three-quarter view of Hyundai i30 Kombi 2020 from a low angle showing detailed design features including taillights, rear bumper, hatchback door, rear parking camera, alloy wheels, and reflectors on a wet surface with recent rain, highlighting vehicle's advanced driver assistance systems and aesthetic appeal.
Image of a grey Hyundai i30 2020 (i30-kombi) from a three-quarter rear perspective. The car is parked outdoors in a suburban or park setting, showcasing the rear and passenger side design features. Visible elements include a hatchback rear with a spoiler, wrapped-around rear lights, 'i30' badge, 'N Line' badge, dual exhaust pipes, and multi-spoke alloy wheels. The surroundings suggest a grassy area with trees in the background.
Close-up three-quarter rear view of a silver Hyundai i30 2020, emphasizing its left taillight, rear bumper, quad exhaust, 't30' badging and metallic paint finish, highlighting the vehicle's design and performance details.
Close-up, angled view focusing on the front left side of a gray Hyundai i30 2020 N Line. The image highlights the sporty design, including a subtle hood contour, sharp LED headlights, honeycomb grille with a prominent red 'N Line' badge, and an intricate bumper with advanced sensors hinting at modern driving assistance systems.
Close-up image of the rear section of a Hyundai i30 2020 (i30-kombi) focusing on the modern LED taillight assembly with bright orange-yellow illumination indicating the turn signal or hazard lights. The photograph highlights the i30 model badge and water droplets on the vehicle's exterior surface, showcasing advanced automotive lighting technology and detailed vehicle design.
Close-up side view from a low angle of the front driver's side wheel of a Hyundai i30 2020 (i30-kombi). The image highlights the multi-spoke alloy wheel in dark color, standard road tire tread, metallic gray vehicle body with 'N Line' badge, and brand emblem.

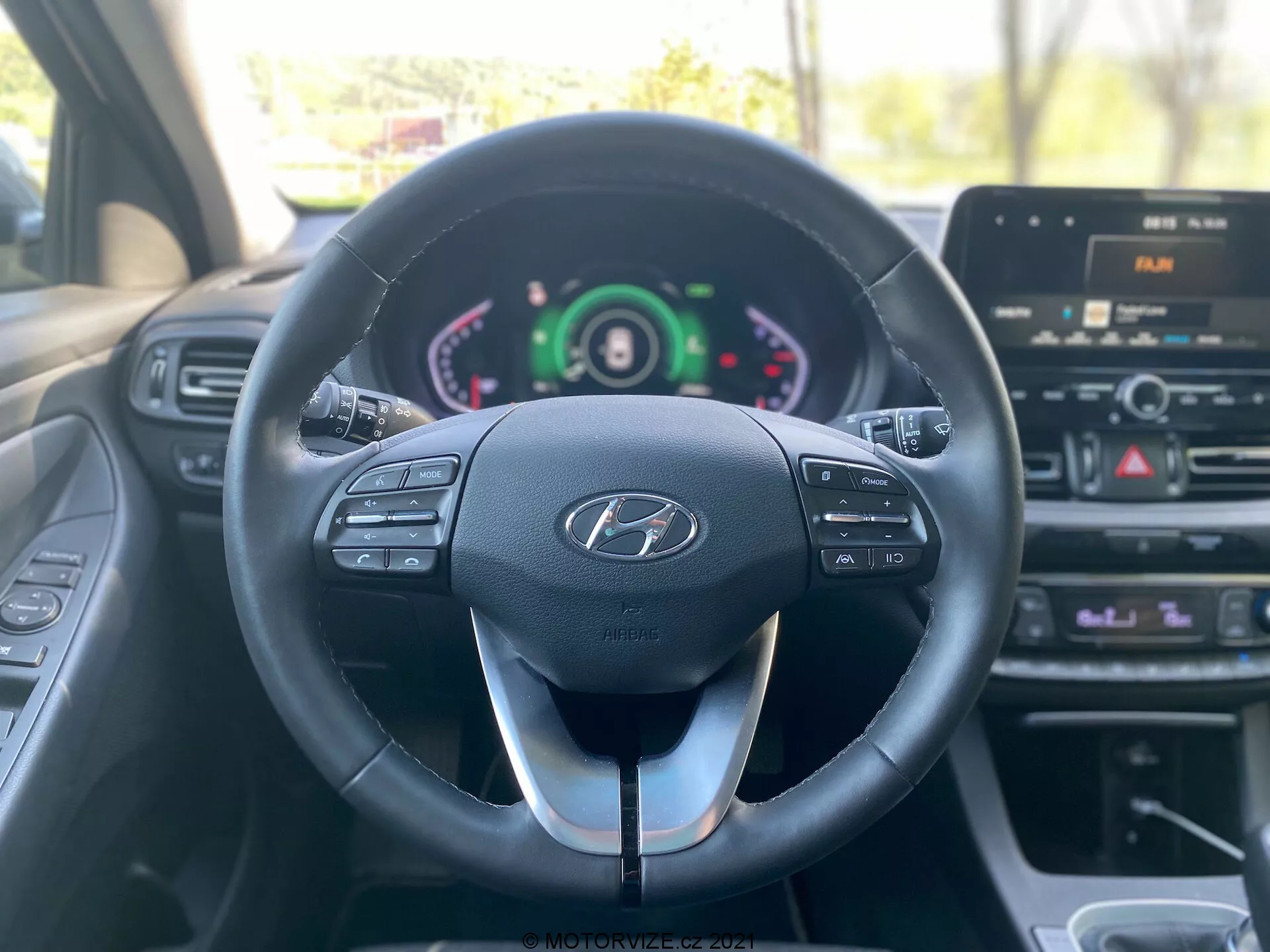

Driver's perspective view of the Hyundai i30 2020 steering wheel and dashboard showcasing a three-spoke leather-wrapped design with multifunction controls, a prominent Hyundai logo, and an instrument cluster featuring both analog and digital displays. The centrally located infotainment touch screen and climate control buttons highlight the car's advanced in-car technology and driver-interactive elements.
Close-up interior view of the Hyundai i30 2020 (i30-kombi) steering wheel from below, highlighting the lower section with a central 'N' emblem emblematic of a performance variant, red-stitched leather trim, metallic spokes, and hints of perforated sport pedals in the blurred background.
Interior view from the driver's perspective inside a Hyundai i30 2020 (i30-kombi) showcasing the steering wheel with Hyundai logo, mounted controls, and digital instrument cluster. Visible are the touchscreen infotainment system, automatic transmission gear selector, and climate control dials, indicating advanced technology and modern design.
Interior view of a Hyundai i30 2020 (i30-kombi) from the driver's seat, focusing on the steering wheel and dashboard. The modern steering wheel features multiple control buttons for volume, voice commands, and hands-free calling. The gauge cluster combines digital and analog elements, indicating advanced driver assistance systems. A central infotainment touchscreen is visible, suggesting navigation and media playback. The center console shows climate control buttons and a gear shift lever for automatic transmission. Power window and side mirror controls are on the driver's door.
Close-up of the left-hand side of a 2020 Hyundai i30 Kombi steering wheel featuring leather-like texture with red stitching, modern multifunctional controls including a MODE button, navigation pad, volume control, and partial view of paddle shifter. Background shows blurred instrument panel or gauges indicating driver's perspective.

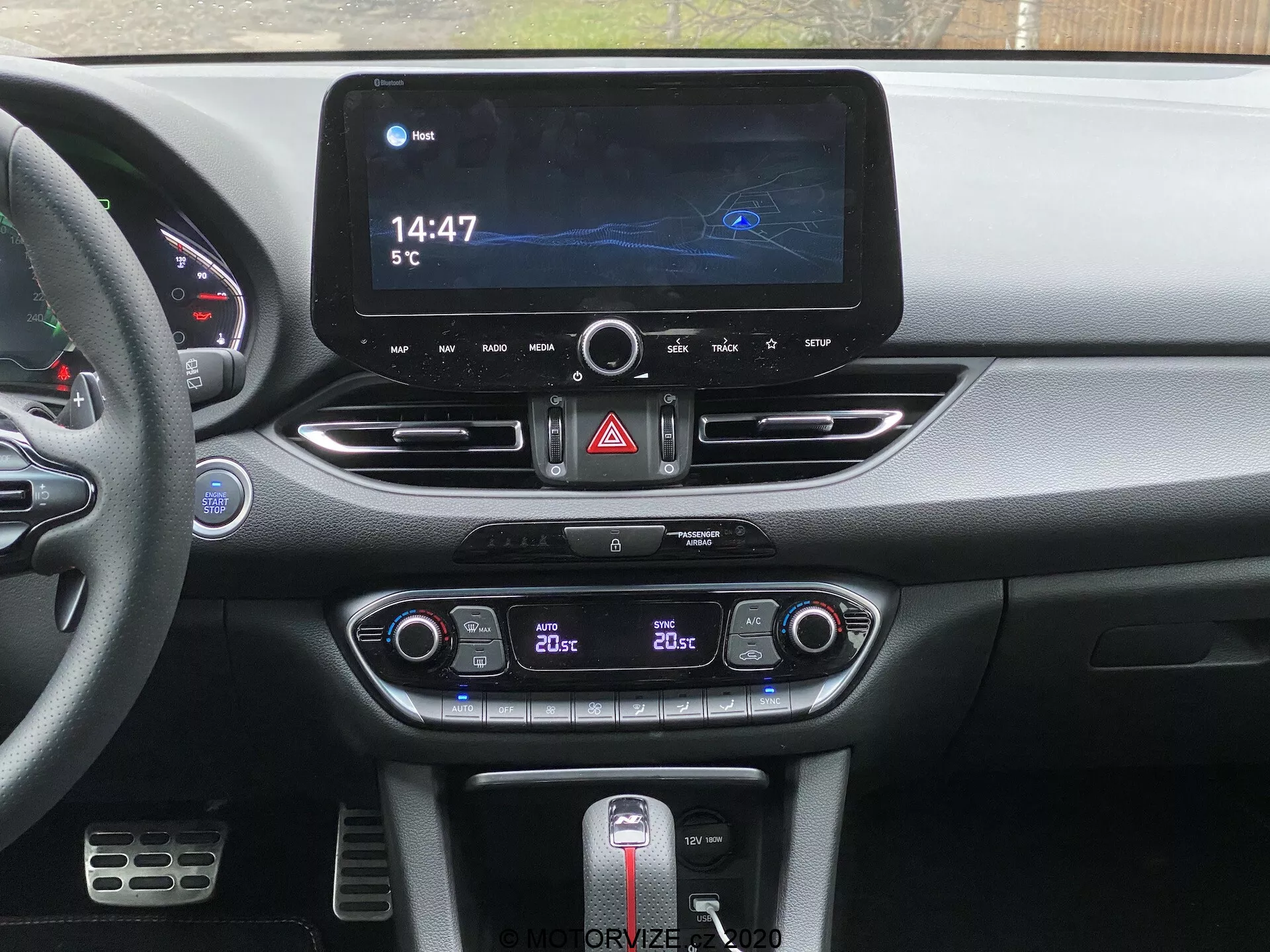

Driver's perspective of the Hyundai i30 Kombi 2020 central console. At the top, a modern infotainment display shows a navigation map, digital clock reading '14:47', and ambient temperature '5°C'. Below are hazard light button and air vents. Further down, dual-zone climate control panel displays '20°C' for both sides. The automatic transmission gear shift lever, featuring a leather boot with a red stripe, indicates a sporty trim. A white charging cable is plugged in near the gear shift, surrounded by controls likely for driving modes or traction control. Materials showcase smooth and textured surfaces with contrasting stitches, emphasizing a contemporary, sporty interior design.
Interior view of the 2020 Hyundai i30 Kombi from the front seat, highlighting the dashboard and center console areas. The focus is on the large, landscape-oriented infotainment display screen displaying navigation, current time (14:47), and exterior temperature (5°C). The image also shows the hazard warning light button and dual air vents with chrome accents below the screen. The dashboard features dual-zone climate controls with temperature settings at 20°C and an automatic gear shift lever with the 'P' for Park visible. The sophisticated interior design includes soft-touch materials and metallic accents, showcasing the car's technology and upscale aesthetics.
Close-up of the center console area of a Hyundai i30 2020 kombi, featuring the automatic transmission gear shifter. The shifter has a leather-wrapped knob with metallic accents and red contrast stitching. A small storage space with a white charging cable is visible in front of the shifter, indicating the presence of USB ports or a 12V power outlet. The surrounding console area is made of textured plastic finishes for added grip. Controls to the left of the shifter, likely for driving modes or traction control, are slightly out of focus.
This detailed image showcases the interior front cabin of a Hyundai i30 2020 (i30-kombi) from a slightly elevated angle outside the front passenger door. The open passenger door reveals the side of the premium, sporty seats upholstered in suede or alcantara and leather with contrasting stitching. Integrated headrests bearing an 'N' logo hint at the car's trim level. The driver's seat features electrical control buttons for power-adjustable settings. The center console includes a gear shift lever, parking brake, cup holders, and various controls, highlighting the car's modern technological and comfort features.

Similar cars

KIA cee´d
KIA cee´d
kia Logo 2021 • CD
Body type
Hatchback
Length
4315 mm
Width
1800 mm
Height
1447 mm
Wheelbase
2650 mm
Boot capacity
395 l
Weight
1298 kg
Doors
5
Compare
Opel Astra
Opel Astra
opel Logo 2022 • F
Body type
Hatchback
Length
4374 mm
Width
1860 mm
Height
1441 mm
Wheelbase
2675 mm
Boot capacity
422 l
Weight
1332 kg
Doors
5
Compare
SEAT Leon
SEAT Leon
seat Logo 2020 • KL
Body type
Hatchback
Length
4368 mm
Width
1799 mm
Height
1456 mm
Wheelbase
2686 mm
Boot capacity
380 l
Weight
1318 kg
Doors
5
Compare
Ford Focus
Ford Focus
ford Logo 2022 • DEH
Body type
Hatchback
Length
4382 mm
Width
1825 mm
Height
1452 mm
Wheelbase
2700 mm
Boot capacity
392 l
Weight
1330 kg
Doors
5
Compare
Peugeot 308
Peugeot 308
peugeot Logo 2022 • F
Body type
Hatchback
Length
4367 mm
Width
1852 mm
Height
1441 mm
Wheelbase
2675 mm
Boot capacity
412 l
Weight
1329 kg
Doors
5
Compare
Dacia Sandero
Dacia Sandero
dacia Logo 2020 • DJF
Body type
Hatchback
Length
4088 mm
Width
1848 mm
Height
1499 mm
Wheelbase
2604 mm
Boot capacity
328 l
Weight
1089 kg
Doors
5
Compare
SEAT Ibiza
SEAT Ibiza
seat Logo 2021 • KJ
Body type
Hatchback
Length
4059 mm
Width
1780 mm
Height
1447 mm
Wheelbase
2564 mm
Boot capacity
355 l
Weight
1111 kg
Doors
5
Compare
Toyota Yaris
Toyota Yaris
toyota Logo 2020 • XP21
Body type
Hatchback
Length
3940 mm
Width
1745 mm
Height
1500 mm
Wheelbase
2560 mm
Boot capacity
286 l
Weight
1065 kg
Doors
5
Compare
Mazda 3
Mazda 3
mazda Logo 2019 • BP
Body type
Hatchback
Length
4460 mm
Width
1795 mm
Height
1435 mm
Wheelbase
2725 mm
Boot capacity
351 l
Weight
1349 kg
Doors
5
Compare
Skoda Fabia
Skoda Fabia
skoda Logo 2021 • PJ
Body type
Hatchback
Length
4108 mm
Width
1780 mm
Height
1459 mm
Wheelbase
2564 mm
Boot capacity
380 l
Weight
1116 kg
Doors
5
Compare
Fiat Panda
Fiat Panda
fiat Logo 2020 • 312
Body type
Hatchback
Length
3686 mm
Width
1662 mm
Height
1635 mm
Wheelbase
2300 mm
Boot capacity
225 l
Weight
1055 kg
Doors
5
Compare
Mitsubishi Space Star
Mitsubishi Space Star
mitsubishi Logo 2020 • A00
Body type
Hatchback
Length
3845 mm
Width
1665 mm
Height
1505 mm
Wheelbase
2450 mm
Boot capacity
235 l
Weight
946 kg
Doors
5
Compare
DS Automobiles DS 4
DS Automobiles DS 4
2021 • F
Body type
Hatchback
Length
4400 mm
Width
1830 mm
Height
1470 mm
Wheelbase
2675 mm
Boot capacity
430 l
Weight
1252 kg
Doors
5
Compare
VW Polo
VW Polo
vw Logo 2021 • AW
Body type
Hatchback
Length
4074 mm
Width
1751 mm
Height
1451 mm
Wheelbase
2552 mm
Boot capacity
351 l
Weight
1204 kg
Doors
5
Compare
Compare against all competitors

Compare with ...

Find the Perfect Match
Compare your car with other models
Comparing with:
Hyundai i30 (2020)

TOPlist echo ''; // Add smooth scrolling JS for the generations and variants containers echo '';
