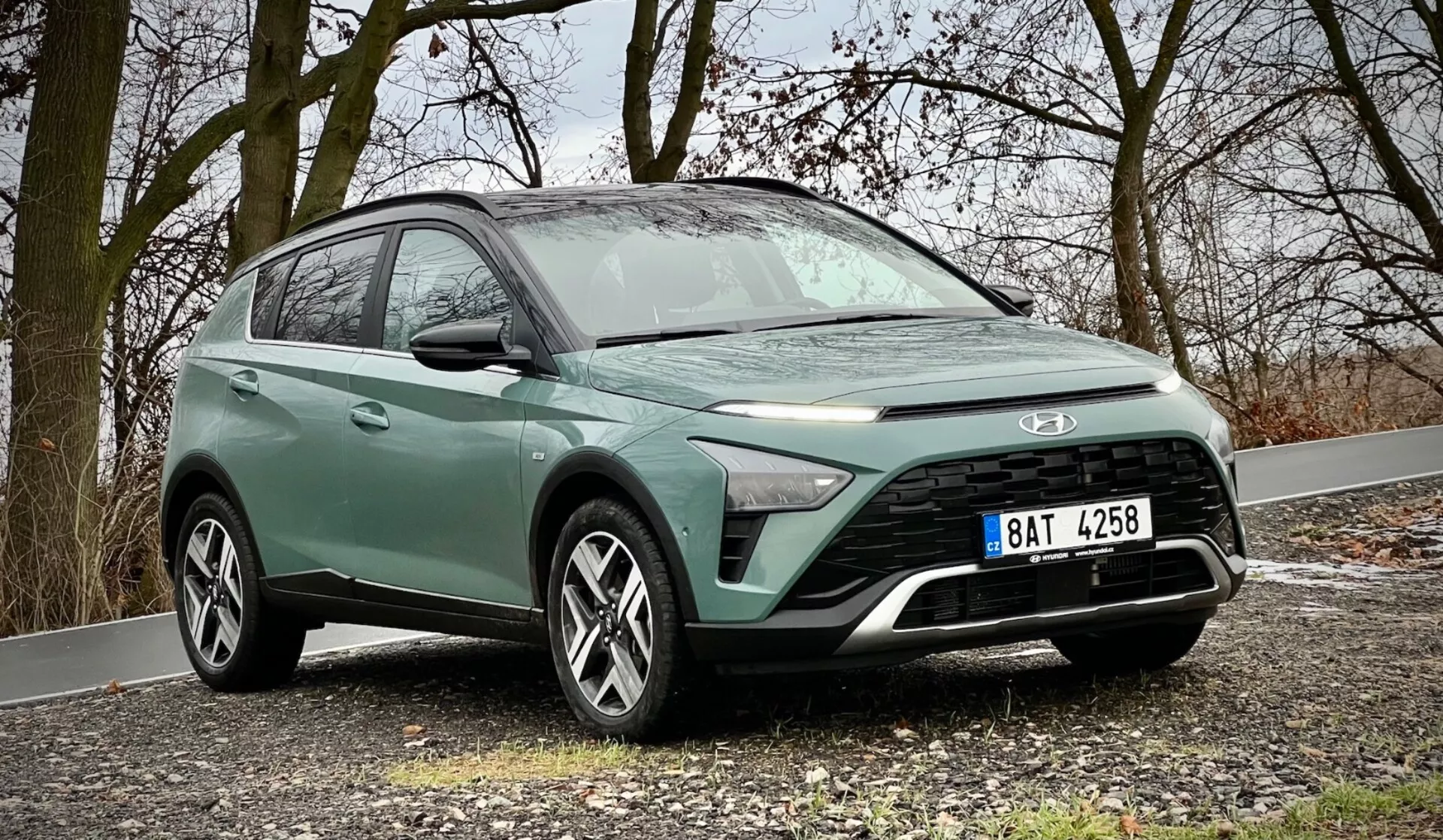

Hyundai Bayon (2021 - 2024)

Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Table of contents:

Model specs

Model info

Model name
Hyundai Bayon
Generation
BC3
Production years
2021 - 2024
Doors
5
5

Dimensions

Length
4180 mm
4,140.0
Avg
4,395.0
Higher is better
Wheelbase
2580 mm
2,554.0
Avg
2,650.0
Higher is better
Width
1775 mm
1,757.0
Avg
1,841.0
Higher is better
Height
1490 mm
1,483.0
Avg
1,613.0
Higher is better
Ground clearance
165 mm
165.0
Avg
178.0
Higher is better
Turning circle
10 m
10.0
Avg
11.0
Lower is better
Annotated Image

Boot/interior

Boot space
411 l
352.0
Avg
510.0
Higher is better
Boot space (rear seats folded, bottom to roof)
1205 l
1,115.0
Avg
1,604.0
Higher is better
Seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
3 - 4
3.0
Avg
4.0
Higher is better
Max. speed
165 - 185 km/h
165.0
Avg
193.0
Higher is better
Torque
118 - 200 Nm
118.0
Avg
280.0
Higher is better
Power
62 - 88 kW
62.0
Avg
120.0
Higher is better
Cubic capacity
998 - 1197 ccm
998.0
Avg
1,497.0
Higher is better
Acceleration 0-100km/h
10 - 13 s
10.0
Avg
14.0
Higher is better

Consumption/ecology

Tank size
40 l
40.0
Avg
50.0
Higher is better
Combined consumption (WLTP)
5 l/100km
5.0
Avg
7.0
Higher is better
Suburban consumption (WLTP)
5 l/100km
5.0
Avg
6.0
Higher is better
Consumption on highways (WLTP)
5 - 6 l/100km
5.0
Avg
7.0
Higher is better
CO2 emissions (WLTP)
119 - 129 g/km
119.0
Avg
162.0
Higher is better
Empty weight (EU)
1045 - 1145 kg
1,045.0
Avg
1,375.0
Higher is better

Towing

Max. towbar load
75 kg
55.0
Avg
88.0
Higher is better
Max. roof load
70 kg
70.0
Avg
80.0
Higher is better
Braked trailer
910 - 1110 kg
910.0
Avg
1,300.0
Higher is better
Trailer (no brakes)
450 kg
450.0
Avg
670.0
Higher is better

Engines (Bayon)

Gasoline
MAN FWD
1.2 MPI Pure
Engine & Power
Power
62 kW / 84 HP
Capacity
1.2L (1,197 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
13 s
Max. speed
165 km/h
Torque & RPM
Torque
118 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
129 g/km
Maximum torque at RPM
4200 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Injection
Gasoline
MAN FWD
1.0 T-GDI Select
Engine & Power
Power
74 kW / 101 HP
Capacity
1.0L (998 ccm)
Cylinders
3
Performance
Acceleration 0-100km/h
10 s
Max. speed
183 km/h
Torque & RPM
Torque
172 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
123 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
4500 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.0 T-GDI 48-Volt-Mildhybrid Select iMT
Engine & Power
Power
74 kW / 101 HP
Capacity
1.0L (998 ccm)
Cylinders
3
Performance
Acceleration 0-100km/h
10 s
Max. speed
183 km/h
Torque & RPM
Torque
172 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
125 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
4500 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.0 T-GDI 48-Volt-Mildhybrid Prime iMT
Engine & Power
Power
88 kW / 120 HP
Capacity
1.0L (998 ccm)
Cylinders
3
Performance
Acceleration 0-100km/h
10 s
Max. speed
185 km/h
Torque & RPM
Torque
172 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
125 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Direct Injection
Compare all engines

Hyundai Bayon generations

Bayon Bayon 1. Generation
2021 - 2024
Length4180 mm
Height1490 mm
Wheelbase2580 mm
Length4180 mm
Bayon Bayon 1. Generation (1. Facelift)
2024 - Now
Length4180 mm
Height1500 mm
Wheelbase2580 mm
Length4180 mm
Compare all generations

1967
1967
Hyundai founded
2021
2021
Bayon 1. Generation was introduced.
2024
2024
Bayon 1. Generation (1. Facelift) was introduced and replaced Bayon 1. Generation.
