2014
Compare
Engines

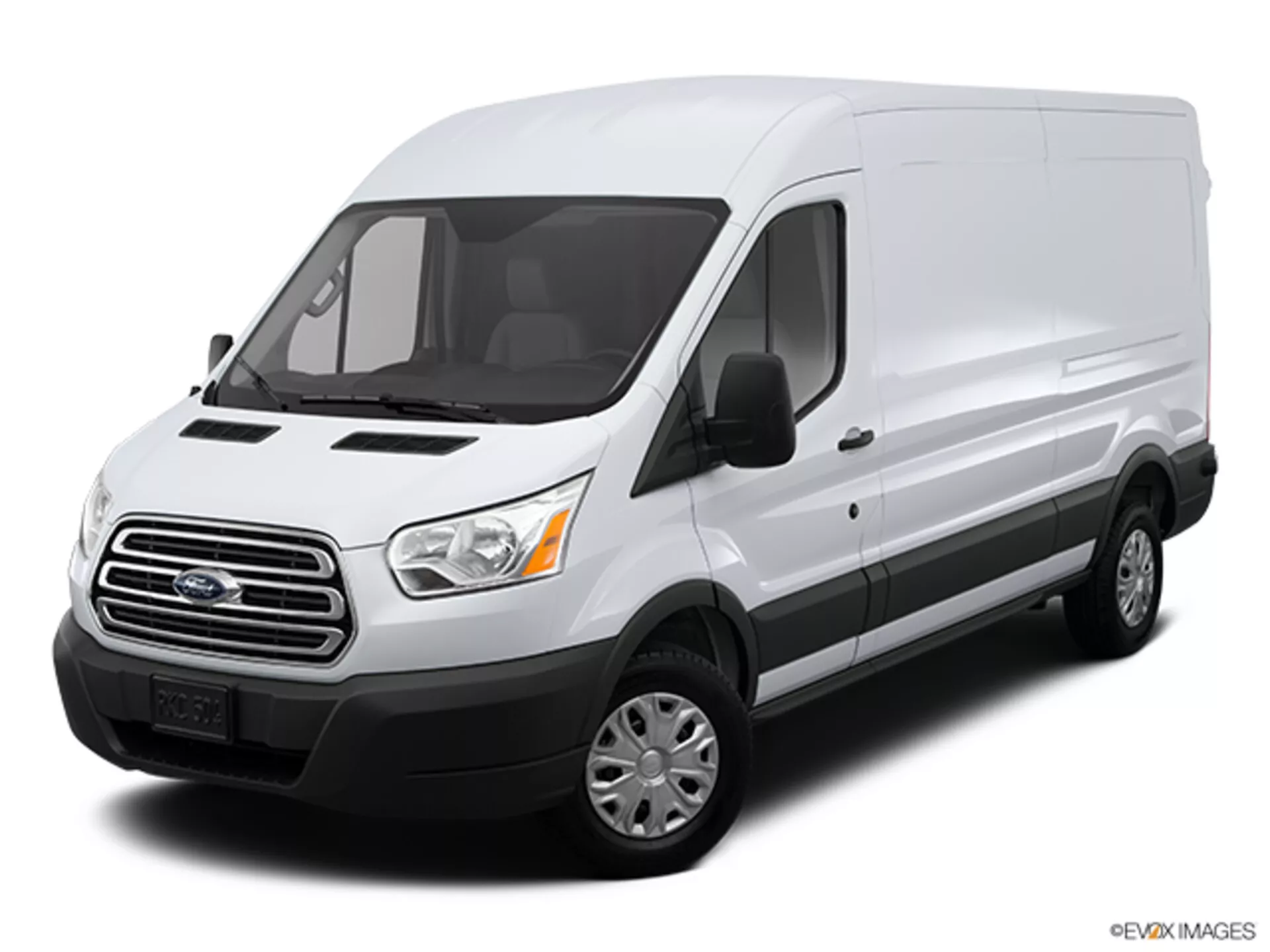

Ford Transit (2014 - 2019)

Thumbnail 1
Table of contents:

Variants

Van
Transit -VAN
BodyVan
Length5531 mm
Height2426 mm
Doors4
Bus
Transit Kombi
BodyBus
Length5531 mm
Height2550 mm
Doors4

Model specs

Model info

Model name
Ford Transit
Generation
F*D
Production years
2014 - 2019
Doors
4
4

Dimensions

Length
5531 mm
4,403.0
Avg
5,685.0
Higher is better
Wheelbase
3300 mm
2,785.0
Avg
3,585.0
Higher is better
Width
2059 mm
1,848.0
Avg
2,080.0
Higher is better
Height
2550 mm
1,796.0
Avg
2,550.0
Higher is better
Turning circle
11 m
10.0
Avg
12.0
Lower is better

Boot/interior

Seats
9
9
Doors
4
4

Engines/drivetrain

Cylinders
4
3.0
Avg
4.0
Higher is better
Torque
310 - 405 Nm
205.0
Avg
360.0
Higher is better
Power
74 - 125 kW
74.0
Avg
106.0
Higher is better
Cubic capacity
1995 - 2198 ccm
1,199.0
Avg
2,299.0
Higher is better

Consumption/ecology

Tank size
72 - 80 l
55.0
Avg
90.0
Higher is better
Combined consumption (NEDC)
6 - 9 l/100km
  • ford LogoFord Transit (This) 6 - 9 l/100km
    6.0
City consumption (NEDC)
7 - 11 l/100km
  • ford LogoFord Transit (This) 7 - 11 l/100km
    7.0
Empty weight (EU)
2097 - 2602 kg
1,284.0
Avg
2,100.0
Higher is better

Towing

Braked trailer
2000 - 3500 kg
1,000.0
Avg
2,500.0
Higher is better
Trailer (no brakes)
750 kg
670.0
Avg
750.0
Higher is better

Engines (Transit)

Diesel
MAN FWD
Kombi 310 L2 2.2 TDCi FWD
Engine & Power
Power
74 kW / 101 HP
Capacity
2.2L (2,198 ccm)
Cylinders
4
Torque & RPM
Torque
310 Nm
Consumption
Combined consumption (NEDC)
6 l/100km
Maximum torque at RPM
1300 RPM
City consumption (NEDC)
7 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
Kombi 310 L2 2.0 TDCi FWD
Engine & Power
Power
77 kW / 105 HP
Capacity
2.0L (1,995 ccm)
Cylinders
4
Torque & RPM
Torque
360 Nm
Consumption
Combined consumption (NEDC)
6 l/100km
Maximum torque at RPM
1375 RPM
City consumption (NEDC)
7 l/100km
Technical Details
Maximum output at RPM
3000 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
Kombi 310 L2 2.2 TDCi FWD
Engine & Power
Power
92 kW / 125 HP
Capacity
2.2L (2,198 ccm)
Cylinders
4
Torque & RPM
Torque
330 Nm
Consumption
Combined consumption (NEDC)
6 l/100km
Maximum torque at RPM
1450 RPM
City consumption (NEDC)
7 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
Kombi 310 L2 2.0 TDCi FWD
Engine & Power
Power
96 kW / 131 HP
Capacity
2.0L (1,995 ccm)
Cylinders
4
Torque & RPM
Torque
385 Nm
Consumption
Combined consumption (NEDC)
6 l/100km
Maximum torque at RPM
1500 RPM
City consumption (NEDC)
7 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
Kombi 310 L2 2.0 TDCi Trend FWD Automatik
Engine & Power
Power
96 kW / 131 HP
Capacity
2.0L (1,995 ccm)
Cylinders
4
Torque & RPM
Torque
385 Nm
Consumption
Combined consumption (NEDC)
7 l/100km
Maximum torque at RPM
1500 RPM
City consumption (NEDC)
8 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
Kombi 310 L2 2.0 TDCi Trend FWD
Engine & Power
Power
125 kW / 170 HP
Capacity
2.0L (1,995 ccm)
Cylinders
4
Torque & RPM
Torque
405 Nm
Consumption
Combined consumption (NEDC)
6 l/100km
Maximum torque at RPM
1750 RPM
City consumption (NEDC)
7 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
Kombi 310 L2 2.0 TDCi Trend FWD Automatik
Engine & Power
Power
125 kW / 170 HP
Capacity
2.0L (1,995 ccm)
Cylinders
4
Torque & RPM
Torque
405 Nm
Consumption
Combined consumption (NEDC)
7 l/100km
Maximum torque at RPM
1750 RPM
City consumption (NEDC)
8 l/100km
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Compare all engines

Ford Transit generations

Body type
Transit Transit 4.Generation
1994 - 2004
Length4616 mm
Height1968 mm
Wheelbase2835 mm
Length4616 mm
Body type
Transit Transit 5.Generation
1998 - 2006
Length4834 mm
Height1987 mm
Wheelbase2933 mm
Length4834 mm (+218 mm)
Body type
Transit Transit 6. Generation
2006 - 2014
Length4863 mm
Height1989 mm
Wheelbase2933 mm
Length4863 mm (+29 mm)
Transit Transit 7.Generation
2014 - 2019
Length5531 mm
Height2550 mm
Wheelbase3300 mm
Length5531 mm (+668 mm)
Transit Transit 7. Generation (1. Facelift)
2019 - Now
Length5981 mm
Height2530 mm
Wheelbase3750 mm
Length5981 mm (+450 mm)
Compare all generations

1903
1903
Ford founded
1994
1994
Transit 4.Generation was introduced.
1998
1998
Transit 5.Generation was introduced.
2004
2004
Transit 5.Generation was introduced.
2006
2006
Transit 6. Generation was introduced and replaced Transit 5.Generation.
2014
2014
Transit 7.Generation was introduced and replaced Transit 6. Generation.
2019
2019
Transit 7. Generation (1. Facelift) was introduced and replaced Transit 7.Generation.
