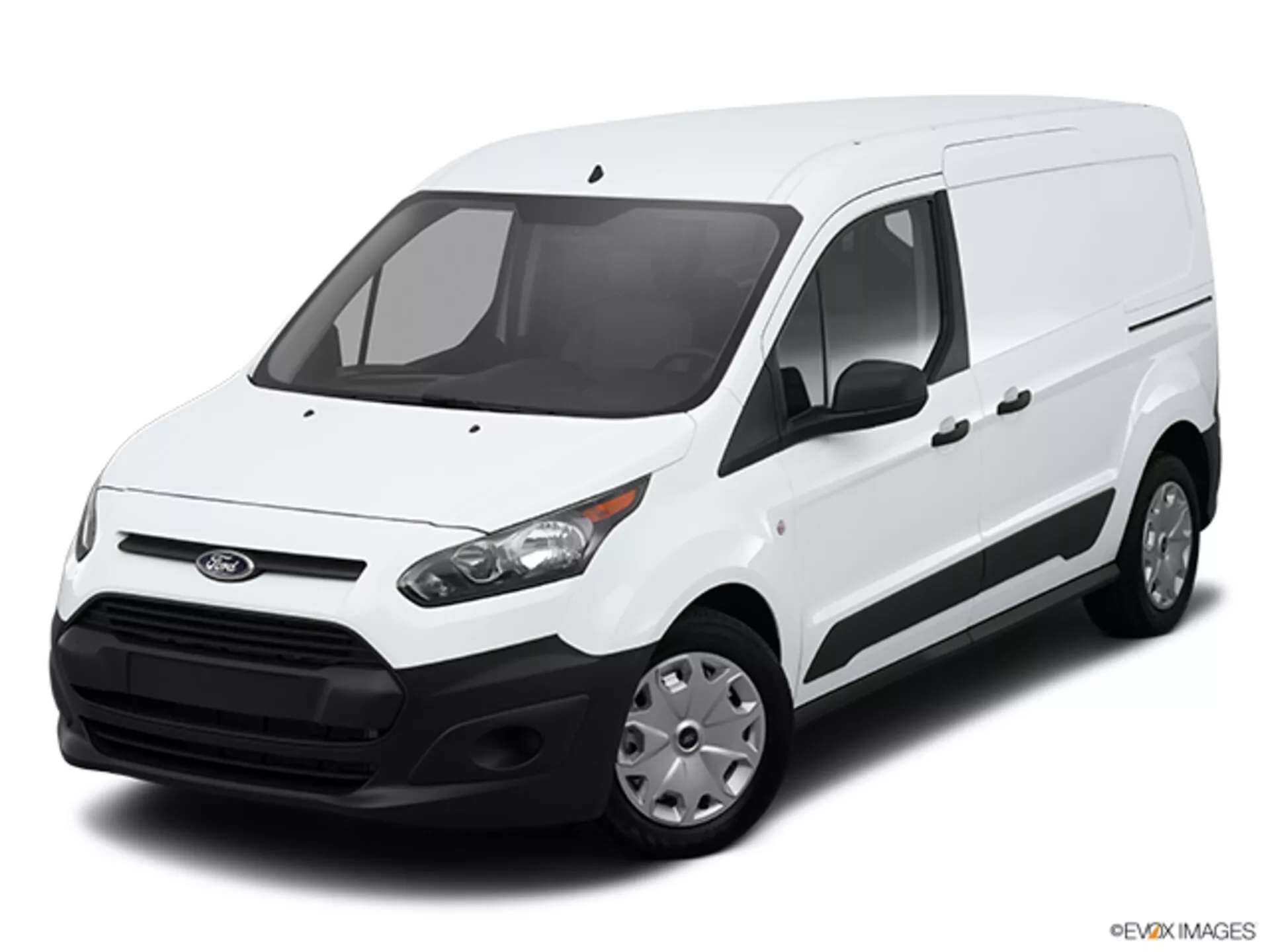

Ford Transit Connect (2013 - 2018)

Thumbnail 1
Table of contents:

Model specs

Model info

Model name
Ford Transit Connect
Generation
P*2
Production years
2013 - 2018
Doors
5
5

Dimensions

Length
4418 mm
2,759.0
Avg
4,593.0
Higher is better
Wheelbase
2662 mm
1,795.0
Avg
2,755.0
Higher is better
Width
1835 mm
1,500.0
Avg
1,891.0
Higher is better
Height
1854 mm
1,470.0
Avg
1,856.0
Higher is better
Ground clearance
144 mm
144.0
Avg
190.0
Higher is better
Turning circle
11 m
8.0
Avg
11.0
Lower is better

Boot/interior

Boot space
1029 l
550.0
Avg
1,213.0
Higher is better
Boot space (rear seats folded, bottom to roof)
2410 l
700.0
Avg
3,100.0
Higher is better
Seats
2
2
Max. seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
4
2.0
Avg
4.0
Higher is better
Max. speed
157 - 171 km/h
45.0
Avg
195.0
Higher is better
Torque
230 - 270 Nm
21.0
Avg
300.0
Higher is better
Power
70 - 88 kW
6.0
Avg
96.0
Higher is better
Cubic capacity
1499 - 1560 ccm
479.0
Avg
1,968.0
Higher is better
Acceleration 0-100km/h
12 - 15 s
11.0
Avg
16.0
Higher is better

Consumption/ecology

Tank size
60 l
16.0
Avg
60.0
Higher is better
Combined consumption (NEDC)
4 - 5 l/100km
3.0
Avg
5.0
Higher is better
City consumption (NEDC)
4 - 5 l/100km
  • fiat LogoFiat Tipo 5 l/100km
    5.0
  • ford LogoFord Transit Connect (This) 4 - 5 l/100km
4.0
Avg
5.0
Higher is better
Empty weight (EU)
1519 - 1626 kg
425.0
Avg
1,651.0
Higher is better

Towing

Max. roof load
75 kg
70.0
Avg
100.0
Higher is better
Braked trailer
1150 - 1200 kg
1,150.0
Avg
1,500.0
Higher is better
Trailer (no brakes)
750 kg
500.0
Avg
750.0
Higher is better

Engines (Transit Connect)

Diesel
MAN FWD
Kombi 220 L1 1.6 TDCi
Engine & Power
Power
70 kW / 95 HP
Capacity
1.6L (1,560 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
14 s
Max. speed
160 km/h
Torque & RPM
Torque
230 Nm
Consumption
Combined consumption (NEDC)
5 l/100km
Maximum torque at RPM
1500 RPM
City consumption (NEDC)
5 l/100km
Technical Details
Maximum output at RPM
3600 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
Kombi 220 L1 1.5 TDCi
Engine & Power
Power
74 kW / 101 HP
Capacity
1.5L (1,499 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
13 s
Max. speed
163 km/h
Torque & RPM
Torque
250 Nm
Consumption
Combined consumption (NEDC)
4 l/100km
Maximum torque at RPM
2000 RPM
City consumption (NEDC)
5 l/100km
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
Kombi 220 L1 1.5 TDCi Start/Stopp Powershift
Engine & Power
Power
74 kW / 101 HP
Capacity
1.5L (1,499 ccm)
Cylinders
4
Performance
Max. speed
157 km/h
Torque & RPM
Torque
250 Nm
Consumption
Combined consumption (NEDC)
5 l/100km
Maximum torque at RPM
2000 RPM
City consumption (NEDC)
5 l/100km
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
Kombi 220 L1 1.6 TDCi Trend
Engine & Power
Power
85 kW / 116 HP
Capacity
1.6L (1,560 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
14 s
Max. speed
160 km/h
Torque & RPM
Torque
270 Nm
Consumption
Combined consumption (NEDC)
5 l/100km
Maximum torque at RPM
1500 RPM
City consumption (NEDC)
5 l/100km
Technical Details
Maximum output at RPM
3600 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
Kombi 230 L2 1.5 TDCi Start/Stopp Trend
Engine & Power
Power
88 kW / 120 HP
Capacity
1.5L (1,499 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
12 s
Max. speed
171 km/h
Torque & RPM
Torque
270 Nm
Consumption
Combined consumption (NEDC)
4 l/100km
Maximum torque at RPM
1750 RPM
City consumption (NEDC)
4 l/100km
Technical Details
Maximum output at RPM
3600 RPM
Fuel injection
Common Rail
Compare all engines

Ford Transit Connect generations

Body type
Transit Connect 1.Generation
2002 - 2006
Length4525 mm
Height1981 mm
Wheelbase2912 mm
Length4525 mm
Body type
Transit Connect 1.Generation (1. Facelift)
2006 - 2013
Length4278 mm
Height1814 mm
Wheelbase2665 mm
Length4278 mm (-247 mm)
Transit Connect 2.Generation
2013 - 2018
Length4418 mm
Height1854 mm
Wheelbase2662 mm
Length4418 mm (+140 mm)
Transit Connect Transit Connect 2. Generation (1. Facelift)
2018 - 2024
Length4425 mm
Height1860 mm
Wheelbase2662 mm
Length4425 mm (+7 mm)
Transit Connect Transit Connect 3. Generation
2024 - Now
Length4500 mm
Height1856 mm
Wheelbase2755 mm
Length4500 mm (+75 mm)
Compare all generations
