2023
Compare
Engines

Ford Tourneo Courier
Specs, engines, generations

Thumbnail 1
Thumbnail 1
Thumbnail 1
Table of contents:

Variants

High Roof Station Wagon
E-Tourneo Courier
BodyHigh Roof Station Wagon
Length4337 mm
Height1817 mm
Doors5
Boot space570 l
High Roof Station Wagon
Tourneo Courier
BodyHigh Roof Station Wagon
Length4337 mm
Height1817 mm
Doors5
Boot space570 l

Model specs

Model info

Model name
Ford Tourneo Courier
Generation
N1P
Production years
2023 - Present
Doors
5
5

Dimensions

Length
4337 mm
4,210.0
Avg
4,636.0
Higher is better
Wheelbase
2692 mm
2,636.0
Avg
2,785.0
Higher is better
Width
1800 mm
1,793.0
Avg
1,852.0
Higher is better
Height
1817 mm
1,442.0
Avg
1,844.0
Higher is better
Ground clearance
170 mm
152.0
Avg
188.0
Higher is better
Turning circle
10 m
10.0
Avg
11.0
Lower is better

Boot/interior

Boot space
570 l
400.0
Avg
775.0
Higher is better
Boot space (rear seats folded, bottom to roof)
2162 l
1,275.0
Avg
2,162.0
Higher is better
Seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
3
3.0
Avg
3.0
Higher is better
Torque
170 - 290 Nm
160.0
Avg
205.0
Higher is better
Power
92 - 100 kW
67.0
Avg
92.0
Higher is better
Cubic capacity
998 ccm
998.0
Avg
1,199.0
Higher is better

Consumption/ecology

Tank size
45 l
45.0
Avg
61.0
Higher is better
Combined consumption (WLTP)
6 - 17 l/100km
5.0
Avg
6.0
Higher is better
Suburban consumption (WLTP)
5 - 6 l/100km
4.0
Avg
6.0
Higher is better
Consumption on highways (WLTP)
7 l/100km
5.0
Avg
7.0
Higher is better
CO2 emissions (WLTP)
150 - 151 g/km
115.0
Avg
152.0
Higher is better
Empty weight (EU)
1517 - 1545 kg
1,199.0
Avg
1,517.0
Higher is better

Towing

Max. roof load
50 - 75 kg
50.0
Avg
150.0
Higher is better
Braked trailer
750 - 1100 kg
750.0
Avg
1,250.0
Higher is better
Trailer (no brakes)
750 kg
600.0
Avg
750.0
Higher is better

Engines (Tourneo Courier)

Filter by fuel:
Gasoline
MAN FWD
1.0 EcoBoost Start/Stopp Trend
Engine & Power
Power
92 kW / 125 HP
Capacity
1.0L (998 ccm)
Cylinders
3
Torque & RPM
Torque
170 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
151 g/km
Maximum torque at RPM
1400 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.0 EcoBoost Start/Stopp Trend
Engine & Power
Power
92 kW / 125 HP
Capacity
1.0L (998 ccm)
Cylinders
3
Torque & RPM
Torque
170 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
150 g/km
Maximum torque at RPM
1400 RPM
Consumption on short trips (WLTP)
7 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Direct Injection
Electric
AUT FWD
E-Tourneo Courier Trend
Engine & Power
Power
100 kW / 136 HP
Battery
54 kWh
Range
288 km
Torque & RPM
Torque
290 Nm
Consumption
Combined consumption (WLTP)
17 kWh/100km
Technical Details
Emission standard
Electric Vehicle
Gears
1
Compare all engines

Ford Tourneo Courier generations

Body type
Tourneo Courier 1.Generation
2014 - 2018
Length4157 mm
Height1726 mm
Wheelbase2489 mm
Length4157 mm
Body type
Tourneo Courier 1.Generation (1. Facelift)
2018 - 2022
Length4157 mm
Height1726 mm
Wheelbase2489 mm
Length4157 mm
Tourneo Courier Tourneo Courier 2. Generation
2023 - Now
Length4337 mm
Height1817 mm
Wheelbase2692 mm
Length4337 mm (+180 mm)
Compare all generations

1903
1903
Ford founded
2014
2014
1.Generation was introduced.
2018
2018
1.Generation (1. Facelift) was introduced and replaced 1.Generation.
2022
2022
1.Generation (1. Facelift) was introduced and replaced 1.Generation.
2023
2023
Tourneo Courier 2. Generation was introduced.

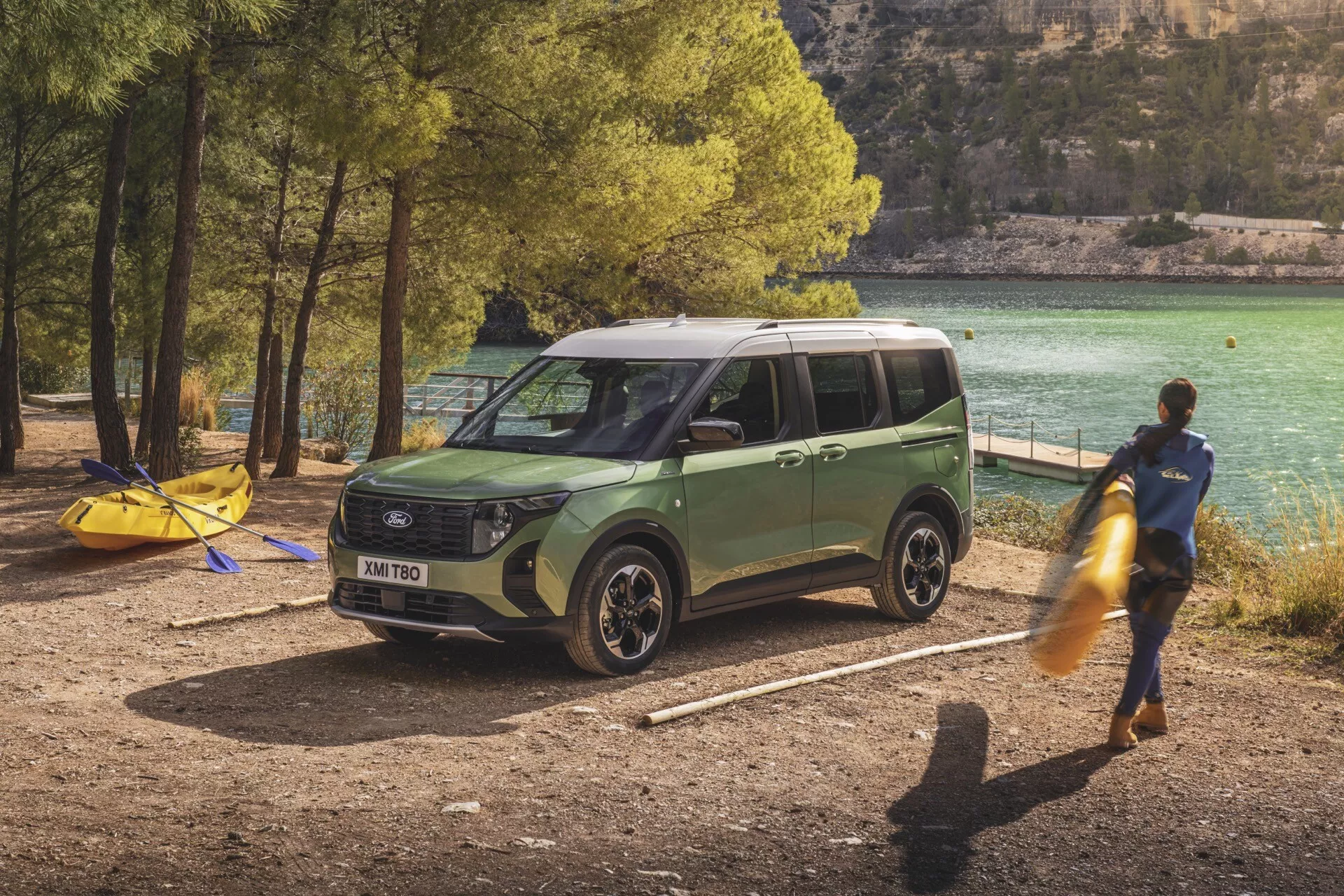

2023 Ford Tourneo Courier second generation parked outdoors showcasing front grille, LED headlights, and high roof with roof rails, next to a lake with kayaks, highlighting adventure-ready design and spacious interior

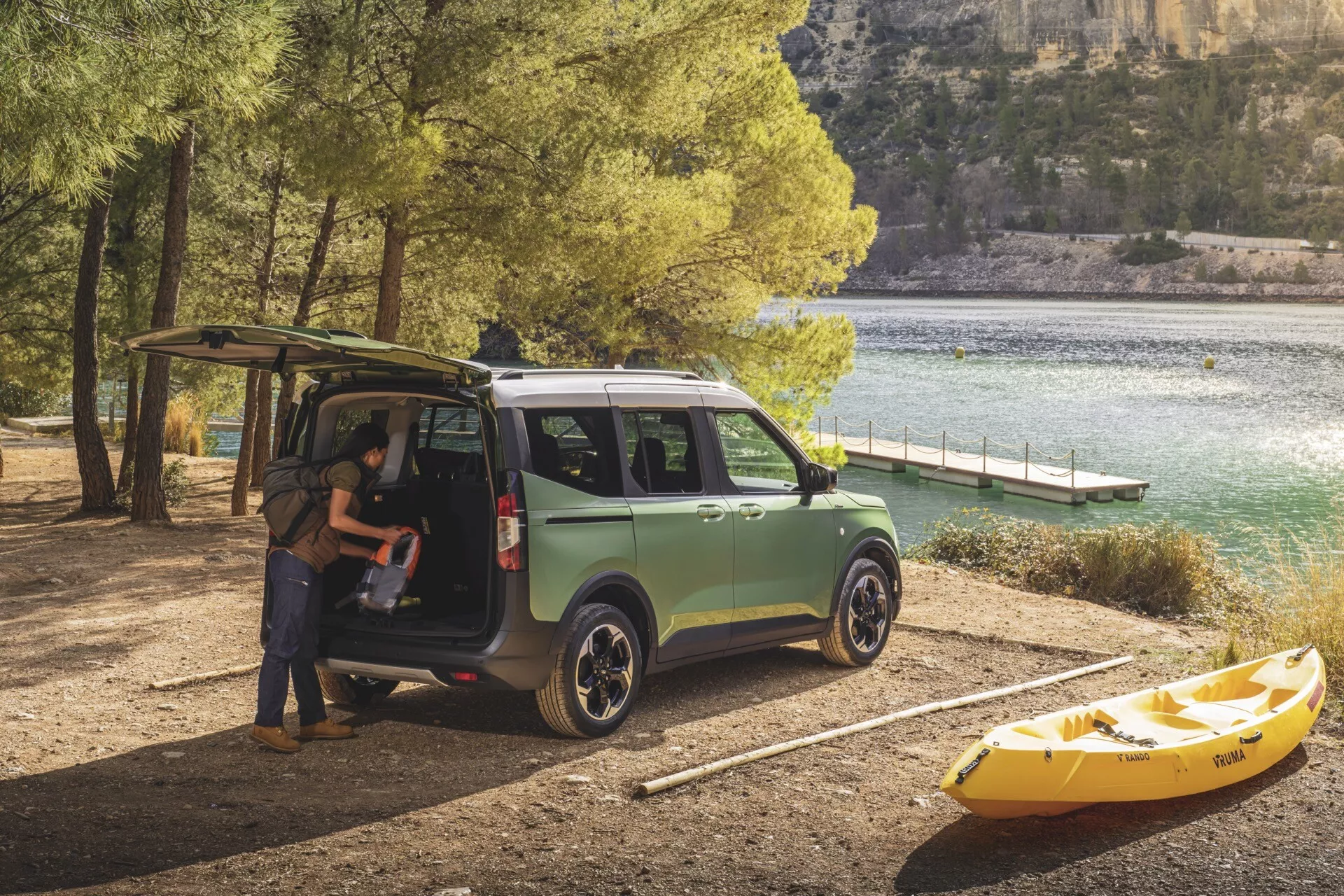

2023 Ford Tourneo Courier 2nd Generation parked on gravel beside a lake, featuring a pastel green color with black roof, rear hatch open, vertical tail lights, and multi-spoke wheels suggesting off-road capability and spacious interior for outdoor activities

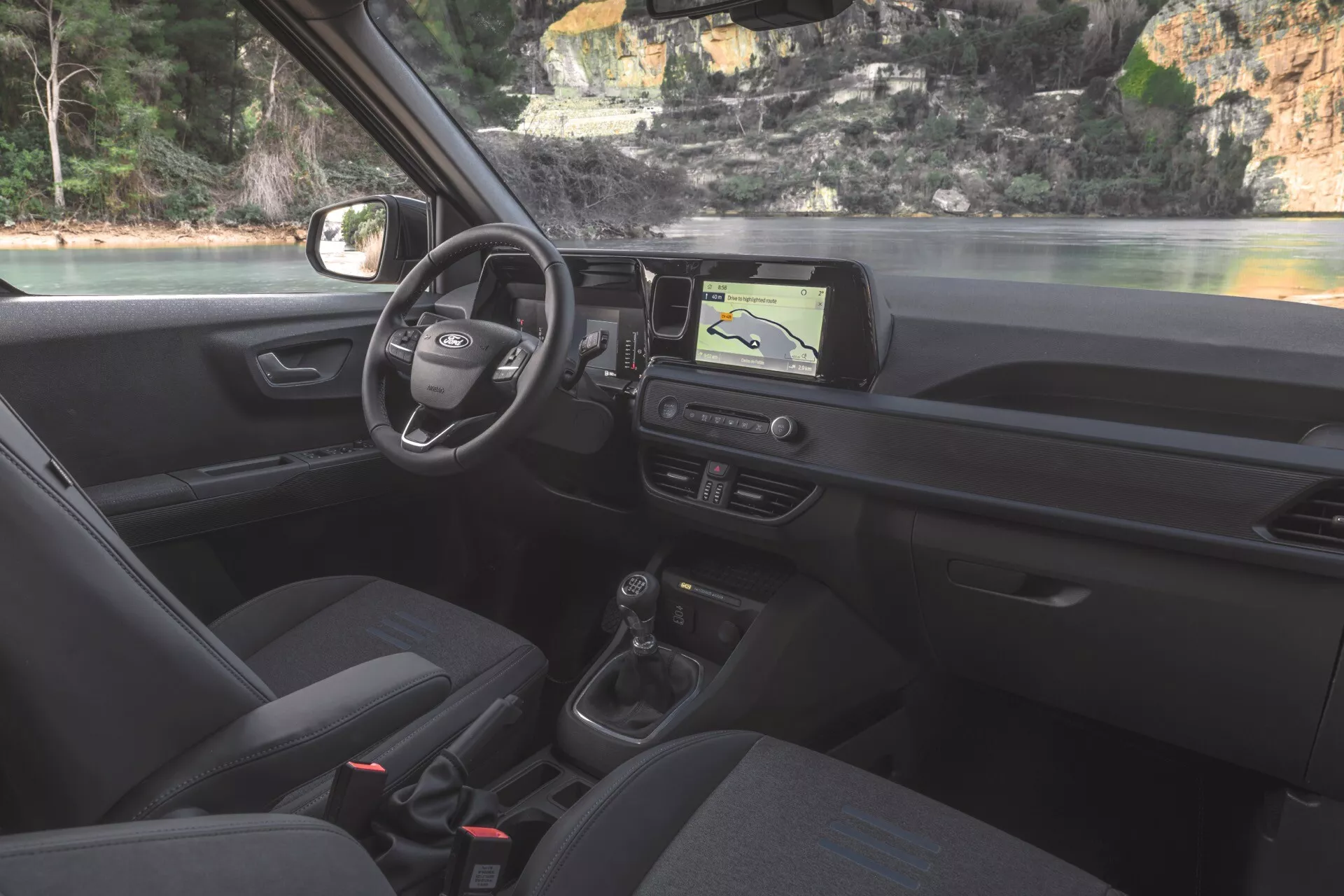

2023 Ford Tourneo Courier interior view from rear seat showcasing the driver's area with multifunction steering wheel, modern dashboard with touchscreen infotainment system, climate controls, fabric upholstered seats, and safety features
