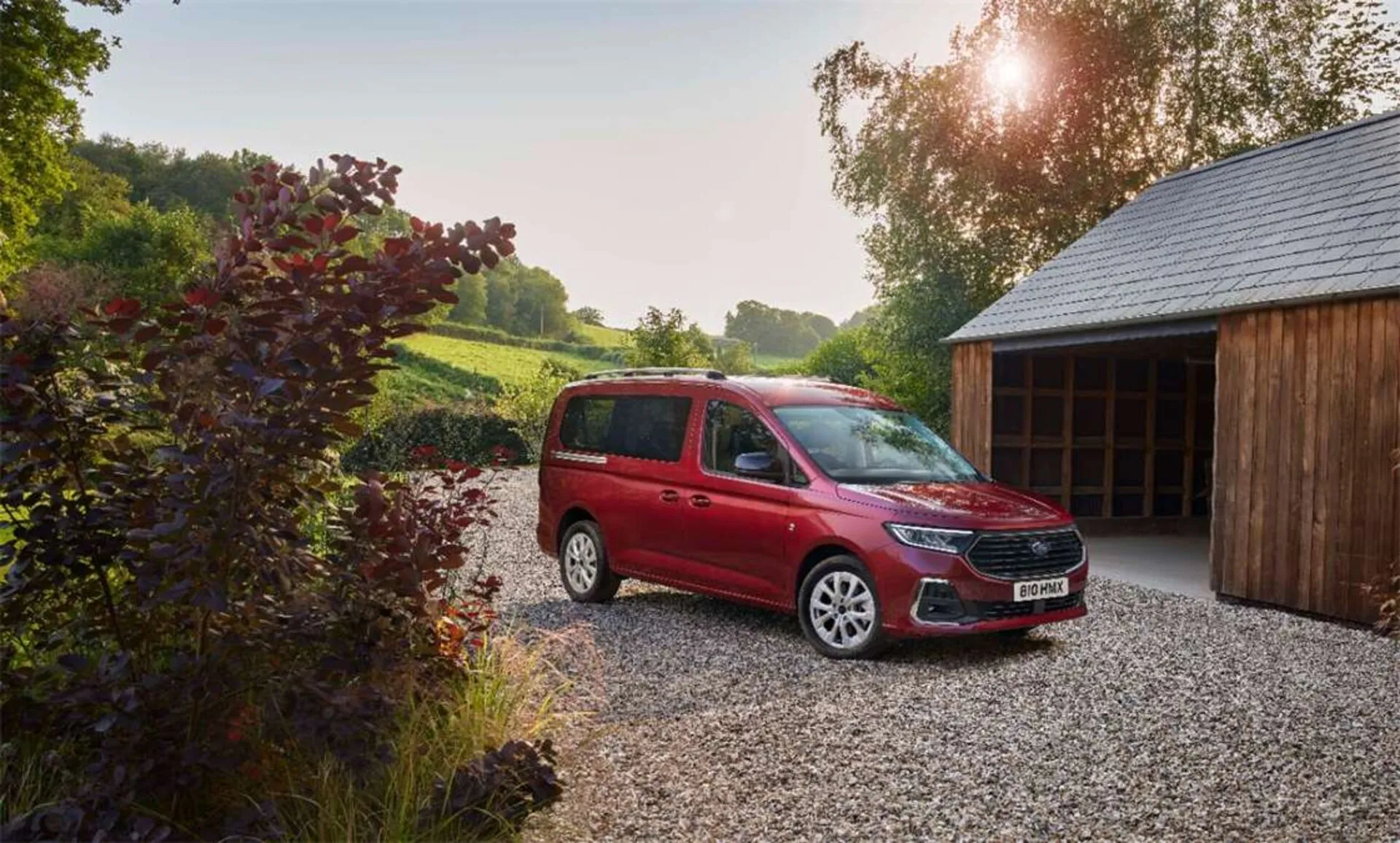

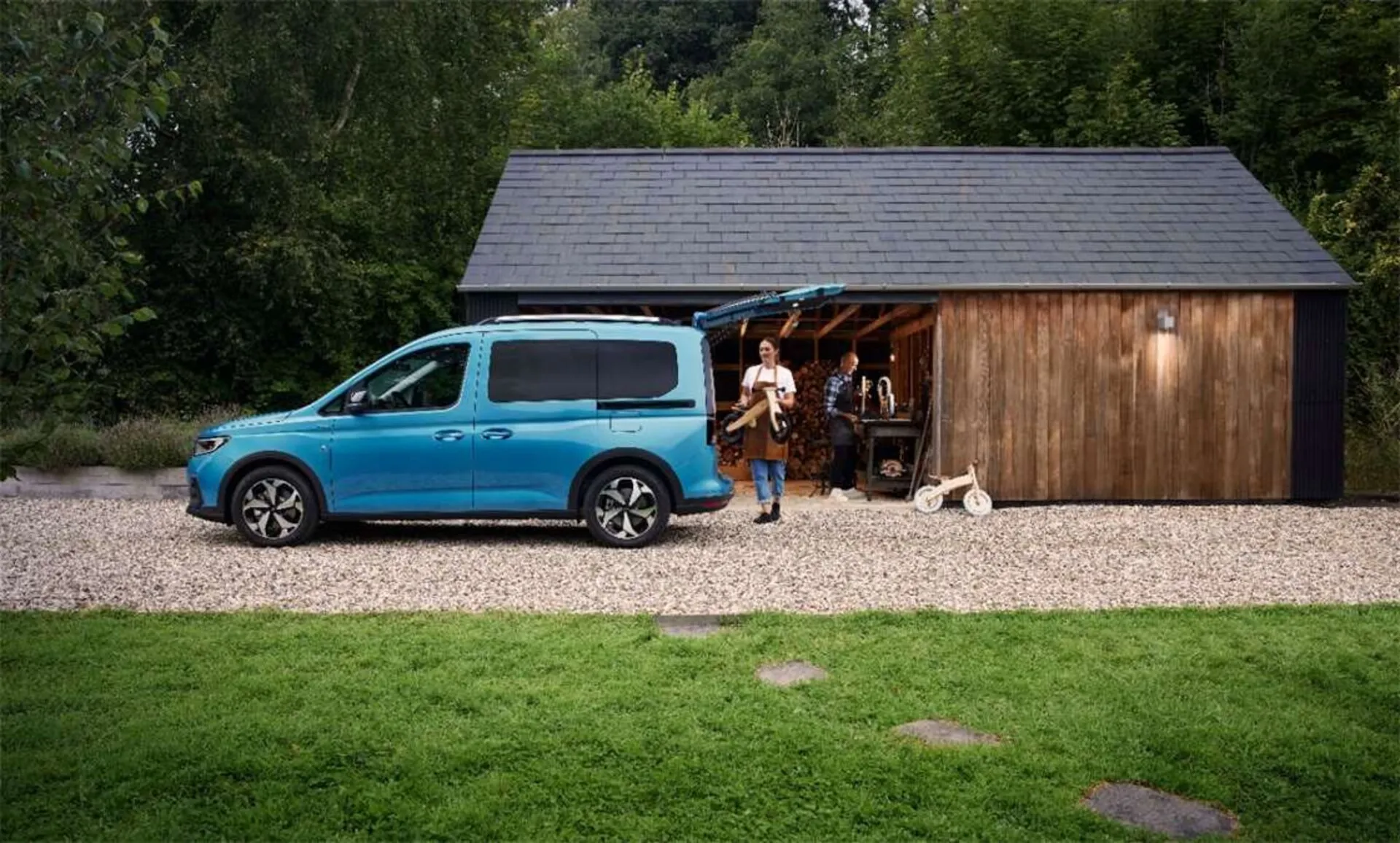

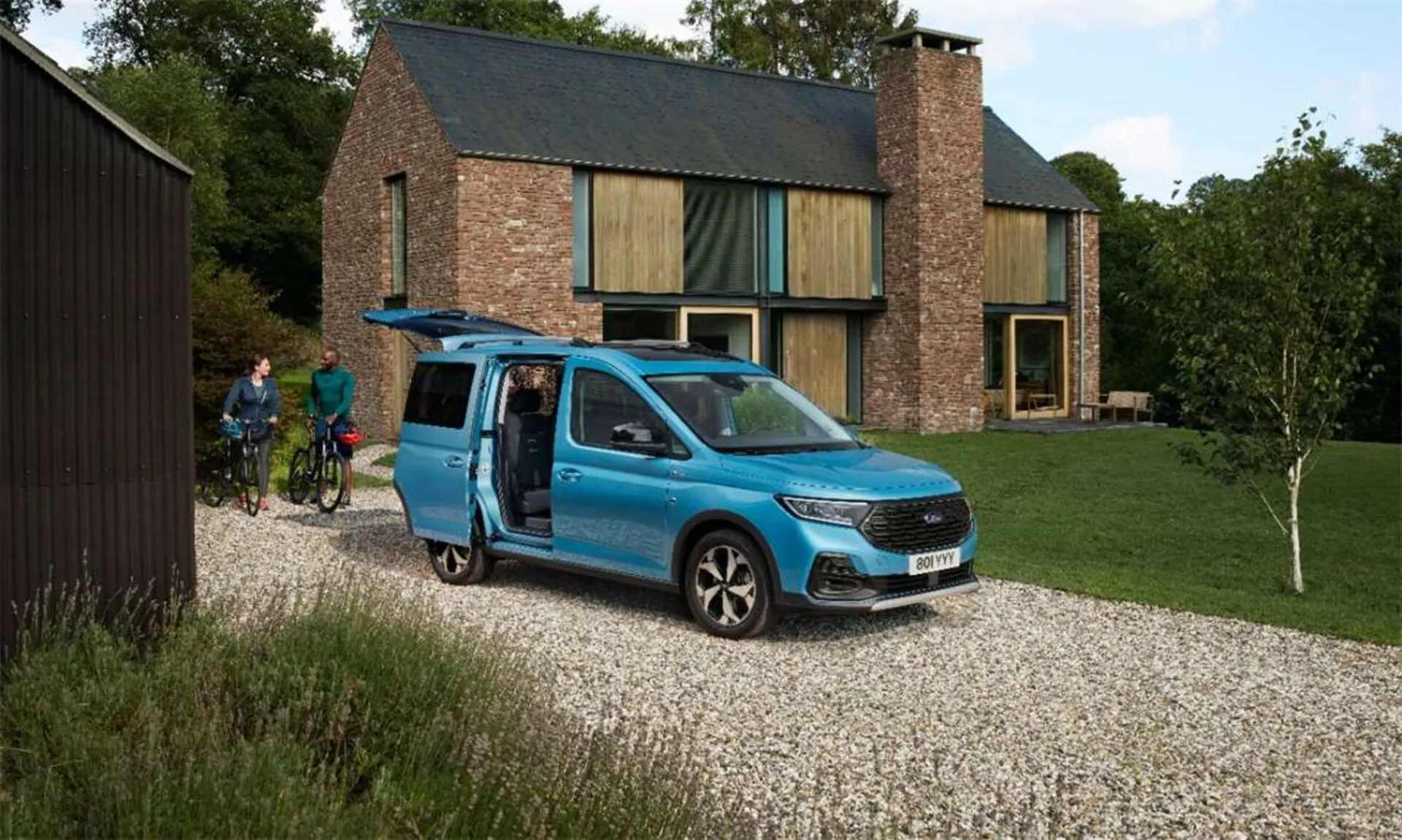

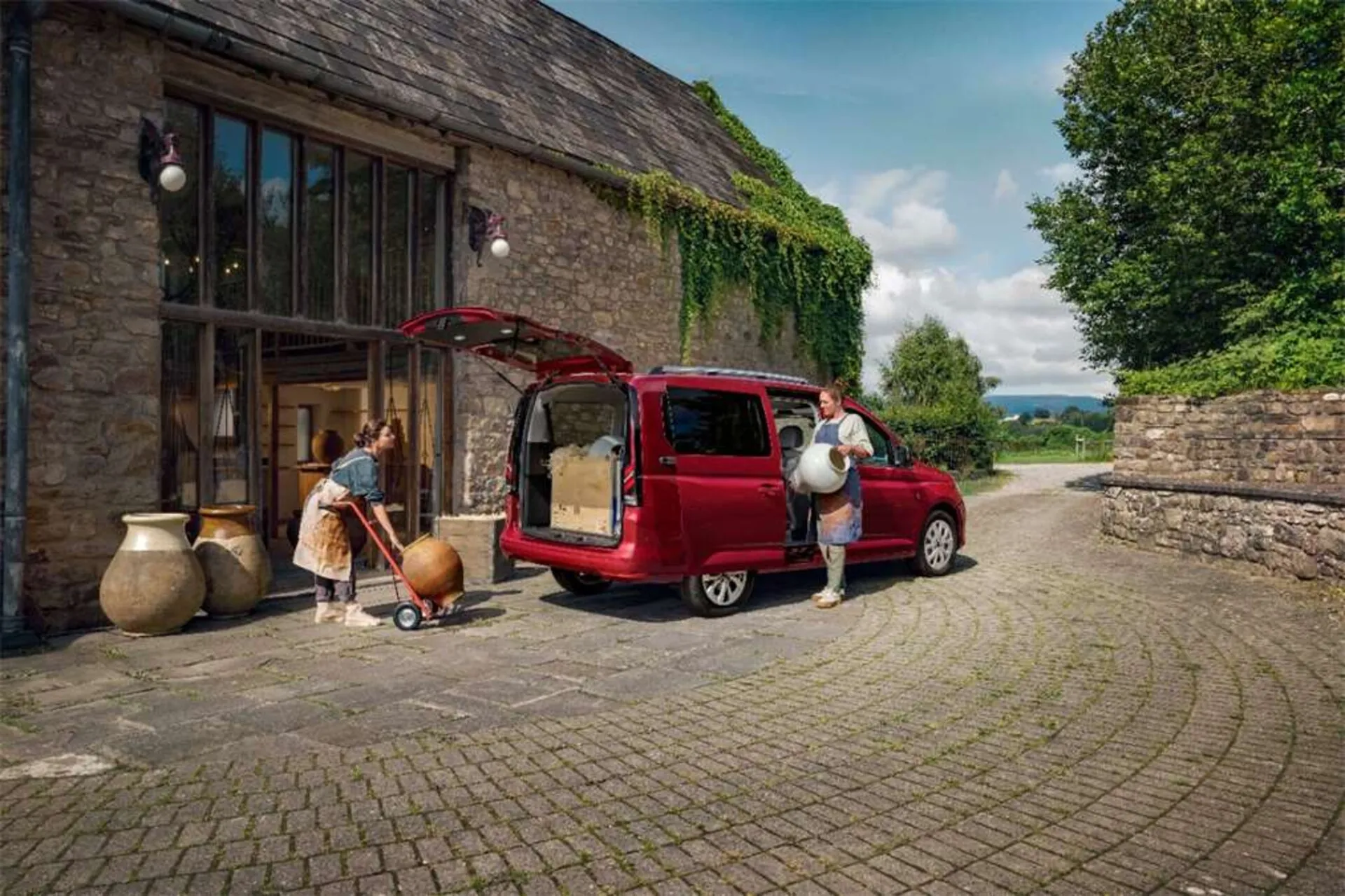

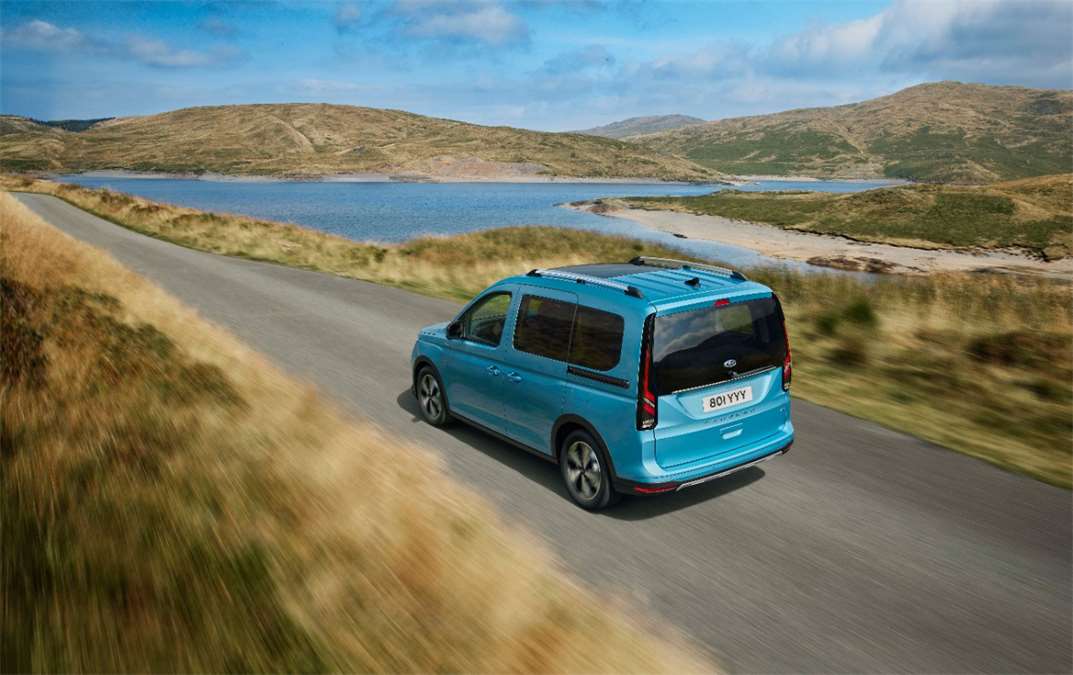

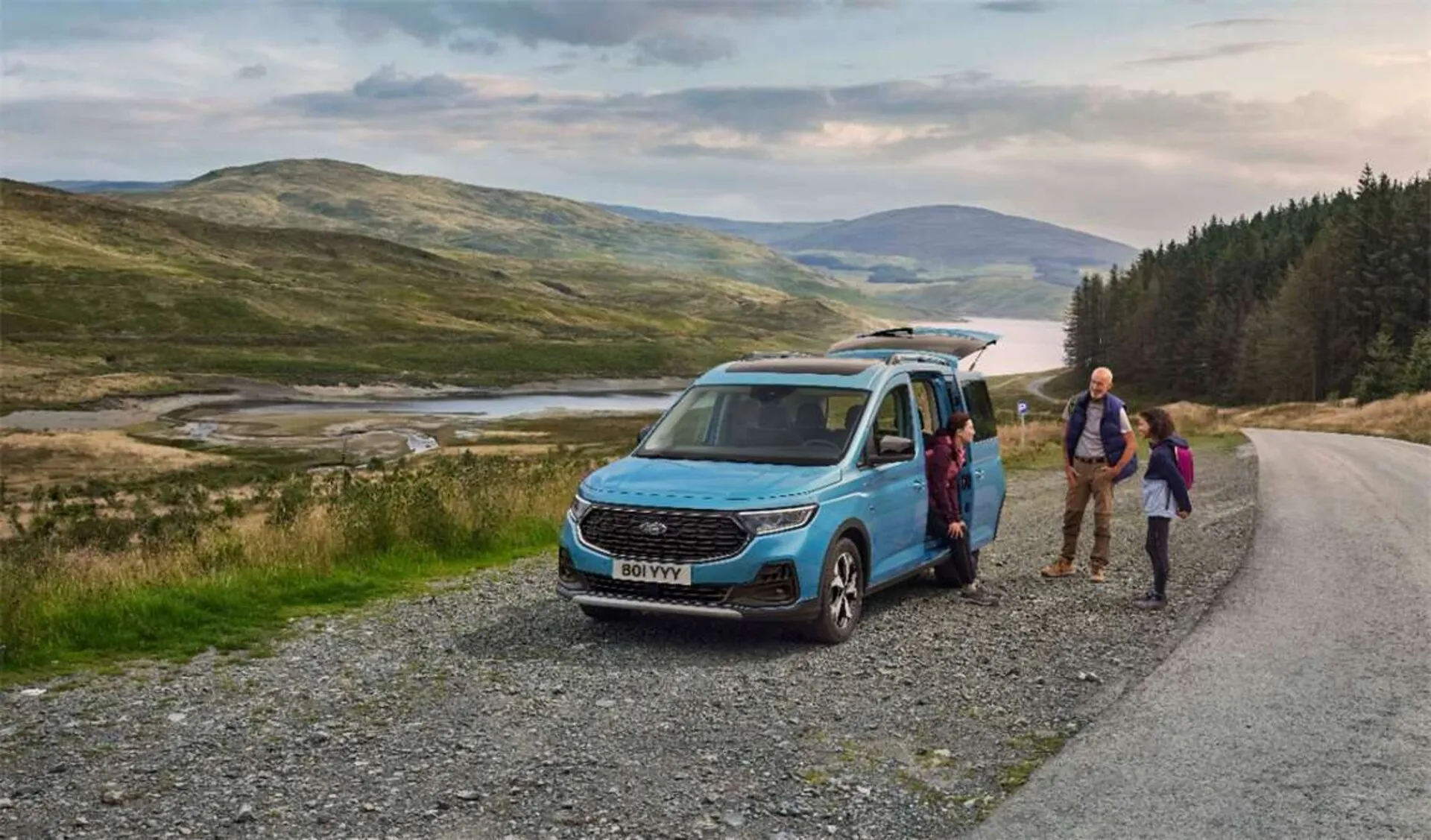

Ford Tourneo Connect
Specs, engines, generations

Thumbnail 1
Table of contents:

Model specs

Model info

Model name
Ford Tourneo Connect
Generation
SK
Production years
2022 - Present
Doors
5
5

Dimensions

Length
4500 mm
4,337.0
Avg
4,655.0
Higher is better
Wheelbase
2755 mm
2,690.0
Avg
2,785.0
Higher is better
Width
1855 mm
1,800.0
Avg
1,890.0
Higher is better
Height
1833 mm
1,661.0
Avg
1,844.0
Higher is better
Ground clearance
144 mm
134.0
Avg
230.0
Higher is better
Turning circle
11 m
10.0
Avg
11.0
Lower is better

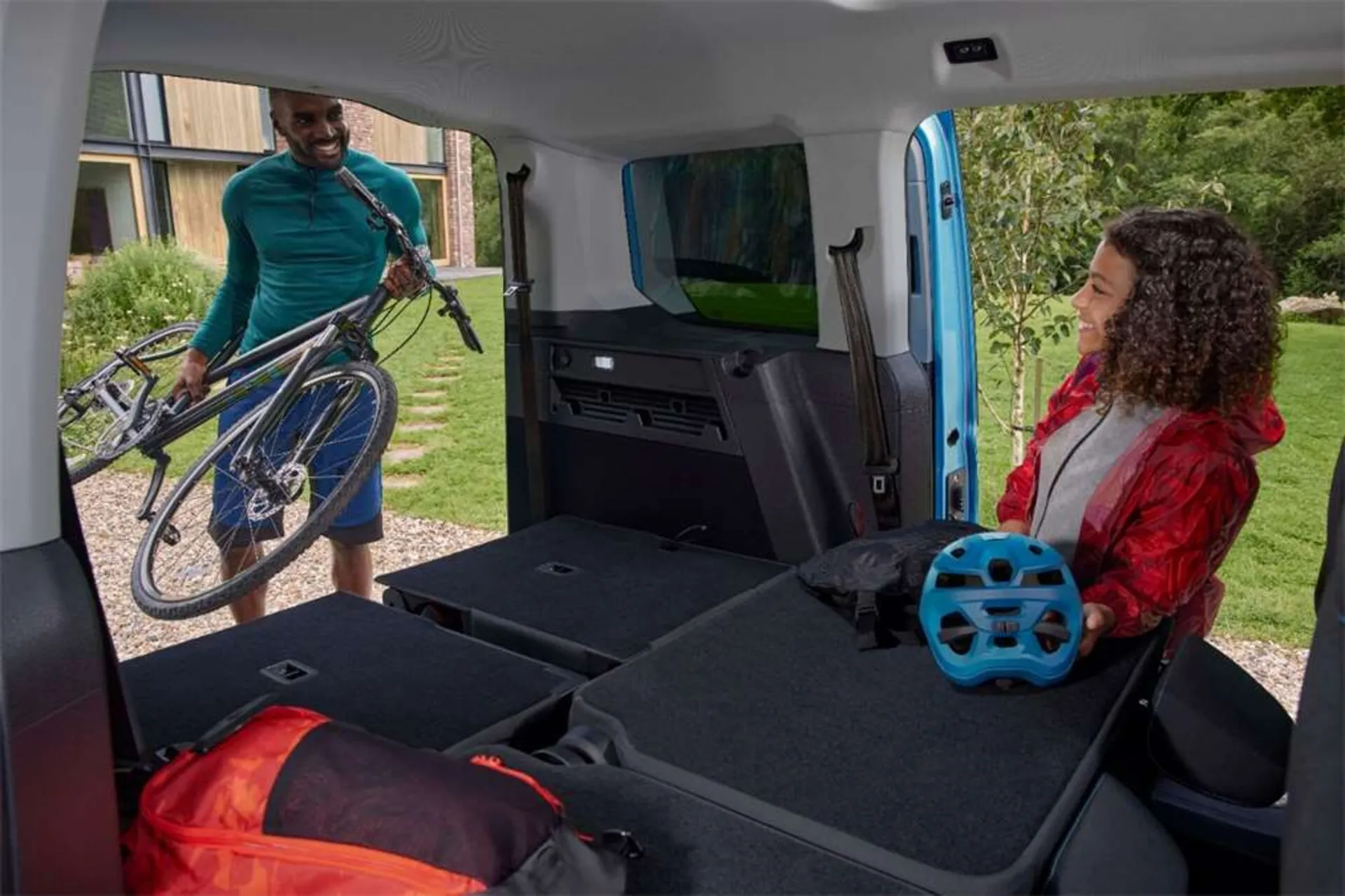

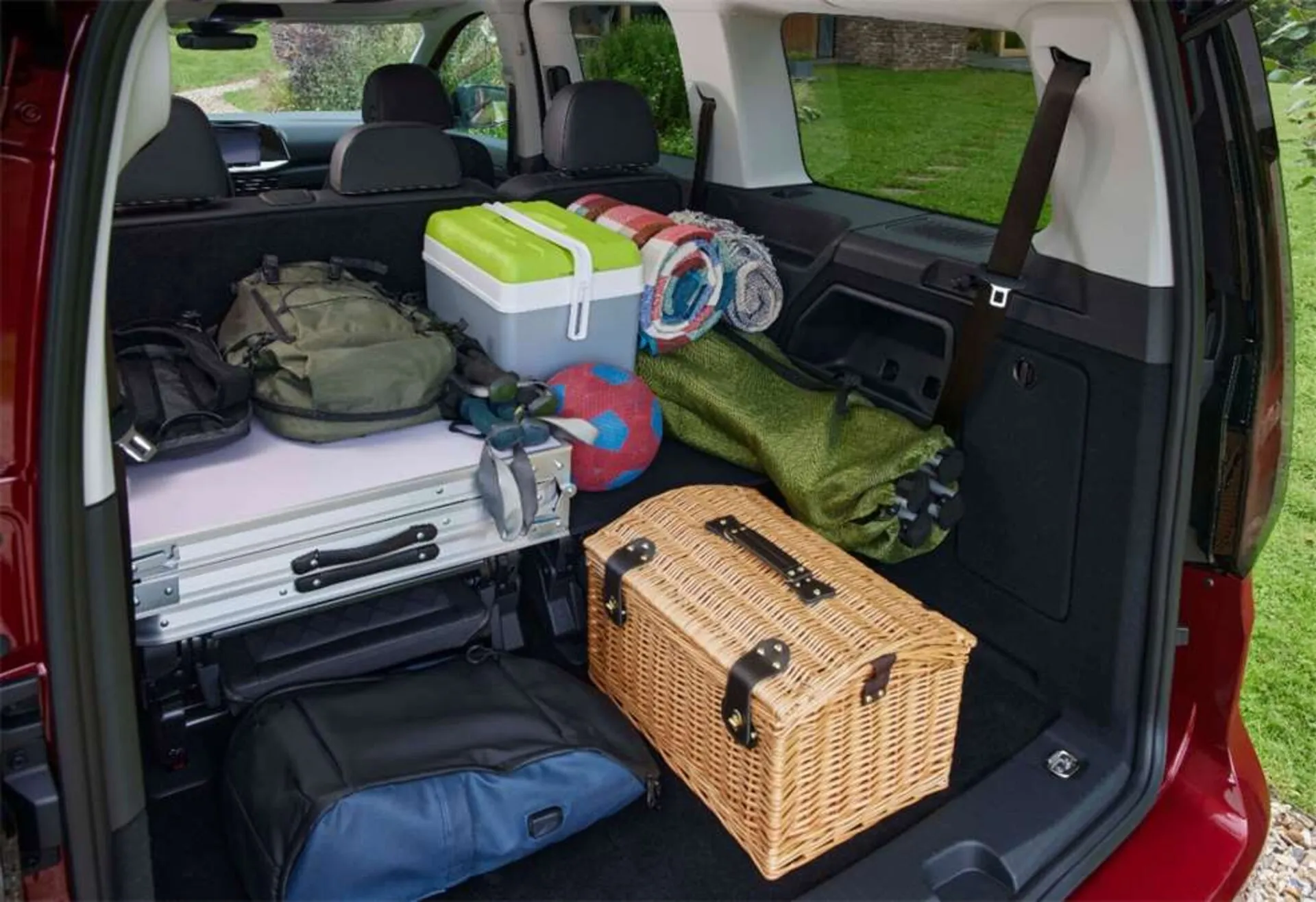

Boot/interior

Boot space
1213 l
435.0
Avg
1,213.0
Higher is better
Boot space (rear seats folded, bottom to roof)
2556 l
1,484.0
Avg
2,800.0
Higher is better

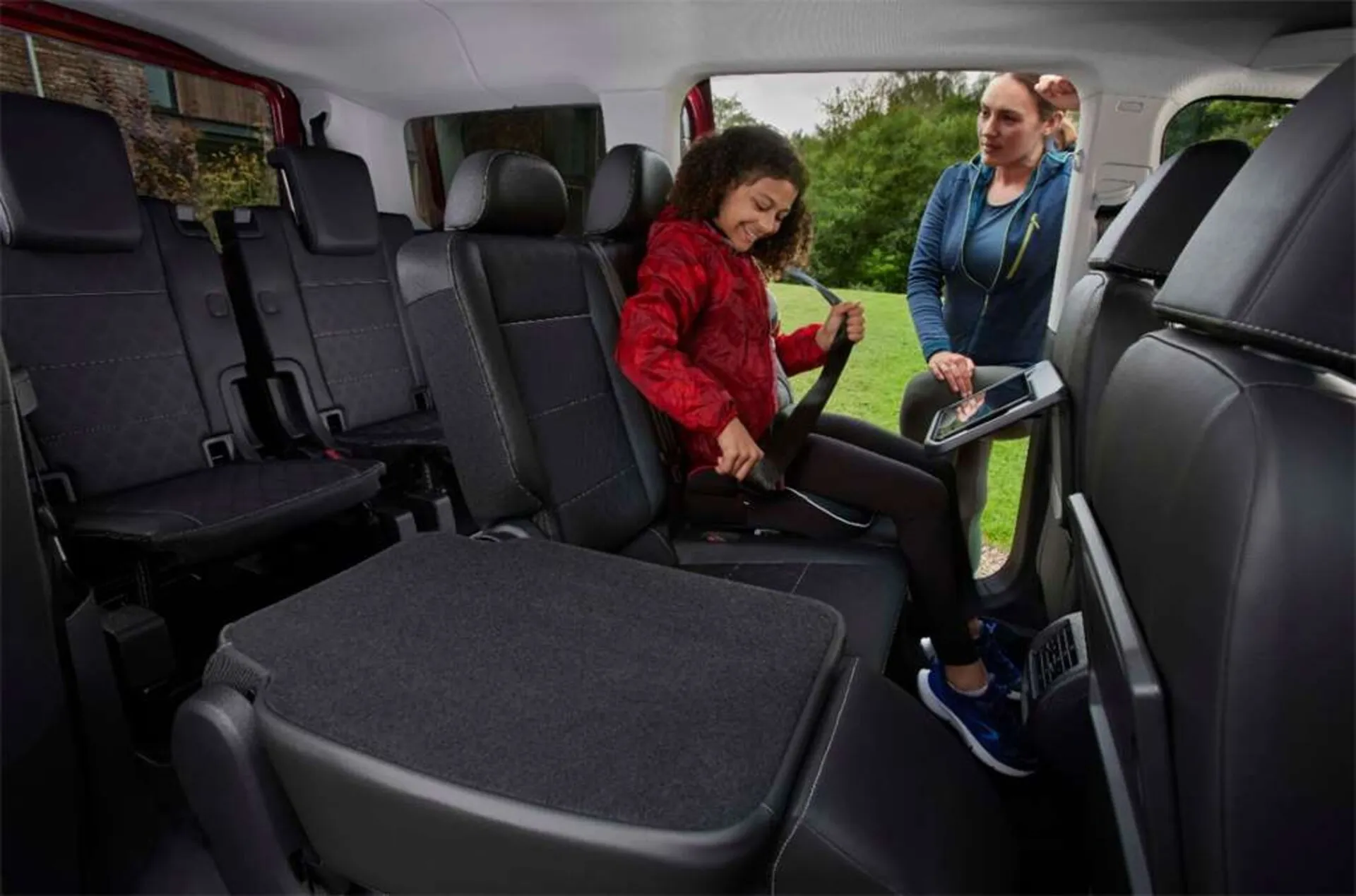

Seats
5
5
Max. seats
7
7
Doors
5
5

Engines/drivetrain

Cylinders
4
3.0
Avg
4.0
Higher is better
Max. speed
175 - 187 km/h
171.0
Avg
195.0
Higher is better
Torque
220 - 350 Nm
170.0
Avg
275.0
Higher is better
Power
75 - 110 kW
75.0
Avg
129.0
Higher is better
Cubic capacity
1498 - 1968 ccm
998.0
Avg
1,987.0
Higher is better
Acceleration 0-100km/h
11 - 13 s
9.0
Avg
11.0
Higher is better

Consumption/ecology

Tank size
32 - 50 l
32.0
Avg
60.0
Higher is better
Combined consumption (WLTP)
4 - 7 l/100km
4.0
Avg
7.0
Higher is better
Suburban consumption (WLTP)
4 - 6 l/100km
4.0
Avg
7.0
Higher is better
Consumption on highways (WLTP)
5 - 7 l/100km
5.0
Avg
7.0
Higher is better
CO2 emissions (WLTP)
10 - 158 g/km
10.0
Avg
168.0
Higher is better
Empty weight (EU)
1542 - 1781 kg
1,478.0
Avg
1,625.0
Higher is better

Towing

Max. towbar load
75 kg
65.0
Avg
100.0
Higher is better
Max. roof load
100 kg
75.0
Avg
100.0
Higher is better
Braked trailer
1400 - 1500 kg
900.0
Avg
2,000.0
Higher is better
Trailer (no brakes)
750 kg
730.0
Avg
750.0
Higher is better

Engines (Tourneo Connect)

Filter by fuel:
Diesel
MAN FWD
2.0 EcoBlue Titanium
Engine & Power
Power
75 kW / 102 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
13 s
Max. speed
175 km/h
Torque & RPM
Torque
280 Nm
Consumption
Combined consumption (WLTP)
4 l/100km
Emissions
CO2 emissions (WLTP)
128 g/km
Maximum torque at RPM
1500 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
2750 RPM
Fuel injection
Common Rail
Gasoline
MAN FWD
1.5 EcoBoost Titanium
Engine & Power
Power
84 kW / 114 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
181 km/h
Torque & RPM
Torque
220 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
145 g/km
Maximum torque at RPM
1750 RPM
Consumption on short trips (WLTP)
8 l/100km
Technical Details
Maximum output at RPM
4500 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.5 EcoBoost Titanium -automatic
Engine & Power
Power
84 kW / 114 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
182 km/h
Torque & RPM
Torque
220 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
152 g/km
Maximum torque at RPM
1750 RPM
Consumption on short trips (WLTP)
8 l/100km
Technical Details
Maximum output at RPM
4500 RPM
Fuel injection
Direct Injection
Gasoline
MAN FWD
1.5 EcoBoost Trend
Engine & Power
Power
85 kW / 116 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Max. speed
182 km/h
Torque & RPM
Torque
220 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
149 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
4500 RPM
Fuel injection
Direct Injection
Gasoline
AUT FWD
1.5 EcoBoost Titanium -automatic
Engine & Power
Power
85 kW / 116 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Max. speed
181 km/h
Torque & RPM
Torque
220 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
154 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
4500 RPM
Fuel injection
Direct Injection
Diesel
MAN FWD
2.0 EcoBlue Titanium
Engine & Power
Power
90 kW / 122 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
187 km/h
Torque & RPM
Torque
320 Nm
Consumption
Combined consumption (WLTP)
4 l/100km
Emissions
CO2 emissions (WLTP)
128 g/km
Maximum torque at RPM
1600 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
2750 RPM
Fuel injection
Common Rail
Diesel
AUT FWD
2.0 EcoBlue Titanium -automatic
Engine & Power
Power
90 kW / 122 HP
Capacity
2.0L (1,968 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
186 km/h
Torque & RPM
Torque
320 Nm
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
136 g/km
Maximum torque at RPM
1600 RPM
Consumption on short trips (WLTP)
6 l/100km
Technical Details
Maximum output at RPM
2750 RPM
Fuel injection
Common Rail
Gasoline
AUT FWD
1.5 EcoBoost PHEV Trend -automatic
Engine & Power
Power
110 kW / 150 HP
Capacity
1.5L (1,498 ccm)
Cylinders
4
Performance
Max. speed
180 km/h
Torque & RPM
Torque
350 Nm
Emissions
CO2 emissions (WLTP)
10 g/km
Maximum torque at RPM
1500 RPM
Technical Details
Maximum output at RPM
5000 RPM
Fuel injection
Direct Injection
Compare all engines

Ford Tourneo Connect generations

Body type
Tourneo Connect 1.Generation
2002 - 2006
Length4525 mm
Height1981 mm
Wheelbase2912 mm
Length4525 mm
Body type
Tourneo Connect 1.Generation (1. Facelift)
2006 - 2011
Length4278 mm
Height1824 mm
Wheelbase2665 mm
Length4278 mm (-247 mm)
Body type
Tourneo Connect 2.Generation
2013 - 2018
Length4418 mm
Height1852 mm
Wheelbase2662 mm
Length4418 mm (+140 mm)
Body type
Tourneo Connect 2.Generation (1. Facelift)
2018 - 2022
Length4425 mm
Height1847 mm
Wheelbase2662 mm
Length4425 mm (+7 mm)
Tourneo Connect Tourneo Connect 3. Generation
2022 - Now
Length4853 mm
Height1833 mm
Wheelbase2970 mm
Length4853 mm (+428 mm)
Compare all generations

1903
1903
Ford founded
2002
2002
1.Generation was introduced.
2006
2006
1.Generation (1. Facelift) was introduced and replaced 1.Generation.
2011
2011
1.Generation (1. Facelift) was introduced and replaced 1.Generation.
2013
2013
2.Generation was introduced.
2018
2018
2.Generation (1. Facelift) was introduced and replaced 2.Generation.
2022
2022
Tourneo Connect 3. Generation was introduced and replaced 2.Generation (1. Facelift).
