Table of contents:

Variants

Pickup Truck
Ranger
BodyPickup Truck
Length5370 mm
Height1884 mm
Doors4
Pickup Truck
Ranger Raptor
BodyPickup Truck
Length5381 mm
Height1922 mm
Doors4

Model specs

Model info

Model name
Ford Ranger
Generation
2AB
Production years
2022 - Present
Doors
4
4

Dimensions

Length
5370 mm
4,980.0
Avg
5,531.0
Higher is better
Wheelbase
3270 mm
3,085.0
Avg
3,300.0
Higher is better
Width
1918 mm
1,800.0
Avg
2,059.0
Higher is better
Height
1884 mm
1,790.0
Avg
2,533.0
Higher is better
Ground clearance
235 mm
187.0
Avg
266.0
Higher is better
Turning circle
12 m
11.0
Avg
13.0
Lower is better

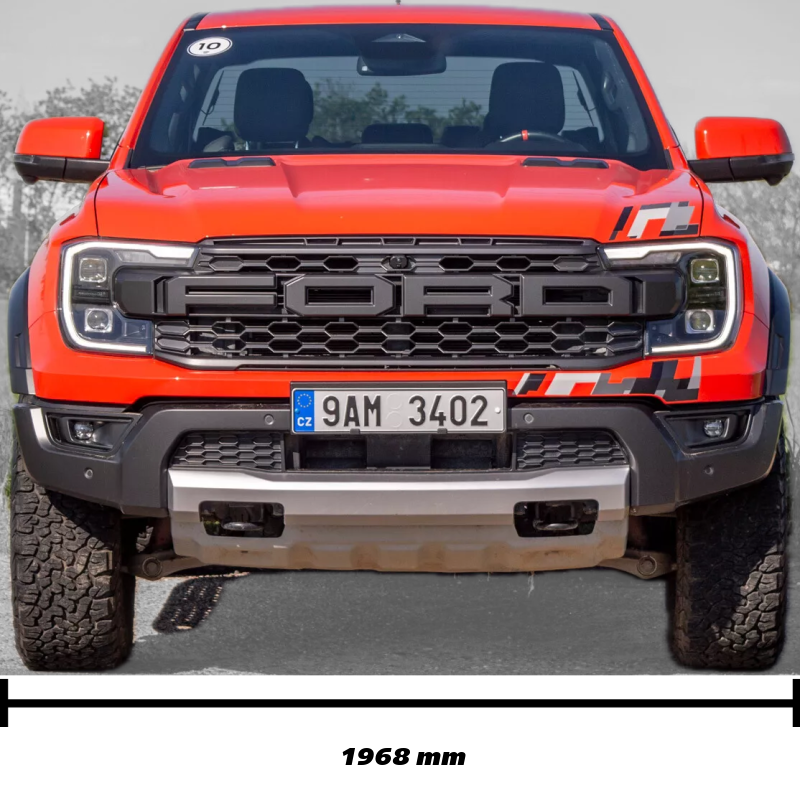

Annotated Image

Boot/interior

Seats
5
5
Doors
4
4

Engines/drivetrain

Cylinders
4 - 6
4.0
Avg
6.0
Higher is better
Max. speed
180 - 190 km/h
120.0
Avg
190.0
Higher is better
Torque
405 - 697 Nm
310.0
Avg
700.0
Higher is better
Power
125 - 215 kW
77.0
Avg
325.0
Higher is better
Cubic capacity
1996 - 2993 ccm
1,898.0
Avg
2,956.0
Higher is better
Acceleration 0-100km/h
7 - 12 s
5.0
Avg
13.0
Higher is better

Consumption/ecology

Tank size
80 l
69.0
Avg
80.0
Higher is better
Combined consumption (WLTP)
3 - 13 l/100km
3.0
Avg
26.0
Higher is better
Suburban consumption (WLTP)
7 - 13 l/100km
7.0
Avg
13.0
Higher is better
Consumption on highways (WLTP)
9 - 14 l/100km
8.0
Avg
14.0
Higher is better
CO2 emissions (WLTP)
70 - 315 g/km
70.0
Avg
315.0
Higher is better
Empty weight (EU)
2082 - 2486 kg
1,791.0
Avg
2,925.0
Higher is better

Towing

Max. roof load
80 kg
50.0
Avg
170.0
Higher is better
Braked trailer
2500 - 3500 kg
1,000.0
Avg
3,500.0
Higher is better
Trailer (no brakes)
750 kg
750.0
Avg
750.0
Higher is better

Offroad

Ramp angle
21 - 24 °
16.0
Avg
24.0
Higher is better
Departure angle
25 - 28 °
22.0
Avg
28.0
Higher is better
Approach angle
30 - 32 °
27.0
Avg
32.0
Higher is better
Fording
800 - 850 mm
550.0
Avg
850.0
Higher is better

Engines (Ranger)

Filter by fuel:
Diesel
MAN AWD
Double cab 2.0 EcoBlue Limited 4x4
Engine & Power
Power
125 kW / 170 HP
Capacity
2.0L (1,996 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
11 s
Max. speed
180 km/h
Torque & RPM
Torque
405 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
220 g/km
Consumption on short trips (WLTP)
8 l/100km
Technical Details
Fuel injection
Common Rail
Engine type
Turbocharged
Diesel
AUT AWD
Double cab 2.0 EcoBlue Limited 4x4 -automatic
Engine & Power
Power
125 kW / 170 HP
Capacity
2.0L (1,996 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
12 s
Max. speed
180 km/h
Torque & RPM
Torque
405 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
227 g/km
Consumption on short trips (WLTP)
10 l/100km
Technical Details
Fuel injection
Common Rail
Engine type
Turbocharged
Diesel
AUT AWD
Double cab 2.0 EcoBlue Wildtrack e-4WD -automatic
Engine & Power
Power
151 kW / 205 HP
Capacity
2.0L (1,996 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
10 s
Max. speed
180 km/h
Torque & RPM
Torque
500 Nm
Consumption
Combined consumption (WLTP)
8 l/100km
Emissions
CO2 emissions (WLTP)
230 g/km
Maximum torque at RPM
1720 RPM
Consumption on short trips (WLTP)
10 l/100km
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Diesel
AUT AWD
Raptor 2.0 EcoBlue e-4WD -automatic
Engine & Power
Power
154 kW / 209 HP
Capacity
2.0L (1,996 ccm)
Cylinders
4
Performance
Max. speed
180 km/h
Torque & RPM
Torque
500 Nm
Consumption
Combined consumption (WLTP)
10 l/100km
Emissions
CO2 emissions (WLTP)
278 g/km
Maximum torque at RPM
1720 RPM
Consumption on short trips (WLTP)
12 l/100km
Technical Details
Maximum output at RPM
3750 RPM
Fuel injection
Common Rail
Diesel
AUT AWD
Double cab 3.0 EcoBlue Wildtrack e-4WD -automatic
Engine & Power
Power
177 kW / 241 HP
Capacity
3.0L (2,993 ccm)
Cylinders
6
Performance
Acceleration 0-100km/h
8 s
Max. speed
190 km/h
Torque & RPM
Torque
600 Nm
Consumption
Combined consumption (WLTP)
10 l/100km
Emissions
CO2 emissions (WLTP)
265 g/km
Maximum torque at RPM
1750 RPM
Consumption on short trips (WLTP)
12 l/100km
Technical Details
Maximum output at RPM
3250 RPM
Fuel injection
Common Rail
Gasoline
AUT AWD
Double cab 2.3 EcoBoost PHEV XLT e-4WD -automatic
Engine & Power
Power
207 kW / 282 HP
Capacity
2.3L (2,296 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
180 km/h
Torque & RPM
Torque
697 Nm
Consumption
Combined consumption (WLTP)
3 l/100km
Emissions
CO2 emissions (WLTP)
70 g/km
Technical Details
Fuel injection
Direct Injection
Engine type
Turbocharged
Gasoline
AUT AWD
Raptor 3.0 EcoBoost e-4WD -automatic
Engine & Power
Power
215 kW / 292 HP
Capacity
3.0L (2,956 ccm)
Cylinders
6
Performance
Acceleration 0-100km/h
7 s
Max. speed
180 km/h
Torque & RPM
Torque
491 Nm
Consumption
Combined consumption (WLTP)
13 l/100km
Emissions
CO2 emissions (WLTP)
315 g/km
Maximum torque at RPM
2300 RPM
Consumption on short trips (WLTP)
18 l/100km
Technical Details
Maximum output at RPM
5500 RPM
Fuel injection
Direct Injection
Compare all engines

Ford Ranger generations

Ranger 1.Generation
1999 - 2002
Length5012 mm
Height1615 mm
Wheelbase2985 mm
Length5012 mm
Ranger Ranger 1. Generation (1. Facelift)
2002 - 2006
Length5012 mm
Height1615 mm
Wheelbase2985 mm
Length5012 mm
Ranger 2.Generation
2007 - 2009
Length5075 mm
Height1744 mm
Wheelbase3000 mm
Length5075 mm (+63 mm)
Body type
Ranger 2.Generation (1. Facelift)
2009 - 2011
Length5075 mm
Height1744 mm
Wheelbase3000 mm
Length5075 mm
Body type
Ranger Ranger 3. Generation
2011 - 2015
Length5274 mm
Height1703 mm
Wheelbase3220 mm
Length5274 mm (+199 mm)
Ranger Ranger 3. Generation (1. Facelift)
2016 - 2019
Length5277 mm
Height1703 mm
Wheelbase3220 mm
Length5277 mm (+3 mm)
Ranger Ranger 3. Generation (2. Facelift)
2019 - 2023
Length5282 mm
Height1800 mm
Wheelbase3220 mm
Length5282 mm (+5 mm)
Ranger Ranger 4. Generation
2022 - Now
Length5370 mm
Height1884 mm
Wheelbase3270 mm
Length5370 mm (+88 mm)
Compare all generations

1903
1903
Ford founded
1999
1999
1.Generation was introduced.
2002
2002
Ranger 1. Generation (1. Facelift) was introduced and replaced 1.Generation.
2006
2006
Ranger 1. Generation (1. Facelift) was introduced and replaced 1.Generation.
2007
2007
2.Generation was introduced.
2009
2009
2.Generation (1. Facelift) was introduced and replaced 2.Generation.
2011
2011
Ranger 3. Generation was introduced and replaced 2.Generation (1. Facelift).
2015
2015
Ranger 3. Generation was introduced and replaced 2.Generation (1. Facelift).
2016
2016
Ranger 3. Generation (1. Facelift) was introduced.
2019
2019
Ranger 3. Generation (2. Facelift) was introduced and replaced Ranger 3. Generation (1. Facelift).
2022
2022
Ranger 4. Generation was introduced.
2023
2023
Ranger 4. Generation was introduced.
2022 Ford Ranger pickup truck in vibrant red with prominent grille and off-road design, featuring LED headlights and all-terrain tires, taken from a low angle showcasing its height and robust form.
2022 Ford Ranger modern pickup truck showcasing front grille and side profile with off-road capabilities and technology features
2022 Ford Ranger red pickup truck front view on asphalt with clear sky background, featuring grille, LED headlights, front bumper with tow hooks and skid plate, and Ford logo

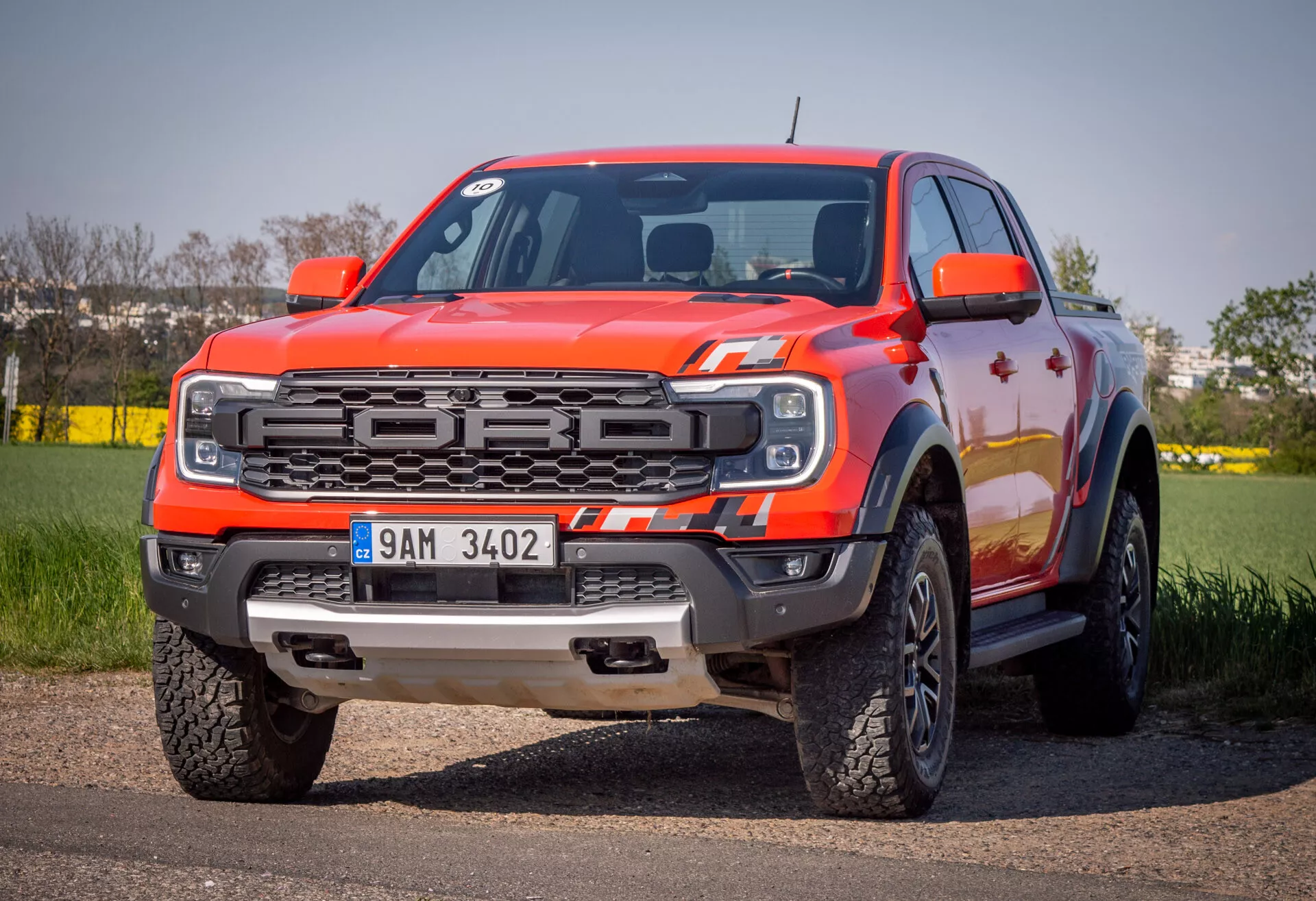

2022 Ford Ranger Raptor in bright orange, showcasing aggressive styling, off-road capabilities with large black wheel rims & deep tread tires, parked on a paved surface beside grass during the day

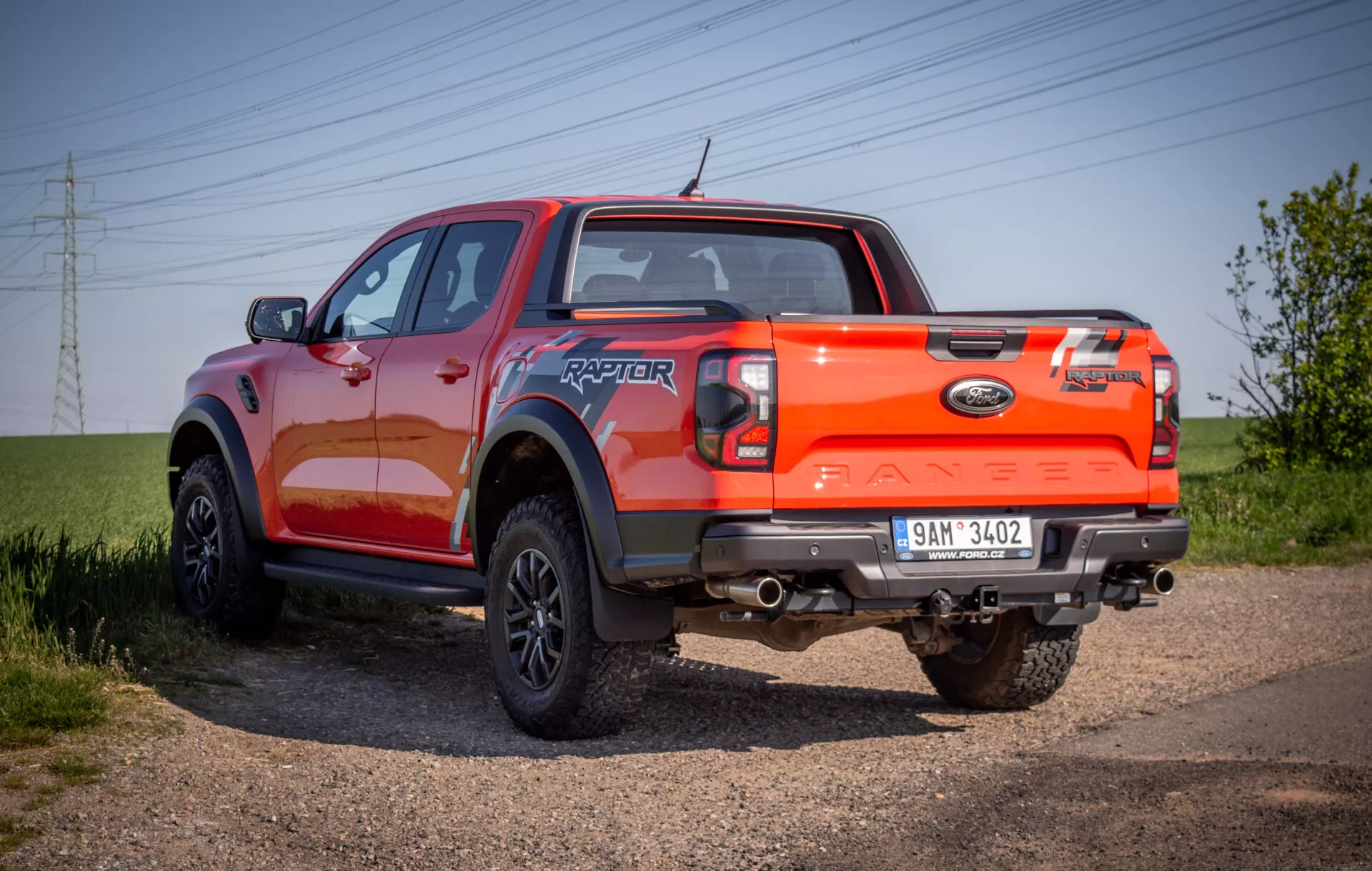

2022 bright orange Ford Raptor pickup truck in a side-rear perspective, outdoors on a field, showcasing its off-road capabilities with high ground clearance, crew-cab, large black wheel arch extensions, multi-spoke black wheels with off-road tires, and rear 'RAPTOR' branding on the tailgate.
2022 Ford Ranger Raptor pickup truck displayed on a gravel path, showcasing its rugged rear three-quarter angle with a focus on off-road capabilities and vibrant orange paint finish.
2022 bright orange Ford Ranger rear view showing full width, taillights, centered 'RANGER' branding, and special edition markings, with chrome bumper featuring parking sensors, low-angle shot on dirt road with clear sky background
2022 Ford Ranger mid-size pickup truck on highway showcasing sleek design and advanced features
Close-up view of a 2022 Ford Ranger pickup truck in red, showcasing the LED headlight, robust grille, muscular front fender with decal, and off-road tire tread pattern from a low angle to emphasize ruggedness and advanced technology
Close-up view of 2022 Ford Ranger front corner showing hexagonal grille, detailed headlight assembly, and contoured hood in red
2022 Ford Ranger front end close-up highlighting hexagonal black grille and modern LED headlight design with red accent stripes on the hood and additional lighting element, showcasing advanced technology and sporty aesthetic

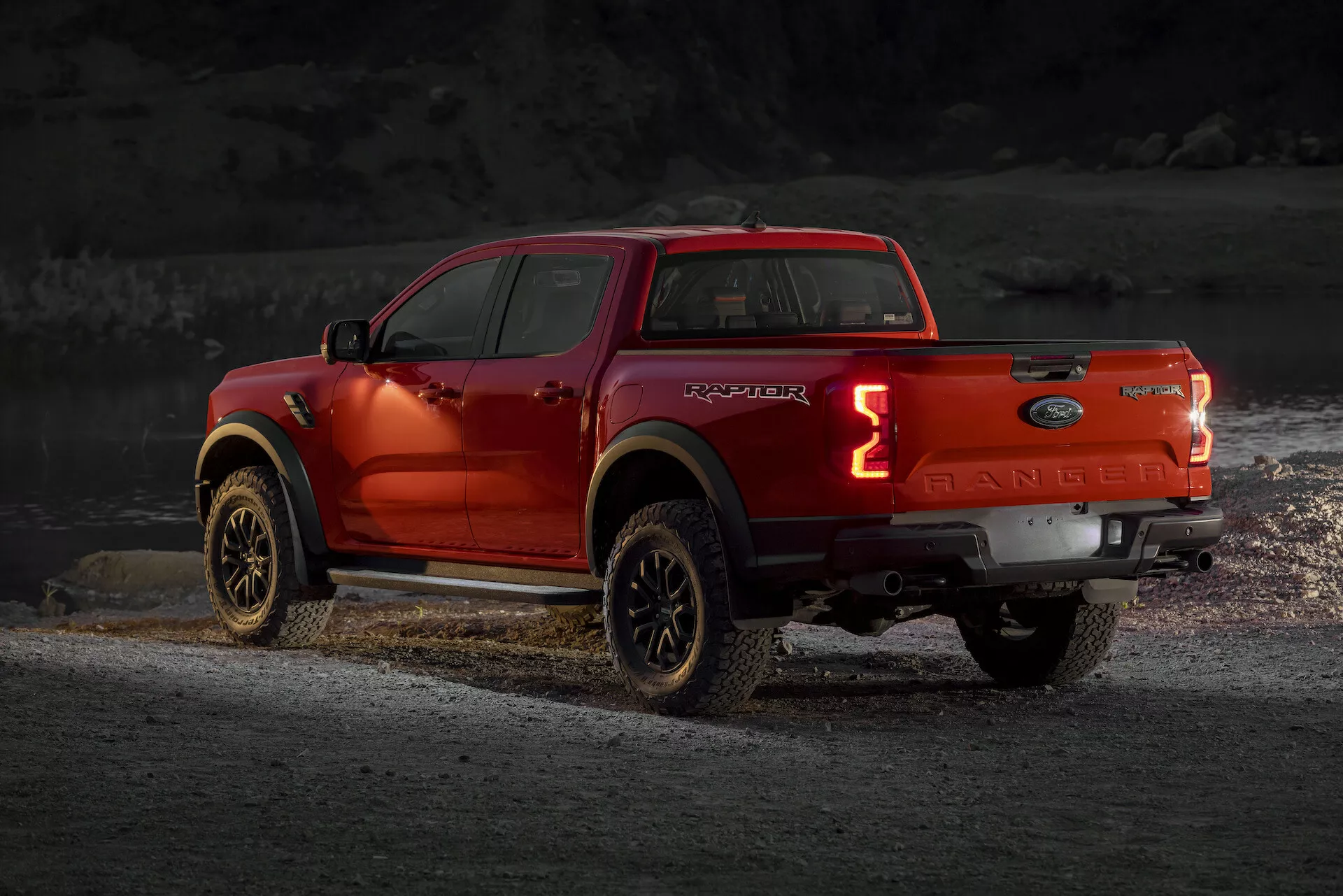

Close-up of the rear corner of a red 2022 Ford Ranger Raptor showing the LED tail light, black rear bumper with grey panel, tow hitch, polished exhaust tip, and all-terrain tire, emphasizing its off-road capabilities and design details.
2022 Ford Ranger wheel close-up, showcasing multi-spoked alloy design, all-terrain tire tread, and section of fender with visible suspension ground clearance
Close-up of 2022 Ford Ranger's rear fender and spoiler with a shiny red finish, featuring a black grille for improved aerodynamics, emphasizing its sporty design under a shallow depth of field

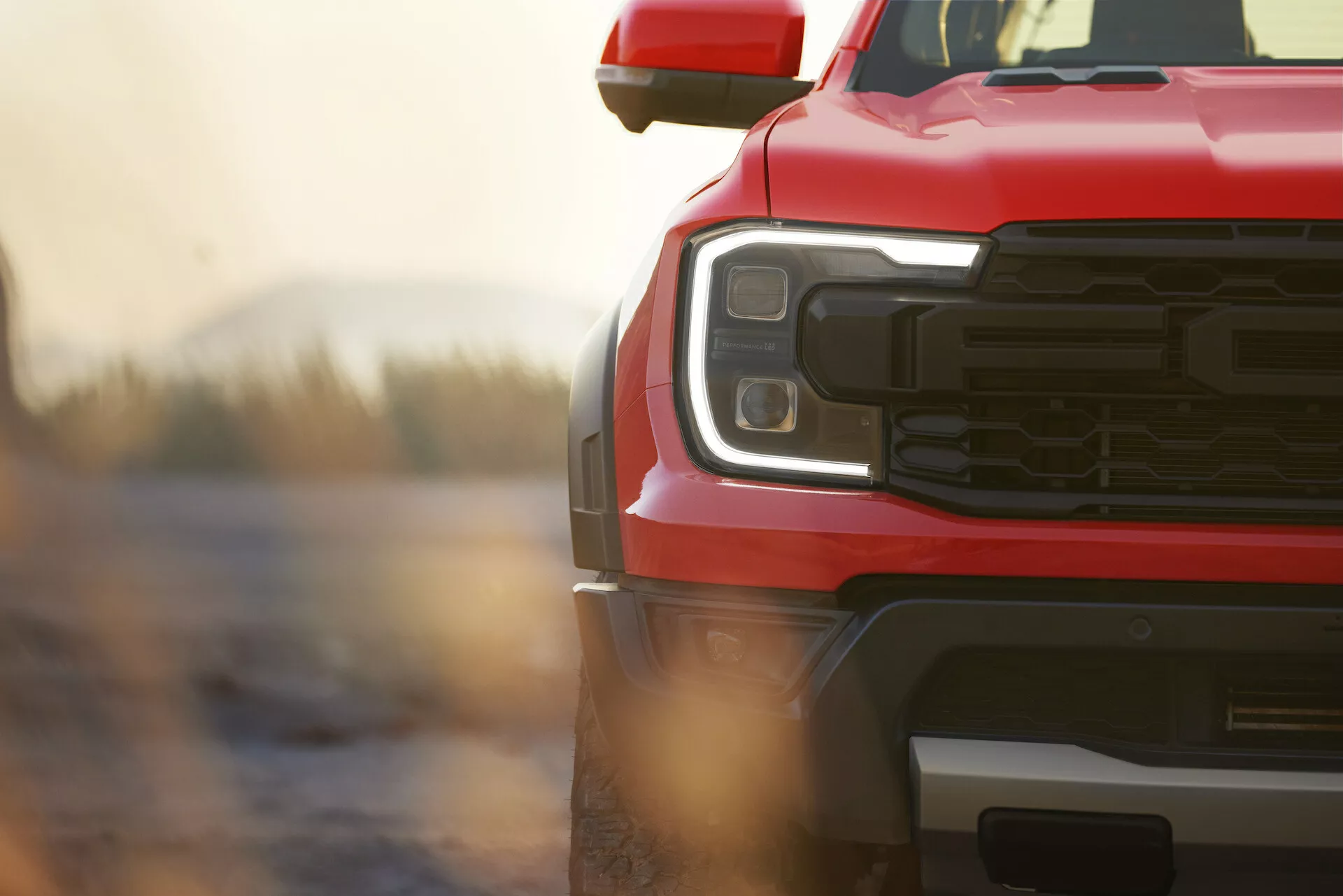

Close-up of 2022 Ford Ranger's front left side highlighting the LED headlight design & honeycomb grille pattern, featuring 'FORD' lettering

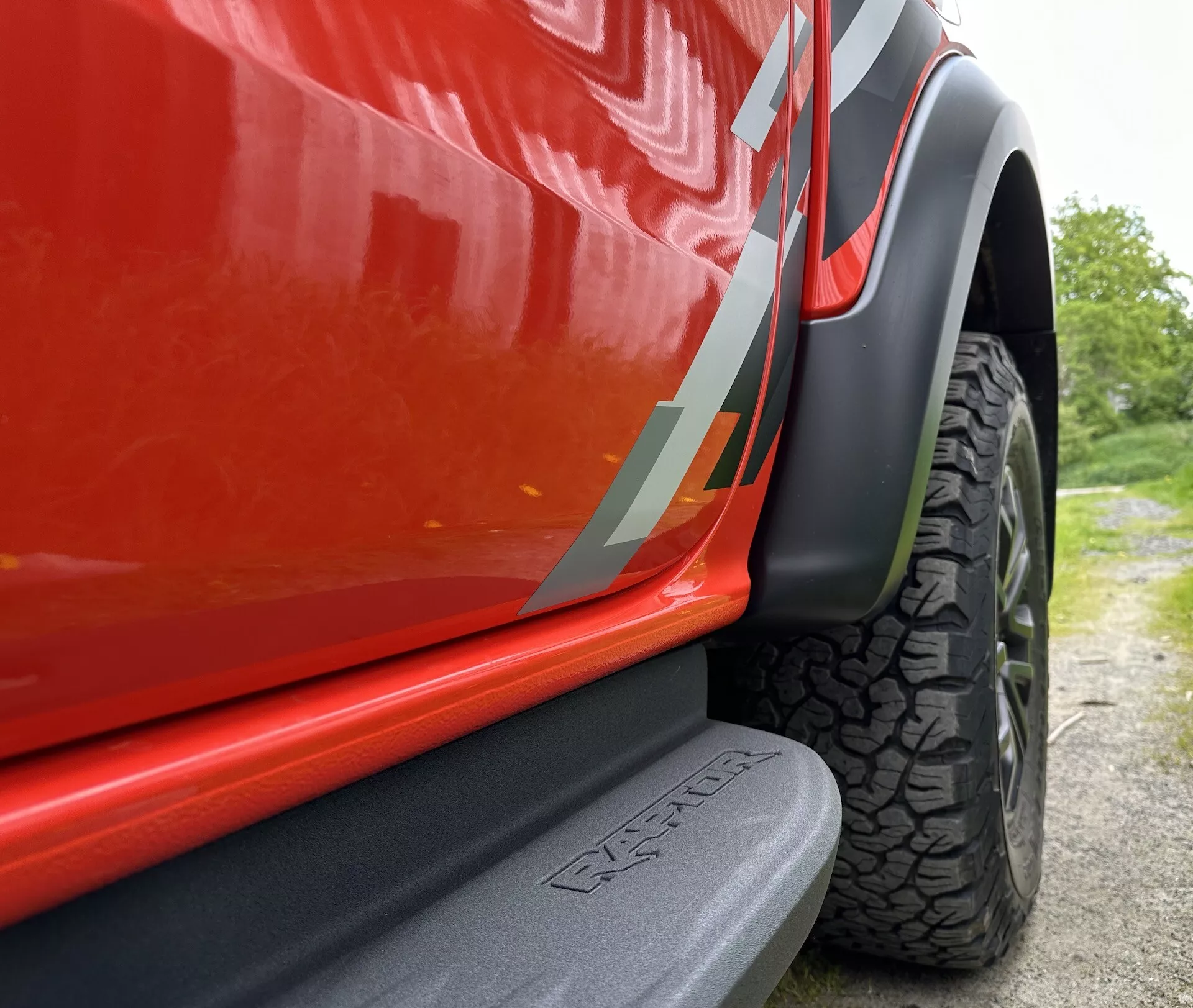

Close-up low-angle view of 2022 Ford Ranger's bright red lower door panel and wheel well, highlighting the matte black side step with embossed logo, sporty door decal, and rugged off-road tire.

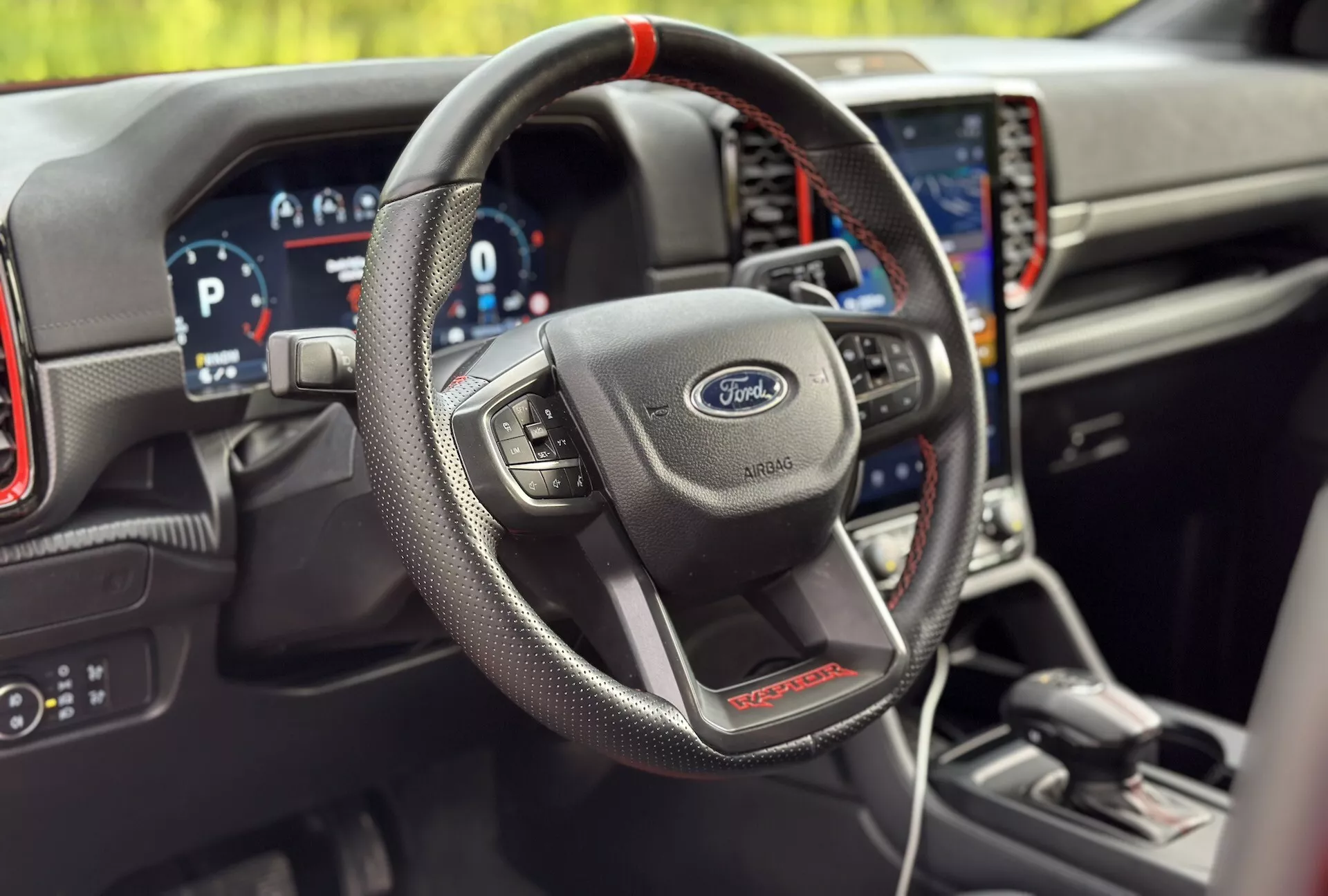

2022 Ford Ranger interior, highlighting leather-wrapped steering wheel with multifunction controls, digital instrument cluster, and integrated navigation system in the ST sporty variant
2022 Ford Ranger interior view focusing on sporty front seats with black and red accent trim, integrated headrest features, and electric seat adjustments from a right-side perspective
Detailed interior view of a 2022 Ford Ranger Raptor focused on the leather-like steering wheel with red stitching and multifunction controls, and the digital instrument cluster showing the vehicle in Park mode.
2022 Ford Ranger digital instrument cluster view from driver's seat showing RPM gauge, fuel gauge, speedometer, temperature display, and gear selection on modern vehicle dashboard

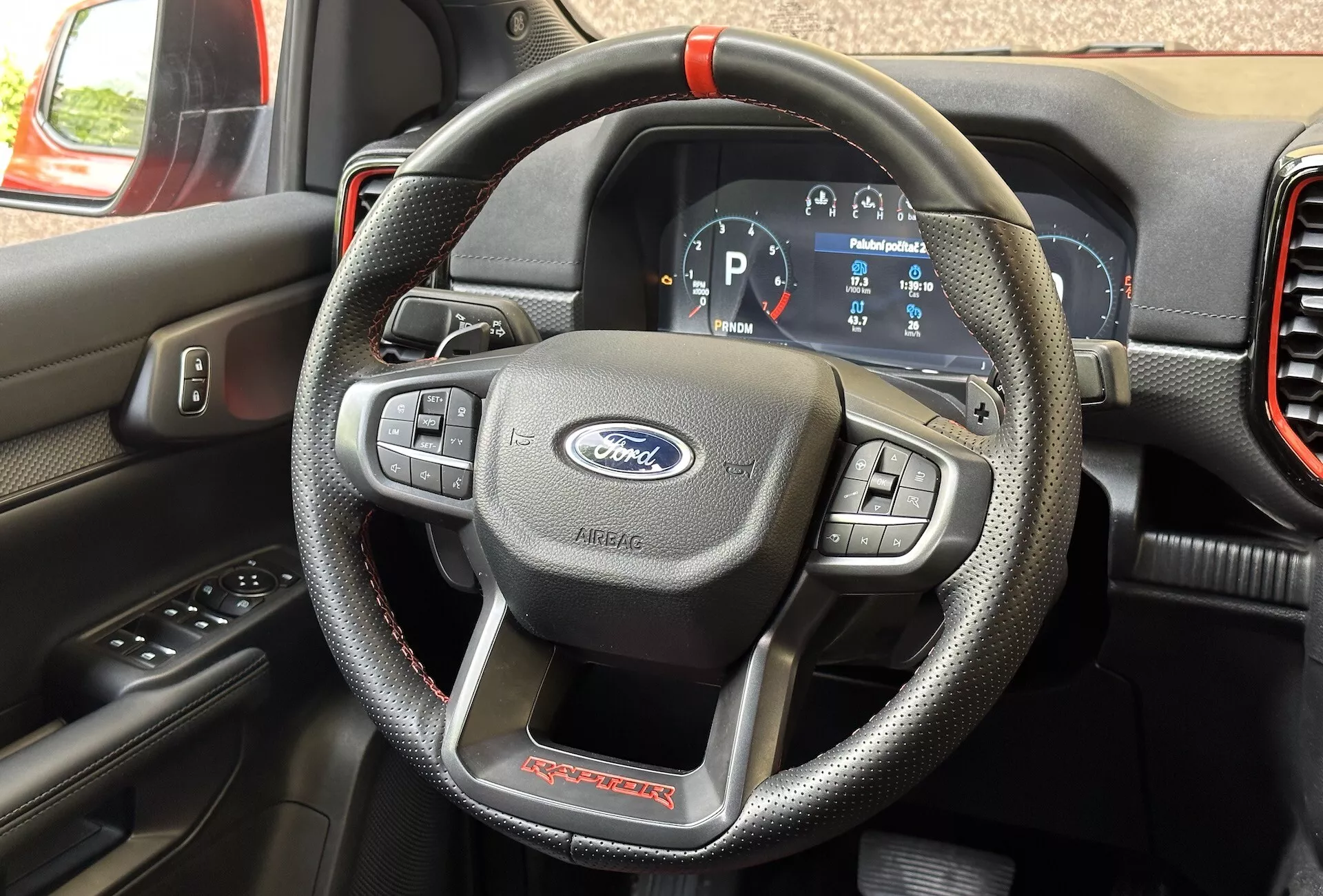

2022 Ford Ranger Raptor interior front view highlighting the leather-wrapped, red-stitched three-spoke steering wheel with Ford logo, digital instrument cluster, modern touchscreen infotainment system in navigation mode, sporty dashboard with red accents, and advanced driver aids for a high-quality, technology-focused driving experience
Close-up view inside a 2022 Ford Ranger, focusing on auxiliary switches labeled AUX1 to AUX6 on the overhead console and the standard rearview mirror from the driver's perspective
Close-up view of the Ford Ranger 2022 drive mode selector dial set on matte black surface, featuring 4L, 4H, 2H, and 4A drive mode options with sharp focus and soft reflection
2022 Ford Ranger's sophisticated center console featuring a large vertical touchscreen infotainment system, climate control knobs, gear shift lever, and luxurious leather finishes
2022 Ford Ranger interior view showing the driver's perspective, featuring a 3-spoke steering wheel with controls, digital instrument cluster, and vertically-oriented touchscreen infotainment system on the dashboard
2022 Ford Ranger interior view from driver's perspective, featuring digital instrument cluster and red-accented left air vent, with a slightly off-center angle towards the steering wheel suggesting turning
2022 Ford Ranger steering wheel close-up emphasizing left side buttons and features, including perforated leather with red stitching, from the driver's perspective in portrait orientation
Close-up view of a Dodge Viper steering wheel showcasing the perforated leather with red stitching and 'Viper' badge, indicating a sporty, luxury car interior.
Close-up of 2022 Ford Ranger's door sill showcasing the 'FORD PERFORMANCE' badge, glossy red exterior, black interior carpet, grey fabric seat with sporty design, and durable black rubber floor mat

Similar cars

VW Nutzfahrzeuge Amarok
VW Nutzfahrzeuge Amarok
2023 • T1
Body type
Pickup Truck
Length
5350 mm
Width
1910 mm
Height
1871 mm
Wheelbase
3270 mm
Weight
2262 kg
Doors
4
Compare
KGM Musso
KGM Musso
2025 • QK
Body type
Pickup Truck
Length
5095 mm
Width
1950 mm
Height
1840 mm
Wheelbase
3100 mm
Weight
2145 kg
Doors
4
Compare
Toyota Hilux
Toyota Hilux
toyota Logo 2020 • AN1P
Body type
Pickup Truck
Length
5325 mm
Width
1800 mm
Height
1795 mm
Wheelbase
3085 mm
Weight
1960 kg
Doors
2
Compare
Isuzu D-Max
Isuzu D-Max
isuzu Logo 2024 • BTF
Body type
Pickup Truck
Length
5280 mm
Width
1870 mm
Height
1790 mm
Wheelbase
3125 mm
Weight
2055 kg
Doors
2
Compare
Maxus T60 MAX
Maxus T60 MAX
2025 • SK8C
Body type
Pickup Truck
Length
5395 mm
Width
1960 mm
Height
1870 mm
Wheelbase
3155 mm
Weight
2275 kg
Doors
4
Compare
Maxus eTERRON 9
Maxus eTERRON 9
2025 • EKK1C
Body type
Pickup Truck
Length
5500 mm
Width
1997 mm
Height
1860 mm
Wheelbase
3300 mm
Weight
2925 kg
Doors
4
Compare
Maxus T90 EV
Maxus T90 EV
2023 • SK8C
Body type
Pickup Truck
Length
5365 mm
Width
1900 mm
Height
1809 mm
Wheelbase
3155 mm
Weight
2375 kg
Doors
4
Compare
Fiat Scudo
Fiat Scudo
fiat Logo 2024 • Typ 507
Body type
Van
Length
4980 mm
Width
1920 mm
Height
1895 mm
Wheelbase
3275 mm
Weight
1791 kg
Doors
4
Compare
Ford Transit
Ford Transit
ford Logo 2019 • F*D
Body type
Bus
Length
5531 mm
Width
2059 mm
Height
2533 mm
Wheelbase
3300 mm
Weight
2311 kg
Doors
4
Compare
Toyota Proace
Toyota Proace
toyota Logo 2024 • V
Body type
Bus
Length
4983 mm
Width
1920 mm
Height
1890 mm
Wheelbase
3275 mm
Weight
1835 kg
Doors
4
Compare
Citroen Holidays
Citroen Holidays
citroen Logo 2024 • V
Body type
Motorhome
Length
4981 mm
Width
2010 mm
Height
1990 mm
Wheelbase
3275 mm
Weight
2235 kg
Doors
5
Compare
Opel Movano
Opel Movano
opel Logo 2024 • Y
Body type
Van
Length
5413 mm
Width
2050 mm
Height
2254 mm
Wheelbase
3450 mm
Weight
2075 kg
Doors
4
Compare
Peugeot Boxer
Peugeot Boxer
peugeot Logo 2024 • Y*
Body type
Van
Length
5413 mm
Width
2050 mm
Height
2254 mm
Wheelbase
3450 mm
Weight
2100 kg
Doors
4
Compare
Compare against all competitors

Compare with ...

Find the Perfect Match
Compare your car with other models
Comparing with:

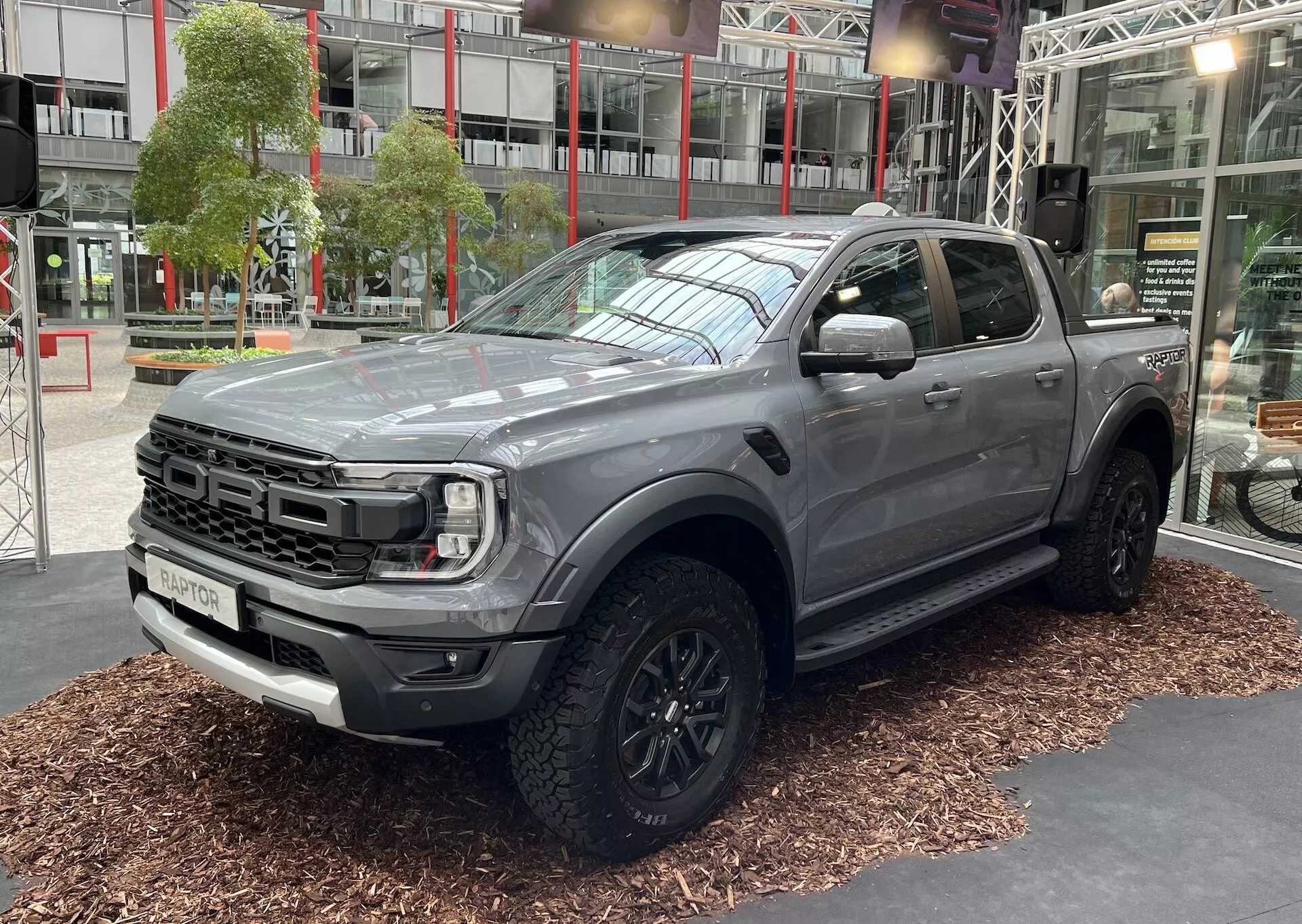

Ford Ranger (2022)

TOPlist echo ''; // Add smooth scrolling JS for the generations and variants containers echo '';
