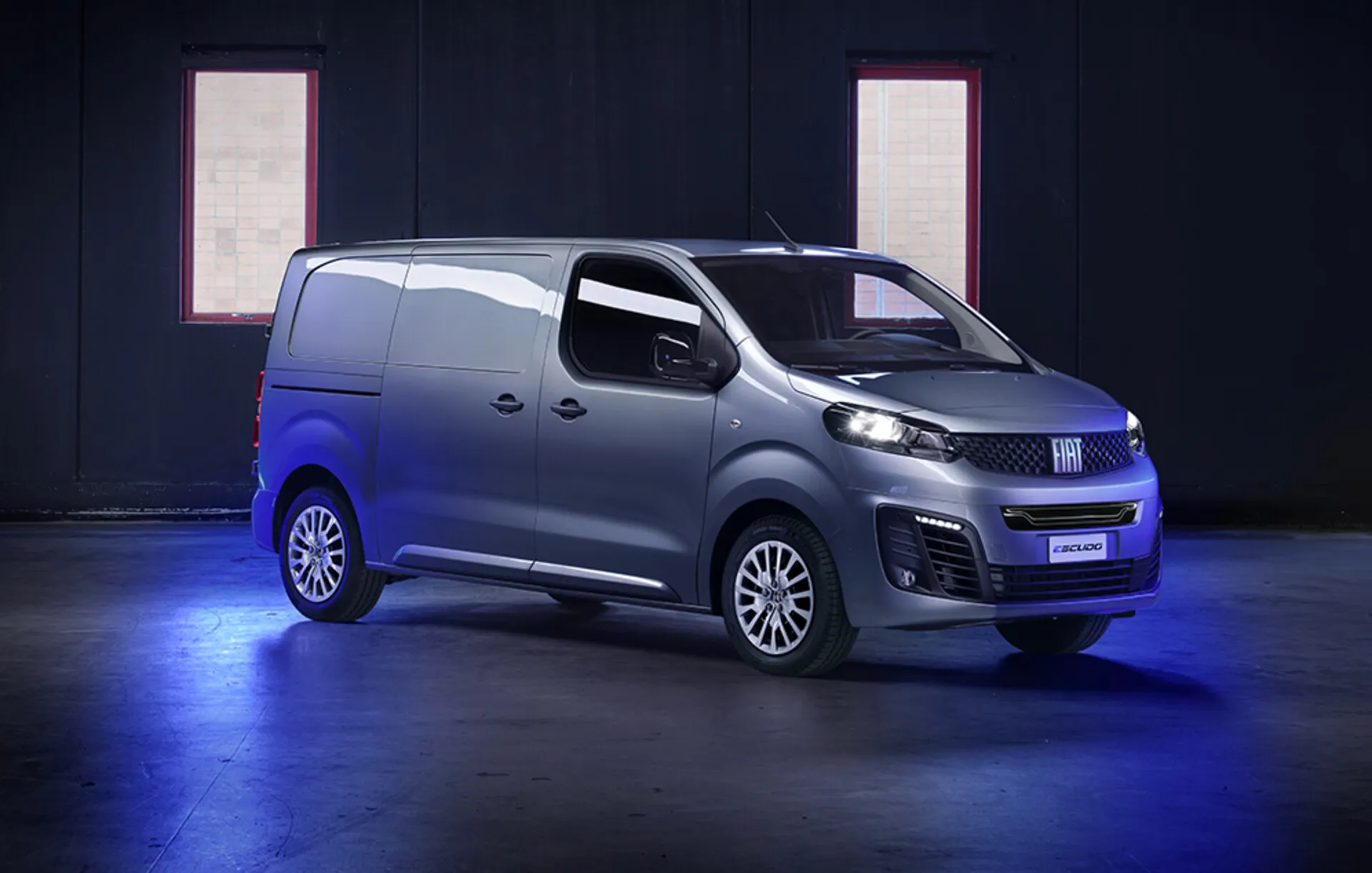

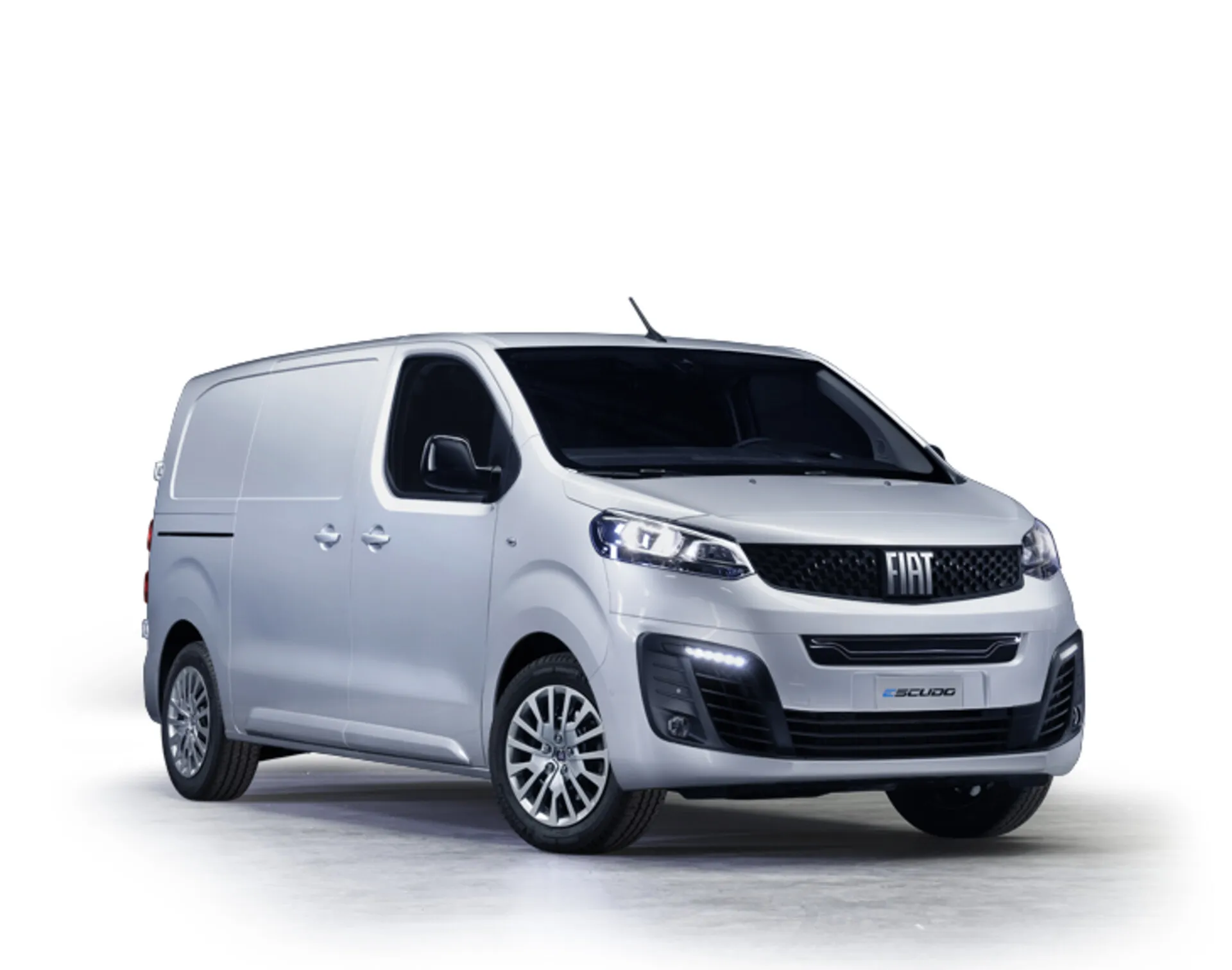

Fiat Scudo -VAN (2022 - 2024)

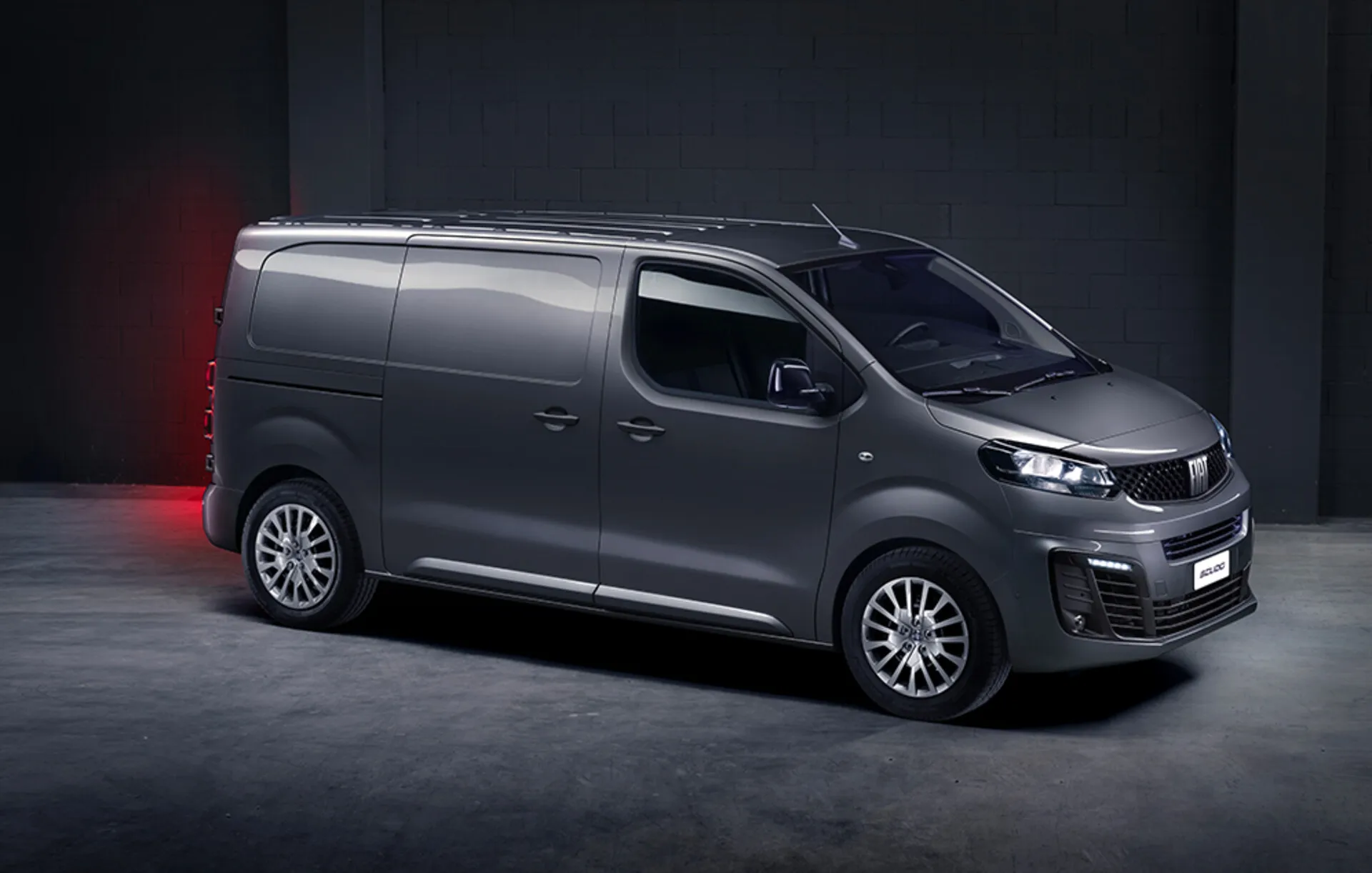

Thumbnail 1
Table of contents:

Model specs

Model info

Model name
Fiat Scudo -VAN
Generation
507
Production years
2022 - 2024
Generation name
507
  • fiat LogoFiat Scudo (This) 507
    507.0
Doors
4
4

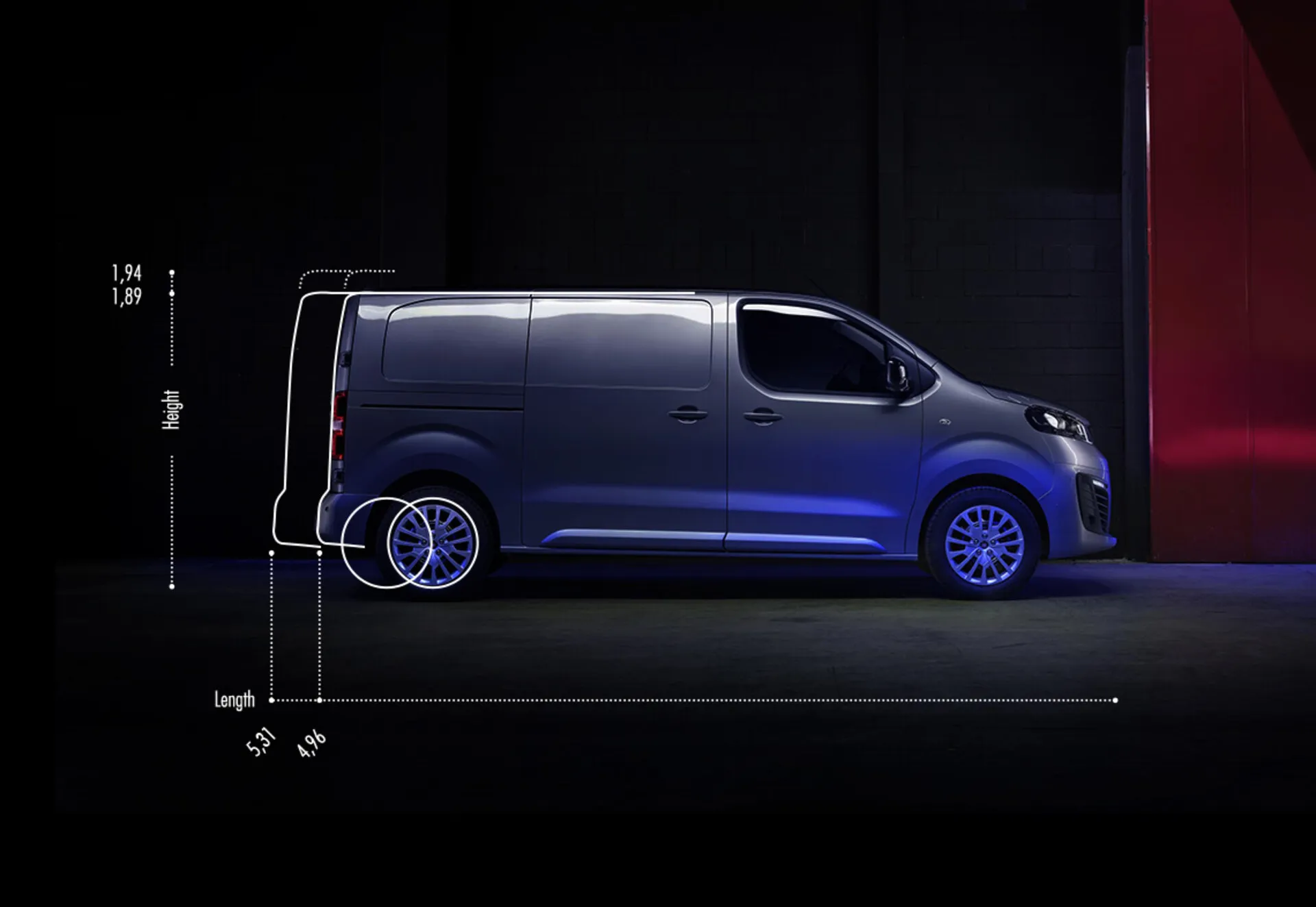

Dimensions

Length
4609 mm
4,403.0
Avg
5,995.0
Higher is better
Wheelbase
2925 mm
2,755.0
Avg
3,182.0
Higher is better
Width
1920 mm
1,780.0
Avg
2,070.0
Higher is better
Height
1892 mm
1,795.0
Avg
2,590.0
Higher is better
Turning circle
11 m
10.0
Avg
12.0
Lower is better

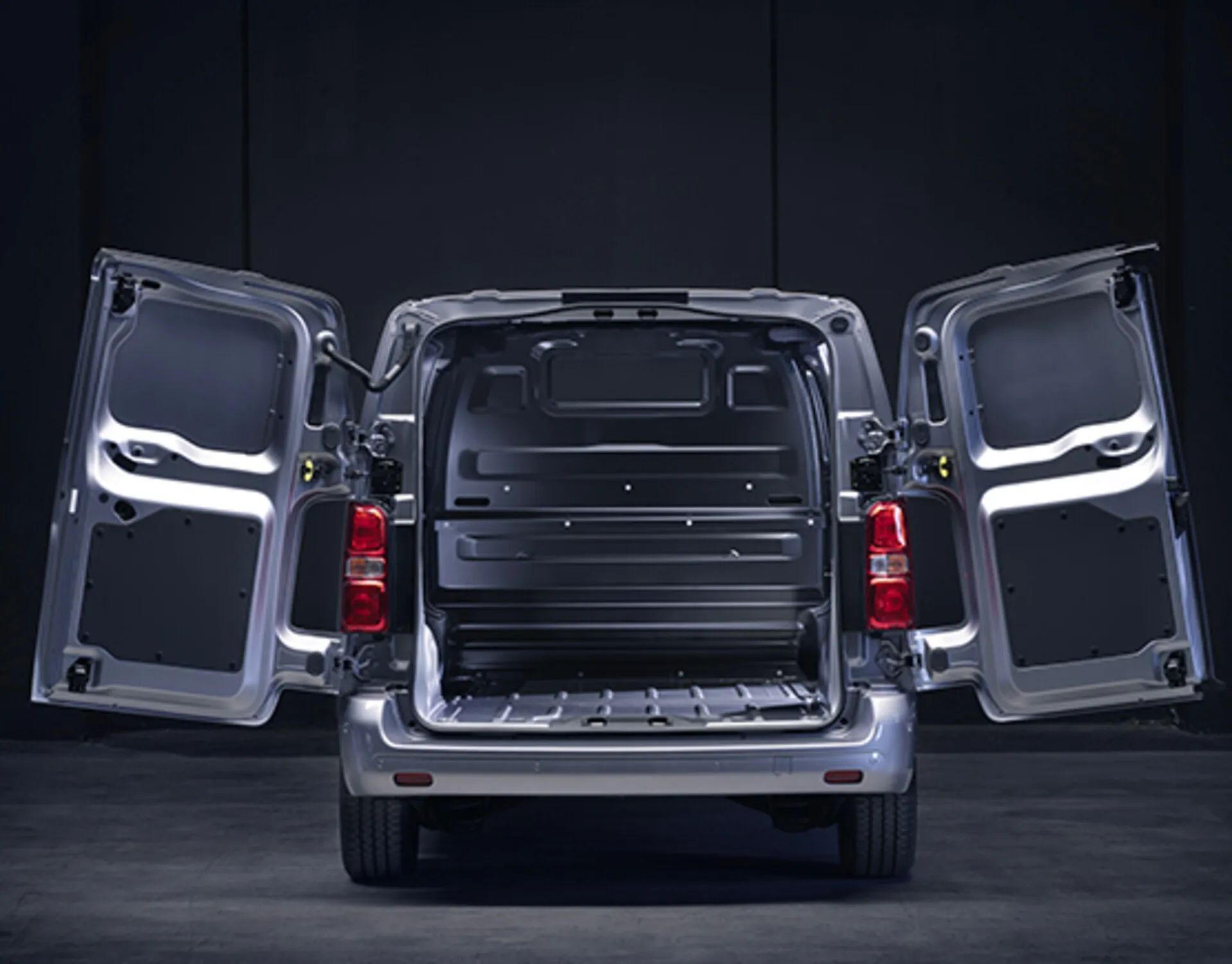

Boot/interior

Boot space (rear seats folded, bottom to roof)
5100 l
3,100.0
Avg
12,000.0
Higher is better
Seats
2
2
Max. seats
3
3
Doors
4
4

Engines/drivetrain

Cylinders
4
3.0
Avg
4.0
Higher is better
Max. speed
160 km/h
100.0
Avg
175.0
Higher is better
Torque
300 Nm
205.0
Avg
400.0
Higher is better
Power
74 - 132 kW
74.0
Avg
150.0
Higher is better
Cubic capacity
1499 - 2000 ccm
1,199.0
Avg
2,393.0
Higher is better

Consumption/ecology

Tank size
70 l
50.0
Avg
80.0
Higher is better
Combined consumption (WLTP)
6 - 7 l/100km
6.0
Avg
27.0
Higher is better
CO2 emissions (WLTP)
170 - 205 g/km
152.0
Avg
250.0
Higher is better
Empty weight (EU)
1616 - 1845 kg
1,284.0
Avg
2,700.0
Higher is better

Towing

Trailer (no brakes)
750 kg
670.0
Avg
750.0
Higher is better

Engines (Scudo -VAN)

Diesel
MAN FWD
-VAN L1 1.5 Multijet 100
Engine & Power
Power
74 kW / 101 HP
Capacity
1.5L (1,500 ccm)
Cylinders
4
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
170 g/km
Technical Details
Fuel injection
Common Rail
Engine type
Turbocharged
Diesel
MAN FWD
-VAN L1 1.5 Multijet 120
Engine & Power
Power
88 kW / 120 HP
Capacity
1.5L (1,499 ccm)
Cylinders
4
Performance
Max. speed
160 km/h
Torque & RPM
Torque
300 Nm
Consumption
Combined consumption (WLTP)
6 l/100km
Emissions
CO2 emissions (WLTP)
173 g/km
Maximum torque at RPM
1750 RPM
Technical Details
Maximum output at RPM
3500 RPM
Fuel injection
Common Rail
Diesel
MAN FWD
-VAN L1 2.0 Multijet 145
Engine & Power
Power
107 kW / 146 HP
Capacity
2.0L (2,000 ccm)
Cylinders
4
Consumption
Combined consumption (WLTP)
7 l/100km
Emissions
CO2 emissions (WLTP)
198 g/km
Technical Details
Fuel injection
Common Rail
Engine type
Turbocharged
Diesel
AUT FWD
-VAN L3 2.0 Multijet 145 -automatic
Engine & Power
Power
107 kW / 146 HP
Capacity
2.0L (2,000 ccm)
Cylinders
4
Consumption
Combined consumption (WLTP)
7 l/100km
Emissions
CO2 emissions (WLTP)
198 g/km
Technical Details
Fuel injection
Common Rail
Engine type
Turbocharged
Diesel
AUT FWD
-VAN L2 2.0 Multijet 180 -automatic
Engine & Power
Power
132 kW / 180 HP
Capacity
2.0L (2,000 ccm)
Cylinders
4
Consumption
Combined consumption (WLTP)
7 l/100km
Emissions
CO2 emissions (WLTP)
190 g/km
Technical Details
Fuel injection
Common Rail
Engine type
Turbocharged
Compare all engines

Fiat Scudo -VAN generations

Body type
Scudo 222
1996 - 2000
Length4440 mm
Height1940 mm
Wheelbase2824 mm
Length4440 mm
Body type
Scudo 222 (1. Facelift)
1998 - 2004
Length4440 mm
Height1927 mm
Wheelbase2824 mm
Length4440 mm
Body type
Scudo 222 (2. Facelift)
2004 - 2006
Length4575 mm
Height1927 mm
Wheelbase2824 mm
Length4575 mm (+135 mm)
Body type
Scudo 270
2007 - 2016
Length4805 mm
Height1880 mm
Wheelbase3000 mm
Length4805 mm (+230 mm)
Scudo Scudo 507
2022 - 2024
Length4609 mm
Height1892 mm
Wheelbase2925 mm
Length4609 mm (-196 mm)
Scudo Scudo 507 (1. Facelift)
2024 - Now
Length4980 mm
Height1895 mm
Wheelbase3275 mm
Length4980 mm (+371 mm)
Compare all generations
