Toyota RAV4
Specs, engines, generations

Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Table of contents:

Variants

SUV
RAV4
BodySUV
Length4600 mm
Height1685 mm
Doors5
Boot space580 l
SUV
RAV4 Plug-In Hybrid
BodySUV
Length4600 mm
Height1685 mm
Doors5
Boot space520 l

Model specs

Model info

Model name
Toyota RAV4
Generation
XA5
Production years
2019 - Present
Doors
5
5

Dimensions

Length
4600 mm
4,350.0
Avg
4,614.0
Higher is better
Wheelbase
2690 mm
2,638.0
Avg
2,730.0
Higher is better
Width
1855 mm
1,795.0
Avg
1,883.0
Higher is better
Height
1685 mm
1,483.0
Avg
1,688.0
Higher is better
Ground clearance
195 mm
160.0
Avg
230.0
Higher is better
Turning circle
11 m
10.0
Avg
11.0
Lower is better
Annotated Image

Boot/interior

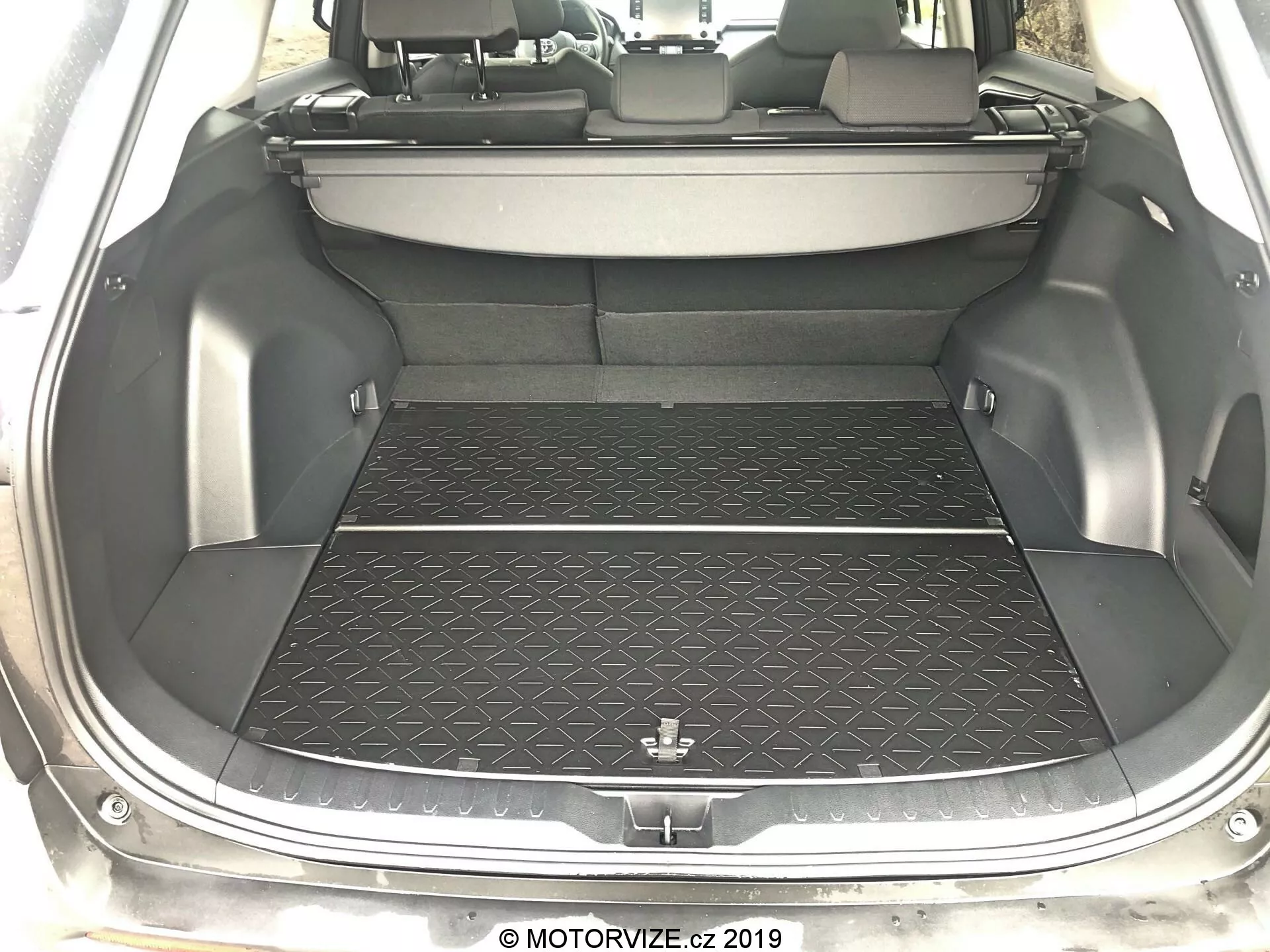

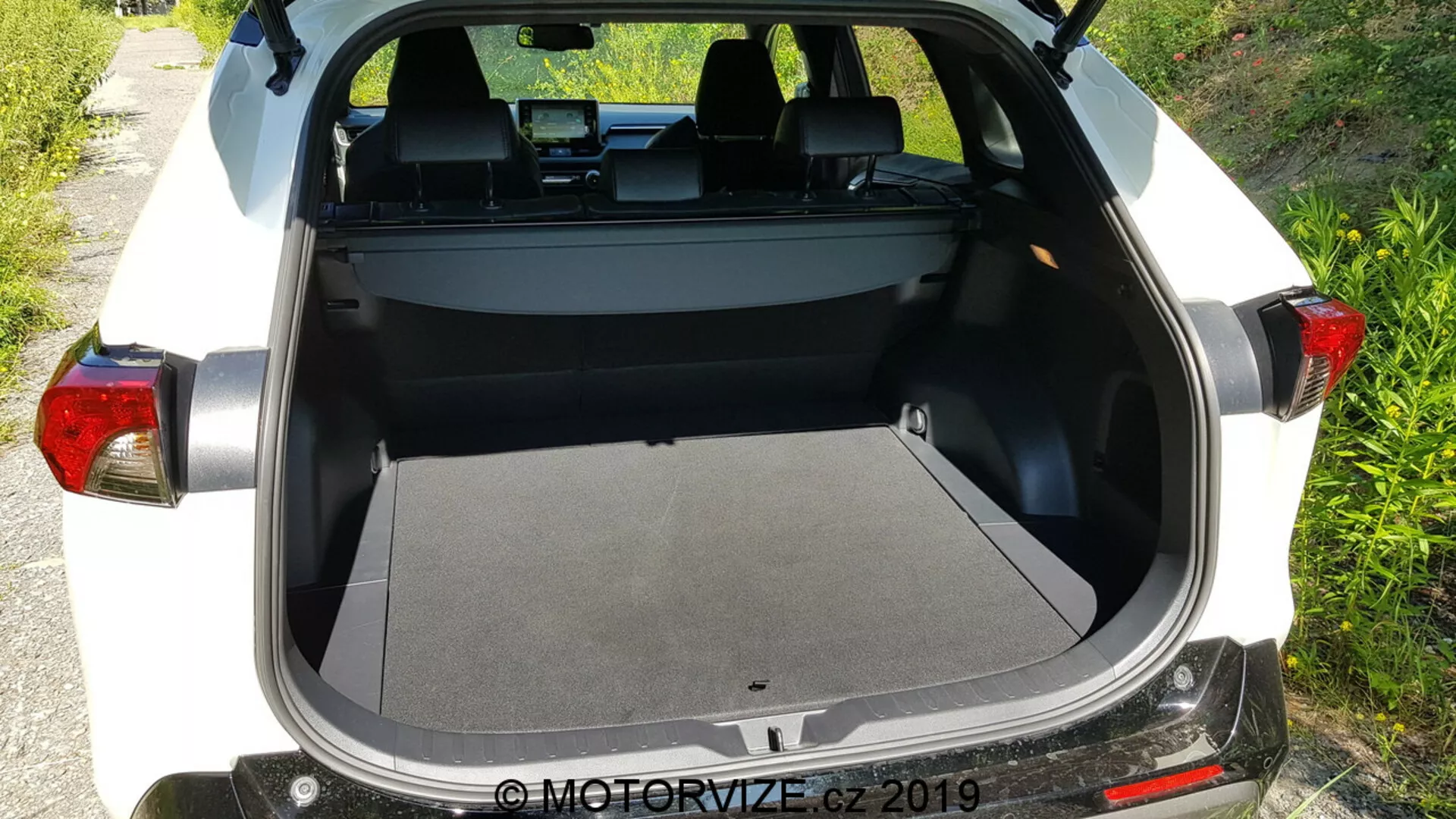

Boot space
580 l
426.0
Avg
591.0
Higher is better
Boot space (rear seats folded, bottom to roof)
1690 l
1,300.0
Avg
1,780.0
Higher is better
Boot space (rear seats folded, bottom to windows)
1189 l
  • toyota LogoToyota RAV4 (This) 1189 l
    1,189.0
Seats
5
5
Doors
5
5

Engines/drivetrain

Cylinders
4
3.0
Avg
4.0
Higher is better
Max. speed
180 - 190 km/h
180.0
Avg
195.0
Higher is better
Torque
208 Nm
172.0
Avg
250.0
Higher is better
Power
129 - 225 kW
81.0
Avg
129.0
Higher is better
Cubic capacity
1987 - 2487 ccm
998.0
Avg
1,998.0
Higher is better
Acceleration 0-100km/h
6 - 9 s
6.0
Avg
11.0
Higher is better

Consumption/ecology

Tank size
55 l
47.0
Avg
55.0
Higher is better
Combined consumption (NEDC)
4 - 6 l/100km
  • toyota LogoToyota RAV4 (This) 4 - 6 l/100km
City consumption (NEDC)
4 - 7 l/100km
  • toyota LogoToyota RAV4 (This) 4 - 7 l/100km
Combined consumption (WLTP)
1 - 5 l/100km
1.0
Avg
6.0
Higher is better
Suburban consumption (WLTP)
4 l/100km
4.0
Avg
6.0
Higher is better
Consumption on highways (WLTP)
6 - 7 l/100km
6.0
Avg
7.0
Higher is better
CO2 emissions (WLTP)
22 - 133 g/km
22.0
Avg
152.0
Higher is better
Empty weight (EU)
1615 - 1910 kg
1,347.0
Avg
1,615.0
Higher is better

Towing

Max. towbar load
70 - 80 kg
65.0
Avg
100.0
Higher is better
Braked trailer
800 - 2000 kg
800.0
Avg
2,000.0
Higher is better
Trailer (no brakes)
750 kg
500.0
Avg
750.0
Higher is better

Offroad

Ramp angle
16 °
16.0
Avg
16.0
Higher is better
Maximum incline
32 °
  • toyota LogoToyota RAV4 (This) 32 °
    32.0
Departure angle
20 °
19.0
Avg
26.0
Higher is better
Approach angle
17 - 18 °
17.0
Avg
19.0
Higher is better
Fording
500 mm
  • toyota LogoToyota RAV4 (This) 500 mm
    500.0

Engines (RAV4)

Gasoline
MAN FWD
2.0 4x2
Engine & Power
Power
129 kW / 175 HP
Capacity
2.0L (1,987 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
9 s
Max. speed
190 km/h
Torque & RPM
Torque
208 Nm
Consumption
Combined consumption (NEDC)
6 l/100km
Maximum torque at RPM
4300 RPM
City consumption (NEDC)
7 l/100km
Technical Details
Maximum output at RPM
6600 RPM
Fuel injection
Injection
Gasoline
AUT FWD
2.5 Hybrid 4x2
Engine & Power
Power
160 kW / 218 HP
Capacity
2.5L (2,487 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
180 km/h
Consumption
Combined consumption (NEDC)
4 l/100km
Torque & RPM
Maximum torque at RPM
3600 RPM
City consumption (NEDC)
4 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Injection
Gasoline
AUT FWD
2.5 Hybrid
Engine & Power
Power
160 kW / 218 HP
Capacity
2.5L (2,487 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
180 km/h
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
126 g/km
Torque & RPM
Maximum torque at RPM
3600 RPM
Consumption on short trips (WLTP)
4 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Injection
Gasoline
AUT AWD
2.5 Hybrid Comfort AWD-i
Engine & Power
Power
163 kW / 222 HP
Capacity
2.5L (2,487 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
180 km/h
Consumption
Combined consumption (NEDC)
4 l/100km
Torque & RPM
Maximum torque at RPM
3600 RPM
City consumption (NEDC)
4 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Injection
Gasoline
AUT AWD
2.5 Hybrid Club AWD-i
Engine & Power
Power
163 kW / 222 HP
Capacity
2.5L (2,487 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
8 s
Max. speed
180 km/h
Consumption
Combined consumption (WLTP)
5 l/100km
Emissions
CO2 emissions (WLTP)
128 g/km
Torque & RPM
Maximum torque at RPM
3600 RPM
Consumption on short trips (WLTP)
5 l/100km
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Injection
Gasoline
AUT AWD
2.5 Plug-in Hybrid AWD-i
Engine & Power
Power
225 kW / 306 HP
Capacity
2.5L (2,487 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
6 s
Max. speed
180 km/h
Consumption
Combined consumption (WLTP)
1 l/100km
Emissions
CO2 emissions (WLTP)
22 g/km
Torque & RPM
Maximum torque at RPM
3200 RPM
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Central and Direct Injection
Gasoline
AUT AWD
2.5 Plug-in Hybrid AWD-i
Engine & Power
Power
225 kW / 306 HP
Capacity
2.5L (2,487 ccm)
Cylinders
4
Performance
Acceleration 0-100km/h
6 s
Max. speed
180 km/h
Consumption
Combined consumption (WLTP)
1 l/100km
Emissions
CO2 emissions (WLTP)
22 g/km
Torque & RPM
Maximum torque at RPM
3200 RPM
Technical Details
Maximum output at RPM
6000 RPM
Fuel injection
Central and Direct Injection
Compare all engines

Toyota RAV4 generations

Body type
RAV4 XA1
1994 - 1998
Length3705 mm
Height1655 mm
Wheelbase2200 mm
Length3705 mm
Body type
RAV4 XA1 (1. Facelift)
1997 - 2000
Length3715 mm
Height1655 mm
Wheelbase2200 mm
Length3715 mm (+10 mm)
RAV4 XA2
2000 - 2003
Length3805 mm
Height1695 mm
Wheelbase2280 mm
Length3805 mm (+90 mm)
RAV4 XA2 (1. Facelift)
2003 - 2006
Length3825 mm
Height1680 mm
Wheelbase2280 mm
Length3825 mm (+20 mm)
RAV4 XA3
2006 - 2009
Length4395 mm
Height1685 mm
Wheelbase2560 mm
Length4395 mm (+570 mm)
RAV4 XA3 (1. Facelift)
2009 - 2010
Length4415 mm
Height1720 mm
Wheelbase2560 mm
Length4415 mm (+20 mm)
RAV4 XA3 (2. Facelift)
2010 - 2013
Length4445 mm
Height1720 mm
Wheelbase2560 mm
Length4445 mm (+30 mm)
RAV4 XA4
2013 - 2016
Length4570 mm
Height1660 mm
Wheelbase2660 mm
Length4570 mm (+125 mm)
RAV4 XA4 (1. Facelift)
2016 - 2018
Length4605 mm
Height1675 mm
Wheelbase2660 mm
Length4605 mm (+35 mm)
RAV4 XA5
2019 - Now
Length4600 mm
Height1685 mm
Wheelbase2690 mm
Length4600 mm (-5 mm)
Compare all generations

1937
1937
Toyota founded
1994
1994
XA1 was introduced.
1997
1997
XA1 (1. Facelift) was introduced.
1998
1998
XA1 (1. Facelift) was introduced.
2000
2000
XA2 was introduced and replaced XA1 (1. Facelift).
2003
2003
XA2 (1. Facelift) was introduced and replaced XA2.
2006
2006
XA3 was introduced and replaced XA2 (1. Facelift).
2009
2009
XA3 (1. Facelift) was introduced and replaced XA3.
2010
2010
XA3 (2. Facelift) was introduced and replaced XA3 (1. Facelift).
2013
2013
XA4 was introduced and replaced XA3 (2. Facelift).
2016
2016
XA4 (1. Facelift) was introduced and replaced XA4.
2018
2018
XA4 (1. Facelift) was introduced and replaced XA4.
2019
2019
XA5 was introduced.
Low-angle three-quarter front view of a Škoda vehicle concept rendering, showcasing the dynamic front grille, sleek headlamps, and sporty side profile against an abstract warm gradient background

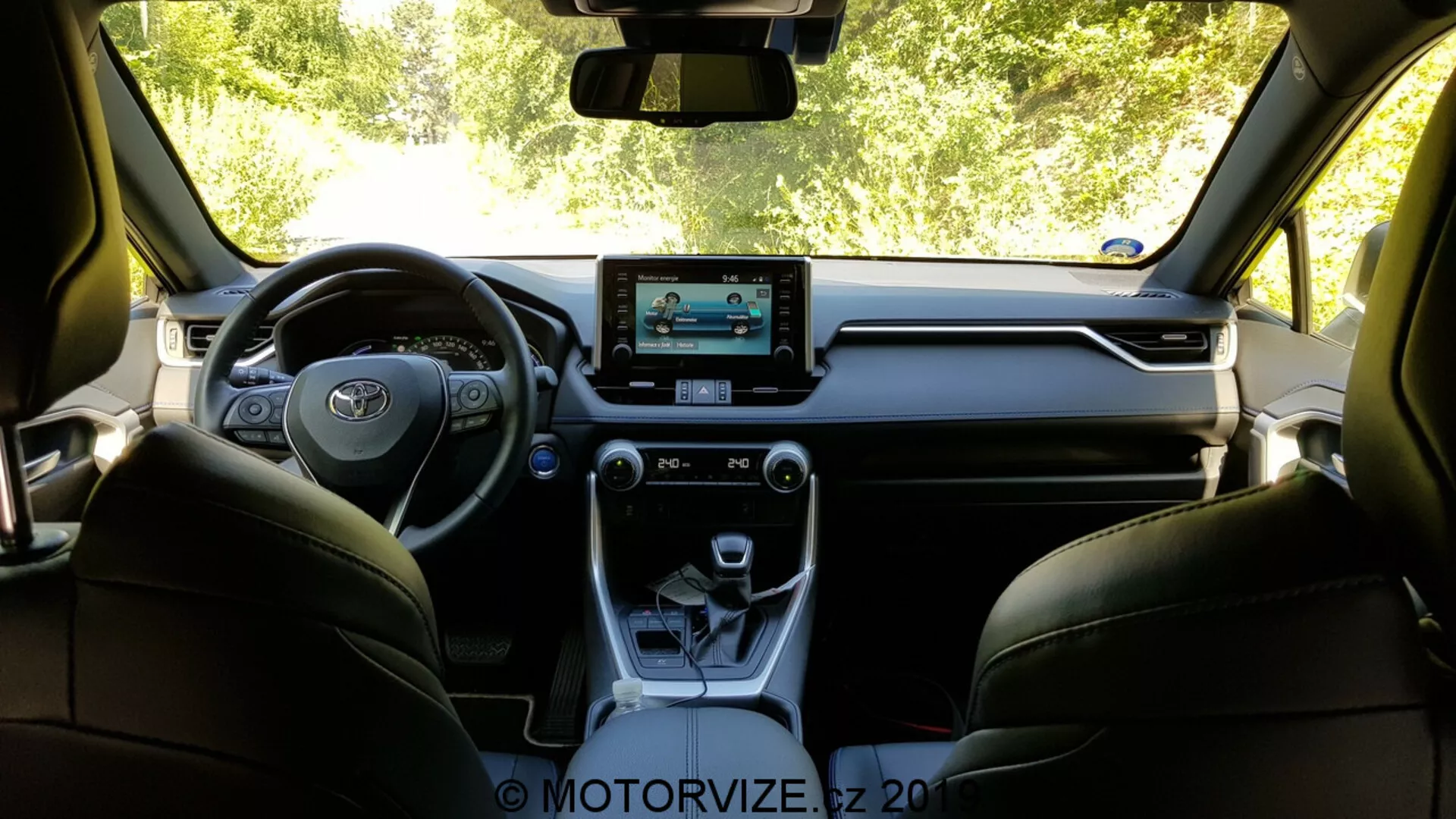

2019 Toyota RAV4 interior view from the backseat, showcasing the modern design and technology features including the steering wheel with control buttons, digital display, touchscreen infotainment system, automatic transmission gear shift, dark upholstered seats, and door panel controls with a scenic snowy mountain landscape visible through the windshield.
Interior view of a 2019 Toyota RAV4 showcasing the spacious rear cabin from a high-angle, highlighting folding second-row seats, extensive cargo space, large tinted windows, modern design with premium materials, panoramic sunroof, advanced lighting, and climate control features

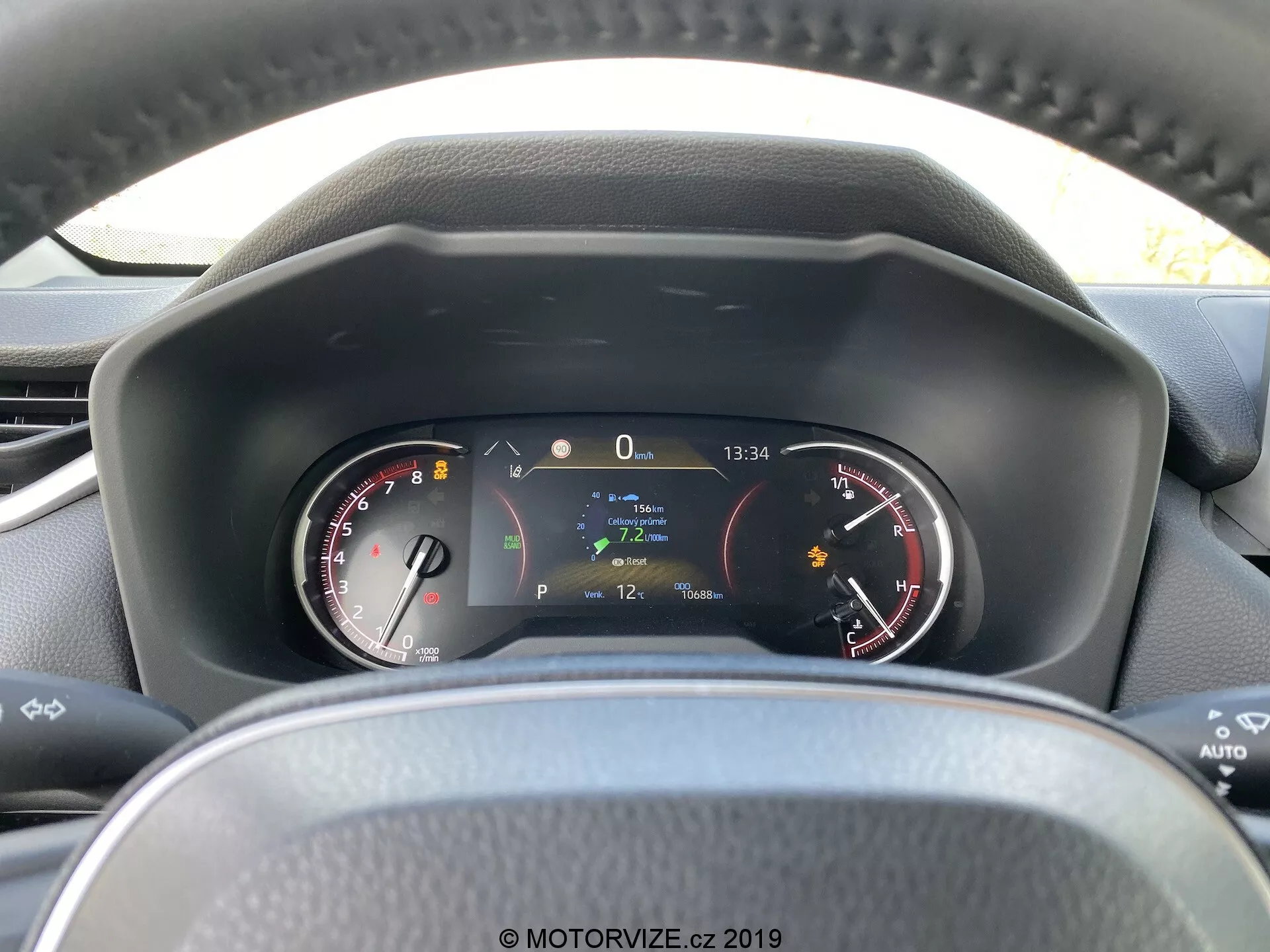

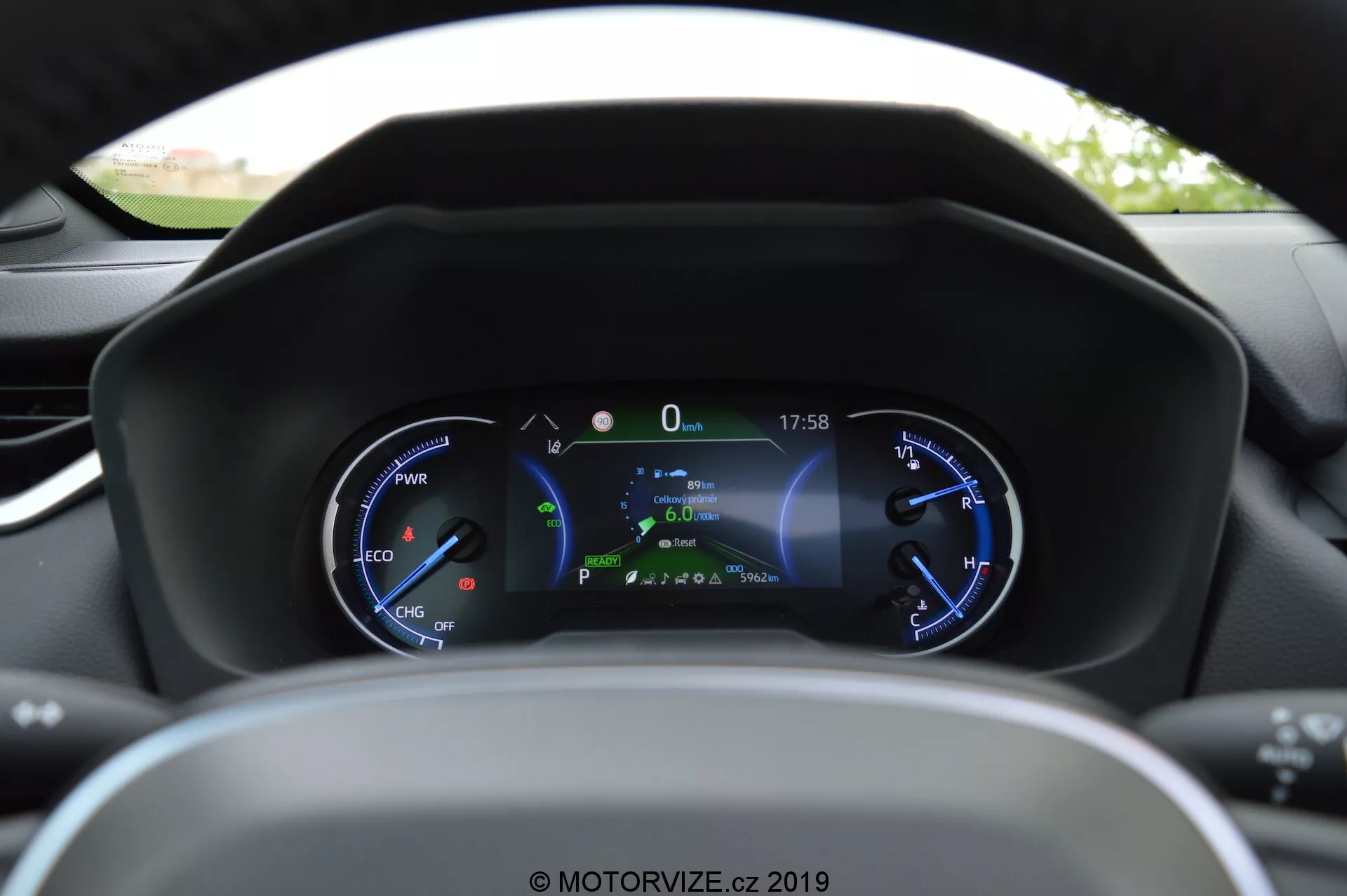

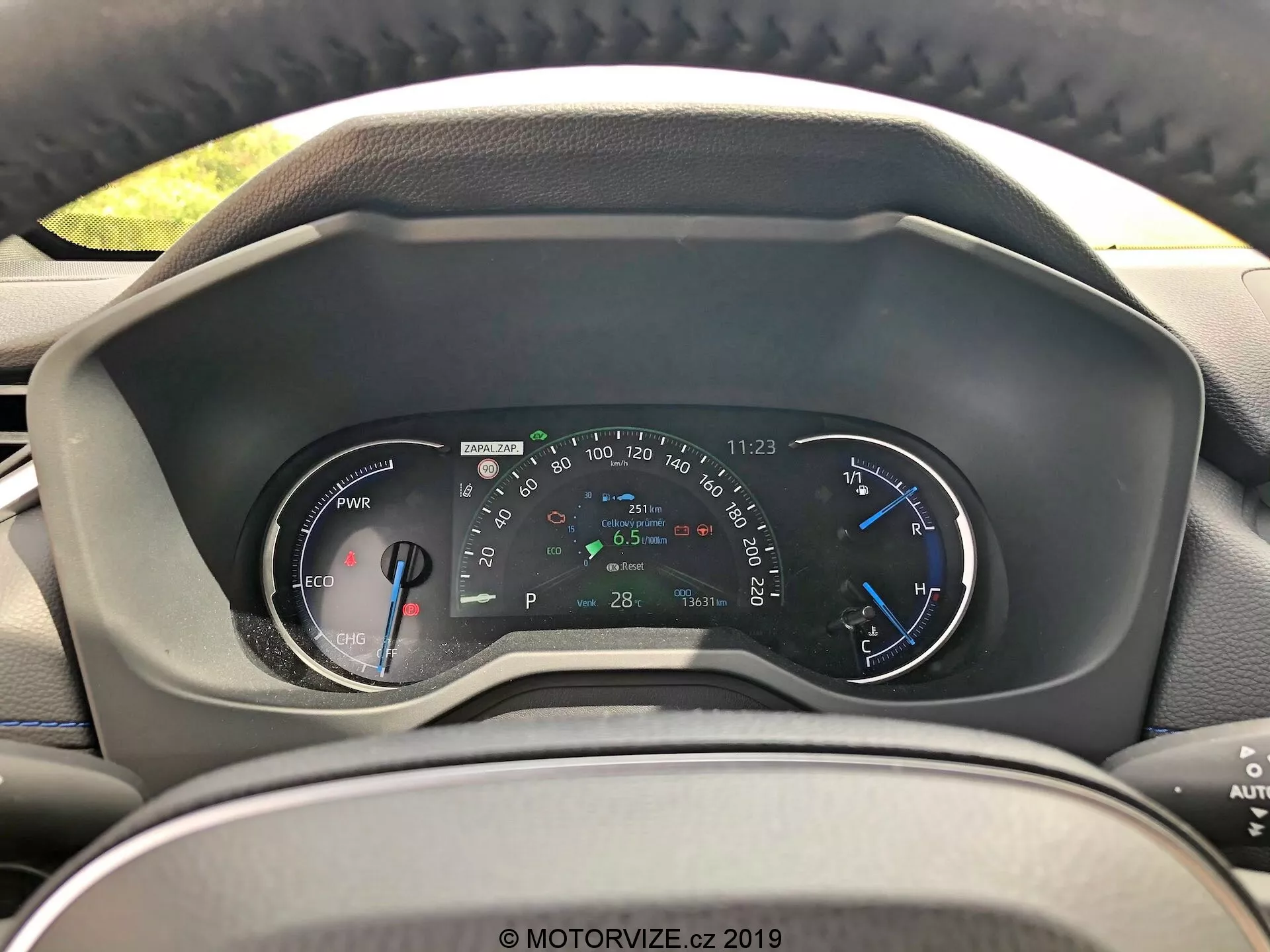

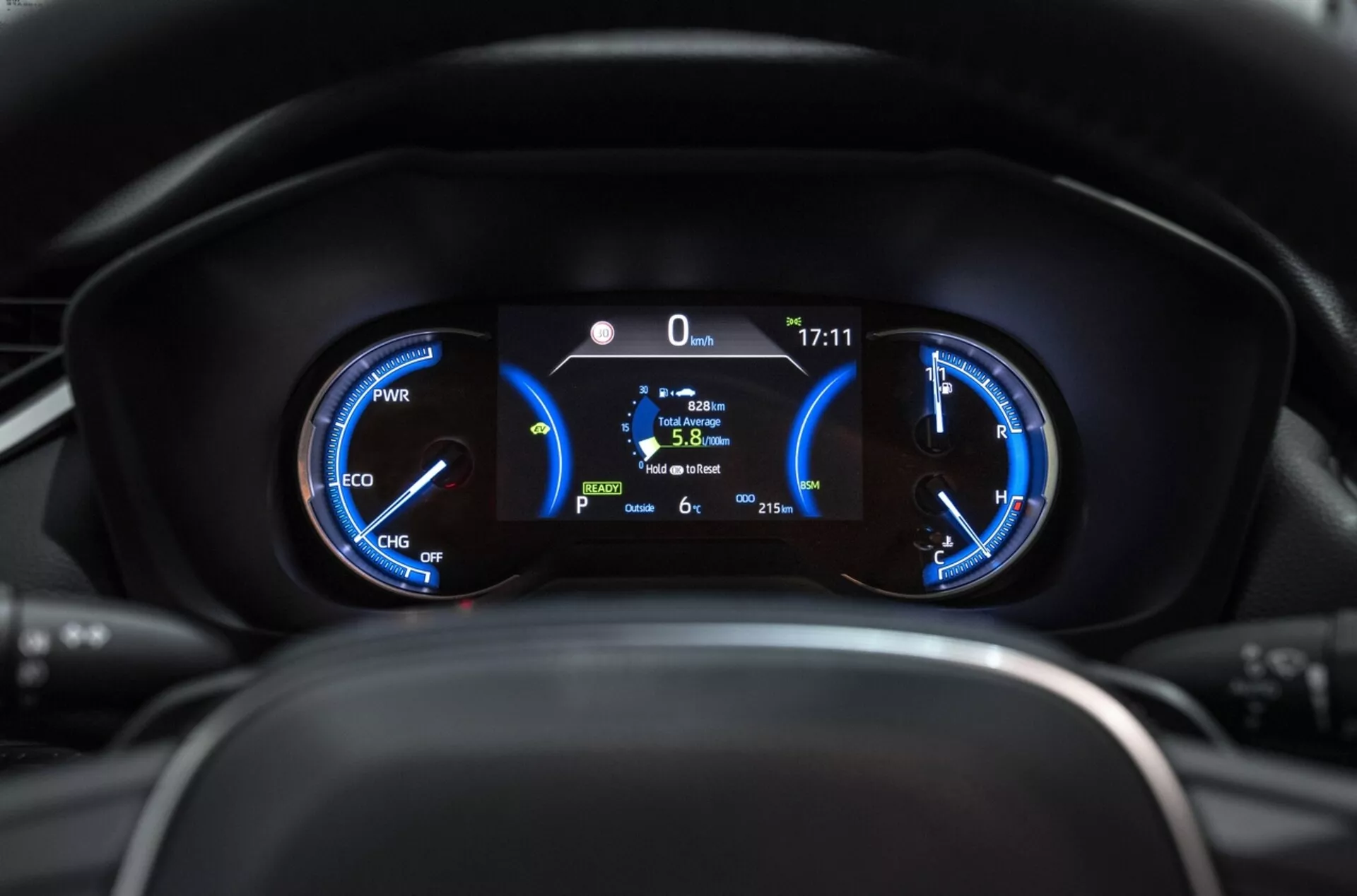

Close-up of Toyota RAV4 2019 instrument cluster showcasing hybrid gauges with power meter, speedometer, and central digital display indicating stationary position, fuel efficiency, and outdoor temperature from the driver's perspective.

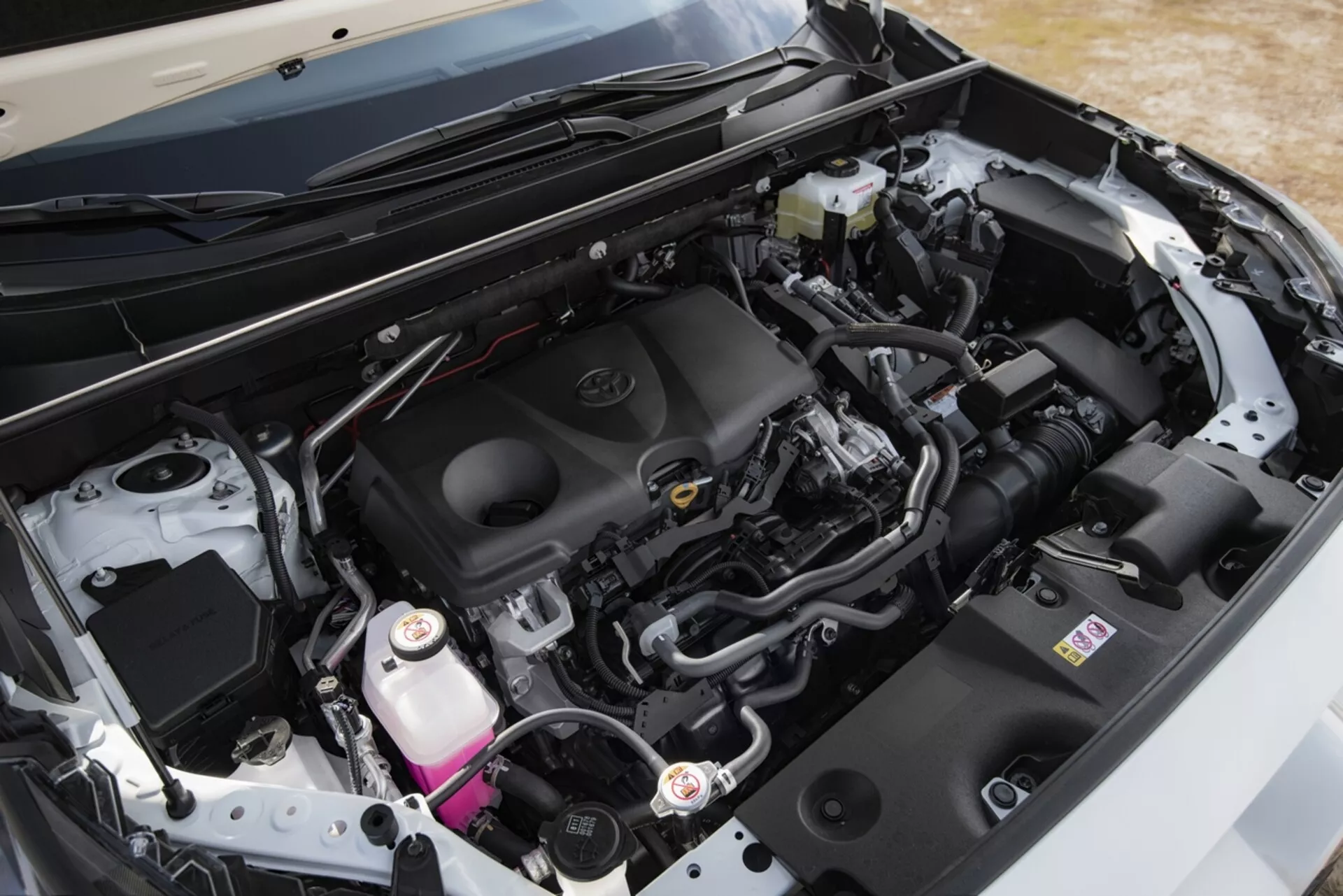

Close-up view of a 2019 Toyota RAV4's engine bay, highlighting the clean, modern design and components such as the engine cover with brand emblem, air intake system, battery, brake fluid reservoir, and coolant reservoir, alongside various pipes and wiring harnesses, under the open hood from an oblique angle.
